AB204236

Anti-TTC19 antibody

Name: Anti-TTC19 antibody (ab204236) | Abcam
Brand: Abcam Limited
SKU: AB204236

Be the first to review this product! Submit a review

(1 Publication)

Rabbit Polyclonal TTC19 antibody. Suitable for IHC-P, ICC, WB and reacts with Human samples. Cited in 1 publication. Immunogen corresponding to Recombinant Fragment Protein within Human TTC19 aa 250 to C-terminus.

View Alternative Names

TPR repeat protein 19, TTC19

3 Images

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-TTC19 antibody (AB204236)

IHC-P

Supplier Data

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-TTC19 antibody (AB204236)

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) analysis of human rectum tissue labelling TTC19 with ab204236 at 1/200 dilution. Heat mediated antigen retrieval performed with citrate buffer pH 6 before commencing with IHC staining protocol.

Supplier Data

Immunocytochemistry - Anti-TTC19 antibody (AB204236)

Immunocytochemistry analysis of U-251 MG (formally U-373 MG) (human brain glioma cell line) cells labelling TTC19 with ab204236 at 2 μg/mL.

Supplier Data

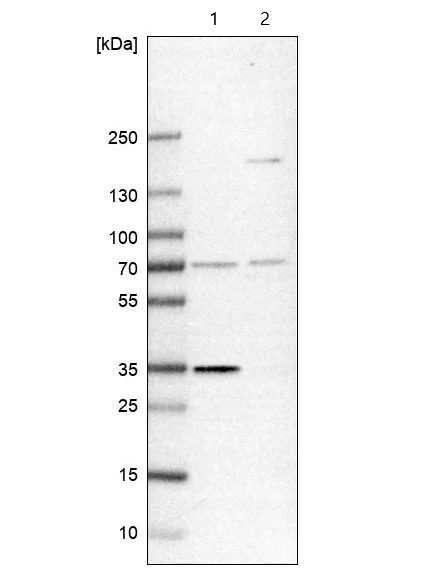

Western blot - Anti-TTC19 antibody (AB204236)

All lanes:

Western blot - Anti-TTC19 antibody (ab204236) at 1/0.4 dilution

Lane 1:

HDLM-2 (Hodgkin lymphoma cell line) whole cell lysate

Lane 2:

U-2 OS (human bone osteosarcoma epithelial cell line) whole cell lysate

Predicted band size: 42 kDa

false

Key facts

Host species

Rabbit

Clonality

Polyclonal

Isotype

IgG

Carrier free

Reacts with

Human

Applications

IHC-P, ICC, WB

applications

Immunogen

Recombinant Fragment Protein within Human TTC19 aa 250 to C-terminus. The exact immunogen used to generate this antibody is proprietary information.

Q6DKK2

style

left-column

Reactivity data

{ "title": "Reactivity Data", "filters": { "stats": ["", "Species", "Dilution Info", "Notes"], "tabs": { "all-applications": {"fullname" : "All Applications", "shortname": "All Applications"}, "IHCP" : {"fullname" : "Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections)", "shortname":"IHC-P"}, "ICC" : {"fullname" : "Immunocytochemistry", "shortname":"ICC"}, "WB" : {"fullname" : "Western blot", "shortname":"WB"} }, "product-promise": { "all": "all", "testedAndGuaranteed": "tested", "guaranteed": "expected", "predicted": "predicted", "notRecommended": "not-recommended" } }, "values": { "Human": { "IHCP-species-checked": "testedAndGuaranteed", "IHCP-species-dilution-info": "1/200 - 1/500", "IHCP-species-notes": " Perform heat-mediated antigen retrieval with citrate buffer pH 6 before commencing with IHC staining protocol.", "ICC-species-checked": "testedAndGuaranteed", "ICC-species-dilution-info": "0.25-2 µg/mL", "ICC-species-notes": "", "WB-species-checked": "testedAndGuaranteed", "WB-species-dilution-info": "0.04-0.4 µg/mL", "WB-species-notes": "" } } }

style

left-column

style

left-column

Properties and storage information

Form

Liquid

Purification technique

Affinity purification Immunogen

Storage buffer

pH: 7.2 Preservative: 0.02% Sodium azide Constituents: PBS, 40% Glycerol (glycerin, glycerine)

Shipped at conditions

Blue Ice

Appropriate short-term storage duration

1-2 weeks

Appropriate short-term storage conditions

+4°C

Appropriate long-term storage conditions

-20°C

Aliquoting information

Upon delivery aliquot

Storage information

Avoid freeze / thaw cycle

style

left-column

Supplementary information

This supplementary information is collated from multiple sources and compiled automatically.

TTC19 also known as Tetratricopeptide Repeat Domain 19 operates mechanically as a nuclear-encoded mitochondrial protein involved in mitoribosome assembly and function. This protein has a mass of approximately 45 kDa. Researchers have identified its presence mainly in mitochondria-rich tissues such as the brain and heart. The expression pattern suggests its significant role in tissues with high energy demand.

Biological function summary

This protein plays an important role in regulating mitochondrial respiratory chain complex III assembly. TTC19 facilitates the proper incorporation of the UQCRB subunit into complex III essential for the electron transport chain. It belongs to a multi-subunit complex within the inner mitochondrial membrane. This complex ensures optimal mitochondrial performance highlighting TTC19's role in cellular energy homeostasis.

Pathways

TTC19 influences mitochondrial and oxidative phosphorylation pathways. These pathways are critical for ATP production in cell metabolism. TTC19 interacts with proteins such as UQCRC1 during the electron transport process. By enabling efficient electron flow TTC19 supports cellular respiration and energy conversion pathways essential for cell viability.

Functional deficiencies or mutations in this target link to diseases like mitochondrial complex III deficiency and Leigh Syndrome. These conditions often manifest with neurological symptoms and multisystemic involvement. Proteins such as cytochrome c can become indirectly affected by TTC19 defects leading to compromised electron transport and cellular energy production ultimately contributing to disease etiology.

style

left-column

style

left-column

Product protocols

For this product, it's our understanding that no specific protocols are required. You can visit:

Visit the General protocols
Visit the Troubleshooting

style

left-column

Target data

Required for the preservation of the structural and functional integrity of mitochondrial respiratory complex III by allowing the physiological turnover of the Rieske protein UQCRFS1 (PubMed : 21278747, PubMed : 28673544). Involved in the clearance of UQCRFS1 N-terminal fragments, which are produced upon incorporation of UQCRFS1 into the complex III and whose presence is detrimental for its catalytic activity (PubMed : 28673544).

See full target information TTC19

style

left-column

Publications (1)

Recent publications for all applications. Explore the full list and refine your search

Redox biology 82:103613 PubMed40174478

2025

Repression of oxidative phosphorylation by NR2F2, MTERF3 and GDF15 in human skin under high-glucose stress.

Applications

Unspecified application

Species

Unspecified reactive species

S Ley-Ngardigal,S Claverol,L Sobilo,M Moreau,C Hubert,J Goupil,A Poulignon,W Mahfouf,H Fatrouni,L Dard,M Juan,L Gales,A Merched,C Tokarski,E Leblanc,A Galinier,D Lacombe,H R Rezvani,F Bellvert,K Pays,C Nizard,N Dias Amoedo,A L Bulteau,R Rossignol

View all publications

style

left-column

style

left-column

style

right-column

Product promise

We are committed to supporting your work with high-quality reagents, and we're here for you every step of the way. In the unlikely event that one of our products does not perform as expected, you're protected by our Product Promise.

For full details, please see our Terms & Conditions

Please note: All products are 'FOR RESEARCH USE ONLY. NOT FOR USE IN DIAGNOSTIC OR THERAPEUTIC PROCEDURES'.
