Anti-UBE2I / UBC9 antibody

5 product images

•

  Immunoprecipitation - Anti-UBE2I / UBC9 antibody (ab33044)

  UBE2I / UBC9 was immunoprecipitated using 0.5mg Hela whole cell extract, 5µg of Rabbit polyclonal to UBE2I / UBC9 and 50µl of protein G magnetic beads (+). No antibody was added to the control (-).
  The antibody was incubated under agitation with Protein G beads for 10min, Hela whole cell extract lysate diluted in RIPA buffer was added to each sample and incubated for a further 10min under agitation.
  Proteins were eluted by addition of 40µl SDS loading buffer and incubated for 10min at 70^oC; 10µl of each sample was separated on a SDS PAGE gel, transferred to a nitrocellulose membrane, blocked with 5% BSA and probed with ab33044.
  Secondary: Clean blot (HRP conjugate) at 1/1000 dilution.
  Band: 18kDa: UBE2I / UBC9.

  All lanes: Immunoprecipitation - Anti-UBE2I / UBC9 antibody (ab33044)

  Predicted band size: 18 kDa

•

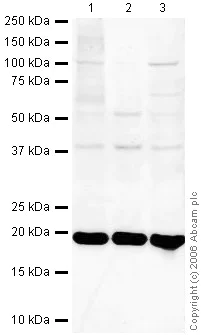

  Western blot - Anti-UBE2I / UBC9 antibody (ab33044)

  All lanes: Western blot - Anti-UBE2I / UBC9 antibody (ab33044) at 1 µg/mL

  Lane 1: HeLa (Human epithelial carcinoma cell line) Whole Cell Lysate at 20 µg

  Lane 2: Western blot - Jurkat whole cell lysate (Jurkat whole cell lysate ab7899) at 20 µg

  Lane 3: Western blot - A-431 whole cell lysate (A-431 whole cell lysate ab7909) at 20 µg

  Secondary

  All lanes: IR Dye 680 Conjugated Goat Anti-Rabbit IgG (H+L) at 1/15000 dilution

  Performed under reducing conditions.

  Predicted band size: 18 kDa

  Observed band size: 18 kDa

•

  Western blot - Anti-UBE2I / UBC9 antibody (ab33044)

  All lanes: Western blot - Anti-UBE2I / UBC9 antibody (ab33044) at 1 µg/mL

  Lane 1: Western blot - NIH/3T3 whole cell lysate (NIH/3T3 whole cell lysate ab7179) at 10 µg

  Lane 2: MEF1 (Mouse embryonic fibroblast cell line) Whole Cell Lysate at 10 µg

  Lane 3: Testis (Mouse) Tissue Lysate - normal tissue at 10 µg

  Lane 4: PC12 (Rat adrenal pheochromocytoma cell line) Whole Cell Lysate at 10 µg

  Secondary

  All lanes: IRDye 680 Conjugated Goat Anti-Rabbit IgG (H+L) at 1/10000 dilution

  Performed under reducing conditions.

  Predicted band size: 18 kDa

  Observed band size: 100 kDa, 18 kDa

•

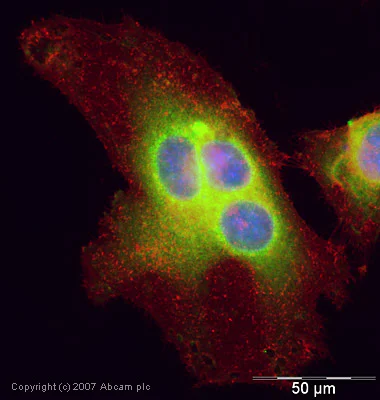

  Immunocytochemistry/ Immunofluorescence - Anti-UBE2I / UBC9 antibody (ab33044)

  ICC/IF image of ab33044 stained human HeLa cells. The cells were PFA fixed (10 min), permabilised in TBS-T (20 min) and incubated with the antibody (ab33044, 1μg/ml) for 1h at room temperature. 1%BSA / 10% normal goat serum / 0.3M glycine was used to quench autofluorescence and block non-specific protein-protein interactions. The secondary antibody (green) was Alexa Fluor® 488 goat anti-rabbit IgG (H+L) used at a 1/1000 dilution for 1h. Alexa Fluor® 594 WGA was used to label plasma membranes (red). DAPI was used to stain the cell nuclei (blue).

•

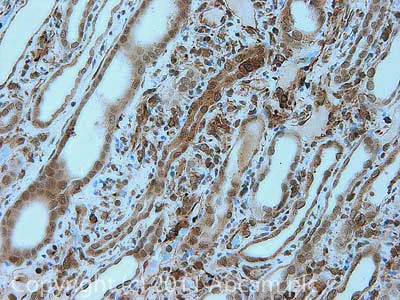

  Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-UBE2I / UBC9 antibody (ab33044)

  IHC image of ab33044 staining UBE2I / UBC9 in Human kidney formalin fixed paraffin embedded tissue section, performed on a Leica Bond^TM system using the standard protocol F. The section was pre-treated using heat mediated antigen retrieval with sodium citrate buffer (pH6, epitope retrieval solution 1) for 20 mins. The section was then incubated with ab33044, 5µg/ml, for 15 mins at room temperature and detected using an HRP conjugated compact polymer system. DAB was used as the chromogen. The section was then counterstained with haematoxylin and mounted with DPX.

  For other IHC staining systems (automated and non-automated) customers should optimize variable parameters such as antigen retrieval conditions, primary antibody concentration and antibody incubation times.
