Anti-USP13 antibody [EPR4348]

6 product images

•

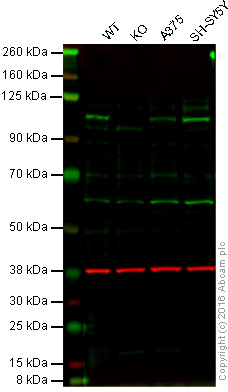

  Western blot - Anti-USP13 antibody [EPR4348] (ab109264)

  Lane 1: Wild-type HAP1 cell lysate (20 μg)
  Lane 2: USP13 knockout HAP1 cell lysate (20 μg)
  Lane 3: A375 cell lysate (20 μg)
  Lane 4: SH-SY5Y cell lysate (20 μg)
  Lanes 1 - 4: Merged signal (red and green). Green - ab109264 observed at 100 kDa. Red - loading control, Anti-GAPDH antibody [6C5] - Loading Control ab8245, observed at 37 kDa.


  ab109264 was shown to recognize USP13 when USP13 knockout samples were used, along with additional cross-reactive bands. Wild-type and USP13 knockout samples were subjected to SDS-PAGE. ab109264 and Anti-GAPDH antibody [6C5] - Loading Control ab8245 (loading control to GAPDH) were diluted 1/1000 and 1/10 000 respectively and incubated overnight at 4°C. Blots were developed with Goat anti-Rabbit IgG H&L (IRDye^® 800CW) preadsorbed (Goat anti-Rabbit IgG H&L (IRDye® 800CW) preadsorbed ab216773) and Goat anti-Mouse IgG H&L (IRDye^® 680RD) preadsorbed (Goat anti-Mouse IgG H&L (IRDye® 680RD) preadsorbed ab216776) secondary antibodies at 1/10000 dilution for 1 hour at room temperature before imaging.

  All lanes: Western blot - Anti-USP13 antibody [EPR4348] (ab109264)

  Predicted band size: 97 kDa

•

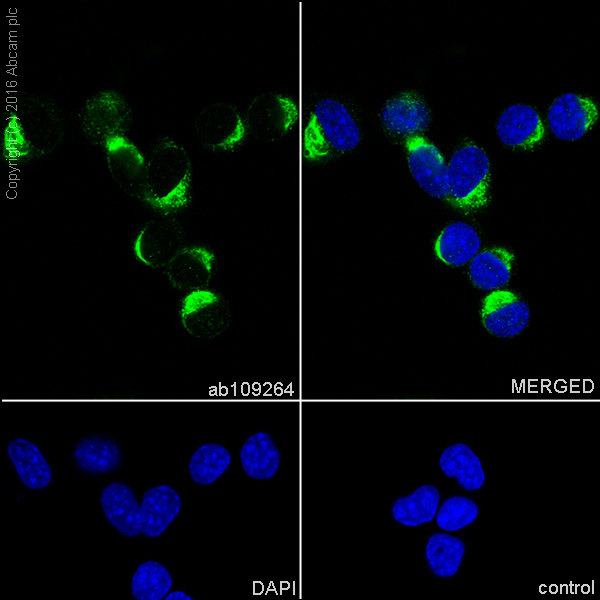

  Immunocytochemistry/ Immunofluorescence - Anti-USP13 antibody [EPR4348] (ab109264)

  Immunocytochemistry/Immunofluorescence analysis of Neuro-2a (Mouse neuroblastoma cell line) labeling USP13 with Purified ab109264 at 1/500 dilution (5 μg/ml). Cells were fixed with 100% methanol. Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) ab150077 Goat anti rabbit IgG(Alexa Fluor^® 488) at 1/1000 dilution was used as the secondary antibody. Nuclei were counterstained with DAPI. PBS was used instead of the primary antibody as the negative control.

•

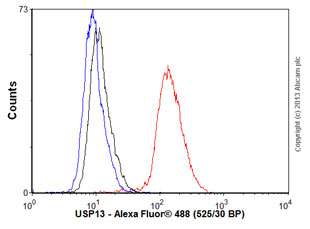

  Flow Cytometry (Intracellular) - Anti-USP13 antibody [EPR4348] (ab109264)

  Overlay histogram showing SHSY-5Y cells stained with ab109264 (red line). The cells were fixed with 4% paraformaldehyde (10 min) and then permeabilized with 0.1% PBS-Tween for 20 min. The cells were then incubated in 1x PBS / 10% normal goat serum / 0.3M glycine to block non-specific protein-protein interactions followed by the antibody (ab109264, 1/9400 dilution) for 30 min at 22°C. The secondary antibody used was Alexa Fluor^® 488 goat anti-rabbit IgG (H&L) (Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) ab150077) at 1/2000 dilution for 30 min at 22°C. Isotype control antibody (black line) was rabbit IgG (monoclonal) (0.1μg/1x10⁶ cells) used under the same conditions. Unlabelled sample (blue line) was also used as a control. Acquisition of >5,000 events were collected using a 20mW Argon ion laser (488nm) and 525/30 bandpass filter. This antibody gave a positive signal in SHSY-5Y cells fixed with 80% methanol (5 min)/permeabilized with 0.1% PBS-Tween for 20 min used under the same conditions.

•

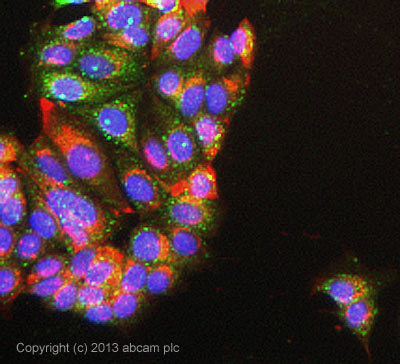

  Immunocytochemistry/ Immunofluorescence - Anti-USP13 antibody [EPR4348] (ab109264)

  ICC/IF image of ab109264 stained MCF-7 cells. The cells were 100% methanol fixed (5 min) and then incubated in 1%BSA / 10% normal goat serum / 0.3M glycine in 0.1% PBS-Tween for 1h to permeabilise the cells and block non-specific protein-protein interactions. The cells were then incubated with the antibody ab109264 at 10μg/ml overnight at +4°C. The secondary antibody (green) was DyLight® 488 goat anti- rabbit (Goat Anti-Rabbit IgG H&L (DyLight® 488) preadsorbed ab96899) IgG (H+L) used at a 1/250 dilution for 1h. Alexa Fluor® 594 WGA was used to label plasma membranes (red) at a 1/200 dilution for 1h. DAPI was used to stain the cell nuclei (blue) at a concentration of 1.43μM.

•

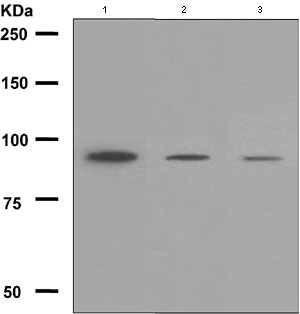

  Western blot - Anti-USP13 antibody [EPR4348] (ab109264)

  All lanes: Western blot - Anti-USP13 antibody [EPR4348] (ab109264) at 1/1000 dilution

  Lane 1: SH SY5Y cell lysate at 10 µg

  Lane 2: HepG2 cell lysate at 10 µg

  Lane 3: A375 cell lysate at 10 µg

  Predicted band size: 97 kDa

  Observed band size: 97 kDa

•

  Image collected and cropped by CiteAb under a CC-BY license from the publication

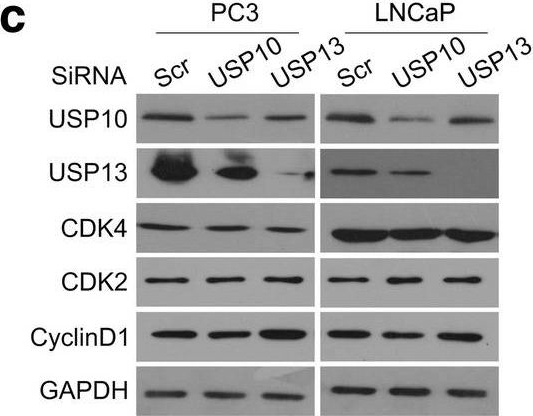

  Western blot - Anti-USP13 antibody [EPR4348] (ab109264)

  USP13 western blot using anti-USP13 antibody [EPR4348] ab109264. Publication image and figure legend from Liao, Y., Guo, Z., et al., 2019, J Exp Clin Cancer Res, PubMed 30975171.




  ab109264 was used in this publication in western blot. This may not be the same as the application(s) guaranteed by Abcam. For a full list of applications guaranteed by Abcam for ab109264 please see the product overview.

  Spautin-1 induces G0/G1 phase arrest via down-regulating Cyclin D1 in PCa cells. a Fluorescence-activated cell sorting analysis (FACS) was performed to analyze cell cycle distributions of PCa cells exposed to Spautin-1 or SKP2-C25 for 24 h. A summary of cell cycle distributions was shown from three independent experiments. b Western blot analysis was performed to detect the expression of CDK4, CDK2, Cyclin D1, P15 and P21 in PCa cells exposed to various doses of Spautin-1 (0, 5, 10, 20 μM) for 24 h (left), or Spautin-1 (10 μM) at various lengths of time (Right). c Western blot analysis was performed to detect the expression of CDK4, CDK2, Cyclin D1, USP10 and USP13 in PCa cells exposed to USP10 siRNA or USP13 siRNA for 48 h. d FACS was performed to analyze cell cycle distributions of PCa cells exposed to USP10 siRNA or USP13 siRNA for 48 h. e 22Rv1 and PC3 cells were transfected with HA-Cyclin D1 and/or FLAG-CDK2 for 48 h. Cell viability analysis was performed on the above cells exposed to Spautin-1 for 24 h. #P<0.05. f Western blot of CDK2 and Cyclin D1 to verified the overexpression in PC3 cells. Sp-1: Spautin-1
