Anti-VDAC1/Porin + VDAC2 antibody [EPR10852(B)] - BSA and Azide free

• ICC/IF

Lab

Immunocytochemistry/ Immunofluorescence - Anti-VDAC1/Porin + VDAC2 antibody [EPR10852(B)] - BSA and Azide free (AB240128)

This image was produced using ab154856, the same clone but in a different formulation.

Immunofluorescent analysis of 100% methanol-fixed 0.1% Triton X-100 permeabilized Hap1 WT and Hap1-VDAC KO cells labelling VDAC1/Porin + VDAC2 with ab154856 at 1/500 dilution followed by ab150081 Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed antibody at 1/1000 2 μg/ml dilution (Green). Image showing mitochondrial staining in Hap1 WT cell line. ab7291 Anti-alpha Tubulin antibody [DM1A] was used to counterstain tubulin at 1/1000 dilution (Magenta). The nuclear counterstain was DAPI (Blue).

• IHC-P

Unknown

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-VDAC1/Porin + VDAC2 antibody [EPR10852(B)] - BSA and Azide free (AB240128)

Immunohistochemical analysis of paraffin-embedded human heart tissue labeling VDAC1 with unpurified ab154856 at 1/100 dilution.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab154856).

Heat mediated antigen retrieval was performed before commencing with IHC staining protocol.

• IHC-P

Unknown

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-VDAC1/Porin + VDAC2 antibody [EPR10852(B)] - BSA and Azide free (AB240128)

Immunohistochemical staining of paraffin embedded human cervical carcinoma with purified ab154856 at a working dilution of 1/200. The secondary antibody used is HRP goat anti-rabbit IgG H&L (ab97051) at 1/500. The sample is counter-stained with hematoxylin. Antigen retrieval was perfomed using Tris-EDTA buffer, pH 9.0. PBS was used instead of the primary antibody as the negative control, and is shown in the inset.This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab154856).

• IHC-P

Unknown

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-VDAC1/Porin + VDAC2 antibody [EPR10852(B)] - BSA and Azide free (AB240128)

Immunohistochemical analysis of paraffin-embedded human liver tissue labeling VDAC1 with unpurified ab154856 at 1/100 dilution.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab154856).

Heat mediated antigen retrieval was performed before commencing with IHC staining protocol.

• Flow Cyt (Intra)

Lab

Flow Cytometry (Intracellular) - Anti-VDAC1/Porin + VDAC2 antibody [EPR10852(B)] - BSA and Azide free (AB240128)

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab154856).

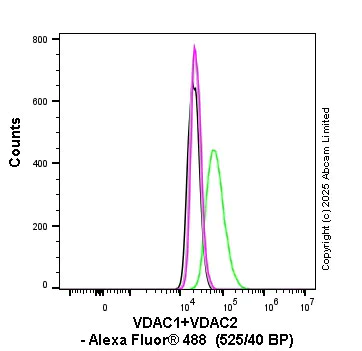

Flow cytometry overlay histogram showing wild-type HAP1 (green line) and VDAC1 knockout HAP1 stained with ab154856 (magenta line). The cells were fixed with 80% methanol (5 min) and then permeabilised with 0.1% PBS-Triton X-100 for 15 min. The cells were then incubated in 1x PBS containing 10% normal goat serum to block non-specific protein-protein interaction followed by the antibody (ab154856) (1x 10⁶ in 100μl at 0.2 μg/ml (1/195 dilution)) for 30min at 22°C.

The secondary antibody Goat Anti-Rabbit IgG H&L (Alexa Fluor^® 488) preadsorbed was incubated at 1/4000 dilution for 30min at 22°C.

Isotype control antibody was Recombinant Rabbit IgG, monoclonal [EPR25A] - Isotype Control in HAP1 WT cells (black line) and HAP1-VDAC1 KO cells (grey line), used at the same concentration and conditions as the primary antibody.

Acquisition of >5000 events were collected using a 50 mW Blue laser (488nm) and 525/40 bandpass filter.

• ICC/IF

Lab

Immunocytochemistry/ Immunofluorescence - Anti-VDAC1/Porin + VDAC2 antibody [EPR10852(B)] - BSA and Azide free (AB240128)

ab154856 staining VDAC1 / Porin showing cytoplasmic staining in HeLa cells (Human cervix adenocarcinoma epithelial cells) by ICC/IF (Immunocytochemistry/immunofluorescence). Cells were fixed with 100% methanol, Samples were incubated with primary antibody (1/1000) for 1 hour at 21°C. ab150077, an Alexa Fluor® 488-conjugated Goat anti-Rabbit IgG (1 : 1000) was used as the secondary antibody. DAPI (1/200) was used as a counter stain.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab154856).

• IHC-P

Unknown

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-VDAC1/Porin + VDAC2 antibody [EPR10852(B)] - BSA and Azide free (AB240128)

Immunohistochemical analysis of paraffin embedded human normal kidney tissue using unpurified ab154856 showing +ve staining.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab154856).

Heat mediated antigen retrieval was performed before commencing with IHC staining protocol.

• IHC-P

Unknown

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-VDAC1/Porin + VDAC2 antibody [EPR10852(B)] - BSA and Azide free (AB240128)

Immunohistochemical analysis of paraffin embedded human ovarian carcinoma tissue using unpurified ab154856 showing +ve staining.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab154856).

Heat mediated antigen retrieval was performed before commencing with IHC staining protocol.

• IHC-P

Unknown

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-VDAC1/Porin + VDAC2 antibody [EPR10852(B)] - BSA and Azide free (AB240128)

Immunohistochemical analysis of paraffin embedded human thyroid gland carcinoma tissue using unpurified ab154856 showing +ve staining.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab154856).

Heat mediated antigen retrieval was performed before commencing with IHC staining protocol.

• ICC/IF

Lab

Immunocytochemistry/ Immunofluorescence - Anti-VDAC1/Porin + VDAC2 antibody [EPR10852(B)] - BSA and Azide free (AB240128)

ab154856 staining VDAC1 / Porin showing cytoplasmic staining in Jurkat cells (Human T cell leukemia T lymphocyte) by ICC/IF (Immunocytochemistry/immunofluorescence). Cells were fixed with 100% methanol, Samples were incubated with primary antibody (1/1000) for 1 hour at 21°C. ab150077, an Alexa Fluor® 488-conjugated Goat anti-Rabbit IgG (1 : 1000) was used as the secondary antibody. DAPI (1/200) was used as a counter stain.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab154856).

• IHC-P

Unknown

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-VDAC1/Porin + VDAC2 antibody [EPR10852(B)] - BSA and Azide free (AB240128)

Immunohistochemical analysis of paraffin embedded human skeletal muscle tissue using unpurified ab154856 showing +ve staining.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab154856).

Heat mediated antigen retrieval was performed before commencing with IHC staining protocol.

• IHC-Fr

Unknown

Immunohistochemistry (Frozen sections) - Anti-VDAC1/Porin + VDAC2 antibody [EPR10852(B)] - BSA and Azide free (AB240128)

Immunohistochemistry (Frozen sections) analysis of mouse skeletal muscle tissue sections labeling VDAC1 / Porin with Purified ab154856 at 1/50 (0.7 μg/ml).Heat mediated antigen retrieval using sodium citrate buffer (10mM citrate pH 6.0 + 0.05% Tween-20). Goat anti rabbit IgG (Alexa Fluor^® 488, ab150077) was used as the secondary antibody. Negative control : PBS instead of the primary antibody. DAPI was used as a counterstain.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab154856).

• IHC-P

Unknown

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-VDAC1/Porin + VDAC2 antibody [EPR10852(B)] - BSA and Azide free (AB240128)

Immunohistochemical staining of paraffin embedded mouse cardiac muscle with purified ab154856 at a working dilution of 1/200. The secondary antibody used is HRP goat anti-rabbit IgG H&L (ab97051) at 1/500. The sample is counter-stained with hematoxylin. Antigen retrieval was perfomed using Tris-EDTA buffer, pH 9.0. PBS was used instead of the primary antibody as the negative control, and is shown in the inset.This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab154856).

• IHC-P

Unknown

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-VDAC1/Porin + VDAC2 antibody [EPR10852(B)] - BSA and Azide free (AB240128)

Immunohistochemical staining of paraffin embedded rat kidney with purified ab154856 at a working dilution of 1/200. The secondary antibody used is HRP goat anti-rabbit IgG H&L (ab97051) at 1/500. The sample is counter-stained with hematoxylin. Antigen retrieval was perfomed using Tris-EDTA buffer, pH 9.0. PBS was used instead of the primary antibody as the negative control, and is shown in the inset.This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab154856).

• WB

Supplier Data

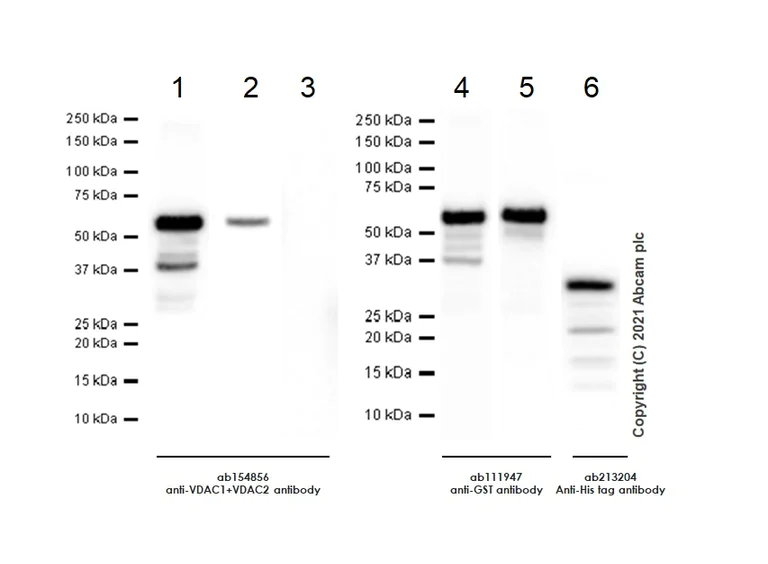

Western blot - Anti-VDAC1/Porin + VDAC2 antibody [EPR10852(B)] - BSA and Azide free (AB240128)

This data was developed using the same antibody clone in a different buffer formulation (ab154856).

Blocking and diluting buffer and concentration : 5% NFDM/TBST

All lanes:

Western blot - Anti-VDAC1/Porin + VDAC2 antibody [EPR10852(B)] - Mitochondrial Loading Control (<a href='/en-us/products/primary-antibodies/vdac1-porin-vdac2-antibody-epr10852b-mitochondrial-loading-control-ab154856'>ab154856</a>) at 1/1000 dilution

Lanes 1 and 4:

N-GST tagged full length recombinant human VDAC1 protein 10ng

Lanes 2 and 5:

N-GST tagged full length recombinant human VDAC2 protein 10ng

Lanes 3 and 6:

C-His tagged full length Recombinant Human VDAC3 protein 10ng

Secondary

All lanes:

Western blot - Goat Anti-Rabbit IgG H&L (HRP) (<a href='/en-us/products/secondary-antibodies/goat-rabbit-igg-h-l-hrp-ab97051'>ab97051</a>) at 1/20000 dilution

Observed band size: 33 kDa,55 kDa

false

Exposure time: 40s
