Anti-VDAC2 antibody [EPR27028-135] (ab316107)

Rabbit Recombinant Monoclonal VDAC2 antibody. Suitable for WB, IHC-P, IP, ICC/IF, Flow Cyt (Intra), Dot and reacts with Human, Mouse, Rat, Synthetic peptide - Human samples.

Be the first to review this product! Submit a review

Images

Dot Blot - Anti-VDAC2 antibody [EPR27028-135] (AB316107), expandable thumbnail

Key facts

Isotype: IgG
Host species: Rabbit
Storage buffer: pH: 7.2 - 7.4
Preservative: 0.01% Sodium azide
Constituents: 59% PBS, 40% Glycerol (glycerin, glycerine), 0.05% BSA
Form: Liquid
Clonality: Monoclonal

Immunogen

The exact immunogen used to generate this antibody is proprietary information.

Reactivity data

Select an application

Product promiseTestedExpectedPredictedNot recommended

	WB	IHC-P	IP	ICC/IF	Flow Cyt (Intra)	Dot
Human	Tested	Tested	Tested	Not recommended	Tested	Expected
Mouse	Tested	Tested	Expected	Tested	Tested	Expected
Rat	Tested	Tested	Expected	Expected	Expected	Expected
Synthetic peptide - Human	Not recommended	Not recommended	Not recommended	Not recommended	Not recommended	Tested

Tested
Tested

Species	Dilution info	Notes
Species Human	Dilution info 1/1000	Notes -
Species Mouse	Dilution info 1/1000	Notes -
Species Rat	Dilution info 1/1000	Notes -

Not recommended
Not recommended

Species	Dilution info	Notes
Species Synthetic peptide - Human	Dilution info -	Notes -

Tested
Tested

Species	Dilution info	Notes
Species Human	Dilution info 1/4000	Notes Perform heat-mediated antigen retrieval with Tris/EDTA buffer pH 9.0 before commencing with IHC staining protocol.
Species Mouse	Dilution info 1/4000	Notes Perform heat-mediated antigen retrieval with Tris/EDTA buffer pH 9.0 before commencing with IHC staining protocol.
Species Rat	Dilution info 1/4000	Notes Perform heat-mediated antigen retrieval with Tris/EDTA buffer pH 9.0 before commencing with IHC staining protocol.

Not recommended
Not recommended

Species	Dilution info	Notes
Species Synthetic peptide - Human	Dilution info -	Notes -

Tested
Tested

Species	Dilution info	Notes
Species Human	Dilution info 1/30	Notes -

Expected
Expected

Species	Dilution info	Notes
Species Mouse, Rat	Dilution info Use at an assay dependent concentration.	Notes -

Not recommended
Not recommended

Species	Dilution info	Notes
Species Synthetic peptide - Human	Dilution info -	Notes -

Tested
Tested

Species	Dilution info	Notes
Species Mouse	Dilution info 1/50	Notes -

Expected
Expected

Species	Dilution info	Notes
Species Rat	Dilution info Use at an assay dependent concentration.	Notes -

Not recommended
Not recommended

Species	Dilution info	Notes
Species Human, Synthetic peptide - Human	Dilution info -	Notes -

Tested
Tested

Species	Dilution info	Notes
Species Human	Dilution info 1/500	Notes -
Species Mouse	Dilution info 1/500	Notes -

Expected
Expected

Species	Dilution info	Notes
Species Rat	Dilution info Use at an assay dependent concentration.	Notes -

Not recommended
Not recommended

Species	Dilution info	Notes
Species Synthetic peptide - Human	Dilution info -	Notes -

Tested
Tested

Species	Dilution info	Notes
Species Synthetic peptide - Human	Dilution info 1/1000	Notes -

Expected
Expected

Species	Dilution info	Notes
Species Human, Mouse, Rat	Dilution info Use at an assay dependent concentration.	Notes -

Associated Products

Select an associated product type

1 product for Alternative Version

Target data

See full target information VDAC2

Function

Forms a channel through the mitochondrial outer membrane that allows diffusion of small hydrophilic molecules (PubMed:38065946). The channel adopts an open conformation at low or zero membrane potential and a closed conformation at potentials above 30-40 mV (By similarity). The open state has a weak anion selectivity whereas the closed state is cation-selective (By similarity). Binds various lipids, including the sphingolipid ceramide, the phospholipid phosphatidylcholine, and the sterols cholesterol and oxysterol (PubMed:31015432). Binding of ceramide promotes the mitochondrial outer membrane permeabilization (MOMP) apoptotic pathway (PubMed:31015432). Catalyzes the scrambling of phospholipids across the outer mitochondrial membrane; the mechanism is unrelated to channel activity and is capable of translocating both anionic and zwitterionic phospholipids.

Alternative names

Voltage-dependent anion-selective channel protein 2, VDAC-2, hVDAC2, Outer mitochondrial membrane protein porin 2, VDAC2

Recommended products

Rabbit Recombinant Monoclonal VDAC2 antibody. Suitable for WB, IHC-P, IP, ICC/IF, Flow Cyt (Intra), Dot and reacts with Human, Mouse, Rat, Synthetic peptide - Human samples.

Key facts

Isotype: IgG
Host species: Rabbit
Storage buffer: pH: 7.2 - 7.4
Preservative: 0.01% Sodium azide
Constituents: 59% PBS, 40% Glycerol (glycerin, glycerine), 0.05% BSA
Form: Liquid
Clonality: Monoclonal
Immunogen: The exact immunogen used to generate this antibody is proprietary information.
Clone number: EPR27028-135
Purification technique: Affinity purification Protein A
Specificity: Unsuitable for human ICC/IF.
Concentration

Storage

Shipped at conditions: Blue Ice
Appropriate short-term storage duration: 1-2 weeks
Appropriate short-term storage conditions: +4°C
Appropriate long-term storage conditions: -20°C
Aliquoting information: Upon delivery aliquot
Storage information: Avoid freeze / thaw cycle

Notes

Our RabMAb® technology is a patented hybridoma-based technology for making rabbit monoclonal antibodies. For details on our patents, please refer to RabMAb® patents.

This product is a recombinant monoclonal antibody, which offers several advantages including:

- High batch-to-batch consistency and reproducibility
- Improved sensitivity and specificity
- Long-term security of supply
- Animal-free batch production

For more information, read more on recombinant antibodies.

Supplementary info

This supplementary information is collated from multiple sources and compiled automatically.

Activity summary

Voltage-dependent anion channel 2 (VDAC2) also known as porin 31HL or P2 mechanically functions as a channel facilitating the transport of anions and metabolites across the outer mitochondrial membrane. This channel approximately 32 kDa in size is most prominent in the mitochondria but can also be observed in other cellular locations. It is involved in regulating both the entry and exit of small ions and molecules which is essential for mitochondrial function and energy production.

Biological function summary

VDAC2 plays significant roles beyond mere ion transport. It interacts with proteins involved in apoptosis such as Bcl-2 family proteins. Although not part of a larger complex its influence on the structure and permeability of the outer mitochondrial membrane impacts several cellular processes. The regulation of apoptosis by VDAC2 is key for cellular homeostasis and response to stress signals highlighting its role in maintaining normal cellular functions.

Pathways

Several cellular processes include VDAC2's role in apoptosis and energy metabolism. VDAC2 interacts with the intrinsic pathway of apoptosis in close association with proteins like Bax and Bak where it influences the release of cytochrome c from mitochondria. Additionally VDAC2 has a role in ATP transport and metabolic flux integral to the bioenergetics pathways by working with adenine nucleotide translocase (ANT) as part of the exchange of ATP and ADP.

Associated diseases and disorders

Mutations or dysregulation of VDAC2 connect to cancer and neurodegenerative diseases. Its interaction with the Bcl-2 family proteins implicates it in apoptosis resistance observed in various cancers. Likewise VDAC2 dysfunction has links to neurodegenerative diseases through its impact on mitochondrial health as these conditions often display an imbalance in apoptotic pathways and energy metabolism.

Product promise

We are dedicated to supporting your work with high quality reagents and we are here for you every step of the way should you need us.

In the unlikely event of one of our products not working as expected, you are covered by our product promise.

Full details and terms and conditions can be found here:
Terms & Conditions.

11 product images

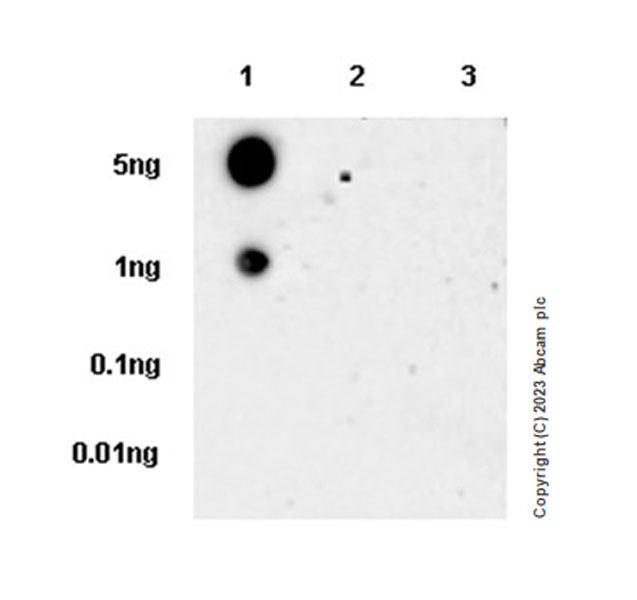

Dot Blot - Anti-VDAC2 antibody [EPR27028-135] (ab316107)
VDAC2 Dot Blot staining using rabbit Anti-VDAC2 antibody
Dot blot analysis of VDAC2 using ab316107 at 1:1000 (0.512 ug/ml) followed by a Goat Anti-Rabbit IgG, (H+L), Peroxidase conjugated (Goat Anti-Rabbit IgG H&L (HRP) ab97051) at 1:100,000 dilution.
Exposure time: 180 seconds.
This antibody does not cross-react with human VDAC1 & VDAC3.

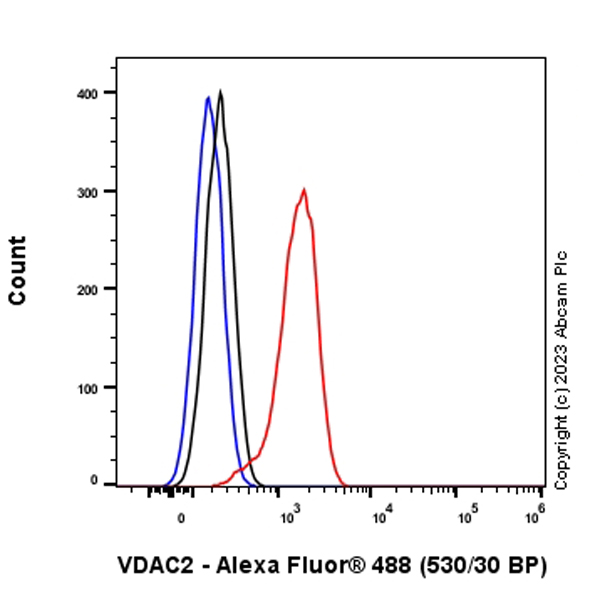

Flow Cytometry (Intracellular) - Anti-VDAC2 antibody [EPR27028-135] (ab316107)
Flow cytometric analysis of 4% paraformaldehyde fixed 90% methanol permeabilized RAW 264.7 (mouse Abelson murine leukemia virus-induced tumor macrophage) cells labelling VDAC2 with ab316107 at 1/500 dilution (0.1 ug)/Red compared with a Rabbit monoclonal IgG (Rabbit IgG, monoclonal [EPR25A] - Isotype Control ab172730) (Black) isotype control and an unlabelled control (cells without incubation with primary antibody and secondary antibody) (Blue).
Goat Anti-Rabbit IgG (Alexa Fluor® 488, Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed ab150081) at 1/5000 dilution was used as the secondary antibody.
Flow Cytometry (Intracellular) - Anti-VDAC2 antibody [EPR27028-135] (ab316107)
Flow cytometric analysis of 4% paraformaldehyde fixed 90% methanol permeabilized HeLa (human cervical adenocarcinoma epithelial cell) cells labelling VDAC2 with ab316107 at 1/500 dilution (0.1 ug)/Red compared with a Rabbit monoclonal IgG (Rabbit IgG, monoclonal [EPR25A] - Isotype Control ab172730) (Black) isotype control and an unlabelled control (cells without incubation with primary antibody and secondary antibody) (Blue).
Goat Anti-Rabbit IgG (Alexa Fluor® 488, Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed ab150081) at 1/5000 dilution was used as the secondary antibody.
Immunocytochemistry/ Immunofluorescence - Anti-VDAC2 antibody [EPR27028-135] (ab316107)
Immunofluorescent analysis of 100% methanol-fixed, 0.1% TritonX-100 permeabilized Raw 264.7 (mouse Abelson murine leukemia virus-induced tumor macrophage) cells labelling VDAC2 with ab316107 at 1/50 (10.24 ug/ml) dilution, followed by Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed ab150081 Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed antibody at 1/1000 (2 ug/mL) dilution (Green).
Confocal image showing cytoplasmic staining in Raw264.7 cell line.

Image was taken with a confocal microscope(Leica-Microsystems, TCS SP8).
anti-COX IV mouse monoclonal antibody - Mitochondrial Marker was used to counterstain at 1/200 (2.5ug/ml) dilution (Red). The Nuclear counterstain was DAPI (Blue).
Secondary antibody only control: Secondary antibody is Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed ab150081 Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed at 1/1000 (2 ug/mL) dilution.
Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-VDAC2 antibody [EPR27028-135] (ab316107)
Immunohistochemical analysis of paraffin-embedded Rat colon tissue labeling VDAC2 with ab316107 at 1/4000 (0.128 ug/ml) dilution, followed by a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection).
Positive staining on rat colon. The section was incubated with ab316107 for 30 mins at room temperature.

The immunostaining was performed on a Leica Biosystems BOND® RX instrument.
Counterstained with Hematoxylin.
Secondary antibody only control: Secondary antibody is a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection).
Heat mediated antigen retrieval was performed with Tris-EDTA buffer (pH 9.0, Epitope Retrieval Solution2) for 20 mins.
Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-VDAC2 antibody [EPR27028-135] (ab316107)
Immunohistochemical analysis of paraffin-embedded Mouse testis tissue labeling VDAC2 with ab316107 at 1/4000 (0.128 ug/ml) dilution, followed by a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection).
Positive staining on mouse testis. The section was incubated with ab316107 for 30 mins at room temperature.

The immunostaining was performed on a Leica Biosystems BOND® RX instrument.
Counterstained with Hematoxylin.
Secondary antibody only control: Secondary antibody is a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection).
Heat mediated antigen retrieval was performed with Tris-EDTA buffer (pH 9.0, Epitope Retrieval Solution2) for 20 mins.
Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-VDAC2 antibody [EPR27028-135] (ab316107)
Immunohistochemical analysis of paraffin-embedded Human colon carcinoma tissue labeling VDAC2 with ab316107 at 1/4000 (0.128 ug/ml) dilution, followed by a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection).
Positive staining on human colon carcinoma. The section was incubated with ab316107 for 30 mins at room temperature.

The immunostaining was performed on a Leica Biosystems BOND® RX instrument.
Counterstained with Hematoxylin.
Secondary antibody only control: Secondary antibody is a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection).
Heat mediated antigen retrieval was performed with Tris-EDTA buffer (pH 9.0, Epitope Retrieval Solution2) for 20 mins.
Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-VDAC2 antibody [EPR27028-135] (ab316107)
Immunohistochemical analysis of paraffin-embedded Human testis tissue labeling VDAC2 with ab316107 at 1/4000 (0.128 ug/ml) dilution, followed by a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection).
Positive staining on human testis. The section was incubated with ab316107 for 30 mins at room temperature.

The immunostaining was performed on a Leica Biosystems BOND® RX instrument.
Counterstained with Hematoxylin.
Secondary antibody only control: Secondary antibody is a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection).
Heat mediated antigen retrieval was performed with Tris-EDTA buffer (pH 9.0, Epitope Retrieval Solution2) for 20 mins.

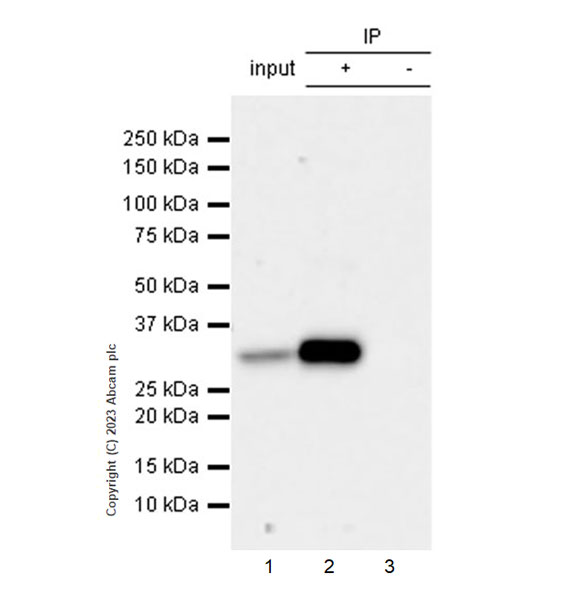

Immunoprecipitation - Anti-VDAC2 antibody [EPR27028-135] (ab316107)
VDAC2 was immunoprecipitated from 0.35 mg HeLa (human cervical adenocarcinoma epithelial cell) whole cell lysate with ab316107 at 1/30 dilution (2ug in 0.35mg lysates). Western blot was performed on the immunoprecipitate using ab316107 at 1/1000 dilution. VeriBlot for IP secondary antibody(HRP)(VeriBlot for IP Detection Reagent (HRP) ab131366) was used at 1/5000 dilution.
Lane 1: HeLa (human cervical adenocarcinoma epithelial cell) whole cell lysate

Lane 2: ab316107 IP in HeLa (human cervical adenocarcinoma epithelial cell) whole cell lysate

Lane 3: Rabbit monoclonal IgG (Rabbit IgG, monoclonal [EPR25A] - Isotype Control ab172730) instead of ab316107 in HeLa whole cell lysate
All lanes: Immunoprecipitation - Anti-VDAC2 antibody [EPR27028-135] (ab316107) at 1/30 dilution
All lanes: HeLa (human cervical adenocarcinoma epithelial cell) whole cell lysate with 5% NFDM/TBST
Secondary
All lanes: Immunoprecipitation - VeriBlot for IP Detection Reagent (HRP) (VeriBlot for IP Detection Reagent (HRP) ab131366) at 1/5000 dilution
Exposure time: 24s

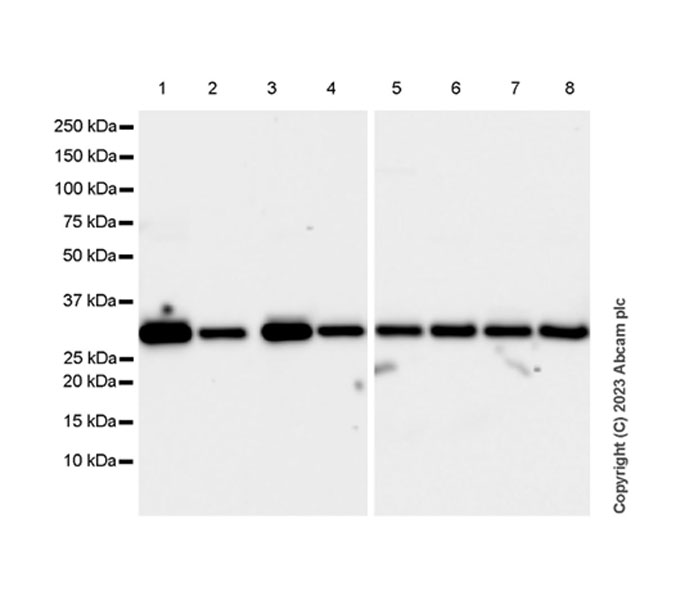

Western blot - Anti-VDAC2 antibody [EPR27028-135] (ab316107)
Lanes 1-2 are applied with Goat Anti-Rabbit IgG (HRP) with minimal cross-reactivity with human IgG at 1/2000 and Lanes 3-8 are applied with Goat Anti-Rabbit IgG, (H+L), Peroxidase conjugated (Goat Anti-Rabbit IgG H&L (HRP) ab97051) at 1/20000.
Exposure time: Lanes 1-4: 15 seconds; Lanes 5-8: 3 seconds.
All lanes: Western blot - Anti-VDAC2 antibody [EPR27028-135] (ab316107) at 1/1000 dilution
Lane 1: Human hippocampus tissue lysate at 20 µg with 5% NFDM/TBST
Lane 2: Human prostate tissue lysate at 20 µg with 5% NFDM/TBST
Lane 3: HepG2 (human hepatocellar carcinoma epithelial cell) whole cell lysate at 20 µg with 5% NFDM/TBST
Lane 4: Jurkat (human t cell leukemia t lymphocyte from peripheral blood) whole cell lysate at 20 µg with 5% NFDM/TBST
Lane 5: Mouse brain tissue lysate at 20 µg with 5% NFDM/TBST
Lane 6: Mouse heart tissue lysate at 20 µg with 5% NFDM/TBST
Lane 7: Rat brain tissue lysate at 20 µg with 5% NFDM/TBST
Lane 8: Rat heart tissue lysate at 20 µg with 5% NFDM/TBST
Secondary
Lanes 1 - 2: Goat Anti-Rabbit IgG (HRP) with minimal cross-reactivity with human IgG at 1/2000 dilution
Lanes 3 - 8: Western blot - Goat Anti-Rabbit IgG H&L (HRP) (Goat Anti-Rabbit IgG H&L (HRP) ab97051) at 1/20000 dilution
Observed band size: 30 kDa

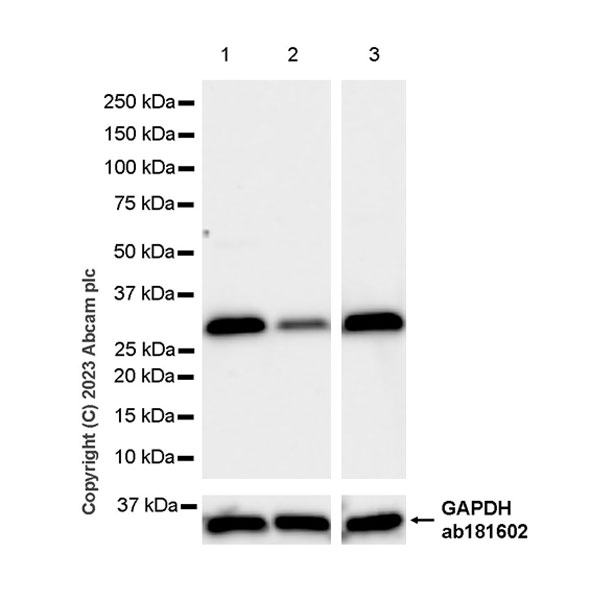

Western blot - Anti-VDAC2 antibody [EPR27028-135] (ab316107)
In Western blot, Anti-GAPDH antibody [EPR16891] - Loading Control (Anti-GAPDH antibody [EPR16891] - Loading Control ab181602) staining at 1/200000 dilution.
All lanes: Western blot - Anti-VDAC2 antibody [EPR27028-135] (ab316107) at 1/1000 dilution
Lane 1: HeLa (human cervical adenocarcinoma epithelial cell) transfected with scrambled siRNA control whole cell lysate at 20 µg with 5% NFDM/TBST
Lane 2: HeLa transfected with siRNA specifically targeting VDAC2 whole cell lysate at 20 µg with 5% NFDM/TBST
Lane 3: RAW 264.7 (mouse abelson murine leukemia virus-induced tumor macrophage) whole cell lysate at 20 µg with 5% NFDM/TBST
Secondary
All lanes: Western blot - Goat Anti-Rabbit IgG H&L (HRP) (Goat Anti-Rabbit IgG H&L (HRP) ab97051) at 1/20000 dilution
Observed band size: 30 kDa, 36 kDa
Exposure time: 26s
