Anti-VEGF Receptor 1 antibody [Y103] - Low endotoxin, Azide free

• IHC-P

Lab

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-VEGF Receptor 1 antibody [Y103] - Low endotoxin, Azide free (AB184784)

Immunohistochemical analysis of paraffin-embedded Human gastric carcinoma tissue labeling VEGF with ab32152, followed by a ready to use Goat Anti-Rabbit IgG H&L (HRP). Cytoplasmic staining on human gastric carcinoma. Counterstained with Hematoxylin. Heat mediated antigen retrieval using ab93684 (Tris/EDTA buffer, pH 9.0).

Secondary antibody only control : Used PBS instead of primary antibody, secondary antibody is a ready to use Goat Anti-Rabbit IgG H&L (HRP).

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab32152).

• IHC-P

PubMed

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-VEGF Receptor 1 antibody [Y103] - Low endotoxin, Azide free (AB184784)

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) analysis of human abdominal aortic aneurysm (AAA) wall tissue sections labeling VEGF Receptor 1 with ab32152 at 1/100 dilution.

Resected aortic tissues were immersed in 10% neutral buffered formalin for at least 24 h for immunohistochemical staining. Tissue sample was embedded in paraffin; 4 µm sections were cut and mounted onto MAS-coated slides. The sections were deparaffinized, dehydrated, and boiled in a pressure cooker in 0.01 M citric acid buffer (pH 6.0) for 20 min. The sections were washed with phosphate-buffered saline and incubated with 3% H₂O₂ in absolute methanol for 5 min to inhibit any endogenous peroxidase activity. Sections were preincubated with 3% normal goat serum for 20 min to minimize nonspecific binding to VEGF Receptor 1, and incubated with ab32152 at 4°C overnight in a moist chamber. The section was washed with phosphate-buffered saline and then incubated with the appropriate secondary antibody for 30 min at room temperature. Staining was visualized with Vector DAB, and tissue section was then counterstained with hematoxylin.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab32152).

Image from Sano M et al. PLoS ONE. 2014 Mar 20; 9(3). Fig 2E. DOI 10.1371/journal.pone.0089830. Lymphangiogenesis and Angiogenesis in Abdominal Aortic Aneurysm. e89830.

• IP

Lab

Immunoprecipitation - Anti-VEGF Receptor 1 antibody [Y103] - Low endotoxin, Azide free (AB184784)

VEGF Receptor 1 was immunoprecipitated from 0.35 mg mouse brain lysate 10μg with ab32152 at 1 : 30 dilution (2μg in 0.35mg lysates). Western blot was performed on the immunoprecipitate using ab32152 1 : 1000 dilution (2 μg/ml). VeriBlot for IP Detection Reagent (HRP) (ab131366) was used at 1 : 1000 dilution.

Lane 1 : Mouse brain lysate 10μg.

Lane 2 : ab32152 IP in mouse brain lysate.

Lane 3 : Rabbit monoclonal IgG (ab172730) instead of ab32152 in mouse brain lysate.

Blocking and dilution buffer and concentration : 5% NFDM/TBST.

Exposure time : 1 second.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab32152).

All lanes:

Immunoprecipitation - Anti-VEGF Receptor 1 antibody [Y103] - Low endotoxin, Azide free (ab184784)

Predicted band size: 151 kDa

false

• WB

Lab

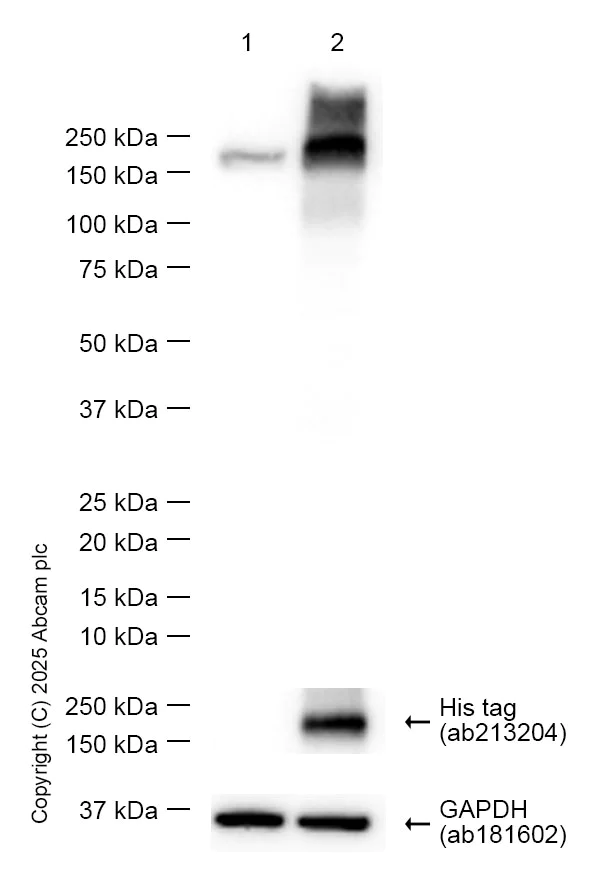

Western blot - Anti-VEGF Receptor 1 antibody [Y103] - Low endotoxin, Azide free (AB184784)

This data was developed using ab32152, the same antibody clone in a different buffer formulation.

Blocking and diluting buffer and concentration : 5% NFDM/TBST.

In Western blot, Anti-GAPDH antibody [EPR16891] - Loading Control (ab181602) staining at 1/1000,000 dilution.

In Western blot, Anti-6X His tag® antibody [EPR20547] - ChIP Grade (ab213204) 1 : 5,000 dilution used as loading control.

All lanes:

Western blot - Anti-VEGF Receptor 1 antibody [Y103] (<a href='/en-us/products/primary-antibodies/vegf-receptor-1-antibody-y103-ab32152'>ab32152</a>) at 1/1000 dilution

Lane 1:

HEK-293T (human embryonic kidney epithelial cell) cells transfected with an empty vector contain a His-tag whole cell lysate at 20 µg

Lane 2:

HEK-293T cells transfected with a human VEGF Receptor 1 expression vector containing a His-tag whole cell lysate at 20 µg

Secondary

All lanes:

Western blot - Goat Anti-Rabbit IgG H&L (HRP) (<a href='/en-us/products/secondary-antibodies/goat-rabbit-igg-h-l-hrp-ab97051'>ab97051</a>) at 1/20000 dilution

Observed band size: 180 kDa

false

Exposure time: 1s

• WB

Lab

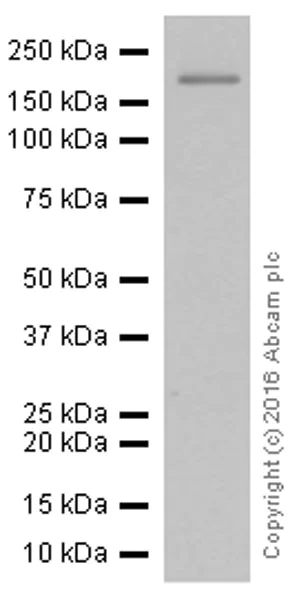

Western blot - Anti-VEGF Receptor 1 antibody [Y103] - Low endotoxin, Azide free (AB184784)

Blocking buffer and concentration : 5% NFDM/TBST

Diluting buffer and concentration : 5% NFDM/TBST

All lanes:

Western blot - Anti-VEGF Receptor 1 antibody [Y103] - Low endotoxin, Azide free (ab184784)

All lanes:

Mouse brain lysate at 15 µg

Secondary

All lanes:

Western blot - Goat Anti-Rabbit IgG H&L (HRP) (<a href='/en-us/products/secondary-antibodies/goat-rabbit-igg-h-l-hrp-ab97051'>ab97051</a>)

Predicted band size: 151 kDa

false

Exposure time: 8s

• WB

Lab

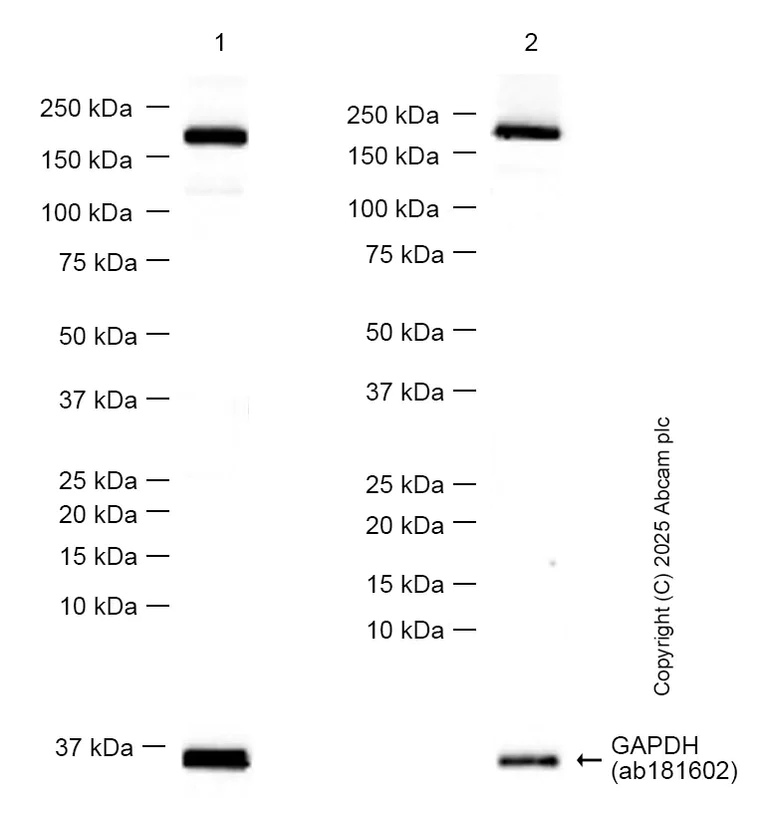

Western blot - Anti-VEGF Receptor 1 antibody [Y103] - Low endotoxin, Azide free (AB184784)

This data was developed using ab32152, the same antibody clone in a different buffer formulation.

Blocking and diluting buffer and concentration : 5% NFDM/TBST.

In Western blot, Anti-GAPDH antibody [EPR16891] - Loading Control (ab181602) staining at 1/1000,000 dilution.

All lanes:

Western blot - Anti-VEGF Receptor 1 antibody [Y103] (<a href='/en-us/products/primary-antibodies/vegf-receptor-1-antibody-y103-ab32152'>ab32152</a>) at 1/1000 dilution

Lane 1:

Mouse placenta tissue lysate at 20 µg

Lane 2:

Rat placenta tissue lysate at 20 µg

Secondary

All lanes:

Western blot - Goat Anti-Rabbit IgG H&L (HRP) (<a href='/en-us/products/secondary-antibodies/goat-rabbit-igg-h-l-hrp-ab97051'>ab97051</a>) at 1/20000 dilution

Observed band size: 180 kDa

false

Exposure time: 10s
