Anti-VGLUT3 antibody [EPR28534-165] - BSA and Azide free

• IHC-P

Supplier Data

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-VGLUT3 antibody [EPR28534-165] - BSA and Azide free (AB316323)

This data was developed using ab316322, the same antibody clone in a different buffer formulation.

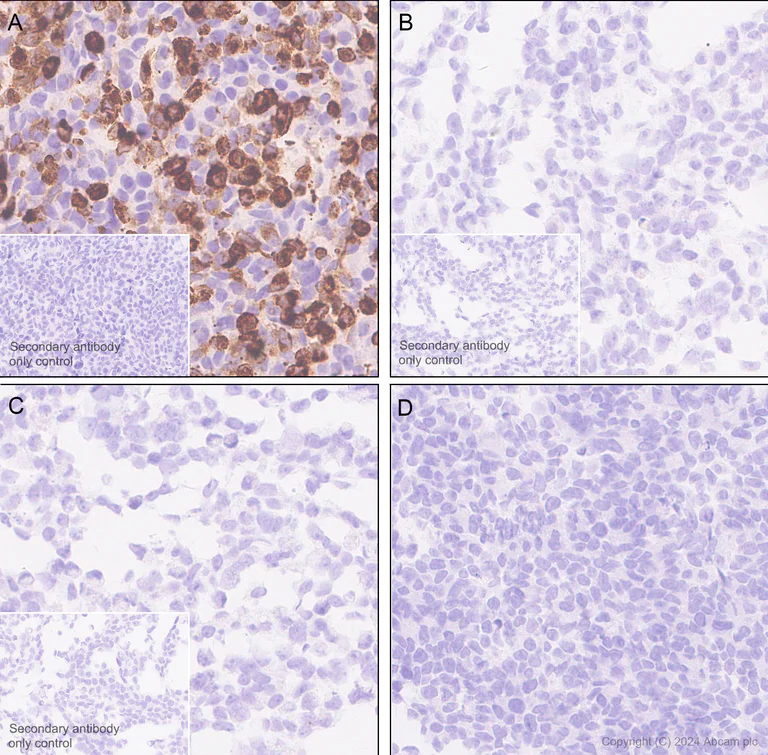

Immunohistochemical analysis of paraffin-embedded (A) HEK-293T (human embryonic kidney epithelial cell) transfected with a mouse VGLU3 expression vector containing a Myc-His tag. (B) HEK-293T (human embryonic kidney epithelial cell) transfected with a mouse VGLU2 expression vector containing a Myc-His tag. (C) HEK-293T (human embryonic kidney epithelial cell) transfected with a mouse VGLU1 expression vector containing a Myc-His tag. (D) HEK-293T transfected with empty vector containing a Myc-His tag. tissue labeling VGLUT3 with ab316322 at 1/2000 (0.249 ug/ml) dilution, followed by a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection).

Positive staining in (A) HEK-293T transfected with a mouse VGLU3 expression vector containing a Myc-His tag, no staining in (B) HEK-293T transfected with a mouse VGLU2 expression vector containing a Myc-His tag, (C) HEK-293T transfected with a mouse VGLU1 expression vector containing a Myc-His tag and (D) HEK-293T transfected with empty vector containing a Myc-His tag.
The section was incubated with ab316322 for 30 mins at room temperature.
The immunostaining was performed on a Leica Biosystems BOND® RX instrument

Counterstained with Hematoxylin.

Secondary antibody only control : Secondary antibody is a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection).

Heat mediated antigen retrieval was performed with Tris-EDTA buffer (pH 9.0, Epitope Retrieval Solution2) for 20 mins

• IHC-P

Supplier Data

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-VGLUT3 antibody [EPR28534-165] - BSA and Azide free (AB316323)

This data was developed using ab316322, the same antibody clone in a different buffer formulation.

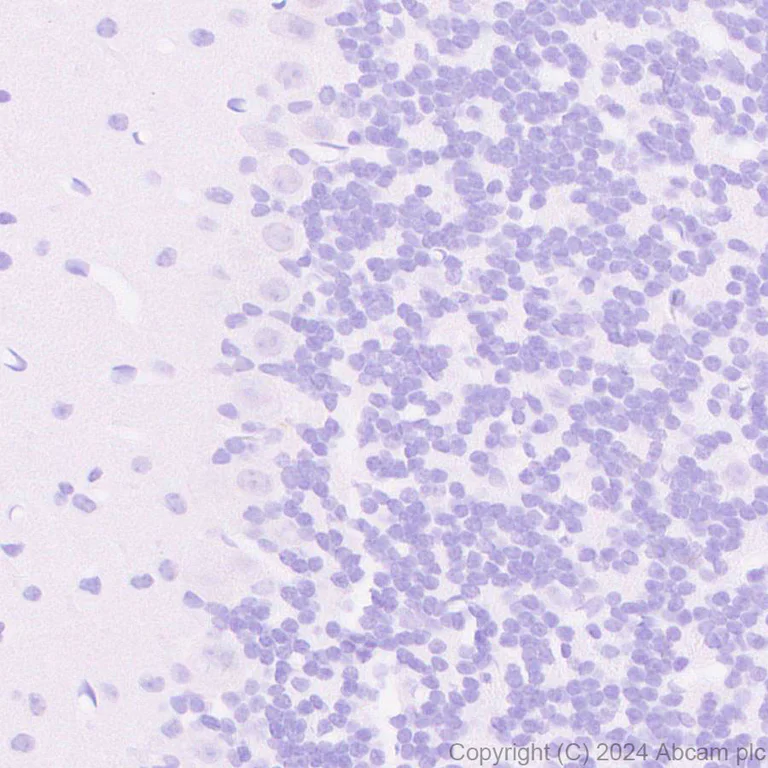

Immunohistochemical analysis of paraffin-embedded Mouse cerebellum tissue labeling VGLUT3 with ab316322 at 1/500 (0.996 ug/ml) dilution, followed by a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection).

Low expression tissue : No staining in mouse cerebellum (PMID : 12097496).
The section was incubated with ab316322 for 30 mins at room temperature.
The immunostaining was performed on a Leica Biosystems BOND® RX instrument

Counterstained with Hematoxylin.

Secondary antibody only control : Secondary antibody is a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection).

Heat mediated antigen retrieval was performed with Citrate buffer (pH 6.0, Epitope Retrieval Solution 1) for 20 mins

• ICC/IF

Supplier Data

Immunocytochemistry/ Immunofluorescence - Anti-VGLUT3 antibody [EPR28534-165] - BSA and Azide free (AB316323)

This data was developed using ab316322, the same antibody clone in a different buffer formulation.

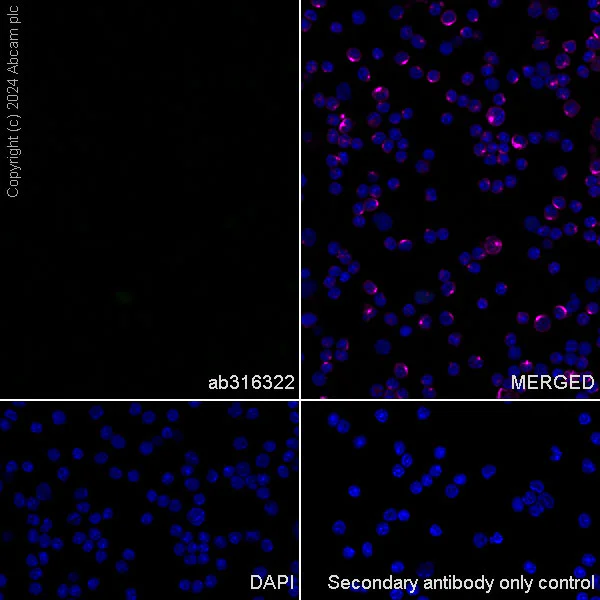

Immunofluorescent analysis of 4% Paraformaldehyde-fixed, 0.1% TritonX-100 permeabilized mouse splenocyte cells labelling VGLUT3 with ab316322 at 1/200 (2.49 ug/ml) dilution, followed by ab150081 Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed antibody at 1/1000 (2 ug/ml) dilution (Green).

Negative control : confocal image showing no staining in mouse splenocytes.
Image was taken with a confocal microscope(Leica-Microsystems, TCS SP8).

ab195889 Anti-alpha Tubulin mouse monoclonal antibody - Microtubule Marker (Alexa Fluor® 594) was used to counterstain tubulin at 1/200 (2.5ug/ml) dilution (Magenta). The Nuclear counterstain was DAPI (Blue).

Secondary antibody only control : Secondary antibody is ab150081 Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed at 1/1000 (2 ug/ml) dilution.

• IHC-P

Supplier Data

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-VGLUT3 antibody [EPR28534-165] - BSA and Azide free (AB316323)

This data was developed using ab316322, the same antibody clone in a different buffer formulation.

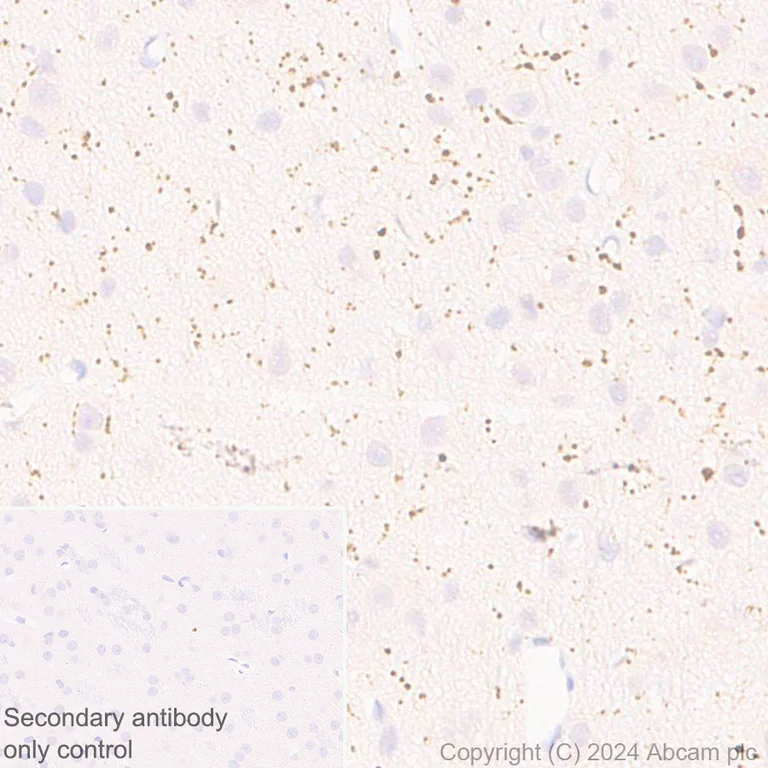

Immunohistochemical analysis of paraffin-embedded Mouse cerebral cortex tissue labeling VGLUT3 with ab316322 at 1/500 (0.996 ug/ml) dilution, followed by a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection).

Positive staining in mouse cerebral cortex (PMID : 12097496).
The section was incubated with ab316322 for 30 mins at room temperature.
The immunostaining was performed on a Leica Biosystems BOND® RX instrument

Counterstained with Hematoxylin.

Secondary antibody only control : Secondary antibody is a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection).

Heat mediated antigen retrieval was performed with Citrate buffer (pH 6.0, Epitope Retrieval Solution 1) for 20 mins

• IHC-P

Supplier Data

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-VGLUT3 antibody [EPR28534-165] - BSA and Azide free (AB316323)

This data was developed using ab316322, the same antibody clone in a different buffer formulation.

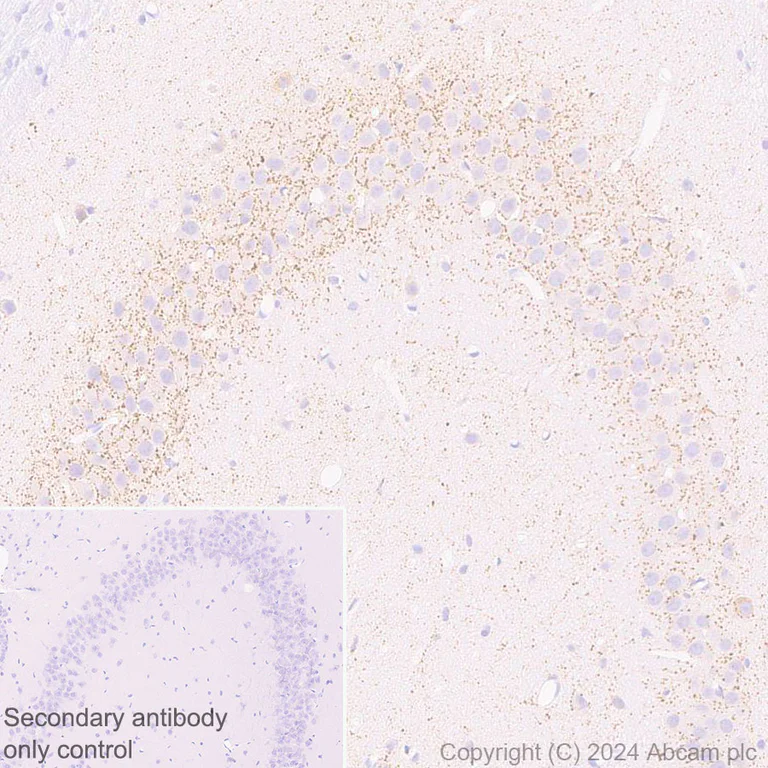

Immunohistochemical analysis of paraffin-embedded Mouse hippocampus tissue labeling VGLUT3 with ab316322 at 1/500 (0.996 ug/ml) dilution, followed by a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection).

Positive staining in mouse hippocampus (PMID : 12097496).
The section was incubated with ab316322 for 30 mins at room temperature.
The immunostaining was performed on a Leica Biosystems BOND® RX instrument

Counterstained with Hematoxylin.

Secondary antibody only control : Secondary antibody is a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection).

Heat mediated antigen retrieval was performed with Citrate buffer (pH 6.0, Epitope Retrieval Solution 1) for 20 mins

• ICC/IF

Supplier Data

Immunocytochemistry/ Immunofluorescence - Anti-VGLUT3 antibody [EPR28534-165] - BSA and Azide free (AB316323)

This data was developed using ab316322, the same antibody clone in a different buffer formulation.

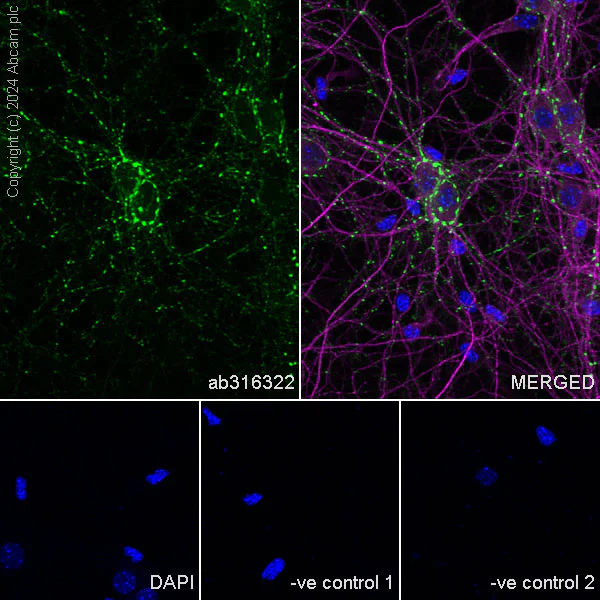

Immunofluorescent analysis of 4% Paraformaldehyde-fixed, 0.1% TritonX-100 permeabilized mouse primary neuron cells labelling VGLUT3 with ab316322 at 1/200 (2.49 ug/ml) dilution, followed by ab150081 Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed antibody at 1/1000 (2 ug/ml) dilution (Green).

Confocal image showing cytoplasmic staining in mouse priamry neuron.
Image was taken with a confocal microscope(Leica-Microsystems, TCS SP8).

ab11267 Anti-MAP2 mouse monoclonal antibody was used to counterstain at 1/500 (4ug/ml) dilution (Magenta). The Nuclear counterstain was DAPI (Blue).

Secondary antibody only control : Secondary antibody is ab150081 Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed at 1/1000 (2 ug/ml) dilution.

• IHC-Fr

Lab

Immunohistochemistry (Frozen sections) - Anti-VGLUT3 antibody [EPR28534-165] - BSA and Azide free (AB316323)

This data was developed using ab316322, the same antibody clone in a different buffer formulation.

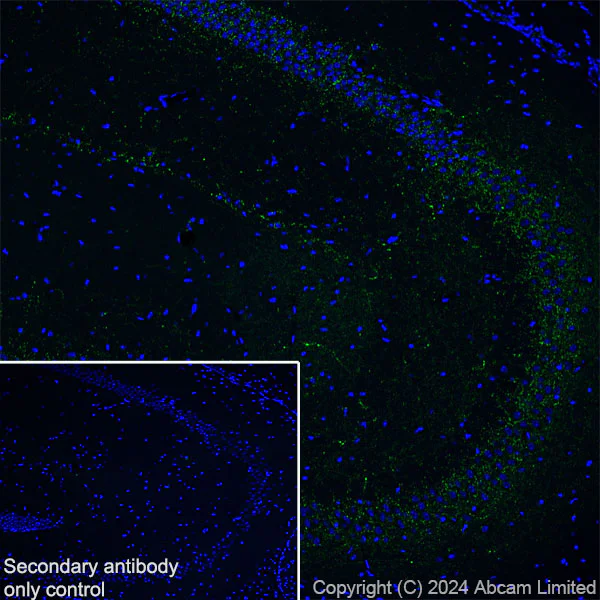

Immunohistochemical analysis of 4% PFA-fixed, 0.2% Triton X-100 permeabilized frozen Mouse hippocmapus (perfused fixed) tissue labeling VGLUT3 with ab316322 at a 1/100 (4.98 µg/ml) dilution followed by ab150081 Goat Anti-Rabbit IgG H&L (Alexa Fluor^® 488) preadsorbed at a 1/1000 (2 µg/mL) dilution (Green).

Confocal image showing positive staining on mouse hippocampus. The nuclear counterstain was DAPI (Blue). The section was incubated with ab316322 for 60 mins at room temperature. The section was then mounted using Fluoromount^®.The immunostaining was performed on a Leica Biosystems BOND^® RX instrument. Image was taken with a confocal microscope (Leica-Microsystems, TCS SP8).

Secondary antibody control : Secondary antibody is ab150081 Goat Anti-Rabbit IgG H&L (Alexa Fluor^® 488) preadsorbed at 1/1000 (2 µg/mL) dilution.

• IHC-P

Supplier Data

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-VGLUT3 antibody [EPR28534-165] - BSA and Azide free (AB316323)

This data was developed using ab316322, the same antibody clone in a different buffer formulation.

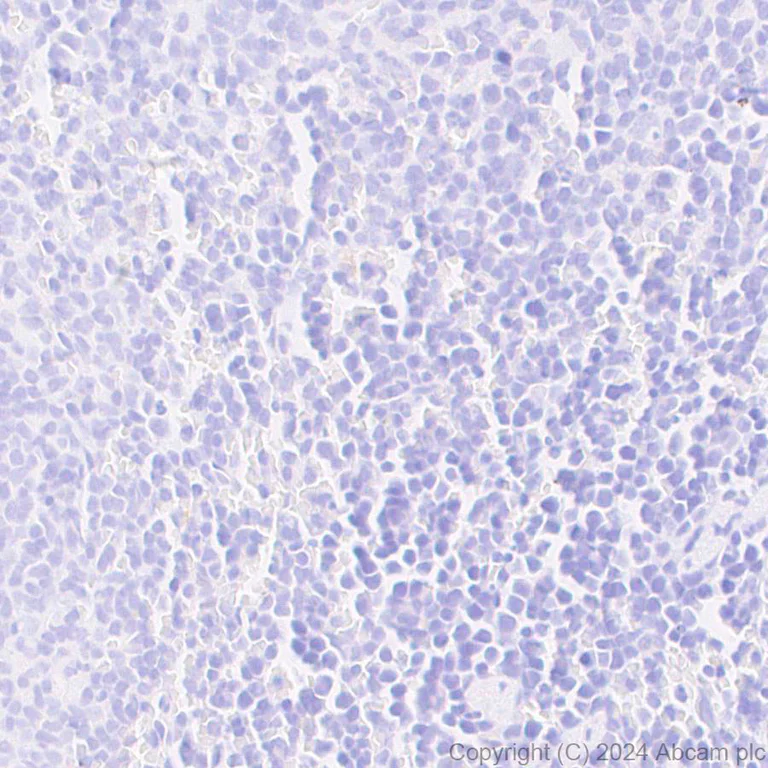

Immunohistochemical analysis of paraffin-embedded Mouse spleen tissue labeling VGLUT3 with ab316322 at 1/500 (0.996 ug/ml) dilution, followed by a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection).

Negative control : No staining in mouse spleen (PMID : 12097496).
The section was incubated with ab316322 for 30 mins at room temperature.
The immunostaining was performed on a Leica Biosystems BOND® RX instrument

Counterstained with Hematoxylin.

Secondary antibody only control : Secondary antibody is a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection).

Heat mediated antigen retrieval was performed with Citrate buffer (pH 6.0, Epitope Retrieval Solution 1) for 20 mins

• IHC-Fr

Lab

Immunohistochemistry (Frozen sections) - Anti-VGLUT3 antibody [EPR28534-165] - BSA and Azide free (AB316323)

This data was developed using ab316322, the same antibody clone in a different buffer formulation.

Immunohistochemical analysis of 4% PFA-fixed, 0.2% Triton X-100 permeabilized frozen Mouse hippocmapus (perfused fixed) tissue labeling VGLUT3 with ab316322 at a 1/100 (4.98 µg/ml) dilution followed by ab150081 Goat Anti-Rabbit IgG H&L (Alexa Fluor^® 488) preadsorbed at a 1/1000 (2 µg/mL) dilution (Green).

Low expression : confocal image showing no staining on mouse kidney. The nuclear counterstain was DAPI (Blue). The section was incubated with ab316322 for 60 mins at room temperature. The section was then mounted using Fluoromount^®.The immunostaining was performed on a Leica Biosystems BOND^® RX instrument. Image was taken with a confocal microscope (Leica-Microsystems, TCS SP8).

Secondary antibody control : Secondary antibody is ab150081 Goat Anti-Rabbit IgG H&L (Alexa Fluor^® 488) preadsorbed at 1/1000 (2 µg/mL) dilution.
