Anti-Vimentin antibody [V9] - Cytoskeleton Marker

14 product images

•

  Image from Tange S et al., PLoS One. 2014;9(12):e115684. Fig 9(H).; doi: 10.1371/journal.pone.0115684. Reproduced under the Creative Commons license http://creativecommons.org/licenses/by/4.0/

  Western blot - Anti-Vimentin antibody [V9] - Cytoskeleton Marker (ab8069)

  All lanes: Western blot - Anti-Vimentin antibody [V9] - Cytoskeleton Marker (ab8069)

  Lane 1: Whole cell lysate of A549 cells

  Lane 2: Whole cell lysate of A549 cells treated with TGF-beta

  Lane 3: Whole cell lysate of A549 cells overexpressing JARID2

  Lane 4: Whole cell lysate of A549 cells overexpressing JARID2 treated with TGF-beta

  Predicted band size: 53 kDa

•

  Image from Loessner D et al, Biomaterials. 2010 Nov;31(32):8494-506. Epub 2010 Aug 14. doi:10.1016/j.biomaterials.2010.07.064

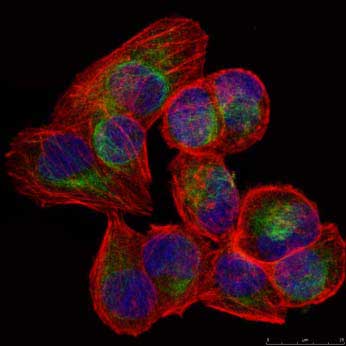

  Immunocytochemistry/ Immunofluorescence - Anti-Vimentin antibody [V9] - Cytoskeleton Marker (ab8069)

  ab8069 staining Vimentin in human epithelial ovarian serous adenocarcinoma cell line SKOV-3 by Immunocytochemistry/ Immunofluorescence.

  Samples were fixed with 4% PFA in PBS pH 7.4 and then permeabilised using 0.2% saponin for 30 minutes. A blocking step was performed using 1% BSA/PBS for 1 hour. Samples were then incubated with ab8069 at a 1/200 dilution in 1% BSA/PBS for 1 hour. The secondary antibody was a goat anti-mouse Alexa 488 (green) diluted 1/1000, 1% BSA/PBS for 1 hour. Samples were then incubated with phalloidin (red for actin staining) in 1% BSA/PBS for 45 minutes and counterstained with DAPI (blue for nuclei staining) in PBS for 45 minutes.

•

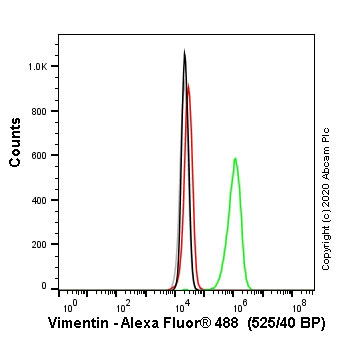

  Flow Cytometry (Intracellular) - Anti-Vimentin antibody [V9] - Cytoskeleton Marker (ab8069)

  Flow cytometry overlay histogram showing wild-type HAP1 (green line) and VIM knockout HAP1 cells stained with ab8069 (red line). The cells were fixed with 80% methanol (5 min) and then permeabilized with 0.1% PBS-Triton X-100 for 15 min. The cells were then incubated in 1x PBS containing 10% normal goat serum to block non-specific protein-protein interaction followed by the antibody (ab8069) (1x10⁶ in 100 µl at 0.04 µg/ml) for 30 min at 22°C.

  The secondary antibody Goat anti-mouse IgG H&L (Alexa Fluor^® 488, pre-adsorbed) (Goat Anti-Mouse IgG H&L (Alexa Fluor® 488) preadsorbed ab150117) was used at 1/2000 for 30 min at 22°C.

  Isotype control antibody was mouse IgG1κ (Mouse IgG1, kappa monoclonal [15-6E10A7] - Isotype Control ab170190) used at the same concentration and conditions as the primary antibody (wild-type HAP1 - black line VIM knockout HAP1 - grey line). Unlabelled sample was also used as a control (this line is not shown for the purpose of simplicity).

  Acquisition of >5000 events were collected using a .

  This antibody gave a positive signal in VIM HAP1 knockout cells fixed with 4% formaldehyde (10 min) / permeabilized with 0.1% PBS-Triton X-100 for 15 min used under the same conditions./

•

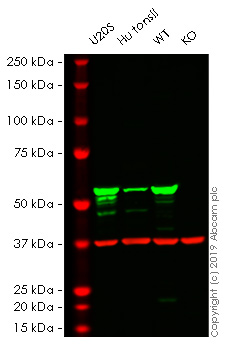

  Western blot - Anti-Vimentin antibody [V9] - Cytoskeleton Marker (ab8069)

  Lanes 1 - 4: Merged signal (red and green). Green - ab8069 observed at 53 kDa. Red - loading control, Anti-GAPDH antibody [EPR16891] - Loading Control ab181602 observed at 37 kDa.


  ab8069 was shown to react with Vimentin in wild-type HeLa cells. Loss of signal was observed when knockout cell line Human VIM (Vimentin) knockout HeLa cell line ab255446 (knockout cell lysate Human VIM (Vimentin) knockout HeLa cell lysate ab263775) was used. Wild-type and Vimentin knockout samples were subjected to SDS-PAGE. ab8069 and Anti-GAPDH antibody [EPR16891] - Loading Control (Anti-GAPDH antibody [EPR16891] - Loading Control ab181602) were incubated overnight at 4°C at 1 μg/ml and 1 in 20000 dilution respectively. Blots were developed with Goat anti-Mouse IgG H&L (IRDye^® 800CW) preadsorbed (Goat anti-Mouse IgG H&L (IRDye® 800CW) preadsorbed ab216772) and Goat Anti-Rabbit IgG H&L (IRDye^® 680RD) preadsorbed (Goat Anti-Rabbit IgG H&L (IRDye® 680RD) preadsorbed ab216777) secondary antibodies at 1 in 20000 dilution for 1 hour at room temperature before imaging.

  All lanes: Western blot - Anti-Vimentin antibody [V9] - Cytoskeleton Marker (ab8069) at 1 µg/mL

  Lane 1: U-2 OS (Human bone osteosarcoma epithelial cell line) cell lysate at 20 µg

  Lane 2: Human tonsil cell lysate at 20 µg

  Lane 2: Western blot - Human VIM (Vimentin) knockout HeLa cell line (Human VIM (Vimentin) knockout HeLa cell line ab255446)

  Lane 3: Wild-type HeLa cell lysate at 20 µg

  Lane 4: VIM knockout HeLa cell lysate at 20 µg

  Secondary

  All lanes: Western blot - Goat anti-Mouse IgG H&L (IRDye® 800CW) preadsorbed (Goat anti-Mouse IgG H&L (IRDye® 800CW) preadsorbed ab216772) at 1/20000 dilution

  Performed under reducing conditions.

  Predicted band size: 53 kDa

  Observed band size: 50 kDa, 53 kDa

•

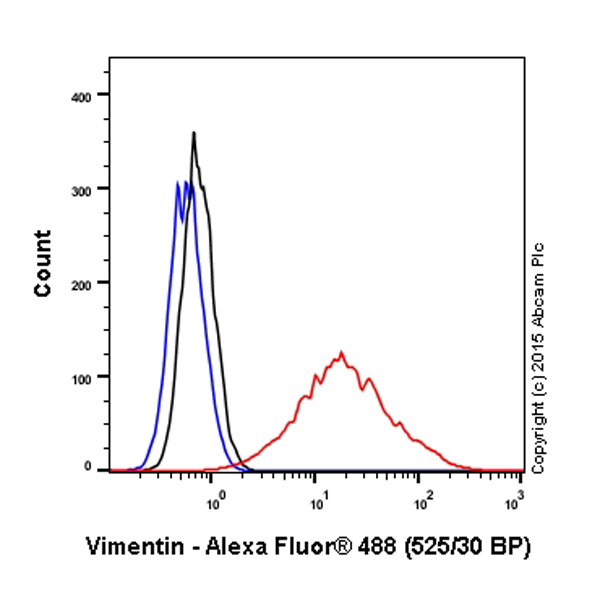

  Flow Cytometry (Intracellular) - Anti-Vimentin antibody [V9] - Cytoskeleton Marker (ab8069)

  Overlay histogram showing SV40LT-SMC cells stained with ab8069 (red line). The cells were fixed with 4% formaldehyde (10 min) and then permeabilized with 0.1% PBS-Triton X-100 for 20 min. The cells were then incubated in 1x PBS / 10% normal goat serum / 0.3M glycine to block non-specific protein-protein interactions followed by the antibody (ab8069, 0.1μg/1x10⁶ cells) for 30 min at 22°C. The secondary antibody used was Alexa Fluor^® 488 goat anti-mouse IgG (H&L) (Goat Anti-Mouse IgG H&L (Alexa Fluor® 488) ab150113) at 1/2000 dilution for 30 min at 22°C. Isotype control antibody (black line) was mouse IgG1 [ICIGG1] (Mouse IgG1, Kappa Monoclonal [B11/6] - Isotype Control ab91353, 0.1μg/1x10⁶ cells) used under the same conditions. Unlabelled sample (blue line) was also used as a control.


  Acquisition of >5,000 events were collected using a 20mW Argon ion laser (488nm) and 525/30 bandpass filter.

  This antibody gave a positive signal in SV40LT-SMC cells fixed with 80% methanol (5 min)/permeabilized with 0.1% PBS-Triton X-100 for 20 min used under the same conditions.

•

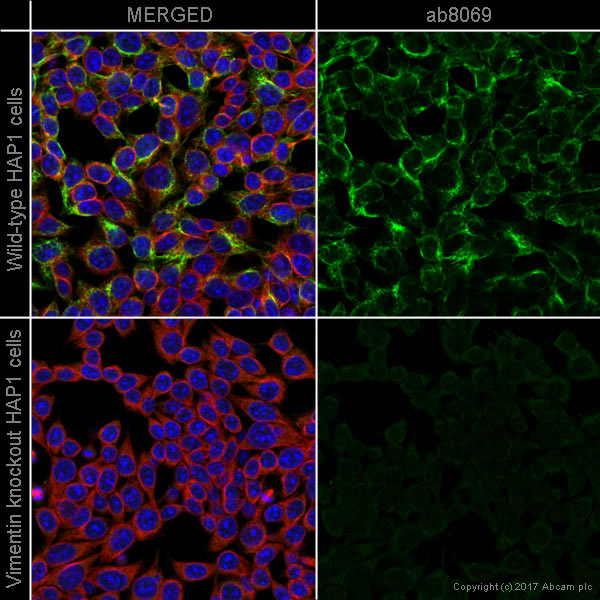

  Immunocytochemistry/ Immunofluorescence - Anti-Vimentin antibody [V9] - Cytoskeleton Marker (ab8069)

  ab8069 staining Vimentin (colored green) in wild-type HAP1 cells (top panel) and VIM knockout HAP1 cells (bottom panel). The cells were fixed with 100% methanol (5min), permeabilized with 0.1% Triton X-100 for 5 minutes and then blocked with 1% BSA/10% normal goat serum/0.3M glycine in 0.1% PBS-Tween for 1h. The cells were then incubated with ab8069 at 0.5μg/ml and Alexa Fluor® 594 Anti-alpha Tubulin antibody [EP1332Y] - Microtubule Marker ab202272 (Rabbit monoclonal [EP1332Y] to alpha Tubulin (Alexa Fluor® 594)) at 1/250 dilution overnight at +4°C, followed by a further incubation at room temperature for 1h with Goat Anti-Mouse IgG H&L (Alexa Fluor® 488) preadsorbed ab150117 (Goat secondary antibody to Mouse IgG (Alexa Fluor® 488)) at 2 μg/ml (colored green). Nuclear DNA was labelled in blue with DAPI.


  Image was taken with a confocal microscope (Leica-Microsystems, TCS SP8).

•

  Flow Cytometry (Intracellular) - Anti-Vimentin antibody [V9] - Cytoskeleton Marker (ab8069)

  Overlay histogram showing MDA-MB-231 cells stained with ab8069 (red line). The cells were fixed with 4% formaldehyde (10 min) and then permeabilized with 0.1% PBS-Triton X-100 for 20 min. The cells were then incubated in 1x PBS / 10% normal goat serum / 0.3M glycine to block non-specific protein-protein interactions followed by the antibody (ab8069, 1μg/1x10⁶ cells) for 30 min at 22°C. The secondary antibody used was Alexa Fluor^® 488 goat anti-mouse IgG (H&L) (Goat Anti-Mouse IgG H&L (Alexa Fluor® 488) ab150113) at 1/2000 dilution for 30 min at 22°C. Isotype control antibody (black line) was mouse IgG1 [ICIGG1] (Mouse IgG1, Kappa Monoclonal [B11/6] - Isotype Control ab91353, 1μg/1x10⁶ cells) used under the same conditions. Unlabelled sample (blue line) was also used as a control.


  Acquisition of >5,000 events were collected using a 20mW Argon ion laser (488nm) and 525/30 bandpass filter.

  This antibody gave a positive signal in MDA-MB-231 cells fixed with 80% methanol (5 min)/permeabilized with 0.1% PBS-Triton X-100 for 20 min used under the same conditions.

•

  Western blot - Anti-Vimentin antibody [V9] - Cytoskeleton Marker (ab8069)

  Lanes 1 - 4: Merged signal (red and green). Green - ab8069 observed at 57 kDa. Red - loading control, Anti-GAPDH antibody [EPR16891] - Loading Control ab181602, observed at 37 kDa.

  ab8069 was shown to specifically react with Vimentin in wild-type HAP1 cells as signal was lost in VIM (Vimentin) knockout cells. Wild-type and VIM (Vimentin) knockout samples were subjected to SDS-PAGE. ab8069 and Anti-GAPDH antibody [EPR16891] - Loading Control ab181602 (Rabbit anti-GAPDH loading control) were incubated overnight at 4°C at 1 μg/ml and 1/10000 dilution respectively. Blots were developed with Goat anti-Mouse IgG H&L (IRDye^® 800CW) preabsorbed Goat anti-Mouse IgG H&L (IRDye® 800CW) preadsorbed ab216772 and Goat anti-Rabbit IgG H&L (IRDye^® 680RD) preabsorbed Goat Anti-Rabbit IgG H&L (IRDye® 680RD) preadsorbed ab216777 secondary antibodies at 1/10000 dilution for 1 hour at room temperature before imaging.

  All lanes: Western blot - Anti-Vimentin antibody [V9] - Cytoskeleton Marker (ab8069) at 1 µg/mL

  Lane 1: Wild-type HAP1 whole cell lysate at 20 µg

  Lane 2: VIM (Vimentin) knockout HAP1 whole cell lysate at 20 µg

  Lane 3: HeLa whole cell lysate at 20 µg

  Lane 4: MOLT4 whole cell lysate at 20 µg

  Predicted band size: 53 kDa

•

  Western blot - Anti-Vimentin antibody [V9] - Cytoskeleton Marker (ab8069)

  All lanes: Western blot - Anti-Vimentin antibody [V9] - Cytoskeleton Marker (ab8069) at 1 µg/mL

  Lane 1: HeLa (Human epithelial cell line from cervix adenocarcinoma) Whole Cell Lysate at 10 µg

  Lane 2: MOLT4 (Human lymphoblastic leukemia cell line) Whole Cell Lysate at 10 µg

  Secondary

  All lanes: Western blot - Goat Anti-Mouse IgG H&L (HRP) preadsorbed (Goat Anti-Mouse IgG H&L (HRP) preadsorbed ab97040) at 1/5000 dilution

  Developed using the ECL technique.

  Performed under reducing conditions.

  Predicted band size: 53 kDa

  Observed band size: 57 kDa

  Exposure time: 20min

•

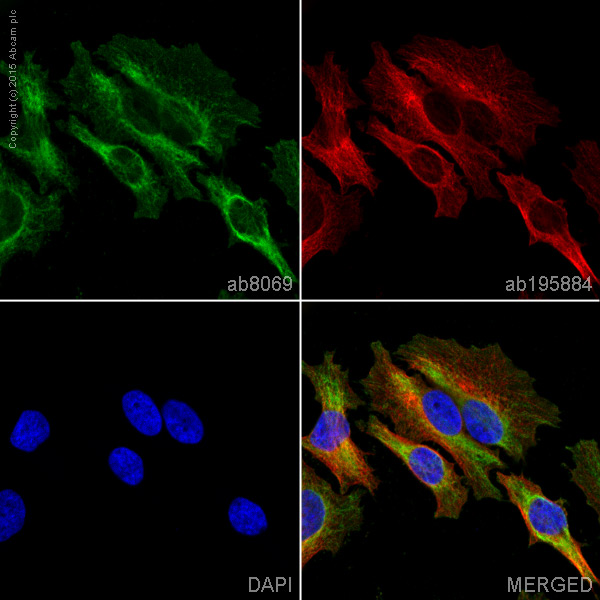

  Immunocytochemistry/ Immunofluorescence - Anti-Vimentin antibody [V9] - Cytoskeleton Marker (ab8069)

  ab8069 staining Vimentin in HeLa cells. The cells were fixed with 4% formaldehyde (10min), permeabilized with 0.1% Triton X-100 for 5 minutes and then blocked with 1% BSA/10% normal goat serum/0.3M glycine in 0.1% PBS-Tween for 1h. The cells were then incubated overnight at +4°C with ab8069 at 1/100 dilution (shown in green) and Alexa Fluor® 594 Anti-alpha Tubulin antibody [DM1A] - Microtubule Marker ab195889, Mouse monoclonal to alpha Tubulin (Alexa Fluor^® 594), at 2μg/ml (shown in red). Nuclear DNA was labelled with DAPI (shown in blue).
  Image was taken with a confocal microscope (Leica-Microsystems, TCS SP8).

•

  This image is courtesy of an anonymous customer review

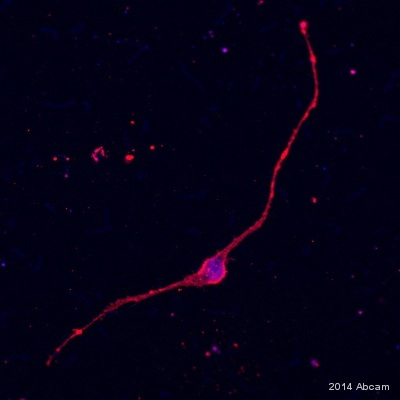

  Immunocytochemistry/ Immunofluorescence - Anti-Vimentin antibody [V9] - Cytoskeleton Marker (ab8069)

  ab8069 staining Vimentin in rat glial cells by ICC/IF (Immunocytochemistry/immunofluorescence). Cells were fixed with formaldehyde and blocked with 1% BSA for 10 minutes at 25°C. Samples were incubated with primary antibody (1/200) for 10 hours at 4°C. An Alexa Fluor^® 555-conjugated anti-mouse IgG polyclonal (1/300) was used as the secondary antibody.

•

  This image is courtesy of an anonymous customer review

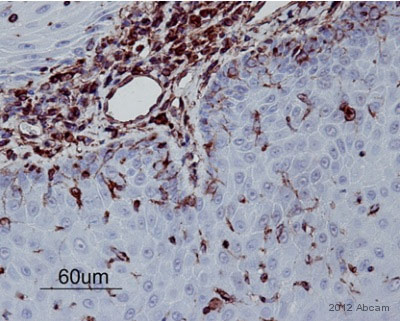

  Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Vimentin antibody [V9] - Cytoskeleton Marker (ab8069)

  ab8069 staining Vimentin in Human oral cavity tissue sections by Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections).

  Tissue was fixed with paraformaldehyde and blocked with Protein Block ab64226 Protein Block for 5 minutes at 25°C; antigen retrieval was by heat mediation in pH 6 buffer . Samples were incubated with primary antibody (1/1000 in 10% NGS) for 16 hours at 4°C. An undiluted biotinylated goat anti-rabbit polyclonal IgG was used as the secondary antibody.

•

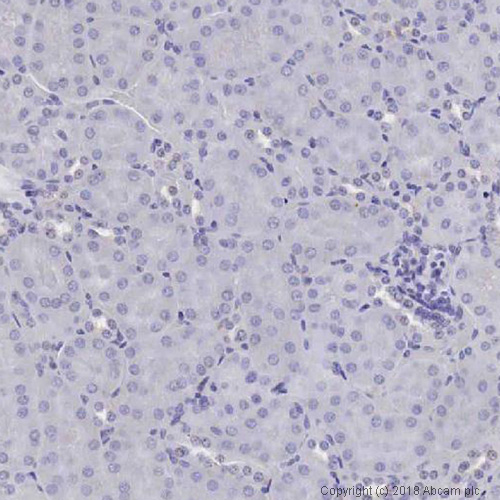

  Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Vimentin antibody [V9] - Cytoskeleton Marker (ab8069)

  IHC image showing no staining when ab8069 was used on mousekidney formalin fixed paraffin embedded tissue, using MOM detection kit, ab127055. The section was pre-treated using pressure cooker heat mediated antigen retrieval with sodium citrate buffer (pH6) for 30 mins. The section was incubated with ab8069 at 5 μg/ml for 15 mins at room temperature. DAB was used as the chromogen. The section was counterstained with haematoxylin and mounted with DPX.


  For other IHC staining systems (automated and non-automated) customers should optimize variable parameters such as antigen retrieval conditions, primary antibody concentration and antibody incubation times.

•

  Lab

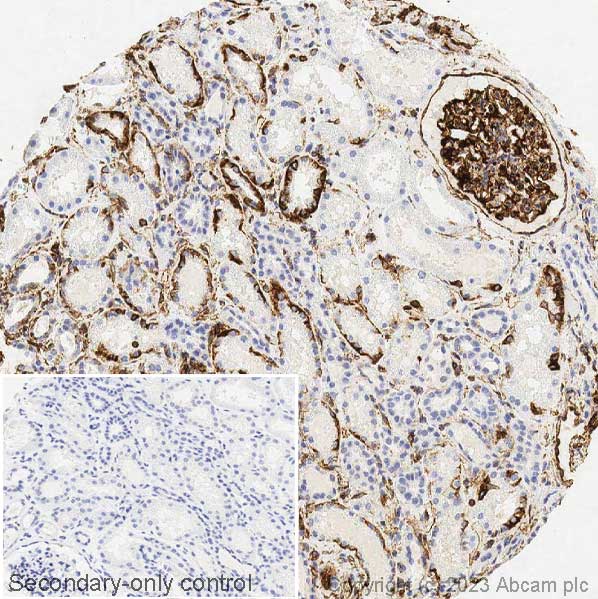

  Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Vimentin antibody [V9] - Cytoskeleton Marker (ab8069)

  IHC image of Vimentin staining in a section of formalin-fixed paraffin-embedded human normal kidney* performed on a Leica Biosystems BOND^® RX instrument. The section was pre-treated using heat mediated antigen retrieval with sodium citrate buffer (pH6, epitope retrieval solution 1) for 20mins. The section was then incubated with ab8069, 0.5ug/ml, for 15 mins at room temperature and detected using an HRP conjugated compact polymer system. DAB was used as the chromogen. The section was then counterstained with haematoxylin and mounted with DPX. The inset secondary-only control image is taken from an identical assay without primary antibody.

  For other IHC staining systems (automated and non-automated) customers should optimize variable parameters such as antigen retrieval conditions, primary antibody concentration and antibody incubation times.

  *Tissue obtained from the Human Research Tissue Bank, supported by the NIHR Cambridge Biomedical Research Centre.
