Anti-WDR5 antibody [EPR27033-6]

20 product images

•

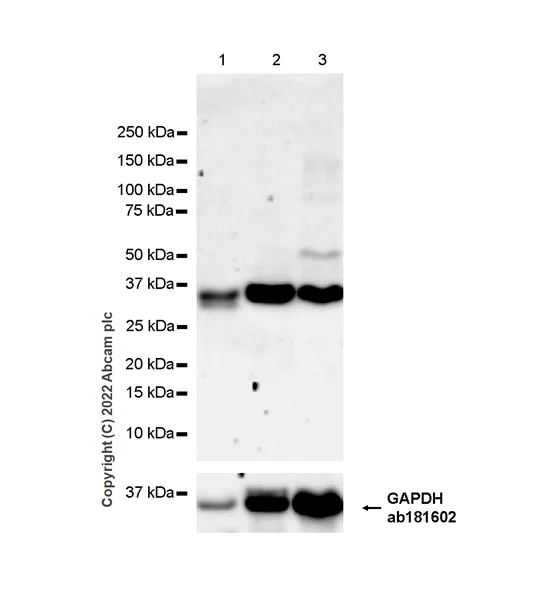

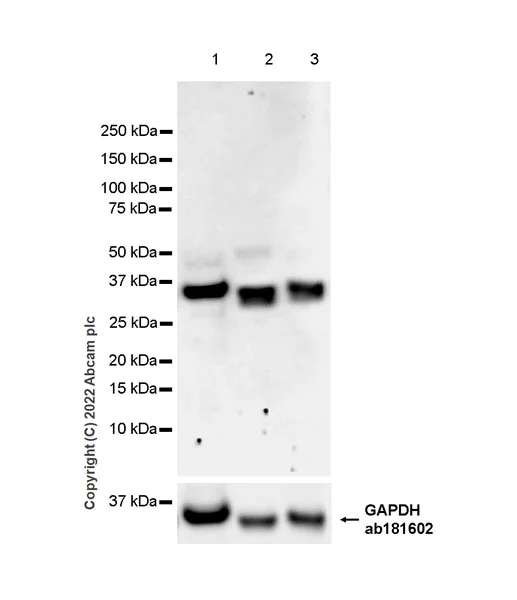

  Western blot - Anti-WDR5 antibody [EPR27033-6] (ab307664)

  Blocking and diluting buffer and concentration: 5% NFDM/TBST.


  This blot was developed using a high sensitivity ECL substrate. The high-sensitivity ECL substrate used allows for the detection of proteins in the mid-femtogram range.

  All lanes: Western blot - Anti-WDR5 antibody [EPR27033-6] (ab307664) at 1/1000 dilution

  Lane 1: U937 (human histiocytic lymphoma monocyte) whole cell lysate at 20 µg

  Lane 2: Saos-2 (human osteosarcoma epithelial) whole cell lysate at 20 µg

  Lane 3: NIH/3T3 (mouse embryonic fibroblast) whole cell lysate at 20 µg

  Secondary

  All lanes: Western blot - Goat Anti-Rabbit IgG H&L (HRP) (Goat Anti-Rabbit IgG H&L (HRP) ab97051) at 1/100000 dilution

  Developed using the ECL technique.

  Observed band size: 37 kDa

  Exposure time: 180s

•

  Western blot - Anti-WDR5 antibody [EPR27033-6] (ab307664)

  Blocking and diluting buffer and concentration: 5% NFDM/TBST.


  This blot was developed using a high sensitivity ECL substrate. The high-sensitivity ECL substrate used allows for the detection of proteins in the mid-femtogram range.

  All lanes: Western blot - Anti-WDR5 antibody [EPR27033-6] (ab307664) at 1/1000 dilution

  Lane 1: Human spleen tissue lysate at 20 µg

  Lane 2: Mouse spleen tissue lysate at 20 µg

  Lane 3: Rat spleen tissue lysate at 20 µg

  Secondary

  All lanes: Western blot - Goat Anti-Rabbit IgG H&L (HRP) (Goat Anti-Rabbit IgG H&L (HRP) ab97051) at 1/100000 dilution

  Developed using the ECL technique.

  Observed band size: 37 kDa

  Exposure time: 180s

•

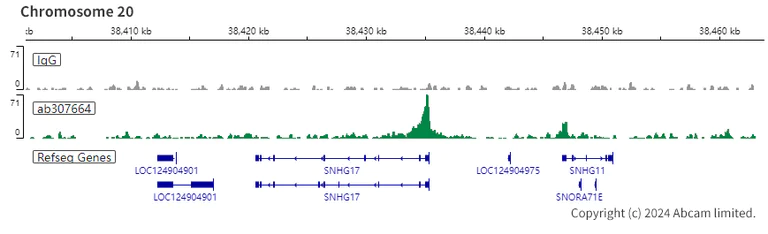

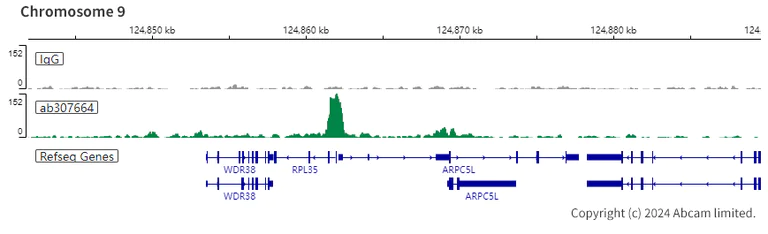

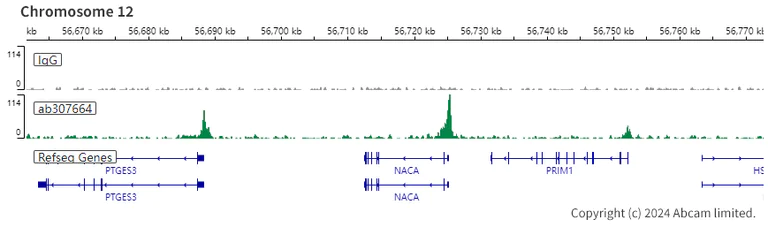

  ChIC/CUT&RUN sequencing - Anti-WDR5 antibody [EPR27033-6] (ab307664)

  ChIC/CUT&RUN was performed using a pAG-MNase at a final concentration of 700 ng/mL, 2.5 x 10⁵ HeLa (Human epithelial cell line from cervix adenocarcinoma) cells and 5 µg of ab307664 [EPR27033-6]. The resulting DNA was sequenced on the Illumina NovaSeq 6000 to a depth of 10 million reads. The negative IgG control Rabbit IgG, monoclonal [EPR25A] - Isotype Control ab172730 is also shown.

  The University of Geneva owns patents relevant to ChIC (Chromatin Immuno-Cleavage) methods.

•

  ChIC/CUT&RUN sequencing - Anti-WDR5 antibody [EPR27033-6] (ab307664)

  ChIC/CUT&RUN was performed using a pAG-MNase at a final concentration of 700 ng/mL, 2.5 x 10⁵ HeLa (Human epithelial cell line from cervix adenocarcinoma) cells and 5 µg of ab307664 [EPR27033-6]. The resulting DNA was sequenced on the Illumina NovaSeq 6000 to a depth of 10 million reads. The negative IgG control Rabbit IgG, monoclonal [EPR25A] - Isotype Control ab172730 is also shown.

  The University of Geneva owns patents relevant to ChIC (Chromatin Immuno-Cleavage) methods.

•

  ChIC/CUT&RUN sequencing - Anti-WDR5 antibody [EPR27033-6] (ab307664)

  ChIC/CUT&RUN was performed using a pAG-MNase at a final concentration of 700 ng/mL, 2.5 x 10⁵ HeLa (Human epithelial cell line from cervix adenocarcinoma) cells and 5 µg of ab307664 [EPR27033-6]. The resulting DNA was sequenced on the Illumina NovaSeq 6000 to a depth of 10 million reads. The negative IgG control Rabbit IgG, monoclonal [EPR25A] - Isotype Control ab172730 is also shown.

  The University of Geneva owns patents relevant to ChIC (Chromatin Immuno-Cleavage) methods.

•

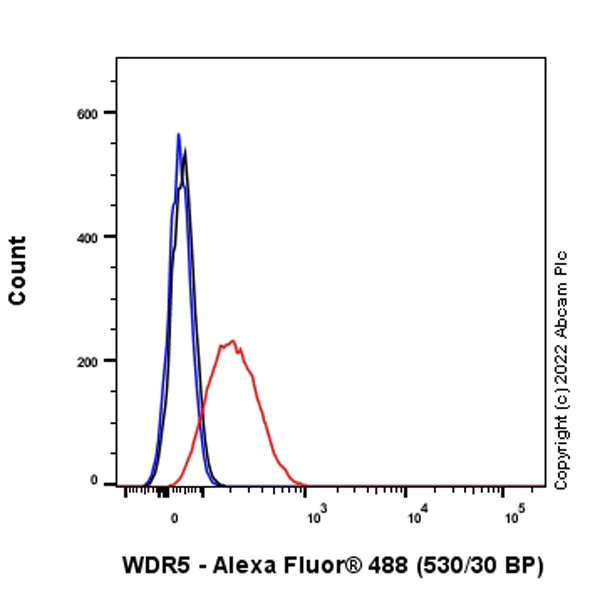

  Flow Cytometry (Intracellular) - Anti-WDR5 antibody [EPR27033-6] (ab307664)

  Flow cytometric analysis of 4% paraformaldehyde fixed 90% methanol permeabilized HeLa (human cervix adenocarcinoma epithelial cell) cells labelling WDR5 with ab307664 at 1/50 dilution (1ug) (Red) (Red) compared with a Rabbit monoclonal IgG (Rabbit IgG, monoclonal [EPR25A] - Isotype Control ab172730) (Black) isotype control and an unlabelled control (cells without incubation with primary antibody and secondary antibody) (Blue). A Goat Anti-Rabbit IgG (Alexa Fluor® 488, Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed ab150081) at 1/2000 dilution was used as the secondary antibody.

•

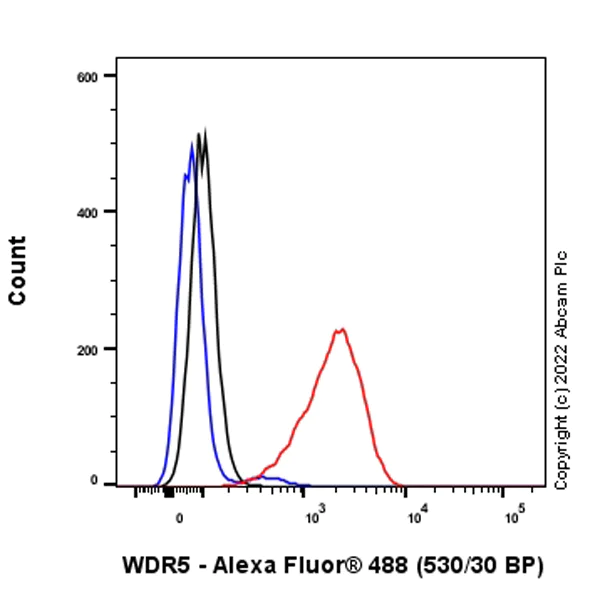

  Flow Cytometry (Intracellular) - Anti-WDR5 antibody [EPR27033-6] (ab307664)

  Flow cytometric analysis of 4% paraformaldehyde fixed 90% methanol permeabilized NIH/3T3 (mouse embryonic fibroblast) cells labelling WDR5 with ab307664 at 1/500 dilution (0.1ug) (Red) (Red) compared with a Rabbit monoclonal IgG (Rabbit IgG, monoclonal [EPR25A] - Isotype Control ab172730) (Black) isotype control and an unlabelled control (cells without incubation with primary antibody and secondary antibody) (Blue). A Goat Anti-Rabbit IgG (Alexa Fluor® 488, Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed ab150081) at 1/2000 dilution was used as the secondary antibody.

•

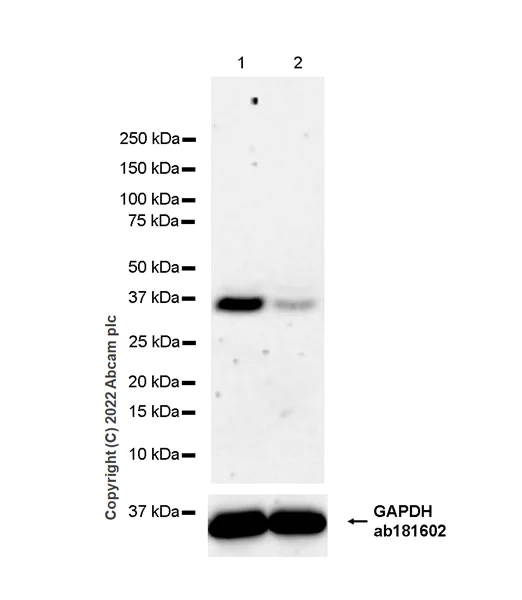

  Western blot - Anti-WDR5 antibody [EPR27033-6] (ab307664)

  Blocking and diluting buffer and concentration: 5% NFDM/TBST

  Exposure time: 180 seconds

  All lanes: Western blot - Anti-WDR5 antibody [EPR27033-6] (ab307664) at 1/1000 dilution

  Lane 1: HeLa (human cervix adenocarcinoma epithelial cell) transfected with scrambled siRNA control whole cell lysate at 20 µg

  Lane 2: HeLa transfected with siRNA specifically targeti WDR5 whole cell lysate at 20 µg

  Secondary

  All lanes: Western blot - Goat Anti-Rabbit IgG H&L (HRP) (Goat Anti-Rabbit IgG H&L (HRP) ab97051) at 1/100000 dilution

  Observed band size: 37 kDa

  Exposure time: 180s

•

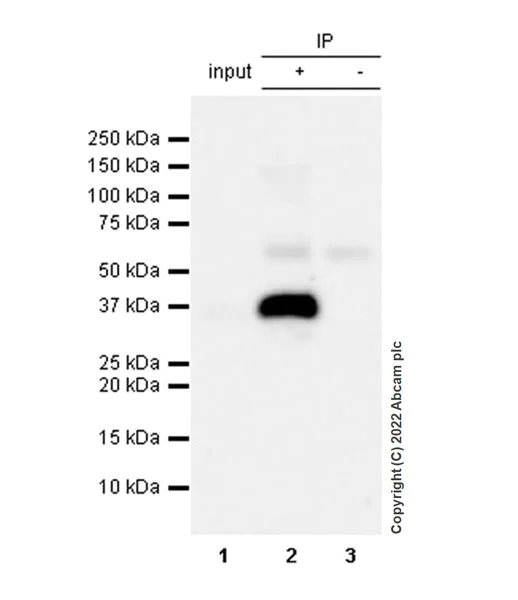

  Immunoprecipitation - Anti-WDR5 antibody [EPR27033-6] (ab307664)

  WDR5 was immunoprecipitated from 0.35 mg NIH/3T3 whole cell lysate 10 ug with ab307664 at 1/30 dilution (2ug in 0.35mg lysates). Western blot was performed on the immunoprecipitate using ab307664 at 1/1000 dilution. VeriBlot for IP secondary antibody(HRP)(VeriBlot for IP Detection Reagent (HRP) ab131366) was used at 1/5000 dilution.
  Lane 1: NIH/3T3 (mouse embryonic fibroblast) whole cell lysate
  Lane 2: ab307664 IP in NIH/3T3 whole cell lysate 10 ug
  Lane 3: Rabbit monoclonal IgG (Rabbit IgG, monoclonal [EPR25A] - Isotype Control ab172730) instead of ab307664 in NIH/3T3 whole cell lysate
  Blocking and dilution buffer and concentration: 5% NFDM/TBST.
  Exposure time: 8 seconds

  All lanes: Immunoprecipitation - Anti-WDR5 antibody [EPR27033-6] (ab307664) at 1/30 dilution

  All lanes: NIH/3T3 (mouse embryonic fibroblast) whole cell lysate

  Secondary

  All lanes: Immunoprecipitation - VeriBlot for IP Detection Reagent (HRP) (VeriBlot for IP Detection Reagent (HRP) ab131366) at 1/5000 dilution

  Exposure time: 8s

•

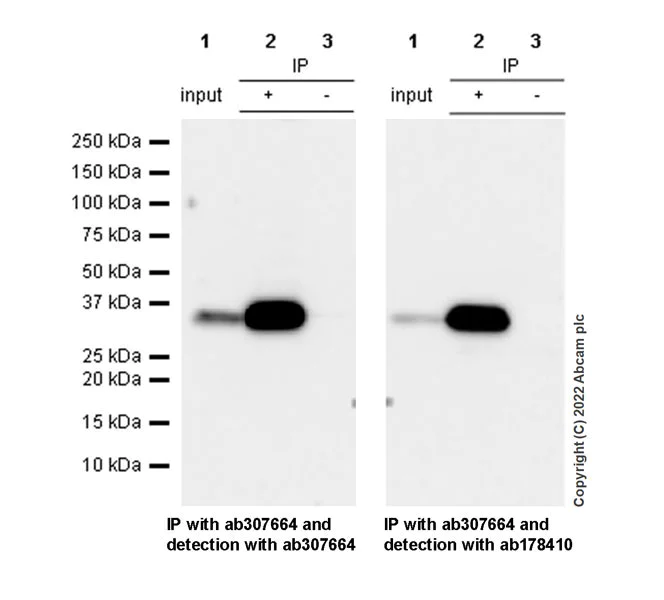

  Immunoprecipitation - Anti-WDR5 antibody [EPR27033-6] (ab307664)

  WDR5 was immunoprecipitated from 0.35 mg U937 whole cell lysate with ab307664 at 1/30 dilution (2ug in 0.35mg lysates). Western blot was performed on the immunoprecipitate using ab307664 at 1/1000 dilution. VeriBlot for IP secondary antibody(HRP)(VeriBlot for IP Detection Reagent (HRP) ab131366) was used at 1/5000 dilution.
  Lane 1: U937 (human histiocytic lymphoma monocyte) whole cell lysate
  Lane 2: ab307664 IP in U937 whole cell lysate
  Lane 3: Rabbit monoclonal IgG (Rabbit IgG, monoclonal [EPR25A] - Isotype Control ab172730) instead of ab307664 in U937 whole cell lysate
  Blocking and dilution buffer and concentration: 5% NFDM/TBST.
  Exposure time: 24 seconds
  The IP experiment was performed by ab307664 using U937 cells. On the left the IP blot was probed with ab307664 and on the right the blot was probed by another anti-WDR5 antibody (Anti-WDR5 antibody [EPR11350] - C-terminal ab178410)(1:1000 dilution).

  Lane 2: Immunoprecipitation - Anti-WDR5 antibody [EPR27033-6] (ab307664) at 1/30 dilution

  Lane 2: Immunoprecipitation - Anti-WDR5 antibody [EPR11350] - C-terminal (Anti-WDR5 antibody [EPR11350] - C-terminal ab178410) at 1/1000 dilution

  All lanes: U937 (human histiocytic lymphoma monocyte) whole cell lysate

  Secondary

  All lanes: Immunoprecipitation - VeriBlot for IP Detection Reagent (HRP) (VeriBlot for IP Detection Reagent (HRP) ab131366) at 1/5000 dilution

  Exposure time: 24s

•

  Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-WDR5 antibody [EPR27033-6] (ab307664)

  Immunohistochemical analysis of paraffin-embedded Rat spleen tissue labeling WDR5 with ab307664 at 1/500 (1.076 ug/ml) followed by a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection) was used. Nuclear staining on rat spleen.The section was incubated with ab307664 for 30 mins at room temperature.The immunostaining was performed on a Leica Biosystems BOND® RX instrument Counterstained with Hematoxylin.
  Secondary antibody only control: Secondary antibody is a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection) was used.
  Heat mediated antigen retrieval was performed with Citrate buffer (pH 6.0, Epitope Retrieval Solution 1) for 20 mins

•

  Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-WDR5 antibody [EPR27033-6] (ab307664)

  Immunohistochemical analysis of paraffin-embedded Rat colon tissue labeling WDR5 with ab307664 at 1/500 (1.076 ug/ml) followed by a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection) was used. Nuclear staining on rat colon.The section was incubated with ab307664 for 30 mins at room temperature.The immunostaining was performed on a Leica Biosystems BOND® RX instrument Counterstained with Hematoxylin.
  Secondary antibody only control: Secondary antibody is a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection) was used.
  Heat mediated antigen retrieval was performed with Citrate buffer (pH 6.0, Epitope Retrieval Solution 1) for 20 mins

•

  Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-WDR5 antibody [EPR27033-6] (ab307664)

  Immunohistochemical analysis of paraffin-embedded Mouse breast cancer tissue labeling WDR5 with ab307664 at 1/500 (1.076 ug/ml) followed by a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection) was used. Nuclear staining on mouse breast cancer.The section was incubated with ab307664 for 30 mins at room temperature.The immunostaining was performed on a Leica Biosystems BOND® RX instrument Counterstained with Hematoxylin.
  Secondary antibody only control: Secondary antibody is a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection) was used.
  Heat mediated antigen retrieval was performed with Citrate buffer (pH 6.0, Epitope Retrieval Solution 1) for 20 mins

•

  Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-WDR5 antibody [EPR27033-6] (ab307664)

  Immunohistochemical analysis of paraffin-embedded Mouse spleen tissue labeling WDR5 with ab307664 at 1/500 (1.076 ug/ml) followed by a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection) was used. Nuclear staining on mouse spleen.The section was incubated with ab307664 for 30 mins at room temperature.The immunostaining was performed on a Leica Biosystems BOND® RX instrument Counterstained with Hematoxylin.
  Secondary antibody only control: Secondary antibody is a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection) was used.
  Heat mediated antigen retrieval was performed with Citrate buffer (pH 6.0, Epitope Retrieval Solution 1) for 20 mins

•

  Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-WDR5 antibody [EPR27033-6] (ab307664)

  Immunohistochemical analysis of paraffin-embedded Mouse colon tissue labeling WDR5 with ab307664 at 1/500 (1.076 ug/ml) followed by a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection) was used. Nuclear staining on mouse colon.The section was incubated with ab307664 for 30 mins at room temperature.The immunostaining was performed on a Leica Biosystems BOND® RX instrument Counterstained with Hematoxylin.
  Secondary antibody only control: Secondary antibody is a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection) was used.
  Heat mediated antigen retrieval was performed with Citrate buffer (pH 6.0, Epitope Retrieval Solution 1) for 20 mins

•

  Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-WDR5 antibody [EPR27033-6] (ab307664)

  Immunohistochemical analysis of paraffin-embedded Human tonsil tissue labeling WDR5 with ab307664 at 1/100 (5.38 ug/ml) followed by a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection) was used. Nuclear staining on human tonsil.The section was incubated with ab307664 for 30 mins at room temperature.The immunostaining was performed on a Leica Biosystems BOND® RX instrument Counterstained with Hematoxylin.
  Secondary antibody only control: Secondary antibody is a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection) was used.
  Heat mediated antigen retrieval was performed with Citrate buffer (pH 6.0, Epitope Retrieval Solution 1) for 20 mins

•

  Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-WDR5 antibody [EPR27033-6] (ab307664)

  Immunohistochemical analysis of paraffin-embedded Human colon tissue labeling WDR5 with ab307664 at 1/100 (5.38 ug/ml) followed by a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection) was used. Nuclear staining on human colon (PMID: 28300833).The section was incubated with ab307664 for 30 mins at room temperature.The immunostaining was performed on a Leica Biosystems BOND® RX instrument Counterstained with Hematoxylin.
  Secondary antibody only control: Secondary antibody is a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection) was used.
  Heat mediated antigen retrieval was performed with Citrate buffer (pH 6.0, Epitope Retrieval Solution 1) for 20 mins

•

  Immunocytochemistry/ Immunofluorescence - Anti-WDR5 antibody [EPR27033-6] (ab307664)

  Immunofluorescent analysis of 4% Paraformaldehyde-fixed, 0.1% TritonX-100 permeabilized NIH/3T3 (mouse embryonic fibroblast) cells labelling WDR5 with ab307664 at 1/500 (1.076 ug/ml) dilution, followed by Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed ab150081 Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed antibody at 1/1000 2 ug/ml dilution (Green). Confocal image showing nuclear staining in NIH/3T3 cell line.Image was taken with a confocal microscope(Leica-Microsystems, TCS SP8). Alexa Fluor® 594 Anti-alpha Tubulin antibody [DM1A] - Microtubule Marker ab195889 Anti-alpha Tubulin mouse monoclonal antibody - Microtubule Marker (Alexa Fluor® 594) was used to counterstain tubulin at 1/200 2.5ug/ml dilution (Red). The Nuclear counterstain was DAPI (Blue). Secondary antibody only control: Secondary antibody is Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed ab150081 Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed at 1/1000 2 ug/ml dilution.

•

  Immunocytochemistry/ Immunofluorescence - Anti-WDR5 antibody [EPR27033-6] (ab307664)

  Immunofluorescent analysis of 4% Paraformaldehyde-fixed, 0.1% TritonX-100 permeabilized HeLa (human cervical adenocarcinoma epithelial cell) cells labelling WDR5 with ab307664 at 1/500 (1.076 ug/ml) dilution, followed by Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed ab150081 Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed antibody at 1/1000 2 ug/ml dilution (Green). Confocal image showing nuclear staining in HeLa cell line.Image was taken with a confocal microscope(Leica-Microsystems, TCS SP8). Alexa Fluor® 594 Anti-alpha Tubulin antibody [DM1A] - Microtubule Marker ab195889 Anti-alpha Tubulin mouse monoclonal antibody - Microtubule Marker (Alexa Fluor® 594) was used to counterstain tubulin at 1/200 2.5ug/ml dilution (Red). The Nuclear counterstain was DAPI (Blue). Secondary antibody only control: Secondary antibody is Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed ab150081 Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed at 1/1000 2 ug/ml dilution.

•

  Immunohistochemistry (Frozen sections) - Anti-WDR5 antibody [EPR27033-6] (ab307664)

  Immunohistochemical analysis of 4% PFA-fixed, 0.2% Triton X-100 permeabilized frozen Mouse spleen (fresh) tissue labeling WDR5 with ab307664 at 1/50 (10.76 ug/ml) dilution followed by Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed ab150081 Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed at 1/1000 2 ug/mL dilution (Green). Confocal image showing positive staining on mouse spleen. The nuclear counterstain was DAPI (Blue). The section was incubated with ab307664 for 60 mins at room temperature. The section was then mounted using Fluoromount®.The immunostaining was performed on a Leica Biosystems BOND® RX instrument. Image was taken with a confocal microscope (Leica-Microsystems, TCS SP8). The nuclear counterstain was DAPI (Blue). Secondary antibody control: Secondary antibody is Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed ab150081 Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbedat 1/1000 2 ug/mL dilution.
