Mouse Monoclonal XPD antibody. Suitable for IP, Flow Cyt, WB and reacts with Human samples. Cited in 18 publications. Immunogen corresponding to Recombinant Full Length Protein corresponding to Human ERCC2.


Images

Western blot - Anti-XPD antibody [4G2-2A6] (AB54676), expandable thumbnail
  • Immunoprecipitation - Anti-XPD antibody [4G2-2A6] (AB54676), expandable thumbnail
  • Flow Cytometry - Anti-XPD antibody [4G2-2A6] (AB54676), expandable thumbnail

Publications

Key facts

Isotype
IgG1
Host species
Mouse
Storage buffer

pH: 7.4

Form
Liquid
Clonality
Monoclonal

Immunogen

  • Recombinant Full Length Protein corresponding to Human ERCC2. Database link P18074

Reactivity data

Select an application
Product promiseTestedExpectedPredictedNot recommended
IPFlow CytWB
Human
Tested
Tested
Tested

Tested
Tested

Species
Human
Dilution info
-
Notes

-

Tested
Tested

Species
Human
Dilution info
-
Notes

ab170190 - Mouse monoclonal IgG1, is suitable for use as an isotype control with this antibody.

Tested
Tested

Species
Human
Dilution info
-
Notes

-

Associated Products

Select an associated product type

7 products for Alternative Product

Target data

Function

ATP-dependent 5'-3' DNA helicase (PubMed:31253769, PubMed:8413672, PubMed:9771713). Component of the general transcription and DNA repair factor IIH (TFIIH) core complex, not absolutely essential for minimal transcription in vitro (PubMed:10024882, PubMed:17466626, PubMed:9771713). Required for transcription-coupled nucleotide excision repair (NER) of damaged DNA; recognizes damaged bases (PubMed:17466626, PubMed:23352696, PubMed:9771713). Sequestered in chromatin on UV-damaged DNA (PubMed:23352696). When complexed to CDK-activating kinase (CAK), involved in transcription by RNA polymerase II. In NER, TFIIH acts by opening DNA around the lesion to allow the excision of the damaged oligonucleotide and its replacement by a new DNA fragment. The ATP-dependent helicase activity of XPD/ERCC2 is required for DNA opening. Involved in DNA lesion verification (PubMed:31253769). In transcription, TFIIH has an essential role in transcription initiation. When the pre-initiation complex (PIC) has been established, TFIIH is required for promoter opening and promoter escape. Phosphorylation of the C-terminal tail (CTD) of the largest subunit of RNA polymerase II by the kinase module CAK controls the initiation of transcription. XPD/ERCC2 acts by forming a bridge between CAK and the core-TFIIH complex. The structure of the TFIIH transcription complex differs from the NER-TFIIH complex; large movements by XPD/ERCC2 and XPB/ERCC3 are stabilized by XPA which allow this subunit to contact ssDNA (PubMed:31253769, PubMed:33902107). Involved in the regulation of vitamin-D receptor activity. As part of the mitotic spindle-associated MMXD complex it plays a role in chromosome segregation. Might have a role in aging process and could play a causative role in the generation of skin cancers.

Alternative names

XPD, XPDC, ERCC2, General transcription and DNA repair factor IIH helicase subunit XPD, TFIIH subunit XPD, Basic transcription factor 2 80 kDa subunit, CXPD, DNA 5'-3' helicase XPD, DNA excision repair protein ERCC-2, DNA repair protein complementing XP-D cells, TFIIH basal transcription factor complex 80 kDa subunit, Xeroderma pigmentosum group D-complementing protein, BTF2 p80, TFIIH 80 kDa subunit, TFIIH p80

Recommended products

Mouse Monoclonal XPD antibody. Suitable for IP, Flow Cyt, WB and reacts with Human samples. Cited in 18 publications. Immunogen corresponding to Recombinant Full Length Protein corresponding to Human ERCC2.

Key facts

Isotype
IgG1
Form
Liquid
Clonality
Monoclonal
Immunogen
  • Recombinant Full Length Protein corresponding to Human ERCC2. Database link P18074
Clone number
4G2-2A6
Purity
Tissue culture supernatant
Light chain type
kappa
Concentration
Loading...
Purification notes

Purified from TCS.

Storage

Shipped at conditions
Blue Ice
Appropriate short-term storage conditions
+4°C
Appropriate long-term storage conditions
-20°C
Aliquoting information
Upon delivery aliquot
Storage information
Avoid freeze / thaw cycle

Notes

This product was changed from ascites to tissue culture supernatant on 30th April 2019. Please note that the dilutions may need to be adjusted accordingly. If you have any questions, please do not hesitate to contact our scientific support team.

Abcam is leading the way to address reproducibility in scientific research with our highly validated recombinant monoclonal and recombinant multiclonal antibodies. Search & select one of Abcam's thousands of recombinant alternatives to eliminate batch-variability and unnecessary animal use.

If you do not find a host species to meet your needs, our catalogue and custom Chimeric range provides scientists the specificity of Abcam's RabMAbs in the species backbone of your choice. Remember to also review our range of edited cell lines, proteins and biochemicals relevant to your target that may help you further your research goals.

Abcam antibodies are extensively validated in a wide range of species and applications, so please check the reagent specifications meet your scientific needs before purchasing. If you have any questions or bespoke requirements, simply visit the Contact Us page to send us an inquiry or contact our Support Team ahead of purchase.

Supplementary info

This supplementary information is collated from multiple sources and compiled automatically.
Activity summary

XPD also known as ERCC2 is an essential helicase enzyme belonging to the family of ATP-dependent DNA helicases. It consists of approximately 761 amino acids and has a mass of around 87 kDa. XPD functions mechanically by unwinding double-stranded DNA which is important for various DNA repair processes. This protein is expressed ubiquitously in human tissues highlighting its critical role in maintaining genomic integrity.

Biological function summary

XPD catalyzes the unwinding of DNA within the transcription factor IIH (TFIIH) complex. This complex facilitates DNA repair and transcription initiation. XPD participates in the nucleotide excision repair (NER) pathway where it contributes to repairing damaged DNA by excising damaged nucleotides. Its role in transcription-coupled repair and general transcription initiation underlines its importance in cellular homeostasis.

Pathways

DNA repair and general transcription processes are significantly affected by XPD. It plays an integral role in nucleotide excision repair (NER) and transcription. Within these pathways XPD works closely with other proteins such as XPA which assists in damage verification and incision near DNA lesions. XPD's unwinding function is essential for the correct orientation of DNA during transcription and repair events ensuring accurate gene expression and stability.

Associated diseases and disorders

XPD mutations link to xeroderma pigmentosum (XP) and trichothiodystrophy (TTD). These conditions often result in increased sensitivity to ultraviolet (UV) radiation and various developmental abnormalities. XPD mutations impair the repair of UV-induced DNA damage causing symptoms in both XP and TTD. XPD also connects with ERCC1 a protein important for repair synthesis and DNA incision highlighting its broad impact on human health when its function is compromised.

Product promise

We are dedicated to supporting your work with high quality reagents and we are here for you every step of the way should you need us.

In the unlikely event of one of our products not working as expected, you are covered by our product promise.

Full details and terms and conditions can be found here:
Terms & Conditions.

3 product images

  • Western blot - Anti-XPD antibody [4G2-2A6] (ab54676), expandable thumbnail

    Western blot - Anti-XPD antibody [4G2-2A6] (ab54676)

    XPD antibody (ab54676) at 1ug/lane + HeLa cell lysate at 25ug/lane.

    This image was generated using the ascites version of the product.

    All lanes: Western blot - Anti-XPD antibody [4G2-2A6] (ab54676)

    Predicted band size: 87 kDa

  • Immunoprecipitation - Anti-XPD antibody [4G2-2A6] (ab54676), expandable thumbnail

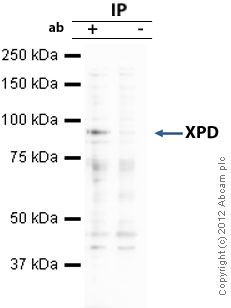

    Immunoprecipitation - Anti-XPD antibody [4G2-2A6] (ab54676)

    XPD was immunoprecipitated using 0.5mg Hela whole cell extract, 10μg of Mouse monoclonal to XPD and 50μl of protein G magnetic beads (+). No antibody was added to the control (-).
    The antibody was incubated under agitation with Protein G beads for 10min, Hela whole cell extract lysate diluted in RIPA buffer was added to each sample and incubated for a further 10min under agitation.
    Proteins were eluted by addition of 40μl SDS loading buffer and incubated for 10min at 70oC; 10μl of each sample was separated on a SDS PAGE gel, transferred to a nitrocellulose membrane, blocked with 5% BSA and probed with ab54676.
    Secondary: Goat polyclonal to mouse IgG light chain specific (HRP) at 1/5000 dilution.
    Band: 150kDa: SMC1; Non specific - 41 and 42kDa: We are unsure as to the identity of this extra band.

    This image was generated using the ascites version of the product.

    All lanes: Immunoprecipitation - Anti-XPD antibody [4G2-2A6] (ab54676)

    Predicted band size: 87 kDa

  • Flow Cytometry - Anti-XPD antibody [4G2-2A6] (ab54676), expandable thumbnail

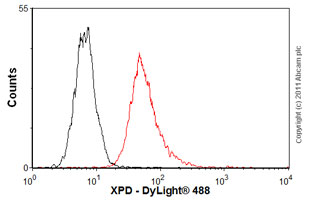

    Flow Cytometry - Anti-XPD antibody [4G2-2A6] (ab54676)

    Overlay histogram showing HeLa cells stained with ab54676 (red line). The cells were fixed with 80% methanol (5 min) and then permeabilized with 0.1% PBS-Tween for 20 min. The cells were then incubated in 1x PBS / 10% normal goat serum / 0.3M glycine to block non-specific protein-protein interactions followed by the antibody (ab54676, 1μg/1x106 cells) for 30 min at 22°C. The secondary antibody used was DyLight® 488 goat anti-mouse IgG (H+L) (Goat Anti-Mouse IgG H&L (DyLight® 488) preadsorbed ab96879) at 1/500 dilution for 30 min at 22°C. Isotype control antibody (black line) was mouse IgG1 [ICIGG1] (Mouse IgG1, Kappa Monoclonal [B11/6] - Isotype Control ab91353, 2μg/1x106 cells) used under the same conditions. Acquisition of >5,000 events was performed.

    This image was generated using the ascites version of the product.
