Anti-YKL-40/CHI3L1 antibody [EPR29069-1] - BSA and Azide free, low endotoxin

• ICC/IF

Lab

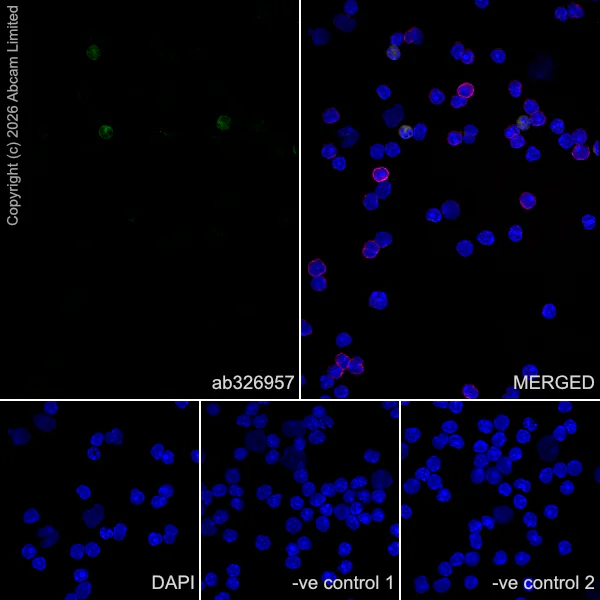

Immunocytochemistry/ Immunofluorescence - Anti-YKL-40/CHI3L1 antibody [EPR29069-1] - BSA and Azide free, low endotoxin (AB326957)

Immunofluorescent analysis of 4% Paraformaldehyde-fixed, 0.1% TritonX-100 permeabilized Mouse PBMC (mouse primary peripheral blood mononuclear cell) cells labelling YKL-40/CHI3L1 with ab326957 at 1/500 (2.07 μg/ml) dilution , followed by ab150081 Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed antibody at 1/1000 dilution (Green).

Confocal image showing cytoplasmic staining in subsets of cd11b+ mouse PBMCs (shown in green). The counterstain was observed in magenta. Nuclear DNA was labelled with DAPI (shown in blue). Image was taken with a confocal microscope (Leica-Microsystems, TCS SP8).

ab8878 Anti-CD11b Rat monoclonal antibody was used to counterstain tubulin at 1/200 dilution (Magenta). The Nuclear counterstain was DAPI (Blue).

-ve control 1 : ab326957 at 1/500 dilution, followed by ab150120 at 1/1000 dilution.-ve control 2 : ab8878 at 1/200 dilution, followed by ab150081 at 1/1000 dilution.

• WB

Lab

Western blot - Anti-YKL-40/CHI3L1 antibody [EPR29069-1] - BSA and Azide free, low endotoxin (AB326957)

Blocking and diluting buffer and concentration : 5% NFDM/TBST.

Low expression : brain, testis.

In Western blot, Anti-GAPDH antibody [EPR16891] - Loading Control (ab181602) (1 : 200000) (36KDa).

All lanes:

Western blot - Anti-YKL-40/CHI3L1 antibody [EPR29069-1] - BSA and Azide free, low endotoxin (ab326957) at 1/1000 dilution

Lane 1:

Mouse spleen tissue lysate at 50 µg

Lane 2:

Mouse PBMC tissue lysate at 50 µg

Lane 3:

Mouse testis tissue lysate at 50 µg

Lane 4:

Mouse brain tissue lysate at 50 µg

Secondary

All lanes:

Western blot - Goat Anti-Rabbit IgG H&L (HRP) (<a href='/en-us/products/secondary-antibodies/goat-rabbit-igg-h-l-hrp-ab97051'>ab97051</a>) at 1/20000 dilution

Observed band size: 40 kDa,36 kDa

false

Exposure time: 180s
