Mouse Monoclonal ZAP70 antibody. Suitable for IHC-P, ICC, Protein Array and reacts with Human, Recombinant full length protein - Human samples. Immunogen corresponding to Recombinant Fragment Protein within Human ZAP70 aa 200-400.

Be the first to review this product! Submit a review

Images

Protein Array - Anti-ZAP70 antibody [ZAP70/2035] (AB238076), expandable thumbnail
  • Immunocytochemistry - Anti-ZAP70 antibody [ZAP70/2035] (AB238076), expandable thumbnail
  • Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-ZAP70 antibody [ZAP70/2035] (AB238076), expandable thumbnail

Key facts

Isotype
IgG1
Host species
Mouse
Storage buffer

pH: 7.2 - 7.4
Preservative: 0.05% Sodium azide
Constituents: PBS, 0.05% BSA

Form
Liquid
Clonality
Monoclonal

Immunogen

  • Recombinant Fragment Protein within Human ZAP70 aa 200-400. The exact immunogen used to generate this antibody is proprietary information. Database link P43403

Reactivity data

Select an application
Product promiseTestedExpectedPredictedNot recommended
IHC-PICCProtein Array
Human
Tested
Tested
Expected
Recombinant full length protein - Human
Not recommended
Not recommended
Tested

Tested
Tested

Species
Human
Dilution info
1-2 µg/mL
Notes

Primary incubation for 30 minutes at room temperature.

Perform heat-mediated antigen retrieval with citrate buffer pH 6 before commencing with IHC staining protocol.

Not recommended
Not recommended

Species
Recombinant full length protein - Human
Dilution info
-
Notes

-

Tested
Tested

Species
Human
Dilution info
1-2 µg/mL
Notes

-

Not recommended
Not recommended

Species
Recombinant full length protein - Human
Dilution info
-
Notes

-

Tested
Tested

Species
Recombinant full length protein - Human
Dilution info
-
Notes

-

Expected
Expected

Species
Human
Dilution info
Use at an assay dependent concentration.
Notes

-

Associated Products

Select an associated product type

1 product for Alternative Version

5 products for Alternative Product

Target data

Function

Tyrosine kinase that plays an essential role in regulation of the adaptive immune response. Regulates motility, adhesion and cytokine expression of mature T-cells, as well as thymocyte development. Contributes also to the development and activation of primary B-lymphocytes. When antigen presenting cells (APC) activate T-cell receptor (TCR), a serie of phosphorylations lead to the recruitment of ZAP70 to the doubly phosphorylated TCR component CD247/CD3Z through ITAM motif at the plasma membrane. This recruitment serves to localization to the stimulated TCR and to relieve its autoinhibited conformation. Release of ZAP70 active conformation is further stabilized by phosphorylation mediated by LCK. Subsequently, ZAP70 phosphorylates at least 2 essential adapter proteins: LAT and LCP2. In turn, a large number of signaling molecules are recruited and ultimately lead to lymphokine production, T-cell proliferation and differentiation. Furthermore, ZAP70 controls cytoskeleton modifications, adhesion and mobility of T-lymphocytes, thus ensuring correct delivery of effectors to the APC. ZAP70 is also required for TCR-CD247/CD3Z internalization and degradation through interaction with the E3 ubiquitin-protein ligase CBL and adapter proteins SLA and SLA2. Thus, ZAP70 regulates both T-cell activation switch on and switch off by modulating TCR expression at the T-cell surface. During thymocyte development, ZAP70 promotes survival and cell-cycle progression of developing thymocytes before positive selection (when cells are still CD4/CD8 double negative). Additionally, ZAP70-dependent signaling pathway may also contribute to primary B-cells formation and activation through B-cell receptor (BCR).

Alternative names

Recommended products

Mouse Monoclonal ZAP70 antibody. Suitable for IHC-P, ICC, Protein Array and reacts with Human, Recombinant full length protein - Human samples. Immunogen corresponding to Recombinant Fragment Protein within Human ZAP70 aa 200-400.

Key facts

Isotype
IgG1
Form
Liquid
Clonality
Monoclonal
Immunogen
  • Recombinant Fragment Protein within Human ZAP70 aa 200-400. The exact immunogen used to generate this antibody is proprietary information. Database link P43403
Clone number
ZAP70/2035
Purification technique
Affinity purification Protein A/G
Light chain type
kappa
Concentration
Loading...
Purification notes

Purified from Bioreactor Concentrate by Protein A/G.

Storage

Shipped at conditions
Blue Ice
Appropriate short-term storage duration
1-2 weeks
Appropriate short-term storage conditions
+4°C
Appropriate long-term storage conditions
-20°C
Aliquoting information
Upon delivery aliquot
Storage information
Avoid freeze / thaw cycle

Supplementary info

This supplementary information is collated from multiple sources and compiled automatically.
Activity summary

ZAP70 also known as Zeta-chain-associated protein kinase 70 is a tyrosine kinase that plays an important role in T-cell receptor signaling. The protein has a molecular mass of approximately 70 kDa. ZAP70 is mainly expressed in T cells and natural killer (NK) cells. It gets activated upon T-cell receptor engagement initiating downstream signaling cascades essential for T-cell function and adaptive immune response.

Biological function summary

ZAP70 is instrumental in the signaling cascade that activates T cells in response to antigen recognition. It forms part of a larger signaling complex following the engagement of the T-cell receptor with antigens. This complex transmits critical activation signals leading to further cellular responses such as cytokine production and cell proliferation. ZAP70's function ensures appropriate immune responses and helps maintain immune system balance.

Pathways

ZAP70 plays an integral role in T-cell receptor signaling pathways. This protein interacts with other signaling molecules like Lck and LAT facilitating the transmission of activation signals within the cell. As part of the T-cell activation pathway ZAP70 helps to bridge receptor-ligand interactions with cellular responses enabling the immune cells to combat infections effectively.

Associated diseases and disorders

ZAP70 mutations or dysregulations can lead to severe immunodeficiencies or autoimmune diseases. For example ZAP70 deficiency results in severe combined immunodeficiency (SCID) which severely impairs immune function. Additionally aberrant ZAP70 activity has links to certain autoimmune disorders like rheumatoid arthritis where it influences abnormal immune signaling. Understanding the biochemical pathways that involve ZAP70 provides insight into managing these diseases and developing therapeutic strategies.

Product promise

We are dedicated to supporting your work with high quality reagents and we are here for you every step of the way should you need us.

In the unlikely event of one of our products not working as expected, you are covered by our product promise.

Full details and terms and conditions can be found here:
Terms & Conditions.

3 product images

  • Protein Array - Anti-ZAP70 antibody [ZAP70/2035] (ab238076), expandable thumbnail

    Protein Array - Anti-ZAP70 antibody [ZAP70/2035] (ab238076)

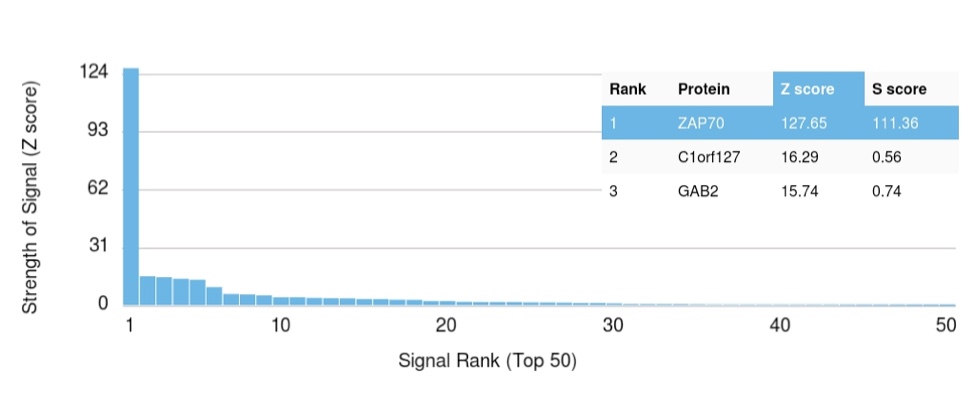

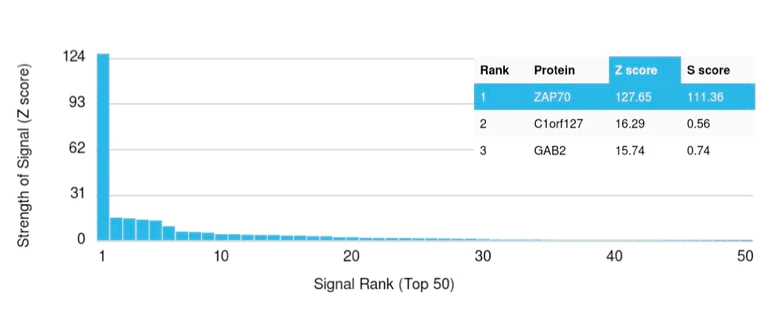

    ab238076 was tested in protein array against over 19000 different full-length human proteins.
    Z- and S- Score: The Z-score represents the strength of a signal that a monoclonal antibody (MAb) (in combination with a fluorescently-tagged anti-IgG secondary antibody) produces when binding to a particular protein on the HuProtTM array. Z-scores are described in units of standard deviations (SD's) above the mean value of all signals generated on that array. If targets on HuProtTM are arranged in descending order of the Z-score, the S-score is the difference (also in units of SD's) between the Z-score. S-score therefore represents the relative target specificity of a MAb to its intended target.
    A MAb is specific to its intended target if the MAb has an S-score of at least 2.5. For example, if a MAb binds to protein X with a Z-score of 43 and to protein Y with a Z-score of 14, then the S-score for the binding of that MAb to protein X is equal to 29.

  • Immunocytochemistry - Anti-ZAP70 antibody [ZAP70/2035] (ab238076), expandable thumbnail

    Immunocytochemistry - Anti-ZAP70 antibody [ZAP70/2035] (ab238076)

    Immunocytochemistry analysis of Jurkat cells labeling ZAP70 with ab238076 followed by Goat anti-Mouse IgG-CF488 (Green). The nuclear counterstain is Nucspot (Red).

  • Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-ZAP70 antibody [ZAP70/2035] (ab238076), expandable thumbnail

    Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-ZAP70 antibody [ZAP70/2035] (ab238076)

    Formalin-fixed, paraffin-embedded human tonsil tissue stained for ZAP70 using ab238076 at 2 μg/ml in immunohistochemical analysis.

Downloads

Product protocols

For this product, it's our understanding that no specific protocols are required. You can:

Please note: All products are 'FOR RESEARCH USE ONLY. NOT FOR USE IN DIAGNOSTIC OR THERAPEUTIC PROCEDURES'.
