AB76501

Anti-ZAP70 (phospho Y292) antibody [EPR1073]

Name: Anti-ZAP70 (phospho Y292) antibody [EPR1073] (ab76501) | Abcam
Brand: Abcam Limited
SKU: AB76501
Price: 340 USD
Availability: InStock
Rating: 2 (1 reviews)

RabMAb
Recombinant
What is this?

(1 Review)

(1 Publication)

Rabbit Recombinant Monoclonal ZAP70 phospho Y292 antibody. Suitable for Dot, WB, ICC/IF, Flow Cyt (Intra) and reacts with Synthetic peptide, Human samples. Cited in 1 publication.

View Alternative Names

SRK, ZAP70, Tyrosine-protein kinase ZAP-70, 70 kDa zeta-chain associated protein, Syk-related tyrosine kinase

4 Images

Immunocytochemistry/ Immunofluorescence - Anti-ZAP70 (phospho Y292) antibody [EPR1073] (AB76501)

ICC/IF

Unknown

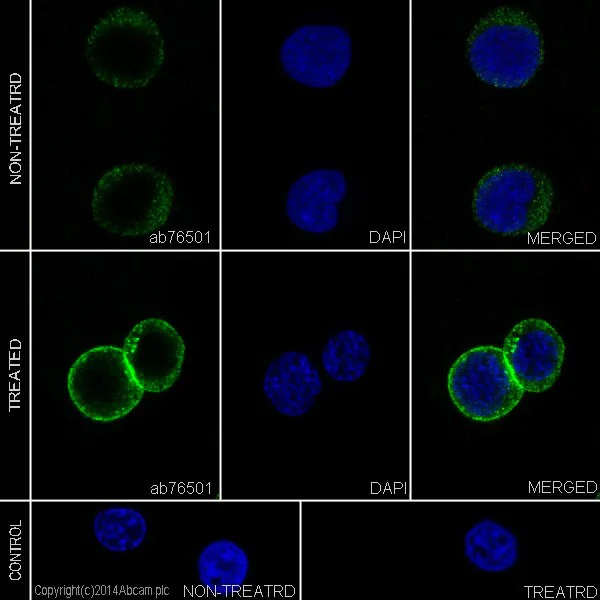

Immunocytochemistry/ Immunofluorescence - Anti-ZAP70 (phospho Y292) antibody [EPR1073] (AB76501)

Immunocytochemistry/Immunofluorescence analysis of untreated and pervanadate treated Jurkat (human acute T cell leukemia) cells labelling ZAP70 (phospho Y292) with ab76501 at a dilution of 1/250. Cells were fixed with 4% paraformaldehyde and permeabilized with 0.1% Triton X-100. Treated samples were starved overnight followed by incubation with 1mM pervanadate for 30 minutes. ab150077 an Alexa Fluor^® 488-conjugated goat anti-rabbit IgG (1/1000) was used as the secondary antibody. DAPI (blue) was used as the nuclear counterstain. Negative control using secondary antibody only.

Image shows increased cytoplasmic staining after pervanadate treatment.

Flow Cytometry (Intracellular) - Anti-ZAP70 (phospho Y292) antibody [EPR1073] (AB76501)

Flow Cyt (Intra)

Unknown

Flow Cytometry (Intracellular) - Anti-ZAP70 (phospho Y292) antibody [EPR1073] (AB76501)

Intracellular flow cytometric analysis of permeabilized Jurkat cells, untreated (green), pervanadate treated (red) stained with ab76501, at 1/20 dilution (blue) and pervanadate-treated Jurkat cells using the same antibody preincubated with phospho- ZAP70 (Tyr 292) peptide (blue) or non-phospho- ZAP70 (Tyr 292)).

Lab

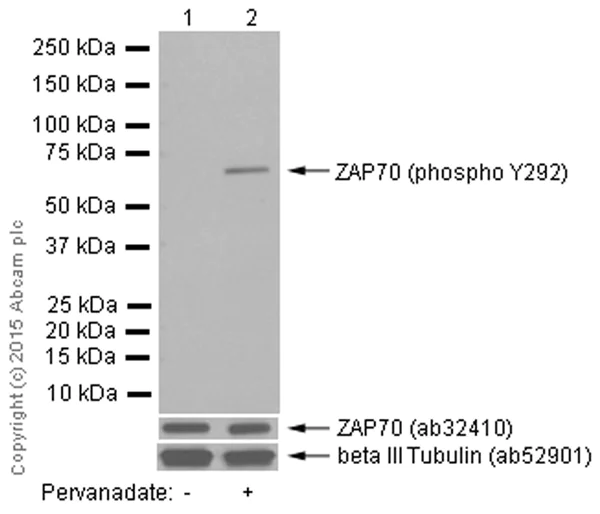

Western blot - Anti-ZAP70 (phospho Y292) antibody [EPR1073] (AB76501)

Blocking and dilution buffer : 5% NFDM/TBST.

All lanes:

Western blot - Anti-ZAP70 (phospho Y292) antibody [EPR1073] (ab76501) at 1/5000 dilution

Lane 1:

Untreated Jurkat (human acute T cell leukemia) whole cell lysates at 10 µg

Lane 2:

Jurkat (human acute T cell leukemia) treated with pervanadate whole cell lysates at 10 µg

Secondary

All lanes:

Peroxidase-conjugated goat anti-rabbit IgG, (H+L) at 1/1000 dilution

Predicted band size: 69 kDa

Observed band size: 70 kDa

false

Exposure time: 3min

Unknown

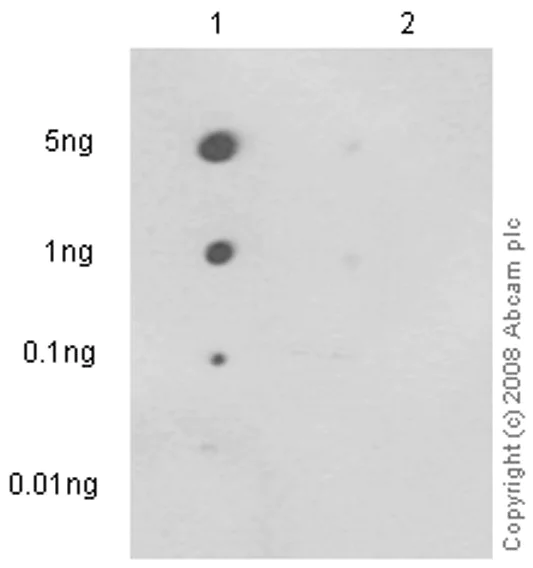

Dot Blot - Anti-ZAP70 (phospho Y292) antibody [EPR1073] (AB76501)

Dot blot analysis of varying amounts of ZAP70 (pY292) phospho peptide (Lane 1) and ZAP70 non-phospho peptide (Lane 2) using ab76501 at a dilution of 1/1000. A peroxidase-conjugated goat anti-rabbit IgG (H+L) was used as the secondary antibody (1/2500).

Exposure time : 3 minutes.

665 Alexa Fluor® 647

Alexa Fluor® 647 Anti-ZAP70 (phospho Y292) antibody [EPR1073]
HRP

HRP Anti-ZAP70 (phospho Y292) antibody [EPR1073]
Carrier free

Anti-ZAP70 (phospho Y292) antibody [EPR1073] - BSA and Azide free

Key facts

Host species

Rabbit

Clonality

Monoclonal

Clone number

EPR1073

Isotype

IgG

Carrier free

Reacts with

Human

Applications

ICC/IF, Dot, Flow Cyt (Intra), WB

applications

Immunogen

The exact immunogen used to generate this antibody is proprietary information.

style

left-column

Reactivity data

{ "title": "Reactivity Data", "filters": { "stats": ["", "Species", "Dilution Info", "Notes"], "tabs": { "all-applications": {"fullname" : "All Applications", "shortname": "All Applications"}, "IP" : {"fullname" : "Immunoprecipitation", "shortname":"IP"}, "Dot" : {"fullname" : "Dot Blot", "shortname":"Dot"}, "WB" : {"fullname" : "Western blot", "shortname":"WB"}, "IHCP" : {"fullname" : "Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections)", "shortname":"IHC-P"}, "ICCIF" : {"fullname" : "Immunocytochemistry/ Immunofluorescence", "shortname":"ICC/IF"}, "FlowCytIntra" : {"fullname" : "Flow Cytometry (Intracellular)", "shortname":"Flow Cyt (Intra)"} }, "product-promise": { "all": "all", "testedAndGuaranteed": "tested", "guaranteed": "expected", "predicted": "predicted", "notRecommended": "not-recommended" } }, "values": { "Human": { "IP-species-checked": "notRecommended", "IP-species-dilution-info": "", "IP-species-notes": "", "Dot-species-checked": "guaranteed", "Dot-species-dilution-info": "", "Dot-species-notes": "", "WB-species-checked": "testedAndGuaranteed", "WB-species-dilution-info": "1/5000 - 1/10000", "WB-species-notes": "", "IHCP-species-checked": "notRecommended", "IHCP-species-dilution-info": "", "IHCP-species-notes": "", "ICCIF-species-checked": "testedAndGuaranteed", "ICCIF-species-dilution-info": "1/250 - 1/500", "ICCIF-species-notes": "", "FlowCytIntra-species-checked": "testedAndGuaranteed", "FlowCytIntra-species-dilution-info": "1/20", "FlowCytIntra-species-notes": "<a href='/en-us/products/primary-antibodies/rabbit-igg-monoclonal-epr25a-isotype-control-ab172730'>ab172730</a> - Rabbit monoclonal IgG, is suitable for use as an isotype control with this antibody." }, "Synthetic peptide": { "IP-species-checked": "notRecommended", "IP-species-dilution-info": "", "IP-species-notes": "", "Dot-species-checked": "testedAndGuaranteed", "Dot-species-dilution-info": "1/1000", "Dot-species-notes": "", "WB-species-checked": "notRecommended", "WB-species-dilution-info": "", "WB-species-notes": "", "IHCP-species-checked": "notRecommended", "IHCP-species-dilution-info": "", "IHCP-species-notes": "", "ICCIF-species-checked": "notRecommended", "ICCIF-species-dilution-info": "", "ICCIF-species-notes": "", "FlowCytIntra-species-checked": "notRecommended", "FlowCytIntra-species-dilution-info": "", "FlowCytIntra-species-notes": "" } } }

style

left-column

Product details

Species reactivity
Mouse, Rat: We have preliminary internal testing data to indicate this antibody may not react with these species.
Please contact us for more information.

Patented technology
Our RabMAb^® technology is a patented hybridoma-based technology for making rabbit monoclonal antibodies. For details on our patents, please refer to RabMAb^® patents.

What are the advantages of a recombinant monoclonal antibody?
This product is a recombinant monoclonal antibody, which offers several advantages including:

- High batch-to-batch consistency and reproducibility
- Improved sensitivity and specificity
- Long-term security of supply
- Animal-free batch production

For more information, read more on recombinant antibodies.

style

left-column

Properties and storage information

Form

Liquid

Purification technique

Affinity purification Protein A

Storage buffer

pH: 7.2 - 7.4 Preservative: 0.05% Sodium azide Constituents: 50% Tissue culture supernatant, 40% Glycerol (glycerin, glycerine), 9.85% Tris glycine, 0.1% BSA

Shipped at conditions

Blue Ice

Appropriate short-term storage duration

1-2 weeks

Appropriate short-term storage conditions

+4°C

Appropriate long-term storage conditions

-20°C

Aliquoting information

Upon delivery aliquot

Storage information

Avoid freeze / thaw cycle

style

left-column

Supplementary information

This supplementary information is collated from multiple sources and compiled automatically.

ZAP70 also known as Zeta-chain-associated protein kinase 70 is a tyrosine kinase that plays an important role in T-cell receptor signaling. The protein has a molecular mass of approximately 70 kDa. ZAP70 is mainly expressed in T cells and natural killer (NK) cells. It gets activated upon T-cell receptor engagement initiating downstream signaling cascades essential for T-cell function and adaptive immune response.

Biological function summary

ZAP70 is instrumental in the signaling cascade that activates T cells in response to antigen recognition. It forms part of a larger signaling complex following the engagement of the T-cell receptor with antigens. This complex transmits critical activation signals leading to further cellular responses such as cytokine production and cell proliferation. ZAP70's function ensures appropriate immune responses and helps maintain immune system balance.

Pathways

ZAP70 plays an integral role in T-cell receptor signaling pathways. This protein interacts with other signaling molecules like Lck and LAT facilitating the transmission of activation signals within the cell. As part of the T-cell activation pathway ZAP70 helps to bridge receptor-ligand interactions with cellular responses enabling the immune cells to combat infections effectively.

ZAP70 mutations or dysregulations can lead to severe immunodeficiencies or autoimmune diseases. For example ZAP70 deficiency results in severe combined immunodeficiency (SCID) which severely impairs immune function. Additionally aberrant ZAP70 activity has links to certain autoimmune disorders like rheumatoid arthritis where it influences abnormal immune signaling. Understanding the biochemical pathways that involve ZAP70 provides insight into managing these diseases and developing therapeutic strategies.

style

left-column

style

left-column

Product protocols

For this product, it's our understanding that no specific protocols are required. You can visit:

Visit the General protocols
Visit the Troubleshooting

style

left-column

Target data

Tyrosine kinase that plays an essential role in regulation of the adaptive immune response. Regulates motility, adhesion and cytokine expression of mature T-cells, as well as thymocyte development. Contributes also to the development and activation of primary B-lymphocytes. When antigen presenting cells (APC) activate T-cell receptor (TCR), a serie of phosphorylations lead to the recruitment of ZAP70 to the doubly phosphorylated TCR component CD247/CD3Z through ITAM motif at the plasma membrane. This recruitment serves to localization to the stimulated TCR and to relieve its autoinhibited conformation. Release of ZAP70 active conformation is further stabilized by phosphorylation mediated by LCK. Subsequently, ZAP70 phosphorylates at least 2 essential adapter proteins : LAT and LCP2. In turn, a large number of signaling molecules are recruited and ultimately lead to lymphokine production, T-cell proliferation and differentiation. Furthermore, ZAP70 controls cytoskeleton modifications, adhesion and mobility of T-lymphocytes, thus ensuring correct delivery of effectors to the APC. ZAP70 is also required for TCR-CD247/CD3Z internalization and degradation through interaction with the E3 ubiquitin-protein ligase CBL and adapter proteins SLA and SLA2. Thus, ZAP70 regulates both T-cell activation switch on and switch off by modulating TCR expression at the T-cell surface. During thymocyte development, ZAP70 promotes survival and cell-cycle progression of developing thymocytes before positive selection (when cells are still CD4/CD8 double negative). Additionally, ZAP70-dependent signaling pathway may also contribute to primary B-cells formation and activation through B-cell receptor (BCR).

See full target information ZAP70 phospho Y292

style

left-column

Publications (1)

Recent publications for all applications. Explore the full list and refine your search

Molecular cell 83:4304-4317.e8 PubMed37949069

2023

FMRP phosphorylation modulates neuronal translation through YTHDF1.

Applications

Unspecified application

Species

Unspecified reactive species

Zhongyu Zou,Jiangbo Wei,Yantao Chen,Yunhee Kang,Hailing Shi,Fan Yang,Zhuoyue Shi,Shijie Chen,Ying Zhou,Caraline Sepich-Poore,Xiaoxi Zhuang,Xiaoming Zhou,Hualiang Jiang,Zhexing Wen,Peng Jin,Cheng Luo,Chuan He

View all publications

style

left-column

style

left-column

style

right-column

Product promise

We are committed to supporting your work with high-quality reagents, and we're here for you every step of the way. In the unlikely event that one of our products does not perform as expected, you're protected by our Product Promise.

For full details, please see our Terms & Conditions

Please note: All products are 'FOR RESEARCH USE ONLY. NOT FOR USE IN DIAGNOSTIC OR THERAPEUTIC PROCEDURES'.
