AB247483

Anti-ZAP70 (phospho Y292) antibody [EPR1073] - BSA and Azide free

RabMAb
Recombinant
What is this?

Be the first to review this product! Submit a review

(1 Publication)

Rabbit Recombinant Monoclonal ZAP70 phospho Y292 antibody. Carrier free. Suitable for ICC/IF, Dot, WB, Flow Cyt (Intra) and reacts with Human, Synthetic peptide samples. Cited in 1 publication.

View Alternative Names

SRK, ZAP70, Tyrosine-protein kinase ZAP-70, 70 kDa zeta-chain associated protein, Syk-related tyrosine kinase

4 Images

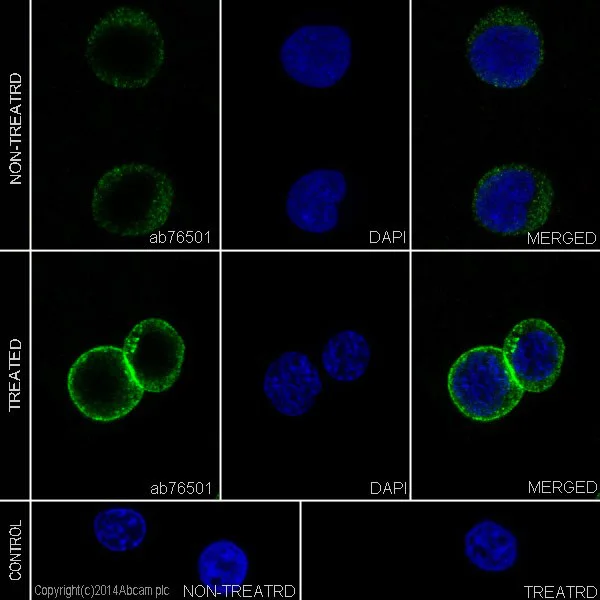

Immunocytochemistry/ Immunofluorescence - Anti-ZAP70 (phospho Y292) antibody [EPR1073] - BSA and Azide free (AB247483)

ICC/IF

Unknown

Immunocytochemistry/ Immunofluorescence - Anti-ZAP70 (phospho Y292) antibody [EPR1073] - BSA and Azide free (AB247483)

This data was developed using ab76501, the same antibody clone in a different buffer formulation.

Immunocytochemistry/Immunofluorescence analysis of untreated and pervanadate treated Jurkat (human acute T cell leukemia) cells labelling ZAP70 (phospho Y292) with ab76501 at a dilution of 1/250. Cells were fixed with 4% paraformaldehyde and permeabilized with 0.1% Triton X-100. Treated samples were starved overnight followed by incubation with 1mM pervanadate for 30 minutes. ab150077, an Alexa Fluor^® 488-conjugated goat anti-rabbit IgG (1/1000) was used as the secondary antibody. DAPI (blue) was used as the nuclear counterstain. Negative control using secondary antibody only.

Image shows increased cytoplasmic staining after pervanadate treatment.

Flow Cytometry (Intracellular) - Anti-ZAP70 (phospho Y292) antibody [EPR1073] - BSA and Azide free (AB247483)

Flow Cyt (Intra)

Unknown

Flow Cytometry (Intracellular) - Anti-ZAP70 (phospho Y292) antibody [EPR1073] - BSA and Azide free (AB247483)

This data was developed using ab76501, the same antibody clone in a different buffer formulation.

Intracellular flow cytometric analysis of permeabilized Jurkat cells, untreated (green), pervanadate treated (red) stained with ab76501, at 1/20 dilution (blue) and pervanadate-treated Jurkat cells using the same antibody preincubated with phospho- ZAP70 (Tyr 292) peptide (blue) or non-phospho- ZAP70 (Tyr 292)).

Lab

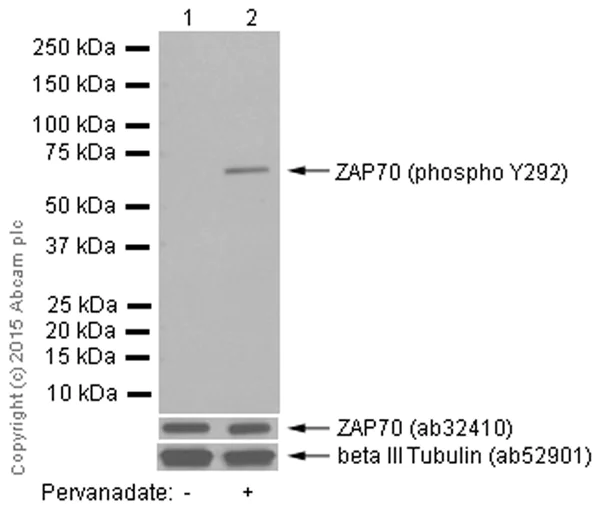

Western blot - Anti-ZAP70 (phospho Y292) antibody [EPR1073] - BSA and Azide free (AB247483)

This data was developed using ab76501, the same antibody clone in a different buffer formulation.

Blocking and dilution buffer : 5% NFDM/TBST.

All lanes:

Western blot - Anti-ZAP70 (phospho Y292) antibody [EPR1073] (<a href='/en-us/products/primary-antibodies/zap70-phospho-y292-antibody-epr1073-ab76501'>ab76501</a>) at 1/5000 dilution

Lane 1:

Untreated Jurkat (human acute T cell leukemia) whole cell lysates at 10 µg

Lane 2:

Jurkat (human acute T cell leukemia) treated with pervanadate whole cell lysates at 10 µg

Secondary

All lanes:

Peroxidase-conjugated goat anti-rabbit IgG, (H+L) at 1/1000 dilution

Predicted band size: 69 kDa

Observed band size: 70 kDa

false

Exposure time: 3min

Unknown

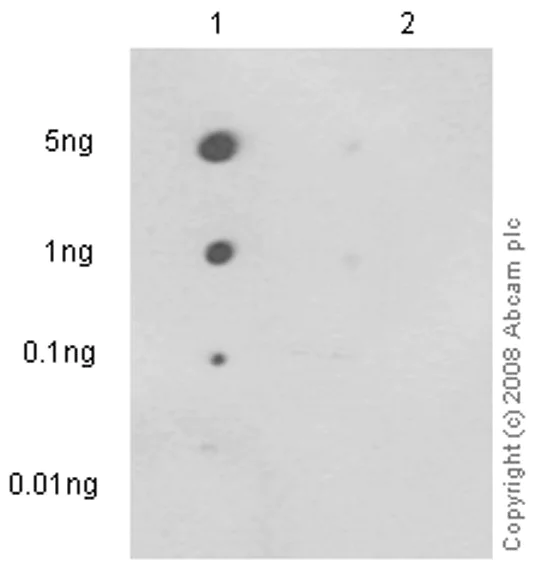

Dot Blot - Anti-ZAP70 (phospho Y292) antibody [EPR1073] - BSA and Azide free (AB247483)

This data was developed using ab76501, the same antibody clone in a different buffer formulation.

Dot blot analysis of varying amounts of ZAP70 (pY292) phospho peptide (Lane 1) and ZAP70 non-phospho peptide (Lane 2) using ab76501 at a dilution of 1/1000. A peroxidase-conjugated goat anti-rabbit IgG (H+L) was used as the secondary antibody (1/2500).

Exposure time : 3 minutes.

Unconjugated

Anti-ZAP70 (phospho Y292) antibody [EPR1073]
665 Alexa Fluor® 647

Alexa Fluor® 647 Anti-ZAP70 (phospho Y292) antibody [EPR1073]
HRP

HRP Anti-ZAP70 (phospho Y292) antibody [EPR1073]

Key facts

Host species

Rabbit

Clonality

Monoclonal

Clone number

EPR1073

Isotype

IgG

Carrier free

Yes

Reacts with

Human

Applications

Flow Cyt (Intra), ICC/IF, WB, Dot

applications

Immunogen

The exact immunogen used to generate this antibody is proprietary information.

style

left-column

Reactivity data

{ "title": "Reactivity Data", "filters": { "stats": ["", "Species", "Dilution Info", "Notes"], "tabs": { "all-applications": {"fullname" : "All Applications", "shortname": "All Applications"}, "ICCIF" : {"fullname" : "Immunocytochemistry/ Immunofluorescence", "shortname":"ICC/IF"}, "IP" : {"fullname" : "Immunoprecipitation", "shortname":"IP"}, "Dot" : {"fullname" : "Dot Blot", "shortname":"Dot"}, "WB" : {"fullname" : "Western blot", "shortname":"WB"}, "IHCP" : {"fullname" : "Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections)", "shortname":"IHC-P"}, "FlowCytIntra" : {"fullname" : "Flow Cytometry (Intracellular)", "shortname":"Flow Cyt (Intra)"} }, "product-promise": { "all": "all", "testedAndGuaranteed": "tested", "guaranteed": "expected", "predicted": "predicted", "notRecommended": "not-recommended" } }, "values": { "Human": { "ICCIF-species-checked": "testedAndGuaranteed", "ICCIF-species-dilution-info": "", "ICCIF-species-notes": "", "IP-species-checked": "notRecommended", "IP-species-dilution-info": "", "IP-species-notes": "", "Dot-species-checked": "guaranteed", "Dot-species-dilution-info": "", "Dot-species-notes": "", "WB-species-checked": "testedAndGuaranteed", "WB-species-dilution-info": "", "WB-species-notes": "", "IHCP-species-checked": "notRecommended", "IHCP-species-dilution-info": "", "IHCP-species-notes": "", "FlowCytIntra-species-checked": "testedAndGuaranteed", "FlowCytIntra-species-dilution-info": "", "FlowCytIntra-species-notes": "" }, "Synthetic peptide": { "ICCIF-species-checked": "notRecommended", "ICCIF-species-dilution-info": "", "ICCIF-species-notes": "", "IP-species-checked": "notRecommended", "IP-species-dilution-info": "", "IP-species-notes": "", "Dot-species-checked": "testedAndGuaranteed", "Dot-species-dilution-info": "", "Dot-species-notes": "", "WB-species-checked": "notRecommended", "WB-species-dilution-info": "", "WB-species-notes": "", "IHCP-species-checked": "notRecommended", "IHCP-species-dilution-info": "", "IHCP-species-notes": "", "FlowCytIntra-species-checked": "notRecommended", "FlowCytIntra-species-dilution-info": "", "FlowCytIntra-species-notes": "" } } }

style

left-column

Product details

ab247483 is the carrier-free version of ab76501.

Species reactivity
Mouse, Rat: We have preliminary internal testing data to indicate this antibody may not react with these species.
Please contact us for more information.

Patented technology
Our RabMAb^® technology is a patented hybridoma-based technology for making rabbit monoclonal antibodies. For details on our patents, please refer to RabMAb^® patents.

What are the advantages of a recombinant monoclonal antibody?
This product is a recombinant monoclonal antibody, which offers several advantages including:

- High batch-to-batch consistency and reproducibility
- Improved sensitivity and specificity
- Long-term security of supply
- Animal-free batch production

For more information, read more on recombinant antibodies.

Conjugation ready
Our carrier-free antibodies are typically supplied in a PBS-only formulation, purified and free of BSA, sodium azide and glycerol. This conjugation-ready format is designed for use with fluorochromes, metal isotopes, oligonucleotides, and enzymes, which makes them ideal for antibody labelling, functional and cell-based assays, flow-based assays (e.g. mass cytometry) and Multiplex Imaging applications.

Use our conjugation kits for antibody conjugates that are ready-to-use in as little as 20 minutes with 1 minute hands-on-time and 100% antibody recovery: available for fluorescent dyes, HRP, biotin and gold.

Compatibility
This product is compatible with the Maxpar^® Antibody Labeling Kit from Fluidigm, without the need for antibody preparation. Maxpar^® is a trademark of Fluidigm Canada Inc.

style

left-column

Properties and storage information

Form

Liquid

Purification technique

Affinity purification

Storage buffer

pH: 7.2 - 7.4 Constituents: PBS

Shipped at conditions

Blue Ice

Appropriate short-term storage conditions

+4°C

Appropriate long-term storage conditions

+4°C

Storage information

Do Not Freeze

style

left-column

Supplementary information

This supplementary information is collated from multiple sources and compiled automatically.

ZAP70 also known as Zeta-chain-associated protein kinase 70 is a tyrosine kinase that plays an important role in T-cell receptor signaling. The protein has a molecular mass of approximately 70 kDa. ZAP70 is mainly expressed in T cells and natural killer (NK) cells. It gets activated upon T-cell receptor engagement initiating downstream signaling cascades essential for T-cell function and adaptive immune response.

Biological function summary

ZAP70 is instrumental in the signaling cascade that activates T cells in response to antigen recognition. It forms part of a larger signaling complex following the engagement of the T-cell receptor with antigens. This complex transmits critical activation signals leading to further cellular responses such as cytokine production and cell proliferation. ZAP70's function ensures appropriate immune responses and helps maintain immune system balance.

Pathways

ZAP70 plays an integral role in T-cell receptor signaling pathways. This protein interacts with other signaling molecules like Lck and LAT facilitating the transmission of activation signals within the cell. As part of the T-cell activation pathway ZAP70 helps to bridge receptor-ligand interactions with cellular responses enabling the immune cells to combat infections effectively.

ZAP70 mutations or dysregulations can lead to severe immunodeficiencies or autoimmune diseases. For example ZAP70 deficiency results in severe combined immunodeficiency (SCID) which severely impairs immune function. Additionally aberrant ZAP70 activity has links to certain autoimmune disorders like rheumatoid arthritis where it influences abnormal immune signaling. Understanding the biochemical pathways that involve ZAP70 provides insight into managing these diseases and developing therapeutic strategies.

style

left-column

style

left-column

Product protocols

For this product, it's our understanding that no specific protocols are required. You can visit:

Visit the General protocols
Visit the Troubleshooting

style

left-column

Target data

Tyrosine kinase that plays an essential role in regulation of the adaptive immune response. Regulates motility, adhesion and cytokine expression of mature T-cells, as well as thymocyte development. Contributes also to the development and activation of primary B-lymphocytes. When antigen presenting cells (APC) activate T-cell receptor (TCR), a serie of phosphorylations lead to the recruitment of ZAP70 to the doubly phosphorylated TCR component CD247/CD3Z through ITAM motif at the plasma membrane. This recruitment serves to localization to the stimulated TCR and to relieve its autoinhibited conformation. Release of ZAP70 active conformation is further stabilized by phosphorylation mediated by LCK. Subsequently, ZAP70 phosphorylates at least 2 essential adapter proteins : LAT and LCP2. In turn, a large number of signaling molecules are recruited and ultimately lead to lymphokine production, T-cell proliferation and differentiation. Furthermore, ZAP70 controls cytoskeleton modifications, adhesion and mobility of T-lymphocytes, thus ensuring correct delivery of effectors to the APC. ZAP70 is also required for TCR-CD247/CD3Z internalization and degradation through interaction with the E3 ubiquitin-protein ligase CBL and adapter proteins SLA and SLA2. Thus, ZAP70 regulates both T-cell activation switch on and switch off by modulating TCR expression at the T-cell surface. During thymocyte development, ZAP70 promotes survival and cell-cycle progression of developing thymocytes before positive selection (when cells are still CD4/CD8 double negative). Additionally, ZAP70-dependent signaling pathway may also contribute to primary B-cells formation and activation through B-cell receptor (BCR).

See full target information ZAP70 phospho Y292

style

left-column

Publications (1)

Recent publications for all applications. Explore the full list and refine your search

Nature genetics 57:1142-1154 PubMed40229600

2025

Longitudinal single-cell multiomic atlas of high-risk neuroblastoma reveals chemotherapy-induced tumor microenvironment rewiring.

Applications

Unspecified application

Species

Unspecified reactive species

Wenbao Yu,Rumeysa Biyik-Sit,Yasin Uzun,Chia-Hui Chen,Anusha Thadi,Jonathan H Sussman,Minxing Pang,Chi-Yun Wu,Liron D Grossmann,Peng Gao,David W Wu,Aliza Yousey,Mei Zhang,Christina S Turn,Zhan Zhang,Shovik Bandyopadhyay,Jeffrey Huang,Tasleema Patel,Changya Chen,Daniel Martinez,Lea F Surrey,Michael D Hogarty,Kathrin Bernt,Nancy R Zhang,John M Maris,Kai Tan
