AB288444

Anti-ZNFN1A2/HELIOS antibody [EPR23200-40] - BSA and Azide free

RabMAb
Recombinant
What is this?

Be the first to review this product! Submit a review

(0 Publication)

Rabbit Recombinant Monoclonal ZNFN1A2/HELIOS antibody. Carrier free. Suitable for IP, WB and reacts with Mouse, Rat, Human samples.

View Alternative Names

HELIOS, ZNFN1A2, IKZF2, Zinc finger protein Helios, Ikaros family zinc finger protein 2

4 Images

Supplier Data

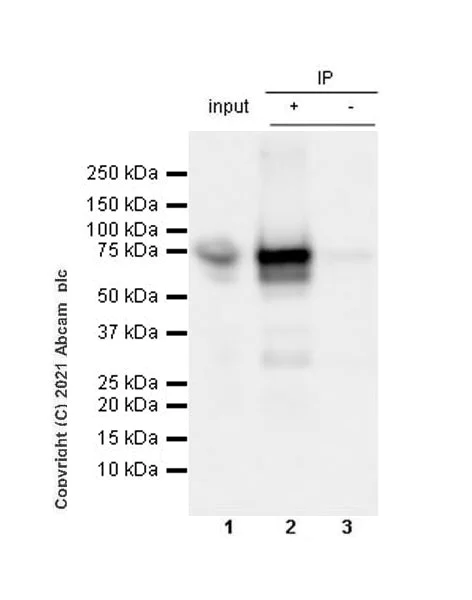

Immunoprecipitation - Anti-ZNFN1A2/HELIOS antibody [EPR23200-40] - BSA and Azide free (AB288444)

This data was developed using ab252411, the same antibody clone in a different buffer formulation.ZNFN1A2/HELIOS was immunoprecipitated from 0.35 mg EL4 (mouse lymphoma T lymphocyte), whole cell lysate 10 ug with ab252411 at 1/30 dilution (2ug in 0.35mg lysates). Western blot was performed on the immunoprecipitate using ab252411 at 1/1000 dilution. VeriBlot for IP Detection Reagent (HRP)(ab131366) was used at 1/5000 dilution.

Lane 1 : EL4 (mouse lymphoma T lymphocyte), whole cell lysate 10 ug

Lane 2 : ab252411 IP in EL4 whole cell lysate

Lane 3 : Rabbit monoclonal IgG (ab172730) instead of ab252411 in EL4 whole cell lysate

Blocking and dilution buffer and concentration : 5% NFDM/TBST.

Exposure time : 3.25 seconds

All lanes:

Immunoprecipitation - Anti-ZNFN1A2/HELIOS antibody [EPR23200-40] (<a href='/en-us/products/primary-antibodies/znfn1a2-helios-antibody-epr23200-40-ab252411'>ab252411</a>)

Predicted band size: 60 kDa

false

Lab

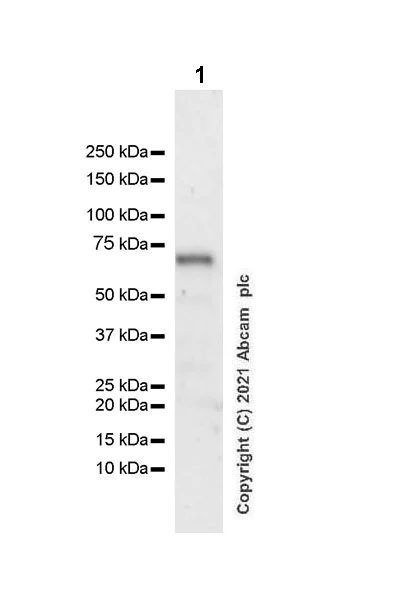

Western blot - Anti-ZNFN1A2/HELIOS antibody [EPR23200-40] - BSA and Azide free (AB288444)

This data was developed using ab252411, the same antibody clone in a different buffer formulation.

Blocking and diluting buffer and concentration : 5% NFDM/TBST

Exposure time : 103 seconds

All lanes:

Western blot - Anti-ZNFN1A2/HELIOS antibody [EPR23200-40] (<a href='/en-us/products/primary-antibodies/znfn1a2-helios-antibody-epr23200-40-ab252411'>ab252411</a>) at 1/1000 dilution

All lanes:

Raji (human Burkitt's lymphoma B lymphocyte), whole cell lysate at 20 µg

Secondary

All lanes:

Goat Anti-Rabbit IgG, (H+L), Peroxidase conjugated (<a href='/en-us/products/secondary-antibodies/goat-rabbit-igg-h-l-hrp-ab97051'>ab97051</a>) at 1/100000 dilution

Predicted band size: 60 kDa

Observed band size: 70 kDa

false

Lab

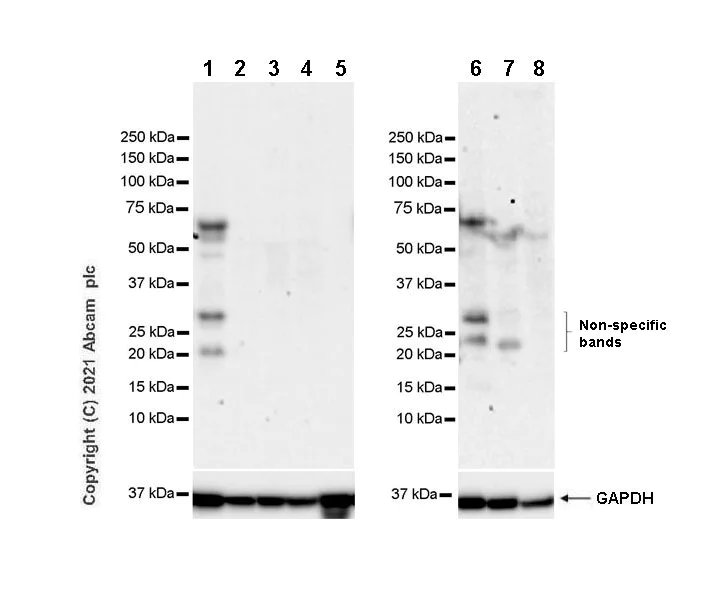

Western blot - Anti-ZNFN1A2/HELIOS antibody [EPR23200-40] - BSA and Azide free (AB288444)

This data was developed using ab252411, the same antibody clone in a different buffer formulation.

Blocking and diluting buffer and concentration : 5% NFDM/TBST

Exposure time : Lane 1-5 : 125 seconds Lane 6-8 : 3 minutes

Negative control : spleen, liver, kidney, brain (PMID : 10541817)

All lanes:

Western blot - Anti-ZNFN1A2/HELIOS antibody [EPR23200-40] (<a href='/en-us/products/primary-antibodies/znfn1a2-helios-antibody-epr23200-40-ab252411'>ab252411</a>) at 1/1000 dilution

Lane 1:

Mouse thymus tissue lysate at 20 µg

Lane 2:

Mouse spleen tissue lysate at 20 µg

Lane 3:

Mouse liver tissue lysate at 20 µg

Lane 4:

Mouse kidney tissue lysate at 20 µg

Lane 5:

Mouse brain tissue lysate at 20 µg

Lane 6:

Rat thymus tissue lysate at 20 µg

Lane 7:

Rat spleen tissue lysate at 20 µg

Lane 8:

Rat kidney tissue lysate at 20 µg

Secondary

All lanes:

Goat Anti-Rabbit IgG, (H+L), Peroxidase conjugated (<a href='/en-us/products/secondary-antibodies/goat-rabbit-igg-h-l-hrp-ab97051'>ab97051</a>) at 1/100000 dilution

Predicted band size: 60 kDa

Observed band size: 70 kDa

false

Lab

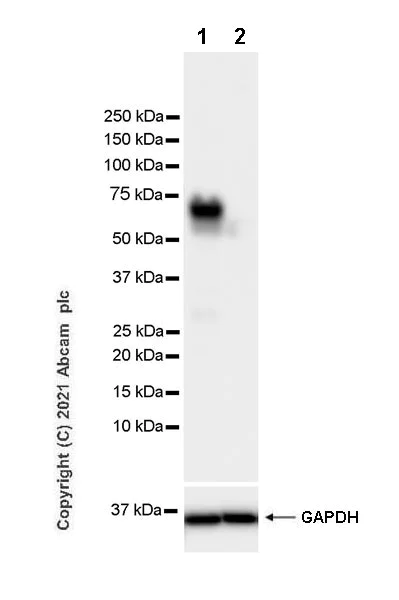

Western blot - Anti-ZNFN1A2/HELIOS antibody [EPR23200-40] - BSA and Azide free (AB288444)

This data was developed using ab252411, the same antibody clone in a different buffer formulation.

Blocking and diluting buffer and concentration : Negative control : Raw264.7 (PMID : 9512513 )

Exposure time : 3 minutes

All lanes:

Western blot - Anti-ZNFN1A2/HELIOS antibody [EPR23200-40] (<a href='/en-us/products/primary-antibodies/znfn1a2-helios-antibody-epr23200-40-ab252411'>ab252411</a>) at 1/1000 dilution

Lane 1:

EL4 (mouse lymphoma T lymphocyte), whole cell lysate at 20 µg

Lane 2:

RAW264.7 (mouse Abelson murine leukemia virus-induced tumor macrophage), whole cell lysate at 20 µg

Secondary

All lanes:

Goat Anti-Rabbit IgG, (H+L), Peroxidase conjugated (<a href='/en-us/products/secondary-antibodies/goat-rabbit-igg-h-l-hrp-ab97051'>ab97051</a>) at 1/100000 dilution

Predicted band size: 60 kDa

Observed band size: 70 kDa

false

Unconjugated

Anti-ZNFN1A2/HELIOS antibody [EPR23200-40]

Key facts

Host species

Rabbit

Clonality

Monoclonal

Clone number

EPR23200-40

Isotype

IgG

Carrier free

Yes

Reacts with

Human, Mouse, Rat

Applications

IP, WB

applications

Immunogen

The exact immunogen used to generate this antibody is proprietary information.

style

left-column

style

left-column

Reactivity data

{ "title": "Reactivity Data", "filters": { "stats": ["", "Species", "Dilution Info", "Notes"], "tabs": { "all-applications": {"fullname" : "All Applications", "shortname": "All Applications"}, "ICCIF" : {"fullname" : "Immunocytochemistry/ Immunofluorescence", "shortname":"ICC/IF"}, "IP" : {"fullname" : "Immunoprecipitation", "shortname":"IP"}, "WB" : {"fullname" : "Western blot", "shortname":"WB"}, "IHCP" : {"fullname" : "Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections)", "shortname":"IHC-P"}, "FlowCytIntra" : {"fullname" : "Flow Cytometry (Intracellular)", "shortname":"Flow Cyt (Intra)"} }, "product-promise": { "all": "all", "testedAndGuaranteed": "tested", "guaranteed": "expected", "predicted": "predicted", "notRecommended": "not-recommended" } }, "values": { "Human": { "ICCIF-species-checked": "notRecommended", "ICCIF-species-dilution-info": "", "ICCIF-species-notes": "", "IP-species-checked": "guaranteed", "IP-species-dilution-info": "", "IP-species-notes": "", "WB-species-checked": "testedAndGuaranteed", "WB-species-dilution-info": "", "WB-species-notes": "", "IHCP-species-checked": "notRecommended", "IHCP-species-dilution-info": "", "IHCP-species-notes": "", "FlowCytIntra-species-checked": "notRecommended", "FlowCytIntra-species-dilution-info": "", "FlowCytIntra-species-notes": "" }, "Mouse": { "ICCIF-species-checked": "notRecommended", "ICCIF-species-dilution-info": "", "ICCIF-species-notes": "", "IP-species-checked": "testedAndGuaranteed", "IP-species-dilution-info": "", "IP-species-notes": "", "WB-species-checked": "testedAndGuaranteed", "WB-species-dilution-info": "", "WB-species-notes": "", "IHCP-species-checked": "notRecommended", "IHCP-species-dilution-info": "", "IHCP-species-notes": "", "FlowCytIntra-species-checked": "notRecommended", "FlowCytIntra-species-dilution-info": "", "FlowCytIntra-species-notes": "" }, "Rat": { "ICCIF-species-checked": "notRecommended", "ICCIF-species-dilution-info": "", "ICCIF-species-notes": "", "IP-species-checked": "guaranteed", "IP-species-dilution-info": "", "IP-species-notes": "", "WB-species-checked": "testedAndGuaranteed", "WB-species-dilution-info": "", "WB-species-notes": "", "IHCP-species-checked": "notRecommended", "IHCP-species-dilution-info": "", "IHCP-species-notes": "", "FlowCytIntra-species-checked": "notRecommended", "FlowCytIntra-species-dilution-info": "", "FlowCytIntra-species-notes": "" } } }

style

left-column

Product details

Patented technology
Our RabMAb^® technology is a patented hybridoma-based technology for making rabbit monoclonal antibodies. For details on our patents, please refer to RabMAb^® patents.

What are the advantages of a recombinant monoclonal antibody?
This product is a recombinant monoclonal antibody, which offers several advantages including:

- High batch-to-batch consistency and reproducibility
- Improved sensitivity and specificity
- Long-term security of supply
- Animal-free batch production

For more information, read more on recombinant antibodies.

Conjugation ready
Our carrier-free antibodies are typically supplied in a PBS-only formulation, purified and free of BSA, sodium azide and glycerol. This conjugation-ready format is designed for use with fluorochromes, metal isotopes, oligonucleotides, and enzymes, which makes them ideal for antibody labelling, functional and cell-based assays, flow-based assays (e.g. mass cytometry) and Multiplex Imaging applications.

Use our conjugation kits for antibody conjugates that are ready-to-use in as little as 20 minutes with 1 minute hands-on-time and 100% antibody recovery: available for fluorescent dyes, HRP, biotin and gold.

Compatibility
This product is compatible with the Maxpar^® Antibody Labeling Kit from Fluidigm, without the need for antibody preparation. Maxpar^® is a trademark of Fluidigm Canada Inc.

style

left-column

Properties and storage information

Form

Liquid

Purification technique

Affinity purification Protein A

Storage buffer

pH: 7.2 - 7.4 Constituents: PBS

Shipped at conditions

Blue Ice

Appropriate short-term storage conditions

+4°C

Appropriate long-term storage conditions

+4°C

style

left-column

Supplementary information

This supplementary information is collated from multiple sources and compiled automatically.

ZNFN1A2 also known as HELIOS is a transcription factor with an estimated mass of approximately 65 to 70 kDa. It is a member of the Ikaros family of zinc finger proteins which are essential in regulating gene expression. HELIOS is expressed mainly in the thymus with significant levels also found in peripheral T cells. This protein plays a role in lymphocyte development and differentiation influencing the function and survival of T cells.

Biological function summary

ZNFN1A2 performs critical functions in maintaining T cell homeostasis and promoting regulatory T cell development. It forms part of transcriptional complexes that regulate gene expression necessary for immune response modulation. ZNFN1A2 interacts with other members of the Ikaros family sharing overlapping roles in immune cell regulation which highlights its importance in immune regulation.

Pathways

ZNFN1A2 integrates into critical signaling networks related to T cell regulation particularly the T cell receptor (TCR) signaling pathway. Within these pathways HELIOS collaborates with proteins such as FOXP3 and GATA3 to mediate immune tolerance and maintain immune system balance. These interactions underline the protein's involvement in modulating immune responses and preventing autoimmunity.

ZNFN1A2 demonstrates significant associations with autoimmune diseases such as systemic lupus erythematosus (SLE) where dysregulation leads to improper T cell function. Furthermore it is implicated in leukemias particularly T-cell acute lymphoblastic leukemia (T-ALL) due to altered expression affecting T cell maturation. In these diseases ZNFN1A2 often interacts with proteins like AIRE and BCL11B influencing disease progression and clinical outcomes.

style

left-column

style

left-column

Product protocols

For this product, it's our understanding that no specific protocols are required. You can visit:

Visit the General protocols
Visit the Troubleshooting

style

left-column

Target data

Transcription factor, which stabilizes the noninflammatory phenotype of regulatory T cells (Tregs) (By similarity). May possibly act via STAT5-mediated signaling (By similarity). Binds IL2 promoter and represses its transcription, possibly by epigenetic silencing, inducing deacetylation of core histones in the IL2 promoter (PubMed : 37316189). In Tregs, required for FOXP3 recruitment to the IL2 promoter (By similarity). Required for outer hair cells maturation and, consequently, for hearing (By similarity).

See full target information IKZF2

style

left-column

style

left-column

style

right-column

Product promise

We are committed to supporting your work with high-quality reagents, and we're here for you every step of the way. In the unlikely event that one of our products does not perform as expected, you're protected by our Product Promise.

For full details, please see our Terms & Conditions

Please note: All products are 'FOR RESEARCH USE ONLY. NOT FOR USE IN DIAGNOSTIC OR THERAPEUTIC PROCEDURES'.
