AB221547

Anti-ZO1 tight junction protein antibody [EPR19945-296]

5

(6 Reviews)

|

(187 Publications)

Anti-ZO1 tight junction protein antibody [EPR19945-296] (ab221547) is a rabbit monoclonal antibody detecting ZO1 tight junction protein in Flow Cytometry (Intra), IHC-P, ICC/IF. Suitable for Human, Mouse, Rat.

- Biophysical QC for unrivalled batch-batch consistency
- Over 70 publications

View Alternative Names

ZO1, TJP1, Tight junction protein 1, Tight junction protein ZO-1, Zona occludens protein 1, Zonula occludens protein 1

7 Images
Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-ZO1 tight junction protein antibody [EPR19945-296] (AB221547)
  • IHC-P

Supplier Data

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-ZO1 tight junction protein antibody [EPR19945-296] (AB221547)

Immunohistochemical analysis of paraffin-embedded human kidney tissue labeling ZO1 tight junction protein with ab221547 at 1/500 dilution followed by Goat Anti-Rabbit IgG H&L (HRP) ready to use. Membranous and cytoplasmic in vascular endothelial cells and glomerular of human kidney (PMID : 18618131) is observed. Counter stained with hematoxylin.

Secondary antibody only control : Used PBS instead of primary antibody secondary antibody is Goat Anti-Rabbit IgG H&L (HRP) ready to use.

Heat mediated antigen retrieval using ab93684 (Tris/EDTA buffer pH 9.0).

Immunocytochemistry/ Immunofluorescence - Anti-ZO1 tight junction protein antibody [EPR19945-296] (AB221547)
  • ICC/IF

Supplier Data

Immunocytochemistry/ Immunofluorescence - Anti-ZO1 tight junction protein antibody [EPR19945-296] (AB221547)

Immunofluorescent analysis of 4% paraformaldehyde-fixed 0.1% Triton X-100 permeabilized MCF7 (human breast adenocarcinoma cell line) cells labeling ZO1 tight junction protein with ab221547 at 1/100 dilution followed by Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) (ab150077) secondary antibody at 1/1000 dilution (green). Confocal image showing membranous staining in MCF7 cell line is observed. The nuclear counter stain is DAPI (blue). Tubulin is detected with Anti-alpha Tubulin antibody [DM1A] - Microtubule Marker (Alexa Fluor® 594) (ab195889) (red).

Secondary antibody only control : Used PBS instead of primary antibody followed by Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) (ab150077) secondary antibody at 1/1000 dilution.

Flow Cytometry (Intracellular) - Anti-ZO1 tight junction protein antibody [EPR19945-296] (AB221547)
  • Flow Cyt (Intra)

Supplier Data

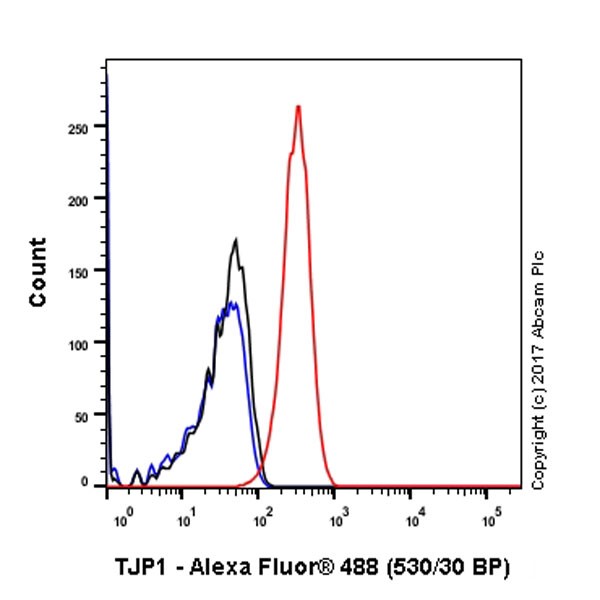

Flow Cytometry (Intracellular) - Anti-ZO1 tight junction protein antibody [EPR19945-296] (AB221547)

Intracellular flow cytometric analysis of 4% paraformaldehyde-fixed, 90% methanol-permeabilized MCF7 (human breast adenocarcinoma cell line) cells labeling ZO1 tight junction protein with ab221547 at 1/60 dilution (red) compared with an Isotype control details (ab172730) (black) and an unlabelled control (cells without incubation with primary antibody and secondary antibody) (blue). Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) (ab150077), at 1/2000 dilution was used as the secondary antibody.

Immunocytochemistry/ Immunofluorescence - Anti-ZO1 tight junction protein antibody [EPR19945-296] (AB221547)
  • ICC/IF

Supplier Data

Immunocytochemistry/ Immunofluorescence - Anti-ZO1 tight junction protein antibody [EPR19945-296] (AB221547)

Immunofluorescent analysis of 4% paraformaldehyde-fixed 0.1% Triton X-100 permeabilized HEK-293 (human epithelial cell line from embryonic kidney) cells labeling ZO1 tight junction protein with ab221547 at 1/100 dilution followed by Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) (ab150077) secondary antibody at 1/1000 dilution (green). Confocal image showing membranous staining in HEK-293 cell line. The nuclear counter stain is DAPI (blue). Tubulin is detected with Anti-alpha Tubulin antibody [DM1A] - Microtubule Marker (Alexa Fluor® 594) (ab195889) (red).

Secondary antibody only control : Used PBS instead of primary antibody followed by Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) (ab150077) secondary antibody at 1/1000 dilution.

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-ZO1 tight junction protein antibody [EPR19945-296] (AB221547)
  • IHC-P

Supplier Data

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-ZO1 tight junction protein antibody [EPR19945-296] (AB221547)

Immunohistochemical analysis of paraffin-embedded human breast cancer tissue labeling ZO1 tight junction protein with ab221547 at 1/500 dilution followed by Goat Anti-Rabbit IgG H&L (HRP) ready to use. Membranous and cytoplasmic in breast cancer (PMID : 9846967) is observed. Counter stained with hematoxylin.

Secondary antibody only control : Used PBS instead of primary antibody secondary antibody is Goat Anti-Rabbit IgG H&L (HRP) ready to use.

Heat mediated antigen retrieval using ab93684 (Tris/EDTA buffer pH 9.0).

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-ZO1 tight junction protein antibody [EPR19945-296] (AB221547)
  • IHC-P

Supplier Data

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-ZO1 tight junction protein antibody [EPR19945-296] (AB221547)

Immunohistochemical analysis of paraffin-embedded rat spleen tissue labeling ZO1 tight junction protein with ab221547 at 1/1000 dilution followed by Goat Anti-Rabbit IgG H&L (HRP) ready to use. Membranous and cytoplasmic staining in endothelial cells of rat spleen (PMID : 17585317) is observed. Counter stained with hematoxylin.

Secondary antibody only control : Used PBS instead of primary antibody secondary antibody is Goat Anti-Rabbit IgG H&L (HRP) ready to use.

Heat mediated antigen retrieval using ab93684 (Tris/EDTA buffer pH 9.0).

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-ZO1 tight junction protein antibody [EPR19945-296] (AB221547)
  • IHC-P

Supplier Data

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-ZO1 tight junction protein antibody [EPR19945-296] (AB221547)

Immunohistochemical analysis of paraffin-embedded mouse kidney tissue labeling ZO1 tight junction protein with ab221547 at 1/1000 dilution followed by Goat Anti-Rabbit IgG H&L (HRP) ready to use. Membranous and cytoplasmic in glomerular of mouse kidney (PMID : 17585317; PMID : 18618131) is observed. Counter stained with hematoxylin.

Secondary antibody only control : Used PBS instead of primary antibody secondary antibody is Goat Anti-Rabbit IgG H&L (HRP) ready to use.

Heat mediated antigen retrieval using ab93684 (Tris/EDTA buffer pH 9.0).

  • Carrier free

    Anti-ZO1 tight junction protein antibody [EPR19945-296] - BSA and Azide free

Key facts

Host species

Rabbit

Clonality

Monoclonal

Clone number

EPR19945-296

Isotype

IgG

Carrier free

No

Reacts with

Rat, Human, Mouse

Applications

ICC/IF, Flow Cyt (Intra), IHC-P

applications

Immunogen

The exact immunogen used to generate this antibody is proprietary information.

style
left-column

Alternative Products

Primary Antibodies

AB96587

Anti-ZO1 tight junction protein antibody

Western blot - Anti-ZO1 tight junction protein antibody (AB96587)

  • 3
  • 4
Primary Antibodies

AB216880

Anti-ZO1 tight junction protein antibody

Western blot - Anti-ZO1 tight junction protein antibody (AB216880)

  • 5
  • 2
Primary Antibodies

AB221546

Anti-ZO1 tight junction protein antibody [EPR19945-224]

20ul selling size|RabMAb|Recombinant

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-ZO1 tight junction protein antibody [EPR19945-224] (AB221546)

  • 5
  • 2
Primary Antibodies

AB190085

Anti-ZO1 tight junction protein antibody - C-terminal

Western blot - Anti-ZO1 tight junction protein antibody - C-terminal (AB190085)

  • 4
  • 28

Complementary Products

Primary Antibodies

AB216327

Anti-Occludin antibody [EPR20992]

RabMAb|Recombinant|KO Validated|20ul selling size

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Occludin antibody [EPR20992] (AB216327)

  • 4
  • 7
Secondary Antibodies

AB150077

Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488)

Immunocytochemistry/ Immunofluorescence - Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) (AB150077)

  • 5
  • 20
Primary Antibodies

AB211737

Anti-Claudin 1 antibody [EPRR18871]

RabMAb|Recombinant|KO Validated

Immunocytochemistry/ Immunofluorescence - Anti-Claudin 1 antibody [EPRR18871] (AB211737)

  • 5
  • 7
Primary Antibodies

AB9485

Anti-GAPDH antibody - Loading Control

BOND RX™ Validated|Lab Essentials

Immunocytochemistry/ Immunofluorescence - Anti-GAPDH antibody - Loading Control (AB9485)

  • 5
  • 88
style
left-column

Reactivity data

{ "title": "Reactivity Data", "filters": { "stats": ["", "Species", "Dilution Info", "Notes"], "tabs": { "all-applications": {"fullname" : "All Applications", "shortname": "All Applications"}, "IP" : {"fullname" : "Immunoprecipitation", "shortname":"IP"}, "WB" : {"fullname" : "Western blot", "shortname":"WB"}, "ICCIF" : {"fullname" : "Immunocytochemistry/ Immunofluorescence", "shortname":"ICC/IF"}, "IHCFr" : {"fullname" : "Immunohistochemistry (Frozen sections)", "shortname":"IHC-Fr"}, "FlowCytIntra" : {"fullname" : "Flow Cytometry (Intracellular)", "shortname":"Flow Cyt (Intra)"}, "IHCP" : {"fullname" : "Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections)", "shortname":"IHC-P"} }, "product-promise": { "all": "all", "testedAndGuaranteed": "tested", "guaranteed": "expected", "predicted": "predicted", "notRecommended": "not-recommended" } }, "values": { "Human": { "IP-species-checked": "notRecommended", "IP-species-dilution-info": "", "IP-species-notes": "<p></p>", "WB-species-checked": "notRecommended", "WB-species-dilution-info": "", "WB-species-notes": "<p></p>", "ICCIF-species-checked": "testedAndGuaranteed", "ICCIF-species-dilution-info": "1/100", "ICCIF-species-notes": "<p></p>", "IHCFr-species-checked": "notRecommended", "IHCFr-species-dilution-info": "", "IHCFr-species-notes": "<p></p>", "FlowCytIntra-species-checked": "testedAndGuaranteed", "FlowCytIntra-species-dilution-info": "1/60", "FlowCytIntra-species-notes": "<p></p>", "IHCP-species-checked": "testedAndGuaranteed", "IHCP-species-dilution-info": "1/500", "IHCP-species-notes": "<p></p> Perform heat-mediated antigen retrieval with Tris/EDTA buffer pH 9.0 before commencing with IHC staining protocol." }, "Mouse": { "IP-species-checked": "notRecommended", "IP-species-dilution-info": "", "IP-species-notes": "<p></p>", "WB-species-checked": "notRecommended", "WB-species-dilution-info": "", "WB-species-notes": "<p></p>", "ICCIF-species-checked": "guaranteed", "ICCIF-species-dilution-info": "", "ICCIF-species-notes": "", "IHCFr-species-checked": "notRecommended", "IHCFr-species-dilution-info": "", "IHCFr-species-notes": "<p></p>", "FlowCytIntra-species-checked": "guaranteed", "FlowCytIntra-species-dilution-info": "", "FlowCytIntra-species-notes": "", "IHCP-species-checked": "testedAndGuaranteed", "IHCP-species-dilution-info": "1/500", "IHCP-species-notes": "<p></p> Perform heat-mediated antigen retrieval with Tris/EDTA buffer pH 9.0 before commencing with IHC staining protocol." }, "Rat": { "IP-species-checked": "notRecommended", "IP-species-dilution-info": "", "IP-species-notes": "<p></p>", "WB-species-checked": "notRecommended", "WB-species-dilution-info": "", "WB-species-notes": "<p></p>", "ICCIF-species-checked": "guaranteed", "ICCIF-species-dilution-info": "", "ICCIF-species-notes": "", "IHCFr-species-checked": "notRecommended", "IHCFr-species-dilution-info": "", "IHCFr-species-notes": "<p></p>", "FlowCytIntra-species-checked": "guaranteed", "FlowCytIntra-species-dilution-info": "", "FlowCytIntra-species-notes": "", "IHCP-species-checked": "testedAndGuaranteed", "IHCP-species-dilution-info": "1/500", "IHCP-species-notes": "<p></p> Perform heat-mediated antigen retrieval with Tris/EDTA buffer pH 9.0 before commencing with IHC staining protocol." } } }
style
left-column

Product details

Product Specifications
Anti-ZO1 tight junction protein antibody [EPR19945-296] (ab221547) was developed by Abcam using patented rabbit monoclonal antibody technology and is validated for use in Flow Cyt (Intra), ICC/IF, IHC-P in human, mouse, rat samples.
Anti-ZO1 tight junction protein antibody [EPR19945-296] (ab221547) specifically detects ZO1 tight junction protein (UniProt ID: Q07157; Molecular weight: 195kDa) and is sold in a convenient trial size to enable initial testing (20 µL) and larger sizes for subsequent scaling up experiments (100 µL and 1 mL).

Quality and Validation
Abcam's high quality manufacturing and validation processes ensure Anti-ZO1 tight junction protein antibody [EPR19945-296] (ab221547) has high sensitivity and specificity alongside high lot-to-lot consistency and reproducibility.
Anti-ZO1 tight junction protein antibody [EPR19945-296] (ab221547) has been cited over 75 times in peer reviewed journals and is trusted by the scientific community.
Anti-ZO1 tight junction protein antibody [EPR19945-296] (ab221547) has 6 independent reviews from customers.

Related Products

Patented technology
Our RabMAb® technology is a patented hybridoma-based technology for making rabbit monoclonal antibodies. For details on our patents, please refer to RabMAb® patents.

What are the advantages of a recombinant monoclonal antibody?
This product is a recombinant monoclonal antibody, which offers several advantages including:

  • - High batch-to-batch consistency and reproducibility
  • - Improved sensitivity and specificity
  • - Long-term security of supply
  • - Animal-free batch production

For more information, read more on recombinant antibodies.

style
left-column

Properties and storage information

Form
Liquid
Purification technique
Affinity purification Protein A
Storage buffer
pH: 7.2 - 7.4 Preservative: 0.01% Sodium azide Constituents: PBS, 40% Glycerol (glycerin, glycerine), 0.05% BSA
Shipped at conditions
Blue Ice
Appropriate short-term storage duration
1-2 weeks
Appropriate short-term storage conditions
+4°C
Appropriate long-term storage conditions
-20°C
Aliquoting information
Upon delivery aliquot
Storage information
Avoid freeze / thaw cycle
style
left-column
style
left-column
style
left-column

Product protocols

For this product, it's our understanding that no specific protocols are required. You can visit:
style
left-column

Target data

TJP1, TJP2, and TJP3 are closely related scaffolding proteins that link tight junction (TJ) transmembrane proteins such as claudins, junctional adhesion molecules, and occludin to the actin cytoskeleton (PubMed : 7798316, PubMed : 9792688). Forms a multistranded TJP1/ZO1 condensate which elongates to form a tight junction belt, the belt is anchored at the apical cell membrane via interaction with PATJ (By similarity). The tight junction acts to limit movement of substances through the paracellular space and as a boundary between the compositionally distinct apical and basolateral plasma membrane domains of epithelial and endothelial cells. Necessary for lumenogenesis, and particularly efficient epithelial polarization and barrier formation (By similarity). Plays a role in the regulation of cell migration by targeting CDC42BPB to the leading edge of migrating cells (PubMed : 21240187). Plays an important role in podosome formation and associated function, thus regulating cell adhesion and matrix remodeling (PubMed : 20930113). With TJP2 and TJP3, participates in the junctional retention and stability of the transcription factor DBPA, but is not involved in its shuttling to the nucleus (By similarity). May play a role in mediating cell morphology changes during ameloblast differentiation via its role in tight junctions (By similarity).
