Human Histone H3 (tri methyl K9) peptide

19 Images

• WB

Unknown

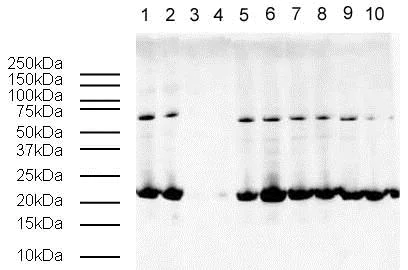

Western blot - Human Histone H3 (tri methyl K9) peptide (AB1773)

ab5819 is specific for Histone H3 phosphorylated at residue S10 and tri methylated at residue K9. The activity of the antibody is blocked by the addition of the immunizing peptide, ab15644 (lanes 3 and 4).

All lanes:

Western blot - Anti-Histone H3 (tri methyl K9, phospho S10) antibody (<a href='/en-us/products/primary-antibodies/histone-h3-tri-methyl-k9-phospho-s10-antibody-ab5819'>ab5819</a>) at 1/500 dilution

Lane 1:

HeLa histones at 0.5 µg

Lane 2:

Colcemid-treated HeLa histones at 0.5 µg

Lane 3:

HeLa histones at 0.5 µg with Human Histone H3 (tri methyl K9, phospho S10) peptide (<a href='/en-us/products/unavailable/human-histone-h3-tri-methyl-k9-phospho-s10-peptide-ab15644'>ab15644</a>)

Lane 4:

Colcemid-treated HeLa histones at 0.5 µg with Human Histone H3 (tri methyl K9, phospho S10) peptide (<a href='/en-us/products/unavailable/human-histone-h3-tri-methyl-k9-phospho-s10-peptide-ab15644'>ab15644</a>)

Lane 5:

HeLa histones at 0.5 µg with Human Histone H3 (unmodified) peptide (<a href='/en-us/products/proteins-peptides/human-histone-h3-unmodified-peptide-ab7228'>ab7228</a>)

Lane 6:

Colcemid-treated HeLa histones at 0.5 µg with Human Histone H3 (unmodified) peptide (<a href='/en-us/products/proteins-peptides/human-histone-h3-unmodified-peptide-ab7228'>ab7228</a>)

Lane 7:

HeLa histones at 0.5 µg with Human Histone H3 (phospho S10) peptide (<a href='/en-us/products/proteins-peptides/human-histone-h3-phospho-s10-peptide-ab11477'>ab11477</a>)

Lane 8:

Colcemid-treated HeLa histones at 0.5 µg with Human Histone H3 (phospho S10) peptide (<a href='/en-us/products/proteins-peptides/human-histone-h3-phospho-s10-peptide-ab11477'>ab11477</a>)

Lane 9:

HeLa histones at 0.5 µg with Human Histone H3 (tri methyl K9) peptide (ab1773)

Lane 10:

Colcemid-treated HeLa histones at 0.5 µg with Human Histone H3 (tri methyl K9) peptide (ab1773)

Secondary

All lanes:

Western blot - Goat Anti-Rabbit IgG H&L (HRP) (<a href='/en-us/products/secondary-antibodies/goat-rabbit-igg-h-l-hrp-ab6721'>ab6721</a>) at 1/5000 dilution

Predicted band size: 15 kDa

Observed band size: 22 kDa,60 kDa

false

• ChIP

Project

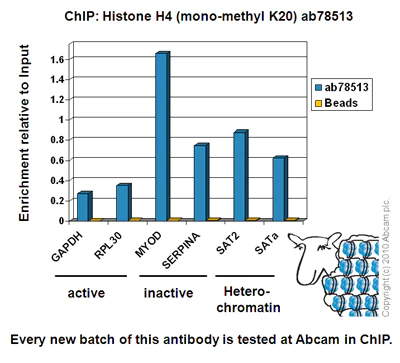

ChIP - Human Histone H3 (tri methyl K9) peptide (AB1773)

Chromatin was prepared from HeLa cells according to the Abcam X-ChIP protocol. Cells were fixed with formaldehyde for 10 minutes. The ChIP was performed with 25µg of chromatin, 5µg of ab78513 (blue), and 20µl of Protein A/G sepharose beads. No antibody was added to the beads control (yellow). The immunoprecipitated DNA was quantified by real time PCR (Taqman approach for active and inactive loci, Sybr green approach for heterochromatic loci). Primers and probes are located in the first kb of the transcribed region.

• WB

Project

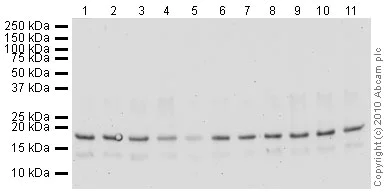

Western blot - Human Histone H3 (tri methyl K9) peptide (AB1773)

All lanes:

Western blot - Anti-Histone H3 (di methyl K36) antibody - ChIP Grade (<a href='/en-us/products/primary-antibodies/histone-h3-di-methyl-k36-antibody-chip-grade-ab9049'>ab9049</a>) at 1 µg/mL

Lane 1:

Calf Thymus Histone Preparation Nuclear Lysate at 0.5 µg

Lane 2:

Calf Thymus Histone Preparation Nuclear Lysate at 0.5 µg with Histone H3 peptide (ab41430)

Lane 3:

Calf Thymus Histone Preparation Nuclear Lysate at 0.5 µg with Human Histone H3 (mono methyl K36) peptide (<a href='/en-us/products/unavailable/human-histone-h3-mono-methyl-k36-peptide-ab1783'>ab1783</a>)

Lane 4:

Calf Thymus Histone Preparation Nuclear Lysate at 0.5 µg with Human Histone H3 (di methyl K36) peptide (<a href='/en-us/products/proteins-peptides/human-histone-h3-di-methyl-k36-peptide-ab1784'>ab1784</a>)

Lane 5:

Calf Thymus Histone Preparation Nuclear Lysate at 0.5 µg with Human Histone H3 (tri methyl K36) peptide (<a href='/en-us/products/proteins-peptides/human-histone-h3-tri-methyl-k36-peptide-ab1785'>ab1785</a>)

Lane 6:

Calf Thymus Histone Preparation Nuclear Lysate at 0.5 µg with Human Histone H3 (mono methyl K9) peptide (<a href='/en-us/products/proteins-peptides/human-histone-h3-mono-methyl-k9-peptide-ab1771'>ab1771</a>)

Lane 7:

Calf Thymus Histone Preparation Nuclear Lysate at 0.5 µg with Human Histone H3 (di methyl K9) peptide (<a href='/en-us/products/proteins-peptides/human-histone-h3-di-methyl-k9-peptide-ab1772'>ab1772</a>)

Lane 8:

Calf Thymus Histone Preparation Nuclear Lysate at 0.5 µg with Human Histone H3 (tri methyl K9) peptide (ab1773)

Lane 9:

Calf Thymus Histone Preparation Nuclear Lysate at 0.5 µg with Human Histone H3 (mono methyl K27) peptide (<a href='/en-us/products/proteins-peptides/human-histone-h3-mono-methyl-k27-peptide-ab1780'>ab1780</a>)

Lane 10:

Calf Thymus Histone Preparation Nuclear Lysate at 0.5 µg with Human Histone H3 (di methyl K27) peptide (<a href='/en-us/products/proteins-peptides/human-histone-h3-di-methyl-k27-peptide-ab1781'>ab1781</a>)

Lane 11:

Calf Thymus Histone Preparation Nuclear Lysate at 0.5 µg with Human Histone H3 (tri methyl K27) peptide (<a href='/en-us/products/proteins-peptides/human-histone-h3-tri-methyl-k27-peptide-ab1782'>ab1782</a>)

Secondary

All lanes:

Goat polyclonal to Rabbit IgG - H&L - Pre-Adsorbed (HRP) at 1/3000 dilution

Predicted band size: 15 kDa

Observed band size: 17 kDa

false

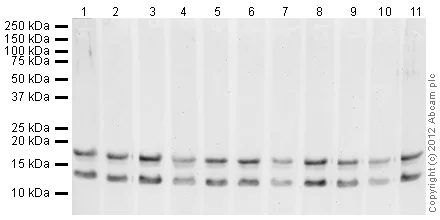

• WB

Project

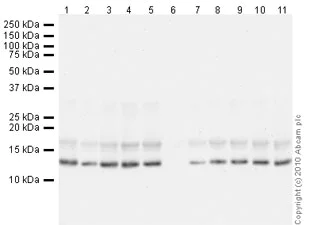

Western blot - Human Histone H3 (tri methyl K9) peptide (AB1773)

ab78513 is blocked by the addition of Histone H4 (mono methyl K20)peptide (ab17043; lane 6). ab78513 is partially blocked by Histone H4 (di methyl K20) peptide (lane 7).

All lanes:

Western blot - Anti-Histone H4 (mono methyl K20) antibody [5E10-D8] - ChIP Grade (<a href='/en-us/products/primary-antibodies/histone-h4-mono-methyl-k20-antibody-5e10-d8-chip-grade-ab78513'>ab78513</a>) at 1 µg/mL

Lane 1:

Calf Thymus Histone Preparation Nuclear Lysate (<a href='/en-us/products/unavailable/calf-thymus-histone-preparation-nuclear-lysate-ab121'>ab121</a>) at 0.5 µg

Lane 2:

Calf Thymus Histone Preparation Nuclear Lysate (<a href='/en-us/products/unavailable/calf-thymus-histone-preparation-nuclear-lysate-ab121'>ab121</a>) at 0.5 µg with Human Histone H4 peptide (<a href='/en-us/products/unavailable/human-histone-h4-peptide-ab14963'>ab14963</a>)

Lane 3:

Calf Thymus Histone Preparation Nuclear Lysate (<a href='/en-us/products/unavailable/calf-thymus-histone-preparation-nuclear-lysate-ab121'>ab121</a>) at 0.5 µg with Human Histone H3 (mono methyl K4) peptide (<a href='/en-us/products/proteins-peptides/human-histone-h3-mono-methyl-k4-peptide-ab1340'>ab1340</a>)

Lane 4:

Calf Thymus Histone Preparation Nuclear Lysate (<a href='/en-us/products/unavailable/calf-thymus-histone-preparation-nuclear-lysate-ab121'>ab121</a>) at 0.5 µg with Human Histone H3 (di methyl K4) peptide (<a href='/en-us/products/proteins-peptides/human-histone-h3-di-methyl-k4-peptide-ab7768'>ab7768</a>)

Lane 5:

Calf Thymus Histone Preparation Nuclear Lysate (<a href='/en-us/products/unavailable/calf-thymus-histone-preparation-nuclear-lysate-ab121'>ab121</a>) at 0.5 µg with Human Histone H3 (tri methyl K4) peptide (<a href='/en-us/products/proteins-peptides/human-histone-h3-tri-methyl-k4-peptide-ab1342'>ab1342</a>)

Lane 6:

Calf Thymus Histone Preparation Nuclear Lysate (<a href='/en-us/products/unavailable/calf-thymus-histone-preparation-nuclear-lysate-ab121'>ab121</a>) at 0.5 µg with Human Histone H4 (mono methyl K20) peptide (<a href='/en-us/products/unavailable/human-histone-h4-mono-methyl-k20-peptide-ab17043'>ab17043</a>)

Lane 7:

Calf Thymus Histone Preparation Nuclear Lysate (<a href='/en-us/products/unavailable/calf-thymus-histone-preparation-nuclear-lysate-ab121'>ab121</a>) at 0.5 µg with Histone H4 peptide (17-24) - di methyl K20

Lane 8:

Calf Thymus Histone Preparation Nuclear Lysate (<a href='/en-us/products/unavailable/calf-thymus-histone-preparation-nuclear-lysate-ab121'>ab121</a>) at 0.5 µg with Human Histone H4 (tri methyl K20) peptide (<a href='/en-us/products/proteins-peptides/human-histone-h4-tri-methyl-k20-peptide-ab17567'>ab17567</a>)

Lane 9:

Calf Thymus Histone Preparation Nuclear Lysate (<a href='/en-us/products/unavailable/calf-thymus-histone-preparation-nuclear-lysate-ab121'>ab121</a>) at 0.5 µg with Human Histone H3 (mono methyl K9) peptide (<a href='/en-us/products/proteins-peptides/human-histone-h3-mono-methyl-k9-peptide-ab1771'>ab1771</a>)

Lane 10:

Calf Thymus Histone Preparation Nuclear Lysate (<a href='/en-us/products/unavailable/calf-thymus-histone-preparation-nuclear-lysate-ab121'>ab121</a>) at 0.5 µg with Human Histone H3 (di methyl K9) peptide (<a href='/en-us/products/proteins-peptides/human-histone-h3-di-methyl-k9-peptide-ab1772'>ab1772</a>)

Lane 11:

Calf Thymus Histone Preparation Nuclear Lysate (<a href='/en-us/products/unavailable/calf-thymus-histone-preparation-nuclear-lysate-ab121'>ab121</a>) at 0.5 µg with Human Histone H3 (tri methyl K9) peptide (ab1773)

Secondary

All lanes:

Goat polyclonal to Mouse IgG - H&L - Pre-Adsorbed (HRP) at 1/3000 dilution

Predicted band size: 11 kDa

Observed band size: 13 kDa,17 kDa

true

Exposure time: 1min

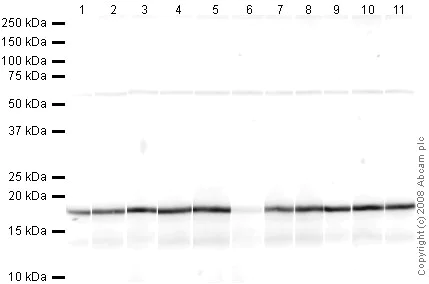

• WB

Unknown

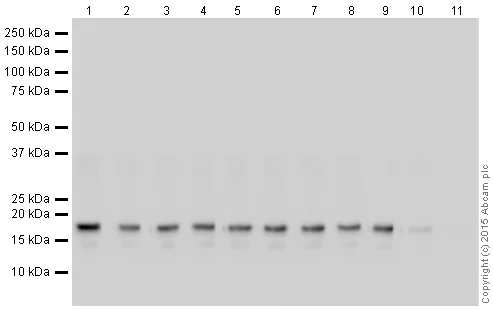

Western blot - Human Histone H3 (tri methyl K9) peptide (AB1773)

The peptide competition assay shows that this antibody is very specific for Histone H3 di-methylated at K27. It does not recognise Histone H3 mono, di, or tri methylated at K4, Histone H3 mono, di, or tri methylated at K9, or Histone H3 mono, or tri methylated at K27.

All lanes:

Western blot - Anti-Histone H3 (di methyl K27) antibody - ChIP Grade (<a href='/en-us/products/primary-antibodies/histone-h3-di-methyl-k27-antibody-chip-grade-ab24684'>ab24684</a>) at 1 µg/mL

Lane 1:

Calf thymus histone lysate

Lane 2:

Calf thymus histone lysate with Human Histone H3 peptide (<a href='/en-us/products/unavailable/human-histone-h3-peptide-ab17163'>ab17163</a>)

Lane 3:

Calf thymus histone lysate with Human Histone H3 (mono methyl K4) peptide (<a href='/en-us/products/proteins-peptides/human-histone-h3-mono-methyl-k4-peptide-ab1340'>ab1340</a>)

Lane 4:

Calf thymus histone lysate with Human Histone H3 (di methyl K4) peptide (<a href='/en-us/products/proteins-peptides/human-histone-h3-di-methyl-k4-peptide-ab7768'>ab7768</a>)

Lane 5:

Calf thymus histone lysate with Human Histone H3 (tri methyl K4) peptide (<a href='/en-us/products/proteins-peptides/human-histone-h3-tri-methyl-k4-peptide-ab1342'>ab1342</a>)

Lane 6:

Calf thymus histone lysate with Human Histone H3 (mono methyl K9) peptide (<a href='/en-us/products/proteins-peptides/human-histone-h3-mono-methyl-k9-peptide-ab1771'>ab1771</a>)

Lane 7:

Calf thymus histone lysate with Human Histone H3 (di methyl K9) peptide (<a href='/en-us/products/proteins-peptides/human-histone-h3-di-methyl-k9-peptide-ab1772'>ab1772</a>)

Lane 8:

Calf thymus histone lysate with Human Histone H3 (tri methyl K9) peptide (ab1773)

Lane 9:

Calf thymus histone lysate with Human Histone H3 (mono methyl K27) peptide (<a href='/en-us/products/proteins-peptides/human-histone-h3-mono-methyl-k27-peptide-ab1780'>ab1780</a>)

Lane 10:

Calf thymus histone lysate with Human Histone H3 (di methyl K27) peptide (<a href='/en-us/products/proteins-peptides/human-histone-h3-di-methyl-k27-peptide-ab1781'>ab1781</a>)

Lane 11:

Calf thymus histone lysate with Human Histone H3 (tri methyl K27) peptide (<a href='/en-us/products/proteins-peptides/human-histone-h3-tri-methyl-k27-peptide-ab1782'>ab1782</a>)

Secondary

All lanes:

Goat polyclonal to Rabbit IgG H&L (HRP) at 1/5000 dilution

Predicted band size: 15 kDa

Observed band size: 17 kDa

false

Exposure time: 5s

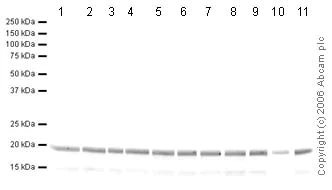

• WB

Lab

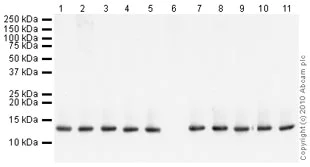

Western blot - Human Histone H3 (tri methyl K9) peptide (AB1773)

ab78517 is specific for Histone H4 (tri-methyl K20). This is illustrated in lane 8 where the activity of ab78517 is specifically blocked by the addition of the immunizing peptide (ab17567).

All lanes:

Western blot - Anti-Histone H4 (di methyl K20, tri methyl K20) antibody [6F8-D9] (<a href='/en-us/products/primary-antibodies/histone-h4-di-methyl-k20-tri-methyl-k20-antibody-6f8-d9-ab78517'>ab78517</a>) at 1 µg/mL

Lane 1:

Calf Thymus Histone Preparation Nuclear Lysate at 0.5 µg

Lane 2:

Calf Thymus Histone Preparation Nuclear Lysate at 0.5 µg with Human Histone H4 peptide (<a href='/en-us/products/unavailable/human-histone-h4-peptide-ab14963'>ab14963</a>)

Lane 3:

Calf Thymus Histone Preparation Nuclear Lysate at 0.5 µg with Human Histone H3 (mono methyl K4) peptide (<a href='/en-us/products/proteins-peptides/human-histone-h3-mono-methyl-k4-peptide-ab1340'>ab1340</a>)

Lane 4:

Calf Thymus Histone Preparation Nuclear Lysate at 0.5 µg with Human Histone H3 (di methyl K4) peptide (<a href='/en-us/products/proteins-peptides/human-histone-h3-di-methyl-k4-peptide-ab7768'>ab7768</a>)

Lane 5:

Calf Thymus Histone Preparation Nuclear Lysate at 0.5 µg with Human Histone H3 (tri methyl K4) peptide (<a href='/en-us/products/proteins-peptides/human-histone-h3-tri-methyl-k4-peptide-ab1342'>ab1342</a>)

Lane 6:

Calf Thymus Histone Preparation Nuclear Lysate at 0.5 µg with Human Histone H4 (mono methyl K20) peptide (<a href='/en-us/products/unavailable/human-histone-h4-mono-methyl-k20-peptide-ab17043'>ab17043</a>)

Lane 7:

Calf Thymus Histone Preparation Nuclear Lysate at 0.5 µg with Histone H4 peptide (17-24) - di methyl K20

Lane 8:

Calf Thymus Histone Preparation Nuclear Lysate at 0.5 µg with Human Histone H4 (tri methyl K20) peptide (<a href='/en-us/products/proteins-peptides/human-histone-h4-tri-methyl-k20-peptide-ab17567'>ab17567</a>)

Lane 9:

Calf Thymus Histone Preparation Nuclear Lysate at 0.5 µg with Human Histone H3 (mono methyl K9) peptide (<a href='/en-us/products/proteins-peptides/human-histone-h3-mono-methyl-k9-peptide-ab1771'>ab1771</a>)

Lane 10:

Calf Thymus Histone Preparation Nuclear Lysate at 0.5 µg with Human Histone H3 (di methyl K9) peptide (<a href='/en-us/products/proteins-peptides/human-histone-h3-di-methyl-k9-peptide-ab1772'>ab1772</a>)

Lane 11:

Calf Thymus Histone Preparation Nuclear Lysate at 0.5 µg with Human Histone H3 (tri methyl K9) peptide (ab1773)

Secondary

All lanes:

Goat polyclonal to Mouse IgG - H&L - Pre-Adsorbed (HRP) at 1/3000 dilution

Predicted band size: 11 kDa

Observed band size: 13 kDa

true

Exposure time: 90s

• WB

Project

Western blot - Human Histone H3 (tri methyl K9) peptide (AB1773)

All lanes:

Western blot - Anti-Histone H3 (mono methyl K9) antibody - ChIP Grade (<a href='/en-us/products/primary-antibodies/histone-h3-mono-methyl-k9-antibody-chip-grade-ab9045'>ab9045</a>) at 1 µg/mL

Lane 1:

Calf Thymus Histone Preparation Nuclear Lysate (<a href='/en-us/products/unavailable/calf-thymus-histone-preparation-nuclear-lysate-ab121'>ab121</a>) at 0.5 µg

Lane 2:

Calf Thymus Histone Preparation Nuclear Lysate (<a href='/en-us/products/unavailable/calf-thymus-histone-preparation-nuclear-lysate-ab121'>ab121</a>) at 0.5 µg with Human Histone H3 (unmodified) peptide (<a href='/en-us/products/proteins-peptides/human-histone-h3-unmodified-peptide-ab7228'>ab7228</a>)

Lane 3:

Calf Thymus Histone Preparation Nuclear Lysate (<a href='/en-us/products/unavailable/calf-thymus-histone-preparation-nuclear-lysate-ab121'>ab121</a>) at 0.5 µg with Human Histone H3 (mono methyl K4) peptide (<a href='/en-us/products/proteins-peptides/human-histone-h3-mono-methyl-k4-peptide-ab1340'>ab1340</a>)

Lane 4:

Calf Thymus Histone Preparation Nuclear Lysate (<a href='/en-us/products/unavailable/calf-thymus-histone-preparation-nuclear-lysate-ab121'>ab121</a>) at 0.5 µg with Human Histone H3 (di methyl K4) peptide (<a href='/en-us/products/proteins-peptides/human-histone-h3-di-methyl-k4-peptide-ab7768'>ab7768</a>)

Lane 5:

Calf Thymus Histone Preparation Nuclear Lysate (<a href='/en-us/products/unavailable/calf-thymus-histone-preparation-nuclear-lysate-ab121'>ab121</a>) at 0.5 µg with Human Histone H3 (tri methyl K4) peptide (<a href='/en-us/products/proteins-peptides/human-histone-h3-tri-methyl-k4-peptide-ab1342'>ab1342</a>)

Lane 6:

Calf Thymus Histone Preparation Nuclear Lysate (<a href='/en-us/products/unavailable/calf-thymus-histone-preparation-nuclear-lysate-ab121'>ab121</a>) at 0.5 µg with Human Histone H3 (mono methyl K9) peptide (<a href='/en-us/products/proteins-peptides/human-histone-h3-mono-methyl-k9-peptide-ab1771'>ab1771</a>)

Lane 7:

Calf Thymus Histone Preparation Nuclear Lysate (<a href='/en-us/products/unavailable/calf-thymus-histone-preparation-nuclear-lysate-ab121'>ab121</a>) at 0.5 µg with Human Histone H3 (di methyl K9) peptide (<a href='/en-us/products/proteins-peptides/human-histone-h3-di-methyl-k9-peptide-ab1772'>ab1772</a>)

Lane 8:

Calf Thymus Histone Preparation Nuclear Lysate (<a href='/en-us/products/unavailable/calf-thymus-histone-preparation-nuclear-lysate-ab121'>ab121</a>) at 0.5 µg with Human Histone H3 (tri methyl K9) peptide (ab1773)

Lane 9:

Calf Thymus Histone Preparation Nuclear Lysate (<a href='/en-us/products/unavailable/calf-thymus-histone-preparation-nuclear-lysate-ab121'>ab121</a>) at 0.5 µg with Human Histone H3 (mono methyl K27) peptide (<a href='/en-us/products/proteins-peptides/human-histone-h3-mono-methyl-k27-peptide-ab1780'>ab1780</a>)

Lane 10:

Calf Thymus Histone Preparation Nuclear Lysate (<a href='/en-us/products/unavailable/calf-thymus-histone-preparation-nuclear-lysate-ab121'>ab121</a>) at 0.5 µg with Human Histone H3 (di methyl K27) peptide (<a href='/en-us/products/proteins-peptides/human-histone-h3-di-methyl-k27-peptide-ab1781'>ab1781</a>)

Lane 11:

Calf Thymus Histone Preparation Nuclear Lysate (<a href='/en-us/products/unavailable/calf-thymus-histone-preparation-nuclear-lysate-ab121'>ab121</a>) at 0.5 µg with Human Histone H3 (tri methyl K27) peptide (<a href='/en-us/products/proteins-peptides/human-histone-h3-tri-methyl-k27-peptide-ab1782'>ab1782</a>)

Secondary

All lanes:

IRDye 680 Conjugated Goat Anti-Rabbit IgG (H+L) at 1/10000 dilution

Predicted band size: 15 kDa

false

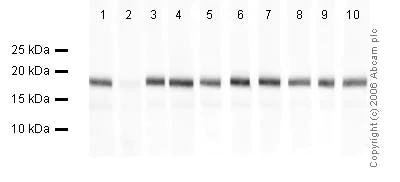

• WB

Project

Western blot - Human Histone H3 (tri methyl K9) peptide (AB1773)

ab8896 specifically recognises mono-methyl K9 (lane 1) in calf thymus lysate at 17kDa. ab8896 is successfully blocked using the immunizing peptide (lane 2 ab1771), but not the di-methyl K9 (lane 3 ab1772), the tri-methyl K9 (lane 4 ab1773), the mono-methyl K27 (lane 5 ab1780), the di-methyl K27 (lane 6 ab1781), the tri-methyl K27 (lane 7 ab1782), the mono-methyl K4 (lane 8 ab1340) nor the corresponding unmodified peptides (lane 9 ab7228, lane 10 ab2623). This implies that ab8896 is specific to mono-methyl K9.

All lanes:

Western blot - Anti-Histone H3 (mono methyl K9) antibody - ChIP Grade (<a href='/en-us/products/primary-antibodies/histone-h3-mono-methyl-k9-antibody-chip-grade-ab8896'>ab8896</a>) at 1 µg/mL

Lane 1:

Calf Thymus Histone Preparation at 0.5 µg

Lane 2:

Calf Thymus Histone Preparation at 0.5 µg with Human Histone H3 (mono methyl K9) peptide (<a href='/en-us/products/proteins-peptides/human-histone-h3-mono-methyl-k9-peptide-ab1771'>ab1771</a>)

Lane 3:

Calf Thymus Histone Preparation at 0.5 µg with Human Histone H3 (di methyl K9) peptide (<a href='/en-us/products/proteins-peptides/human-histone-h3-di-methyl-k9-peptide-ab1772'>ab1772</a>)

Lane 4:

Calf Thymus Histone Preparation at 0.5 µg with Human Histone H3 (tri methyl K9) peptide (ab1773)

Lane 5:

Calf Thymus Histone Preparation at 0.5 µg with Human Histone H3 (mono methyl K27) peptide (<a href='/en-us/products/proteins-peptides/human-histone-h3-mono-methyl-k27-peptide-ab1780'>ab1780</a>)

Lane 6:

Calf Thymus Histone Preparation at 0.5 µg with Human Histone H3 (di methyl K27) peptide (<a href='/en-us/products/proteins-peptides/human-histone-h3-di-methyl-k27-peptide-ab1781'>ab1781</a>)

Lane 7:

Calf Thymus Histone Preparation at 0.5 µg with Human Histone H3 (tri methyl K27) peptide (<a href='/en-us/products/proteins-peptides/human-histone-h3-tri-methyl-k27-peptide-ab1782'>ab1782</a>)

Lane 8:

Calf Thymus Histone Preparation at 0.5 µg with Human Histone H3 (mono methyl K4) peptide (<a href='/en-us/products/proteins-peptides/human-histone-h3-mono-methyl-k4-peptide-ab1340'>ab1340</a>)

Lane 9:

Calf Thymus Histone Preparation at 0.5 µg with Human Histone H3 (unmodified) peptide (<a href='/en-us/products/proteins-peptides/human-histone-h3-unmodified-peptide-ab7228'>ab7228</a>)

Lane 10:

Calf Thymus Histone Preparation at 0.5 µg with Human Histone H3 (unmodified ) peptide (<a href='/en-us/products/proteins-peptides/human-histone-h3-unmodified-peptide-ab2623'>ab2623</a>)

Secondary

All lanes:

Goat polyclonal to Rabbit IgG H&L (HRP) Pre-Adsorbed at 1/10000 dilution

Predicted band size: 15 kDa

Observed band size: 17 kDa

false

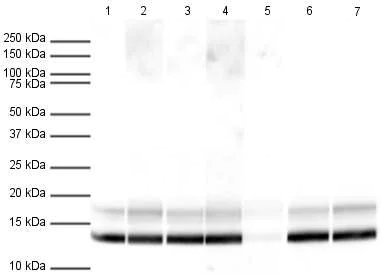

• WB

Project

Western blot - Human Histone H3 (tri methyl K9) peptide (AB1773)

All lanes : Anti-Histone H3 (di methyl K9) antibody [mAbcam 1220] - ChIP Grade (ab1220)

Lane 1 : Calf thymus histone lysate
Lane 2 : Calf thymus histone lysate with Histone H3 peptide - unmodified at 1 μg/ml
Lane 3 : Calf thymus histone lysate with Human Histone H3 (mono methyl K9) peptide (ab1771) at 1 μg/ml
Lane 4 : Calf thymus histone lysate with Human Histone H3 (di methyl K9) peptide (ab1772) at 1 μg/ml
Lane 5 : Calf thymus histone lysate with Human Histone H3 (tri methyl K9) peptide (ab1773) at 1 μg/ml
Lane 6 : Calf thymus histone lysate with Histone H3 (di methyl K4) peptide (ab7768) at 1 μg/ml
Lane 7 : Calf thymus histone lysate with Human Histone H3 (di methyl K27) peptide (ab1781) at 1 μg/ml

Secondary
Rabbit Anti-Mouse IgG H&L (HRP) (ab6728) at 1/5000 dilution
developed using the ECL technique

Performed under reducing conditions.

Predicted band size : 17 kDa

Exposure time : 1 minute

All lanes:

Western blot - Anti-Histone H3 (di methyl K9) antibody [mAbcam 1220] - ChIP Grade (<a href='/en-us/products/primary-antibodies/histone-h3-di-methyl-k9-antibody-mabcam-1220-chip-grade-ab1220'>ab1220</a>) at 1 µg/mL

Lane 1:

Calf thymus histone lysate

Lane 2:

Calf thymus histone lysate with Histone H3 peptide - unmodified

Lane 3:

Calf thymus histone lysate with Human Histone H3 (mono methyl K9) peptide (<a href='/en-us/products/proteins-peptides/human-histone-h3-mono-methyl-k9-peptide-ab1771'>ab1771</a>)

Lane 4:

Calf thymus histone lysate with Human Histone H3 (di methyl K9) peptide (<a href='/en-us/products/proteins-peptides/human-histone-h3-di-methyl-k9-peptide-ab1772'>ab1772</a>)

Lane 5:

Calf thymus histone lysate with Human Histone H3 (tri methyl K9) peptide (ab1773)

Lane 6:

Calf thymus histone lysate with Human Histone H3 (di methyl K4) peptide (<a href='/en-us/products/proteins-peptides/human-histone-h3-di-methyl-k4-peptide-ab7768'>ab7768</a>)

Lane 7:

Calf thymus histone lysate with Human Histone H3 (di methyl K27) peptide (<a href='/en-us/products/proteins-peptides/human-histone-h3-di-methyl-k27-peptide-ab1781'>ab1781</a>)

Secondary

All lanes:

Western blot - Rabbit Anti-Mouse IgG H&L (HRP) (<a href='/en-us/products/secondary-antibodies/rabbit-mouse-igg-h-l-hrp-ab6728'>ab6728</a>) at 1/5000 dilution

Predicted band size: 15 kDa

true

Exposure time: 1min

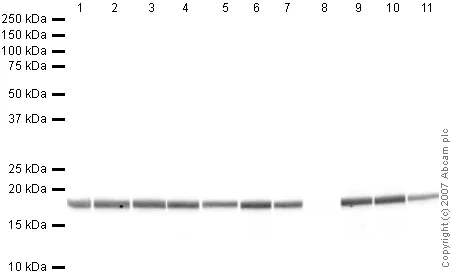

• WB

Lab

Western blot - Human Histone H3 (tri methyl K9) peptide (AB1773)

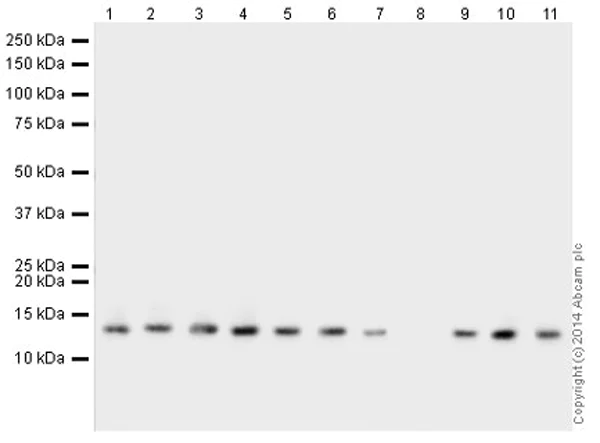

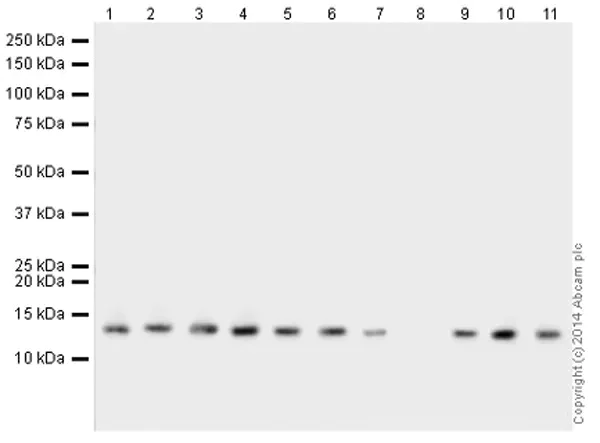

Lane 8 shows that Rabbit polyclonal to Histone H3 (tri methyl K9) is blocked by the addition of the immunizing peptide (ab1773). Cross-reactivity with Histone H3 peptide - tri methyl K27 (ab1782) is also shown in Lane 11.

All lanes:

Western blot - Anti-Histone H3 (tri methyl K9) antibody - ChIP Grade (<a href='/en-us/products/primary-antibodies/histone-h3-tri-methyl-k9-antibody-chip-grade-ab8898'>ab8898</a>) at 1 µg/mL

Lane 1:

Calf Thymus Histone Preparation Nuclear Lysate at 0.5 µg

Lane 2:

Calf Thymus Histone Preparation Nuclear Lysate at 0.5 µg with Human Histone H3 (unmodified) peptide (<a href='/en-us/products/proteins-peptides/human-histone-h3-unmodified-peptide-ab7228'>ab7228</a>)

Lane 3:

Calf Thymus Histone Preparation Nuclear Lysate at 0.5 µg with Human Histone H3 (mono methyl K4) peptide (<a href='/en-us/products/proteins-peptides/human-histone-h3-mono-methyl-k4-peptide-ab1340'>ab1340</a>)

Lane 4:

Calf Thymus Histone Preparation Nuclear Lysate at 0.5 µg with Human Histone H3 (di methyl K4) peptide (<a href='/en-us/products/proteins-peptides/human-histone-h3-di-methyl-k4-peptide-ab7768'>ab7768</a>)

Lane 5:

Calf Thymus Histone Preparation Nuclear Lysate at 0.5 µg with Human Histone H3 (tri methyl K4) peptide (<a href='/en-us/products/proteins-peptides/human-histone-h3-tri-methyl-k4-peptide-ab1342'>ab1342</a>)

Lane 6:

Calf Thymus Histone Preparation Nuclear Lysate at 0.5 µg with Human Histone H3 (mono methyl K9) peptide (<a href='/en-us/products/proteins-peptides/human-histone-h3-mono-methyl-k9-peptide-ab1771'>ab1771</a>)

Lane 7:

Calf Thymus Histone Preparation Nuclear Lysate at 0.5 µg with Human Histone H3 (di methyl K9) peptide (<a href='/en-us/products/proteins-peptides/human-histone-h3-di-methyl-k9-peptide-ab1772'>ab1772</a>)

Lane 8:

Calf Thymus Histone Preparation Nuclear Lysate at 0.5 µg with Human Histone H3 (tri methyl K9) peptide (ab1773)

Lane 9:

Calf Thymus Histone Preparation Nuclear Lysate at 0.5 µg with Human Histone H3 (mono methyl K27) peptide (<a href='/en-us/products/proteins-peptides/human-histone-h3-mono-methyl-k27-peptide-ab1780'>ab1780</a>)

Lane 10:

Calf Thymus Histone Preparation Nuclear Lysate at 0.5 µg with Human Histone H3 (di methyl K27) peptide (<a href='/en-us/products/proteins-peptides/human-histone-h3-di-methyl-k27-peptide-ab1781'>ab1781</a>)

Lane 11:

Calf Thymus Histone Preparation Nuclear Lysate at 0.5 µg with Human Histone H3 (tri methyl K27) peptide (<a href='/en-us/products/proteins-peptides/human-histone-h3-tri-methyl-k27-peptide-ab1782'>ab1782</a>)

Secondary

All lanes:

IRDye 680 Conjugated Goat Anti-Rabbit IgG (H+L) at 1/10000 dilution

Predicted band size: 15 kDa

Observed band size: 17 kDa

false

• WB

Ap

Western blot - Human Histone H3 (tri methyl K9) peptide (AB1773)

All lanes:

Western blot - HRP Anti-Histone H3 (di methyl K9) antibody [mAbcam 1220] (<a href='/en-us/products/primary-antibodies/hrp-histone-h3-di-methyl-k9-antibody-mabcam-1220-ab62168'>ab62168</a>) at 1/20000 dilution

Lane 1:

Calf Thymus Histone Preparation Nuclear Lysate at 0.5 µg

Lane 2:

Calf Thymus Histone Preparation Nuclear Lysate at 0.5 µg with Human Histone H3 (unmodified ) peptide (<a href='/en-us/products/proteins-peptides/human-histone-h3-unmodified-peptide-ab2903'>ab2903</a>)

Lane 3:

Calf Thymus Histone Preparation Nuclear Lysate at 0.5 µg with Human Histone H3 (mono methyl K4) peptide (<a href='/en-us/products/proteins-peptides/human-histone-h3-mono-methyl-k4-peptide-ab1340'>ab1340</a>)

Lane 4:

Calf Thymus Histone Preparation Nuclear Lysate at 0.5 µg with Human Histone H3 (di methyl K4) peptide (<a href='/en-us/products/proteins-peptides/human-histone-h3-di-methyl-k4-peptide-ab7768'>ab7768</a>)

Lane 5:

Calf Thymus Histone Preparation Nuclear Lysate at 0.5 µg with Human Histone H3 (tri methyl K4) peptide (<a href='/en-us/products/proteins-peptides/human-histone-h3-tri-methyl-k4-peptide-ab1342'>ab1342</a>)

Lane 6:

Calf Thymus Histone Preparation Nuclear Lysate at 0.5 µg with Human Histone H3 (mono methyl K9) peptide (<a href='/en-us/products/proteins-peptides/human-histone-h3-mono-methyl-k9-peptide-ab1771'>ab1771</a>)

Lane 7:

Calf Thymus Histone Preparation Nuclear Lysate at 0.5 µg with Human Histone H3 (di methyl K9) peptide (<a href='/en-us/products/proteins-peptides/human-histone-h3-di-methyl-k9-peptide-ab1772'>ab1772</a>)

Lane 8:

Calf Thymus Histone Preparation Nuclear Lysate at 0.5 µg with Human Histone H3 (tri methyl K9) peptide (ab1773)

Lane 9:

Calf Thymus Histone Preparation Nuclear Lysate at 0.5 µg with Human Histone H3 (mono methyl K27) peptide (<a href='/en-us/products/proteins-peptides/human-histone-h3-mono-methyl-k27-peptide-ab1780'>ab1780</a>)

Lane 10:

Calf Thymus Histone Preparation Nuclear Lysate at 0.5 µg with Human Histone H3 (di methyl K27) peptide (<a href='/en-us/products/proteins-peptides/human-histone-h3-di-methyl-k27-peptide-ab1781'>ab1781</a>)

Lane 11:

Calf Thymus Histone Preparation Nuclear Lysate at 0.5 µg with Human Histone H3 (tri methyl K27) peptide (<a href='/en-us/products/proteins-peptides/human-histone-h3-tri-methyl-k27-peptide-ab1782'>ab1782</a>)

Predicted band size: 15 kDa

Observed band size: 17 kDa

false

• WB

Lab

Western blot - Human Histone H3 (tri methyl K9) peptide (AB1773)

This blot was produced using a 4-12% Bis-tris gel under the MES buffer system. The gel was run at 200V for 35 minutes before being transferred onto a Nitrocellulose membrane at 30V for 70 minutes. The membrane was then blocked for an hour using 2% Bovine Serum Albumin before being incubated with ab6147 overnight at 4°C. Antibody binding was visualised using ECL development solution ab133406.

All lanes:

Western blot - Anti-Histone H3 (di methyl K27, tri methyl K27) antibody [mAbcam 6147] (<a href='/en-us/products/primary-antibodies/histone-h3-di-methyl-k27-tri-methyl-k27-antibody-mabcam-6147-ab6147'>ab6147</a>) at 1 µg/mL

Lane 1:

Calf Thymus Histone Preparation Nuclear Lysate at 0.5 µg

Lane 2:

Calf Thymus Histone Preparation Nuclear Lysate at 0.5 µg with Human Histone H3 (unmodified ) peptide (<a href='/en-us/products/proteins-peptides/human-histone-h3-unmodified-peptide-ab2623'>ab2623</a>)

Lane 3:

Calf Thymus Histone Preparation Nuclear Lysate at 0.5 µg with Human Histone H3 (mono methyl K4) peptide (<a href='/en-us/products/proteins-peptides/human-histone-h3-mono-methyl-k4-peptide-ab1340'>ab1340</a>)

Lane 4:

Calf Thymus Histone Preparation Nuclear Lysate at 0.5 µg with Human Histone H3 (di methyl K4) peptide (<a href='/en-us/products/proteins-peptides/human-histone-h3-di-methyl-k4-peptide-ab7768'>ab7768</a>)

Lane 5:

Calf Thymus Histone Preparation Nuclear Lysate at 0.5 µg with Human Histone H3 (tri methyl K4) peptide (<a href='/en-us/products/proteins-peptides/human-histone-h3-tri-methyl-k4-peptide-ab1342'>ab1342</a>)

Lane 6:

Calf Thymus Histone Preparation Nuclear Lysate at 0.5 µg with Human Histone H3 (mono methyl K9) peptide (<a href='/en-us/products/proteins-peptides/human-histone-h3-mono-methyl-k9-peptide-ab1771'>ab1771</a>)

Lane 7:

Calf Thymus Histone Preparation Nuclear Lysate at 0.5 µg with Human Histone H3 (di methyl K9) peptide (<a href='/en-us/products/proteins-peptides/human-histone-h3-di-methyl-k9-peptide-ab1772'>ab1772</a>)

Lane 8:

Calf Thymus Histone Preparation Nuclear Lysate at 0.5 µg with Human Histone H3 (tri methyl K9) peptide (ab1773)

Lane 9:

Calf Thymus Histone Preparation Nuclear Lysate at 0.5 µg with Human Histone H3 (mono methyl K27) peptide (<a href='/en-us/products/proteins-peptides/human-histone-h3-mono-methyl-k27-peptide-ab1780'>ab1780</a>)

Lane 10:

Calf Thymus Histone Preparation Nuclear Lysate at 0.5 µg with Human Histone H3 (di methyl K27) peptide (<a href='/en-us/products/proteins-peptides/human-histone-h3-di-methyl-k27-peptide-ab1781'>ab1781</a>)

Lane 11:

Calf Thymus Histone Preparation Nuclear Lysate at 0.5 µg with Human Histone H3 (tri methyl K27) peptide (<a href='/en-us/products/proteins-peptides/human-histone-h3-tri-methyl-k27-peptide-ab1782'>ab1782</a>)

Secondary

All lanes:

Goat polyclonal to Mouse IgG - H&L - Pre-Adsorbed (HRP) at 1/5000 dilution

Predicted band size: 15 kDa

Observed band size: 17 kDa

true

Exposure time: 1min

• WB

Lab

Western blot - Human Histone H3 (tri methyl K9) peptide (AB1773)

This data was developed using the same antibody clone in a different buffer formulation containing PBS, L-Arginine and sodium azide (ab78517).

ab78517 is specific for Histone H4 (tri-methyl K20). This is illustrated in lane 8 where the activity of ab78517 is specifically blocked by the addition of the immunizing peptide (ab17567).

All lanes:

Western blot - Anti-Histone H4 (di methyl K20, tri methyl K20) antibody [6F8-D9] - BSA and Azide free (<a href='/en-us/products/primary-antibodies/histone-h4-di-methyl-k20-tri-methyl-k20-antibody-6f8-d9-bsa-and-azide-free-ab264528'>ab264528</a>) at 1 µg/mL

Lane 1:

Calf Thymus Histone Preparation Nuclear Lysate at 0.5 µg

Lane 2:

Calf Thymus Histone Preparation Nuclear Lysate at 0.5 µg with Human Histone H4 peptide (<a href='/en-us/products/unavailable/human-histone-h4-peptide-ab14963'>ab14963</a>)

Lane 3:

Calf Thymus Histone Preparation Nuclear Lysate at 0.5 µg with Human Histone H3 (mono methyl K4) peptide (<a href='/en-us/products/proteins-peptides/human-histone-h3-mono-methyl-k4-peptide-ab1340'>ab1340</a>)

Lane 4:

Calf Thymus Histone Preparation Nuclear Lysate at 0.5 µg with Human Histone H3 (di methyl K4) peptide (<a href='/en-us/products/proteins-peptides/human-histone-h3-di-methyl-k4-peptide-ab7768'>ab7768</a>)

Lane 5:

Calf Thymus Histone Preparation Nuclear Lysate at 0.5 µg with Human Histone H3 (tri methyl K4) peptide (<a href='/en-us/products/proteins-peptides/human-histone-h3-tri-methyl-k4-peptide-ab1342'>ab1342</a>)

Lane 6:

Calf Thymus Histone Preparation Nuclear Lysate at 0.5 µg with Human Histone H4 (mono methyl K20) peptide (<a href='/en-us/products/unavailable/human-histone-h4-mono-methyl-k20-peptide-ab17043'>ab17043</a>)

Lane 7:

Calf Thymus Histone Preparation Nuclear Lysate at 0.5 µg with Histone H4 peptide (17-24) - di methyl K20

Lane 9:

Calf Thymus Histone Preparation Nuclear Lysate at 0.5 µg with Human Histone H3 (mono methyl K9) peptide (<a href='/en-us/products/proteins-peptides/human-histone-h3-mono-methyl-k9-peptide-ab1771'>ab1771</a>)

Lane 10:

Calf Thymus Histone Preparation Nuclear Lysate at 0.5 µg with Human Histone H3 (di methyl K9) peptide (<a href='/en-us/products/proteins-peptides/human-histone-h3-di-methyl-k9-peptide-ab1772'>ab1772</a>)

Lane 11:

Calf Thymus Histone Preparation Nuclear Lysate at 0.5 µg with Human Histone H3 (tri methyl K9) peptide (ab1773)

Secondary

All lanes:

Goat polyclonal to Mouse IgG - H&L - Pre-Adsorbed (HRP) at 1/3000 dilution

Predicted band size: 11 kDa

Observed band size: 13 kDa

true

Exposure time: 90s

• WB

Project

Western blot - Human Histone H3 (tri methyl K9) peptide (AB1773)

This data was developed using the same antibody clone in a different buffer formulation containing PBS, L-arginine, and sodium azide (ab12209).

All lanes:

Western blot - Anti-Histone H3 (tri methyl K4) antibody [mAbcam12209] - ChIP Grade (<a href='/en-us/products/primary-antibodies/histone-h3-tri-methyl-k4-antibody-mabcam12209-chip-grade-ab12209'>ab12209</a>) at 2 µg/mL

Lane 1:

Calf Thymus Histone Preparation Nuclear Lysate at 0.5 µg

Lane 2:

Calf Thymus Histone Preparation Nuclear Lysate at 0.5 µg with Human Histone H3 (unmodified) peptide (<a href='/en-us/products/proteins-peptides/human-histone-h3-unmodified-peptide-ab7228'>ab7228</a>)

Lane 3:

Calf Thymus Histone Preparation Nuclear Lysate at 0.5 µg with Human Histone H3 (mono methyl K4) peptide (<a href='/en-us/products/proteins-peptides/human-histone-h3-mono-methyl-k4-peptide-ab1340'>ab1340</a>)

Lane 4:

Calf Thymus Histone Preparation Nuclear Lysate at 0.5 µg with Human Histone H3 (di methyl K4) peptide (<a href='/en-us/products/proteins-peptides/human-histone-h3-di-methyl-k4-peptide-ab7768'>ab7768</a>)

Lane 5:

Calf Thymus Histone Preparation Nuclear Lysate at 0.5 µg with Human Histone H3 (tri methyl K4) peptide (<a href='/en-us/products/proteins-peptides/human-histone-h3-tri-methyl-k4-peptide-ab1342'>ab1342</a>)

Lane 6:

Calf Thymus Histone Preparation Nuclear Lysate at 0.5 µg with Human Histone H3 (mono methyl K9) peptide (<a href='/en-us/products/proteins-peptides/human-histone-h3-mono-methyl-k9-peptide-ab1771'>ab1771</a>)

Lane 7:

Calf Thymus Histone Preparation Nuclear Lysate at 0.5 µg with Human Histone H3 (di methyl K9) peptide (<a href='/en-us/products/proteins-peptides/human-histone-h3-di-methyl-k9-peptide-ab1772'>ab1772</a>)

Lane 8:

Calf Thymus Histone Preparation Nuclear Lysate at 0.5 µg with Human Histone H3 (tri methyl K9) peptide (ab1773)

Lane 9:

Calf Thymus Histone Preparation Nuclear Lysate at 0.5 µg with Human Histone H3 (mono methyl K27) peptide (<a href='/en-us/products/proteins-peptides/human-histone-h3-mono-methyl-k27-peptide-ab1780'>ab1780</a>)

Lane 10:

Calf Thymus Histone Preparation Nuclear Lysate at 0.5 µg with Human Histone H3 (di methyl K27) peptide (<a href='/en-us/products/proteins-peptides/human-histone-h3-di-methyl-k27-peptide-ab1781'>ab1781</a>)

Lane 11:

Calf Thymus Histone Preparation Nuclear Lysate at 0.5 µg with Human Histone H3 (tri methyl K27) peptide (<a href='/en-us/products/proteins-peptides/human-histone-h3-tri-methyl-k27-peptide-ab1782'>ab1782</a>)

Secondary

All lanes:

Goat polyclonal to Mouse IgG - H&L - Pre-Adsorbed (HRP) at 1/3000 dilution

Predicted band size: 15 kDa

Observed band size: 17 kDa

false

Exposure time: 16min

• WB

Project

Western blot - Human Histone H3 (tri methyl K9) peptide (AB1773)

All lanes:

Western blot - Anti-Histone H4 (mono methyl K20) antibody - ChIP Grade (<a href='/en-us/products/primary-antibodies/histone-h4-mono-methyl-k20-antibody-chip-grade-ab9051'>ab9051</a>) at 1 µg/mL

Lane 1:

Calf Thymus Histone Preparation Nuclear Lysate (<a href='/en-us/products/unavailable/calf-thymus-histone-preparation-nuclear-lysate-ab121'>ab121</a>) at 0.5 µg

Lane 2:

Calf Thymus Histone Preparation Nuclear Lysate (<a href='/en-us/products/unavailable/calf-thymus-histone-preparation-nuclear-lysate-ab121'>ab121</a>) at 0.5 µg with Human Histone H4 peptide (<a href='/en-us/products/unavailable/human-histone-h4-peptide-ab14963'>ab14963</a>)

Lane 3:

Calf Thymus Histone Preparation Nuclear Lysate (<a href='/en-us/products/unavailable/calf-thymus-histone-preparation-nuclear-lysate-ab121'>ab121</a>) at 0.5 µg with Human Histone H3 (mono methyl K4) peptide (<a href='/en-us/products/proteins-peptides/human-histone-h3-mono-methyl-k4-peptide-ab1340'>ab1340</a>)

Lane 4:

Calf Thymus Histone Preparation Nuclear Lysate (<a href='/en-us/products/unavailable/calf-thymus-histone-preparation-nuclear-lysate-ab121'>ab121</a>) at 0.5 µg with Human Histone H3 (di methyl K4) peptide (<a href='/en-us/products/proteins-peptides/human-histone-h3-di-methyl-k4-peptide-ab7768'>ab7768</a>)

Lane 5:

Calf Thymus Histone Preparation Nuclear Lysate (<a href='/en-us/products/unavailable/calf-thymus-histone-preparation-nuclear-lysate-ab121'>ab121</a>) at 0.5 µg with Human Histone H3 (tri methyl K4) peptide (<a href='/en-us/products/proteins-peptides/human-histone-h3-tri-methyl-k4-peptide-ab1342'>ab1342</a>)

Lane 6:

Calf Thymus Histone Preparation Nuclear Lysate (<a href='/en-us/products/unavailable/calf-thymus-histone-preparation-nuclear-lysate-ab121'>ab121</a>) at 0.5 µg with Human Histone H4 (mono methyl K20) peptide (<a href='/en-us/products/unavailable/human-histone-h4-mono-methyl-k20-peptide-ab17043'>ab17043</a>)

Lane 7:

Calf Thymus Histone Preparation Nuclear Lysate (<a href='/en-us/products/unavailable/calf-thymus-histone-preparation-nuclear-lysate-ab121'>ab121</a>) at 0.5 µg with Histone H4 peptide (17-24) - di methyl K20

Lane 8:

Calf Thymus Histone Preparation Nuclear Lysate (<a href='/en-us/products/unavailable/calf-thymus-histone-preparation-nuclear-lysate-ab121'>ab121</a>) at 0.5 µg with Human Histone H4 (tri methyl K20) peptide (<a href='/en-us/products/proteins-peptides/human-histone-h4-tri-methyl-k20-peptide-ab17567'>ab17567</a>)

Lane 9:

Calf Thymus Histone Preparation Nuclear Lysate (<a href='/en-us/products/unavailable/calf-thymus-histone-preparation-nuclear-lysate-ab121'>ab121</a>) at 0.5 µg with Human Histone H3 (mono methyl K9) peptide (<a href='/en-us/products/proteins-peptides/human-histone-h3-mono-methyl-k9-peptide-ab1771'>ab1771</a>)

Lane 10:

Calf Thymus Histone Preparation Nuclear Lysate (<a href='/en-us/products/unavailable/calf-thymus-histone-preparation-nuclear-lysate-ab121'>ab121</a>) at 0.5 µg with Human Histone H3 (di methyl K9) peptide (<a href='/en-us/products/proteins-peptides/human-histone-h3-di-methyl-k9-peptide-ab1772'>ab1772</a>)

Lane 11:

Calf Thymus Histone Preparation Nuclear Lysate (<a href='/en-us/products/unavailable/calf-thymus-histone-preparation-nuclear-lysate-ab121'>ab121</a>) at 0.5 µg with Human Histone H3 (tri methyl K9) peptide (ab1773)

Secondary

All lanes:

Goat polyclonal to Rabbit IgG - H&L - Pre-Adsorbed (HRP) at 1/3000 dilution

Predicted band size: 11 kDa

Observed band size: 13 kDa

false

Exposure time: 10s

• WB

Project

Western blot - Human Histone H3 (tri methyl K9) peptide (AB1773)

ab9053 is specific for Histone H4 (tri-methyl K20). This is illustrated in lane 5 where the activity of ab9053 is specifically blocked by the addition of the immunizing peptide (ab17567).

All lanes:

Western blot - Anti-Histone H4 (tri methyl K20) antibody - ChIP Grade (<a href='/en-us/products/primary-antibodies/histone-h4-tri-methyl-k20-antibody-chip-grade-ab9053'>ab9053</a>) at 1 µg/mL

Lane 1:

Calf thymus histone lysate

Lane 2:

Calf thymus histone lysate with Human Histone H4 peptide (<a href='/en-us/products/unavailable/human-histone-h4-peptide-ab2622'>ab2622</a>)

Lane 3:

Calf thymus histone lysate with Human Histone H4 (mono methyl K20) peptide (<a href='/en-us/products/unavailable/human-histone-h4-mono-methyl-k20-peptide-ab17043'>ab17043</a>)

Lane 4:

Calf thymus histone lysate with Human Histone H4 (di methyl K20) peptide (<a href='/en-us/products/unavailable/human-histone-h4-di-methyl-k20-peptide-ab14964'>ab14964</a>)

Lane 5:

Calf thymus histone lysate with Human Histone H4 (tri methyl K20) peptide (<a href='/en-us/products/proteins-peptides/human-histone-h4-tri-methyl-k20-peptide-ab17567'>ab17567</a>)

Lane 6:

Calf thymus histone lysate with Human Histone H3 (tri methyl K4) peptide (<a href='/en-us/products/proteins-peptides/human-histone-h3-tri-methyl-k4-peptide-ab1342'>ab1342</a>)

Lane 7:

Calf thymus histone lysate with Human Histone H3 (tri methyl K9) peptide (ab1773)

Secondary

All lanes:

Western blot - Goat Anti-Rabbit IgG H&L (HRP) (<a href='/en-us/products/secondary-antibodies/goat-rabbit-igg-h-l-hrp-ab6721'>ab6721</a>) at 1/5000 dilution

Predicted band size: 11 kDa

Observed band size: 13 kDa

false

• WB

Project

Western blot - Human Histone H3 (tri methyl K9) peptide (AB1773)

Expected molecular weights : H3 = 17 kDa; H4 = 14 kDa This image shows that the main epitopes recognized by ab7315 are the di methylated lysine residues. This can be seen in lanes 4, 7 and 10 where the activity of the antibody is quenched by the immunizing peptides (ab7768, ab1772, ab1781).

All lanes:

Western blot - Anti-pan methyl Lysine antibody - ChIP Grade (<a href='/en-us/products/primary-antibodies/pan-methyl-lysine-antibody-chip-grade-ab7315'>ab7315</a>) at 1 µg/mL

Lane 1:

Calf Thymus Histone Preparation Nuclear Lysate at 0.5 µg

Lane 2:

Calf Thymus Histone Preparation Nuclear Lysate at 0.5 µg with Human Histone H3 (unmodified) peptide (<a href='/en-us/products/proteins-peptides/human-histone-h3-unmodified-peptide-ab7228'>ab7228</a>)

Lane 3:

Calf Thymus Histone Preparation Nuclear Lysate at 0.5 µg with Human Histone H3 (mono methyl K4) peptide (<a href='/en-us/products/proteins-peptides/human-histone-h3-mono-methyl-k4-peptide-ab1340'>ab1340</a>)

Lane 4:

Calf Thymus Histone Preparation Nuclear Lysate at 0.5 µg with Human Histone H3 (di methyl K4) peptide (<a href='/en-us/products/proteins-peptides/human-histone-h3-di-methyl-k4-peptide-ab7768'>ab7768</a>)

Lane 5:

Calf Thymus Histone Preparation Nuclear Lysate at 0.5 µg with Human Histone H3 (tri methyl K4) peptide (<a href='/en-us/products/proteins-peptides/human-histone-h3-tri-methyl-k4-peptide-ab1342'>ab1342</a>)

Lane 6:

Calf Thymus Histone Preparation Nuclear Lysate at 0.5 µg with Human Histone H3 (mono methyl K9) peptide (<a href='/en-us/products/proteins-peptides/human-histone-h3-mono-methyl-k9-peptide-ab1771'>ab1771</a>)

Lane 7:

Calf Thymus Histone Preparation Nuclear Lysate at 0.5 µg with Human Histone H3 (di methyl K9) peptide (<a href='/en-us/products/proteins-peptides/human-histone-h3-di-methyl-k9-peptide-ab1772'>ab1772</a>)

Lane 8:

Calf Thymus Histone Preparation Nuclear Lysate at 0.5 µg with Human Histone H3 (tri methyl K9) peptide (ab1773)

Lane 9:

Calf Thymus Histone Preparation Nuclear Lysate at 0.5 µg with Human Histone H3 (mono methyl K27) peptide (<a href='/en-us/products/proteins-peptides/human-histone-h3-mono-methyl-k27-peptide-ab1780'>ab1780</a>)

Lane 10:

Calf Thymus Histone Preparation Nuclear Lysate at 0.5 µg with Human Histone H3 (di methyl K27) peptide (<a href='/en-us/products/proteins-peptides/human-histone-h3-di-methyl-k27-peptide-ab1781'>ab1781</a>)

Lane 11:

Calf Thymus Histone Preparation Nuclear Lysate at 0.5 µg with Human Histone H3 (tri methyl K27) peptide (<a href='/en-us/products/proteins-peptides/human-histone-h3-tri-methyl-k27-peptide-ab1782'>ab1782</a>)

Secondary

All lanes:

Western blot - Goat Anti-Rabbit IgG H&L (HRP) preadsorbed (<a href='/en-us/products/secondary-antibodies/goat-rabbit-igg-h-l-hrp-preadsorbed-ab97080'>ab97080</a>) at 1/5000 dilution

Predicted band size: 14-17 kDa

true

Exposure time: 20min

• WB

Unknown

Western blot - Human Histone H3 (tri methyl K9) peptide (AB1773)

All lanes:

Western blot - Anti-Histone H3 (di methyl K4, tri methyl K4) antibody [mAbcam 6000] - ChIP Grade (<a href='/en-us/products/primary-antibodies/histone-h3-di-methyl-k4-tri-methyl-k4-antibody-mabcam-6000-chip-grade-ab6000'>ab6000</a>) at 1 µg/mL

Lane 1:

Calf Thymus Histone Preparation Nuclear Lysate at 0.5 µg

Lane 2:

Calf Thymus Histone Preparation Nuclear Lysate at 0.5 µg with Human Histone H3 (unmodified) peptide (<a href='/en-us/products/proteins-peptides/human-histone-h3-unmodified-peptide-ab7228'>ab7228</a>)

Lane 3:

Calf Thymus Histone Preparation Nuclear Lysate at 0.5 µg with Human Histone H3 (mono methyl K4) peptide (<a href='/en-us/products/proteins-peptides/human-histone-h3-mono-methyl-k4-peptide-ab1340'>ab1340</a>)

Lane 4:

Calf Thymus Histone Preparation Nuclear Lysate at 0.5 µg with Human Histone H3 (di methyl K4) peptide (<a href='/en-us/products/proteins-peptides/human-histone-h3-di-methyl-k4-peptide-ab7768'>ab7768</a>)

Lane 5:

Calf Thymus Histone Preparation Nuclear Lysate at 0.5 µg with Human Histone H3 (tri methyl K4) peptide (<a href='/en-us/products/proteins-peptides/human-histone-h3-tri-methyl-k4-peptide-ab1342'>ab1342</a>)

Lane 6:

Calf Thymus Histone Preparation Nuclear Lysate at 0.5 µg with Human Histone H3 (mono methyl K9) peptide (<a href='/en-us/products/proteins-peptides/human-histone-h3-mono-methyl-k9-peptide-ab1771'>ab1771</a>)

Lane 7:

Calf Thymus Histone Preparation Nuclear Lysate at 0.5 µg with Human Histone H3 (di methyl K9) peptide (<a href='/en-us/products/proteins-peptides/human-histone-h3-di-methyl-k9-peptide-ab1772'>ab1772</a>)

Lane 8:

Calf Thymus Histone Preparation Nuclear Lysate at 0.5 µg with Human Histone H3 (tri methyl K9) peptide (ab1773)

Lane 9:

Calf Thymus Histone Preparation Nuclear Lysate at 0.5 µg with Human Histone H3 (mono methyl K27) peptide (<a href='/en-us/products/proteins-peptides/human-histone-h3-mono-methyl-k27-peptide-ab1780'>ab1780</a>)

Lane 10:

Calf Thymus Histone Preparation Nuclear Lysate at 0.5 µg with Human Histone H3 (di methyl K27) peptide (<a href='/en-us/products/proteins-peptides/human-histone-h3-di-methyl-k27-peptide-ab1781'>ab1781</a>)

Lane 11:

Calf Thymus Histone Preparation Nuclear Lysate at 0.5 µg with Human Histone H3 (tri methyl K27) peptide (<a href='/en-us/products/proteins-peptides/human-histone-h3-tri-methyl-k27-peptide-ab1782'>ab1782</a>)

Secondary

All lanes:

Western blot - Goat Anti-Mouse IgG H&L (HRP) preadsorbed (<a href='/en-us/products/secondary-antibodies/goat-mouse-igg-h-l-hrp-preadsorbed-ab97040'>ab97040</a>) at 1/10000 dilution

Predicted band size: 15 kDa

Observed band size: 17 kDa

true

Exposure time: 20min

• Dot

AbReview21275****

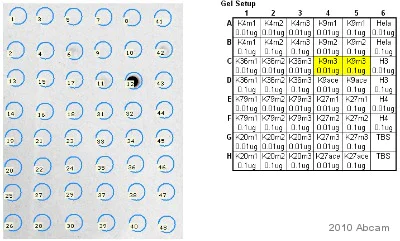

Dot Blot - Human Histone H3 (tri methyl K9) peptide (AB1773)

ab1773 (at 0.01 and 0.1 μg) used in Dot Blot to test for cross-reactivity of ab8898 (1/2500). An HRP-conjugated Mouse anti-rabbit polyclonal (1/10000) was used as the secondary antibody.

This image is courtesy of an anonymous Abreview
