Recombinant cynomolgus monkey PD-L1 protein (Active) is a Fragment protein, in the 19 to 238 aa range, expressed in HEK 293, with >95% purity, < 1 EU/µg endotoxin level and suitable for FuncS, SDS-PAGE.
Images
Key facts
- Purity
- >95% SDS-PAGE
- Endotoxin level
- < 1 EU/µg
- Expression system
- HEK 293 cells
- Tags
- His tag C-Terminus
- Applications
- FuncS, SDS-PAGE
- Biologically active
- Yes
Amino acid sequence
F T V T V P K D L Y V V E Y G S N M T I E C K F P V E K Q L D L T S L I V Y W E M E D K N I I Q F V H G E E D L K V Q H S N Y R Q R A Q L L K D Q L S L G N A A L R I T D V K L Q D A G V Y R C M I S Y G G A D Y K R I T V K V N A P Y N K I N Q R I L V V D P V T S E H E L T C Q A E G Y P K A E V I W T S S D H Q V L S G K T T T T N S K R E E K L L N V T S T L R I N T T A N E I F Y C I F R R L D P E E N H T A E L V I P E L P L A L P P N E R
Reactivity data
| Application | Reactivity | Dilution info | Notes |
|---|---|---|---|
Application FuncS | Reactivity Reacts | Dilution info - | Notes - |
Application SDS-PAGE | Reactivity Reacts | Dilution info - | Notes The protein migrates as 37-42 kDa under reducing condition due to glycosylation. |
Associated Products
Select an associated product type
3 products for Alternative Product
Target data
Recommended products
Recombinant cynomolgus monkey PD-L1 protein (Active) is a Fragment protein, in the 19 to 238 aa range, expressed in HEK 293, with >95% purity, < 1 EU/µg endotoxin level and suitable for FuncS, SDS-PAGE.
Key facts
- Purity
- >95% SDS-PAGE
- Endotoxin level
- < 1 EU/µg
- Expression system
- HEK 293 cells
- Tags
- His tag C-Terminus
- Applications
- FuncS, SDS-PAGE
- Biologically active
- Yes
- Biological activity
- Measured by its binding ability in a functional ELISA. Immobilized ab221343 at 1 μg/mL (100 μL/well) can bind Anti-Human PD-L1 MAb with a linear range of 0.4-3 ng/mL.
- Animal free
- No
- Reconstitution
- Reconstitute at 400 µg/mL in water
- Concentration
- Storage buffer
pH: 7.4
Constituents: 95% PBS, 5% Trehalose
Sequence info
Amino acid sequence
- F T V T V P K D L Y V V E Y G S N M T I E C K F P V E K Q L D L T S L I V Y W E M E D K N I I Q F V H G E E D L K V Q H S N Y R Q R A Q L L K D Q L S L G N A A L R I T D V K L Q D A G V Y R C M I S Y G G A D Y K R I T V K V N A P Y N K I N Q R I L V V D P V T S E H E L T C Q A E G Y P K A E V I W T S S D H Q V L S G K T T T T N S K R E E K L L N V T S T L R I N T T A N E I F Y C I F R R L D P E E N H T A E L V I P E L P L A L P P N E R
- Protein length
- Fragment
- Predicted molecular weight
- 27.1 kDa
- Amino acids
- 19 to 238
- Nature
- Recombinant
- Tags
- His tag C-Terminus
Specifications
- Form
- Lyophilized
Storage
- Shipped at conditions
- Blue Ice
- Appropriate short-term storage conditions
- -20°C
- Appropriate long-term storage conditions
- -20°C
- Storage information
- Avoid freeze / thaw cycle
This product is an active protein and may elicit a biological response in vivo, handle with caution.
Supplementary info
- This supplementary information is collated from multiple sources and compiled automatically.
- Activity summary
PD-L1 also known as Programmed Death-Ligand 1 or CD274 is a protein involved in immune modulation. Mechanically PD-L1 interacts with its receptors particularly PD-1 to regulate cellular immune responses. This transmembrane protein has a calculated molecular weight of approximately 33 kDa. PD-L1 is expressed on various cell types including tumor cells and immune cells such as dendritic cells macrophages and B cells. Its expression is often upregulated in response to inflammatory cytokines.
- Biological function summary
PD-L1 plays a central role in immune evasion mechanisms utilized by tumors. It is not part of a larger protein complex but directly interacts with PD-1 and CD80. When PD-L1 binds to PD-1 it sends inhibitory signals leading to decreased T cell activation and proliferation allowing cancer cells to avoid immune destruction. PD-L1 expression provides a mechanism for tumors to suppress immune surveillance facilitating tumor progression.
- Pathways
PD-L1 is integral to the immune checkpoint pathway which is an important regulator of immune response. The interaction between PD-L1 and PD-1 provides a mechanism for immune tolerance which is part of the broader adaptive immune system pathway. PD-L1 is related to other immune checkpoint proteins such as CTLA-4 in its function to limit autoreactivity and promote immune homeostasis.
- Associated diseases and disorders
PD-L1 is most associated with cancer particularly in tumors such as melanoma and non-small cell lung cancer. PD-L1 expression on tumor cells often correlates with poor prognosis. PD-L1 directly interacts with PD-1 in these cancers a target for immunotherapies such as checkpoint inhibitors which aim to block this interaction and restore immune activity against tumors. PD-L1 involvement extends to autoimmune disorders where altered expression can impact tolerance and lead to immune-related tissue damage.
Product promise
We are dedicated to supporting your work with high quality reagents and we are here for you every step of the way should you need us.
In the unlikely event of one of our products not working as expected, you are covered by our product promise.
Full details and terms and conditions can be found here:
Terms & Conditions.
4 product images
SDS-PAGE - Recombinant cynomolgus monkey PD-L1 protein (Active) (ab221343)

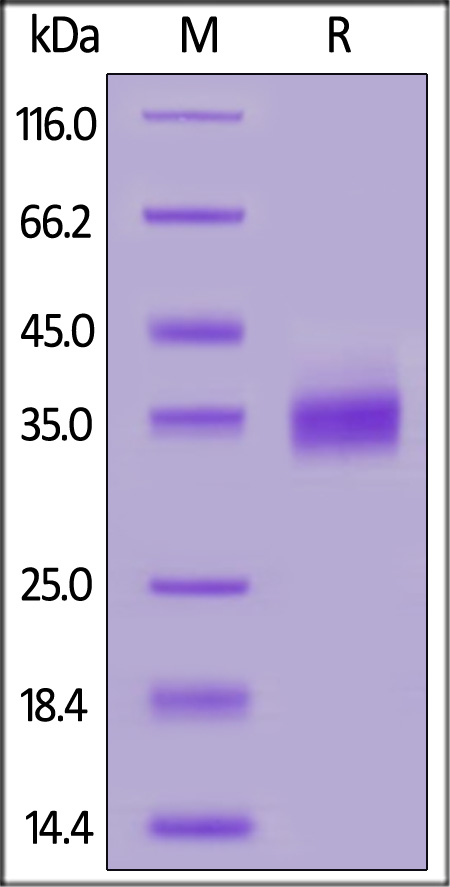

Cynomolgus / Rhesus macaque PD-L1, His Tag (ab221343) on SDS-PAGE under reducing (R) condition. The gel was stained overnight with Coomassie Blue. The purity of the protein is greater than 95%.
Functional Studies - Recombinant cynomolgus monkey PD-L1 protein (Active) (ab221343)

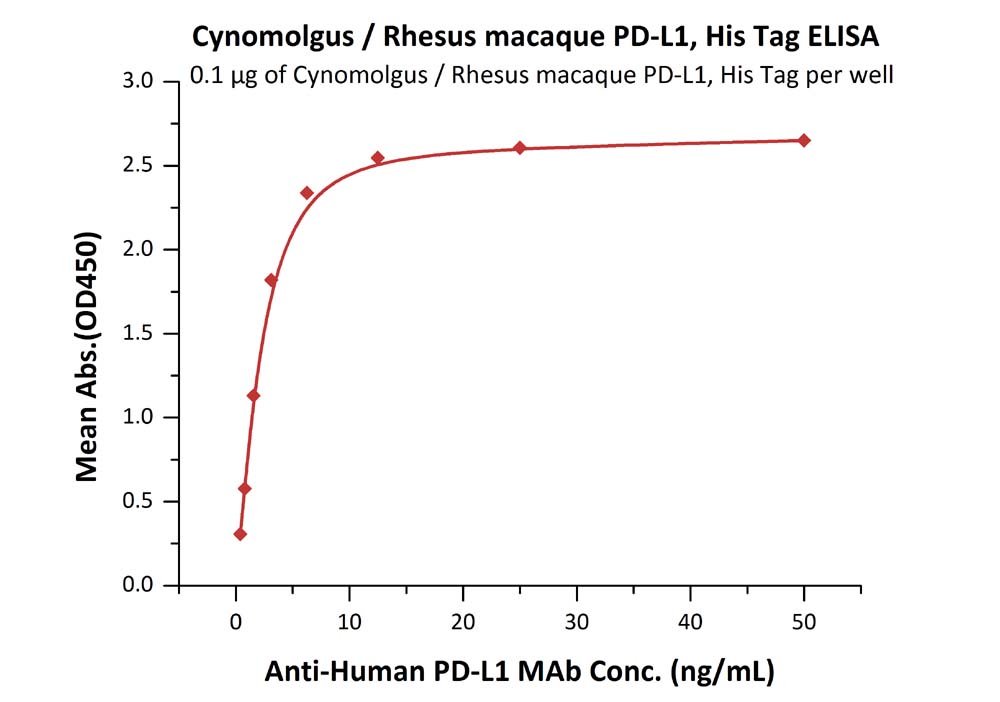

Immobilized ab221343 at 1 μg/mL (100 μL/well) can bind Anti-Human PD-L1 MAb with a linear range of 0.4-3 ng/mL.
Functional Studies - Recombinant cynomolgus monkey PD-L1 protein (Active) (ab221343)
Loaded Anti-Human PD-L1 MAb (Human IgG1) on AHC Biosensor, can bind ab221343 with an affinity constant of 19.1 nM as determined in BLI assay (ForteBio Octet Red96e).
Functional Studies - Recombinant cynomolgus monkey PD-L1 protein (Active) (ab221343)

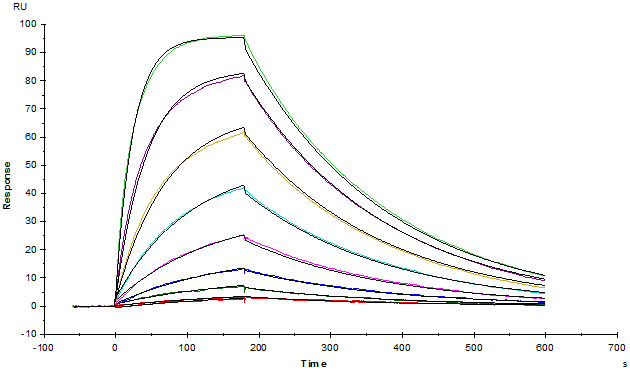

Anti-Human PD-L1 MAb captured on CM5 chip via anti-human IgG Fc antibody surface can bind ab221343 with an affinity constant of 23.3 nM as determined in a SPR assay (Biacore T200).
