Recombinant Human CD3D protein is a Human Fragment protein, in the 22 to 105 aa range, expressed in HEK 293, with >90% purity, < 1 EU/µg endotoxin level and suitable for SDS-PAGE.
Images
Key facts
- Purity
- >90% SDS-PAGE
- Endotoxin level
- < 1 EU/µg
- Expression system
- HEK 293 cells
- Tags
- His tag C-Terminus
- Applications
- SDS-PAGE
- Biologically active
- No
Amino acid sequence
F K I P I E E L E D R V F V N C N T S I T W V E G T V G T L L S D I T R L D L G K R I L D P R G I Y R C N G T D I Y K D K E S T V Q V H Y R M C Q S C V E L D P A T V A
Reactivity data
| Application | Reactivity | Dilution info | Notes |
|---|---|---|---|
Application SDS-PAGE | Reactivity Reacts | Dilution info - | Notes DTT-reduced protein migrates as 18-25 kDa polypeptide in SDS-PAGE resulting from different glycosylation. |
Associated Products
Select an associated product type
1 product for Alternative Product
Target data
Function
Part of the TCR-CD3 complex present on T-lymphocyte cell surface that plays an essential role in adaptive immune response. When antigen presenting cells (APCs) activate T-cell receptor (TCR), TCR-mediated signals are transmitted across the cell membrane by the CD3 chains CD3D, CD3E, CD3G and CD3Z. All CD3 chains contain immunoreceptor tyrosine-based activation motifs (ITAMs) in their cytoplasmic domain. Upon TCR engagement, these motifs become phosphorylated by Src family protein tyrosine kinases LCK and FYN, resulting in the activation of downstream signaling pathways (PubMed:2470098). In addition of this role of signal transduction in T-cell activation, CD3D plays an essential role in thymocyte differentiation. Indeed, participates in correct intracellular TCR-CD3 complex assembly and surface expression. In absence of a functional TCR-CD3 complex, thymocytes are unable to differentiate properly. Interacts with CD4 and CD8 and thus serves to establish a functional link between the TCR and coreceptors CD4 and CD8, which is needed for activation and positive selection of CD4 or CD8 T-cells (PubMed:12215456).
Alternative names
CD3d, T3D, CD3D, T-cell surface glycoprotein CD3 delta chain, T-cell receptor T3 delta chain
Recommended products
Recombinant Human CD3D protein is a Human Fragment protein, in the 22 to 105 aa range, expressed in HEK 293, with >90% purity, < 1 EU/µg endotoxin level and suitable for SDS-PAGE.
Key facts
- Purity
- >90% SDS-PAGE
- Endotoxin level
- < 1 EU/µg
- Expression system
- HEK 293 cells
- Tags
- His tag C-Terminus
- Applications
- SDS-PAGE
- Biologically active
- No
- Accession
- P04234-1
- Animal free
- No
- Species
- Human
- Reconstitution
- Reconstitute with sterile deionized water to a concentration of 400 µg/ml.
- Concentration
- Storage buffer
pH: 7.4
Constituents: 94% PBS, 5% Trehalose
Sequence info
Amino acid sequence
- F K I P I E E L E D R V F V N C N T S I T W V E G T V G T L L S D I T R L D L G K R I L D P R G I Y R C N G T D I Y K D K E S T V Q V H Y R M C Q S C V E L D P A T V A
- Accession
- P04234
- Protein length
- Fragment
- Predicted molecular weight
- 11 kDa
- Amino acids
- 22 to 105
- Nature
- Recombinant
- Tags
- His tag C-Terminus
Specifications
- Form
- Lyophilized
General info
- Function
Part of the TCR-CD3 complex present on T-lymphocyte cell surface that plays an essential role in adaptive immune response. When antigen presenting cells (APCs) activate T-cell receptor (TCR), TCR-mediated signals are transmitted across the cell membrane by the CD3 chains CD3D, CD3E, CD3G and CD3Z. All CD3 chains contain immunoreceptor tyrosine-based activation motifs (ITAMs) in their cytoplasmic domain. Upon TCR engagement, these motifs become phosphorylated by Src family protein tyrosine kinases LCK and FYN, resulting in the activation of downstream signaling pathways (PubMed:2470098). In addition of this role of signal transduction in T-cell activation, CD3D plays an essential role in thymocyte differentiation. Indeed, participates in correct intracellular TCR-CD3 complex assembly and surface expression. In absence of a functional TCR-CD3 complex, thymocytes are unable to differentiate properly. Interacts with CD4 and CD8 and thus serves to establish a functional link between the TCR and coreceptors CD4 and CD8, which is needed for activation and positive selection of CD4 or CD8 T-cells (PubMed:12215456).
- Post-translational modifications
Phosphorylated on Tyr residues after T-cell receptor triggering by LCK in association with CD4/CD8.
Storage
- Shipped at conditions
- Blue Ice
- Appropriate short-term storage duration
- 1-2 weeks
- Appropriate short-term storage conditions
- +4°C
- Appropriate long-term storage conditions
- -20°C
- Aliquoting information
- Upon delivery aliquot
- Storage information
- Avoid freeze / thaw cycle
Product promise
We are dedicated to supporting your work with high quality reagents and we are here for you every step of the way should you need us.
In the unlikely event of one of our products not working as expected, you are covered by our product promise.
Full details and terms and conditions can be found here:
Terms & Conditions.
1 product image

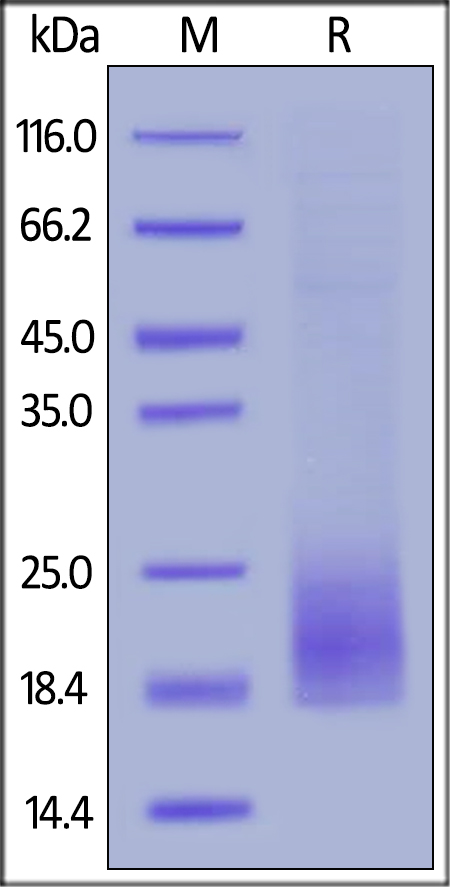

SDS-PAGE - Recombinant Human CD3D protein (ab167701)
SDS-PAGE of reduced ab167701 stained overnight with Coomassie Blue.
DTT-reduced protein migrates as 18-25 kDa polypeptide in SDS-PAGE resulting from different glycosylation. The purity of the protein is greater than 90%.
