AB80251

Recombinant human Insulin Receptor protein

Be the first to review this product! Submit a review

|

(0 Publication)

Recombinant human Insulin Receptor protein is a Human Fragment protein, in the 999 to 1370 aa range, expressed in Baculovirus infected Sf9 cells, with >57%, suitable for SDS-PAGE, FuncS.

View Alternative Names

CD220, Insulin receptor, IR, INSR

2 Images
Functional Studies - Recombinant human Insulin Receptor protein (AB80251)
  • FuncS

Supplier Data

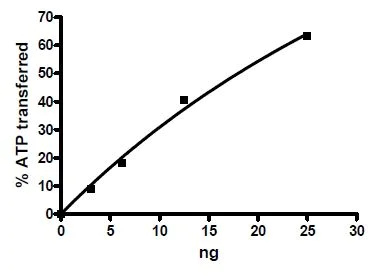

Functional Studies - Recombinant human Insulin Receptor protein (AB80251)

Image showing specific activity of ab80251.

SDS-PAGE - Recombinant human Insulin Receptor protein (AB80251)
  • SDS-PAGE

Supplier Data

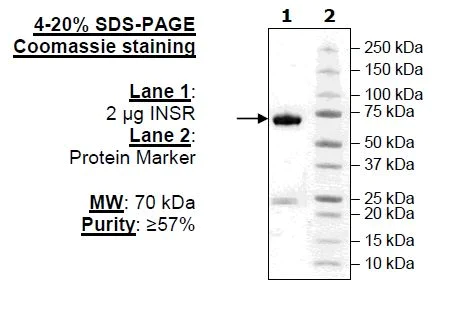

SDS-PAGE - Recombinant human Insulin Receptor protein (AB80251)

SDS-PAGE anaylsis of ab80251 at approximately 70kDa (2μg).

Key facts

Purity

>57% SDS-PAGE

Expression system

Baculovirus infected Sf9 cells

Tags

GST tag N-Terminus

Applications

SDS-PAGE, FuncS

applications

Biologically active

Yes

Biological activity

Activity: 752 pmol/min/μg. Assay conditions: 40 mM Tris-HCL pH 7.4, 20 mM MgCl2, 0.1 mg/mL BSA and 0.2 mM DTT using 0.1 mg/ml Alextide substrate and 20 mM ATP. Reaction was done at 30°C for 40 min.

Accession

P06213

Animal free

No

Carrier free

No

Species

Human

Storage buffer

pH: 8 Constituents: 30% Glycerol (glycerin, glycerine), 0.58% Sodium chloride, 0.395% Tris HCl, 0.05% Sorbitan monolaurate, ethoxylated, 0.0462% (R*,R*)-1,4-Dimercaptobutan-2,3-diol

storage-buffer

Reactivity data

{ "title": "Reactivity Data", "filters": { "stats": ["", "Reactivity", "Dilution Info", "Notes"] }, "values": { "SDS-PAGE": { "reactivity":"TESTED_AND_REACTS", "dilution-info":"", "notes":"<p></p>" }, "FuncS": { "reactivity":"TESTED_AND_REACTS", "dilution-info":"", "notes":"<p></p>" } } }

Sequence info

[{"sequence":"MSPILGYWKIKGLVQPTRLLLEYLEEKYEEHLYERDEGDKWRNKKFELGLEFPNLPYYIDGDVKLTQSMAIIRYIADKHNMLGGCPKERAEISMLEGAVLDIRYGVSRIAYSKDFETLKVDFLSKLPEMLKMFKDRLCHKTYLNGDHVTHPDFMLYDALDVVLYMDPMCLDAFPKLVCFKKRIEAIPQIDKYLKSSKYIAWPLQGWQATFGGGDHPPKSDPAGSAAAVLEENLYFQGSFTMYVPDEWEVSREKITLLRELGQGSFGMVYEGNARDIIKGEAETRVAVKTVNESASLRERIEFLNEASVMKGFTCHHVVRLLGVVSKGQPTLVVMELMAHGDLKSYLRSLRPEAENNPGRPPPTLQEMIQMAAEIADGMAYLNAKKFVHRDLAARNCMVAHDFTVKIGDFGMTRDIYETDYYRKGGKGLLPVRWMAPESLKDGVFTTSSDMWSFGVVLWEITSLAEQPYQGLSNEQVLKFVMDGGYLDQPDNCPERVTDLMRMCWQFNPKMRPTFLEIVNLLKDDLHPSFPEVSFFHSEENKAPESEELEMEFEDMENVPLDRSSHCQREEAGGRDGGSSLGFKRSYEEHIPYTHMNGGKKNGRILTLPRSNPS","proteinLength":"Fragment","predictedMolecularWeight":"70 kDa","actualMolecularWeight":null,"aminoAcidEnd":1370,"aminoAcidStart":999,"nature":"Recombinant","expressionSystem":"Baculovirus infected Sf9 cells","accessionNumber":"P06213","tags":[{"tag":"GST","terminus":"N-Terminus"}]}]

Properties and storage information

Shipped at conditions
Dry Ice
Appropriate short-term storage conditions
-80°C
Appropriate long-term storage conditions
-80°C
Aliquoting information
Upon delivery aliquot
Storage information
Avoid freeze / thaw cycle
True

Supplementary information

This supplementary information is collated from multiple sources and compiled automatically.

The insulin receptor (INSR) is a transmembrane glycoprotein that functions as a receptor for insulin. Known also as CD220 the receptor has a molecular weight of about 320 kDa. It is widely expressed in insulin-sensitive tissues such as liver muscle and adipose tissues. The insulin receptor consists of two α subunits and two β subunits forming a heterotetramer. These subunits are located outside and inside the cell membrane respectively. The α subunits bind insulin while the β subunits possess tyrosine kinase activity important for downstream signaling.
Biological function summary

Insulin receptor plays a role in facilitating the effects of insulin on glucose and lipid metabolism. When insulin a protein binds to the insulin receptor it undergoes a conformational change that activates its intrinsic kinase activity. This activation further leads to tyrosine phosphorylation of intracellular targets resulting in modulation of cellular functions. Insulin receptor also participates in the formation of signaling complexes through interaction with substrates like insulin receptor substrate (IRS) proteins which are important for the transmission of the insulin signal inside cells.

Pathways

Insulin receptor is central to the insulin signaling pathway and the mitogen-activated protein kinase (MAPK) pathway. Activation of the insulin receptor triggers the insulin signaling cascade which involves various proteins like PI3 kinase and Akt that contribute to glucose uptake and metabolism. In the MAPK pathway the insulin receptor influences gene expression related to cell growth and differentiation. These pathways intertwine with other hormone signaling systems and affect numerous physiological processes critical for maintaining metabolic homeostasis.

Aberrations in insulin receptor function are linked to insulin resistance and type 2 diabetes. Defective signaling through this receptor impairs glucose transport into cells contributing to hyperglycemia. Disorders in insulin receptor activity also relate to metabolic syndrome a cluster of conditions increasing the risk of heart disease. Proteins connected to these conditions include IRS proteins and PI3 kinase highlighting the integrated roles these components play in metabolic regulation. Developing anti-insulin receptor antibodies offers potential therapeutic interventions to modulate receptor function and manage these disorders effectively.

Specifications

Form

Liquid

Additional notes

Affinity purified.

General info

Function

Receptor tyrosine kinase which mediates the pleiotropic actions of insulin. Binding of insulin leads to phosphorylation of several intracellular substrates, including, insulin receptor substrates (IRS1, 2, 3, 4), SHC, GAB1, CBL and other signaling intermediates. Each of these phosphorylated proteins serve as docking proteins for other signaling proteins that contain Src-homology-2 domains (SH2 domain) that specifically recognize different phosphotyrosine residues, including the p85 regulatory subunit of PI3K and SHP2. Phosphorylation of IRSs proteins lead to the activation of two main signaling pathways : the PI3K-AKT/PKB pathway, which is responsible for most of the metabolic actions of insulin, and the Ras-MAPK pathway, which regulates expression of some genes and cooperates with the PI3K pathway to control cell growth and differentiation. Binding of the SH2 domains of PI3K to phosphotyrosines on IRS1 leads to the activation of PI3K and the generation of phosphatidylinositol-(3, 4, 5)-triphosphate (PIP3), a lipid second messenger, which activates several PIP3-dependent serine/threonine kinases, such as PDPK1 and subsequently AKT/PKB. The net effect of this pathway is to produce a translocation of the glucose transporter SLC2A4/GLUT4 from cytoplasmic vesicles to the cell membrane to facilitate glucose transport. Moreover, upon insulin stimulation, activated AKT/PKB is responsible for : anti-apoptotic effect of insulin by inducing phosphorylation of BAD; regulates the expression of gluconeogenic and lipogenic enzymes by controlling the activity of the winged helix or forkhead (FOX) class of transcription factors. Another pathway regulated by PI3K-AKT/PKB activation is mTORC1 signaling pathway which regulates cell growth and metabolism and integrates signals from insulin. AKT mediates insulin-stimulated protein synthesis by phosphorylating TSC2 thereby activating mTORC1 pathway. The Ras/RAF/MAP2K/MAPK pathway is mainly involved in mediating cell growth, survival and cellular differentiation of insulin. Phosphorylated IRS1 recruits GRB2/SOS complex, which triggers the activation of the Ras/RAF/MAP2K/MAPK pathway. In addition to binding insulin, the insulin receptor can bind insulin-like growth factors (IGFI and IGFII). Isoform Short has a higher affinity for IGFII binding. When present in a hybrid receptor with IGF1R, binds IGF1. PubMed : 12138094 shows that hybrid receptors composed of IGF1R and INSR isoform Long are activated with a high affinity by IGF1, with low affinity by IGF2 and not significantly activated by insulin, and that hybrid receptors composed of IGF1R and INSR isoform Short are activated by IGF1, IGF2 and insulin. In contrast, PubMed : 16831875 shows that hybrid receptors composed of IGF1R and INSR isoform Long and hybrid receptors composed of IGF1R and INSR isoform Short have similar binding characteristics, both bind IGF1 and have a low affinity for insulin. In adipocytes, inhibits lipolysis (By similarity).

Sequence similarities

Belongs to the protein kinase superfamily. Tyr protein kinase family. Insulin receptor subfamily.

Post-translational modifications

After being transported from the endoplasmic reticulum to the Golgi apparatus, the single glycosylated precursor is further glycosylated and then cleaved, followed by its transport to the plasma membrane.. Autophosphorylated on tyrosine residues in response to insulin. Phosphorylation of Tyr-999 is required for binding to IRS1, SHC1 and STAT5B. Dephosphorylated by PTPRE at Tyr-999, Tyr-1185, Tyr-1189 and Tyr-1190. Dephosphorylated by PTPRF and PTPN1. Dephosphorylated by PTPN2; down-regulates insulin-induced signaling. Dephosphorylation at Tyr-1189 and Tyr-1190 requires the SH2/SH3 adapter protein NCK1, probably to recruit its interaction partner PTPN1 (PubMed:21707536).. S-nitrosylation at Cys-1083 by BLVRB inhibits the receptor tyrosine kinase, thereby inhibiting insulin signaling.

Subcellular localisation

Late endosome

Product protocols

Target data

Receptor tyrosine kinase which mediates the pleiotropic actions of insulin. Binding of insulin leads to phosphorylation of several intracellular substrates, including, insulin receptor substrates (IRS1, 2, 3, 4), SHC, GAB1, CBL and other signaling intermediates. Each of these phosphorylated proteins serve as docking proteins for other signaling proteins that contain Src-homology-2 domains (SH2 domain) that specifically recognize different phosphotyrosine residues, including the p85 regulatory subunit of PI3K and SHP2. Phosphorylation of IRSs proteins lead to the activation of two main signaling pathways : the PI3K-AKT/PKB pathway, which is responsible for most of the metabolic actions of insulin, and the Ras-MAPK pathway, which regulates expression of some genes and cooperates with the PI3K pathway to control cell growth and differentiation. Binding of the SH2 domains of PI3K to phosphotyrosines on IRS1 leads to the activation of PI3K and the generation of phosphatidylinositol-(3, 4, 5)-triphosphate (PIP3), a lipid second messenger, which activates several PIP3-dependent serine/threonine kinases, such as PDPK1 and subsequently AKT/PKB. The net effect of this pathway is to produce a translocation of the glucose transporter SLC2A4/GLUT4 from cytoplasmic vesicles to the cell membrane to facilitate glucose transport. Moreover, upon insulin stimulation, activated AKT/PKB is responsible for : anti-apoptotic effect of insulin by inducing phosphorylation of BAD; regulates the expression of gluconeogenic and lipogenic enzymes by controlling the activity of the winged helix or forkhead (FOX) class of transcription factors. Another pathway regulated by PI3K-AKT/PKB activation is mTORC1 signaling pathway which regulates cell growth and metabolism and integrates signals from insulin. AKT mediates insulin-stimulated protein synthesis by phosphorylating TSC2 thereby activating mTORC1 pathway. The Ras/RAF/MAP2K/MAPK pathway is mainly involved in mediating cell growth, survival and cellular differentiation of insulin. Phosphorylated IRS1 recruits GRB2/SOS complex, which triggers the activation of the Ras/RAF/MAP2K/MAPK pathway. In addition to binding insulin, the insulin receptor can bind insulin-like growth factors (IGFI and IGFII). Isoform Short has a higher affinity for IGFII binding. When present in a hybrid receptor with IGF1R, binds IGF1. PubMed : 12138094 shows that hybrid receptors composed of IGF1R and INSR isoform Long are activated with a high affinity by IGF1, with low affinity by IGF2 and not significantly activated by insulin, and that hybrid receptors composed of IGF1R and INSR isoform Short are activated by IGF1, IGF2 and insulin. In contrast, PubMed : 16831875 shows that hybrid receptors composed of IGF1R and INSR isoform Long and hybrid receptors composed of IGF1R and INSR isoform Short have similar binding characteristics, both bind IGF1 and have a low affinity for insulin. In adipocytes, inhibits lipolysis (By similarity).
See full target information INSR
