Recombinant human PD-L1 protein (Active) is a Human Fragment protein, in the 19 to 238 aa range, expressed in HEK 293, with >98% purity, < 1 EU/µg endotoxin level and suitable for SDS-PAGE, HPLC, FuncS.
Images
Publications
Filter by
- International journal of molecular sciences 22:2021Cell Penetrating Peptide-Based Self-Assembly for PD-L1 Targeted Tumor Regression.Applications:Unspecified applicationReactive species:Unspecified reactive speciesFeng Guo,Junfeng Ke,Zhengdong Fu,Wenzhao Han,Liping WangPubMed 34948105
- ChemMedChem 16:568-5772020The Stone Guest: How Does pH Affect Binding Properties of PD-1/PD-L1 Inhibitors?Applications:Unspecified applicationReactive species:Unspecified reactive speciesAlessandra Riccio,Alice Coletti,Daniela Dolciami,Andrea Mammoli,Bruno Cerra,Sonia Moretti,Antimo Gioiello,Simone Ferlin,Efisio Puxeddu,Antonio MacchiaruloPubMed 33085193
Key facts
- Purity
- >98% SDS-PAGE
- Endotoxin level
- < 1 EU/µg
- Expression system
- HEK 293 cells
- Tags
- His tag C-Terminus
- Applications
- SDS-PAGE, HPLC, FuncS
- Biologically active
- Yes
Amino acid sequence
F T V T V P K D L Y V V E Y G S N M T I E C K F P V E K Q L D L A A L I V Y W E M E D K N I I Q F V H G E E D L K V Q H S S Y R Q R A R L L K D Q L S L G N A A L Q I T D V K L Q D A G V Y R C M I S Y G G A D Y K R I T V K V N A P Y N K I N Q R I L V V D P V T S E H E L T C Q A E G Y P K A E V I W T S S D H Q V L S G K T T T T N S K R E E K L F N V T S T L R I N T T T N E I F Y C T F R R L D P E E N H T A E L V I P E L P L A H P P N E R
Consider this alternative
Reactivity data
| Application | Reactivity | Dilution info | Notes |
|---|---|---|---|
Application SDS-PAGE | Reactivity Reacts | Dilution info - | Notes - |
Application HPLC | Reactivity Reacts | Dilution info - | Notes - |
Application FuncS | Reactivity Reacts | Dilution info - | Notes - |
Associated Products
Select an associated product type
5 products for Alternative Product
Target data
Function
Plays a critical role in induction and maintenance of immune tolerance to self (PubMed:11015443, PubMed:28813410, PubMed:28813417, PubMed:31399419). As a ligand for the inhibitory receptor PDCD1/PD-1, modulates the activation threshold of T-cells and limits T-cell effector response (PubMed:11015443, PubMed:28813410, PubMed:28813417, PubMed:36727298). Through a yet unknown activating receptor, may costimulate T-cell subsets that predominantly produce interleukin-10 (IL10) (PubMed:10581077). Can also act as a transcription coactivator: in response to hypoxia, translocates into the nucleus via its interaction with phosphorylated STAT3 and promotes transcription of GSDMC, leading to pyroptosis (PubMed:32929201). The PDCD1-mediated inhibitory pathway is exploited by tumors to attenuate anti-tumor immunity and escape destruction by the immune system, thereby facilitating tumor survival (PubMed:28813410, PubMed:28813417). The interaction with PDCD1/PD-1 inhibits cytotoxic T lymphocytes (CTLs) effector function (By similarity). The blockage of the PDCD1-mediated pathway results in the reversal of the exhausted T-cell phenotype and the normalization of the anti-tumor response, providing a rationale for cancer immunotherapy (By similarity).
Alternative names
CD274, B7H1, PDCD1L1, PDCD1LG1, PDL1, Programmed cell death 1 ligand 1, PD-L1, PDCD1 ligand 1, Programmed death ligand 1, hPD-L1, B7 homolog 1, B7-H1
Recommended products
Recombinant human PD-L1 protein (Active) is a Human Fragment protein, in the 19 to 238 aa range, expressed in HEK 293, with >98% purity, < 1 EU/µg endotoxin level and suitable for SDS-PAGE, HPLC, FuncS.
Key facts
- Purity
- >98% SDS-PAGE
- Endotoxin level
- < 1 EU/µg
- Expression system
- HEK 293 cells
- Tags
- His tag C-Terminus
- Applications
- SDS-PAGE, HPLC, FuncS
- Biologically active
- Yes
- Biological activity
- Immobilized ab167713 on Anti-His Tag (C-term) Antibody, precoated (0.1 μg/well) plate, binds Human PD-1, Mouse IgG2a Fc Tag (HPLC-verified), at 5 μg/mL (100 μL/well) with a linear range of 10-78 ng/mL.
- Accession
- Q9NZQ7-1
- Animal free
- No
- Species
- Human
- Reconstitution
- Reconstitute with sterile deionized water to a concentration of 400 µg/ml.
- Concentration
- Storage buffer
pH: 7.4
Constituents: PBS, 5% Trehalose
Sequence info
Amino acid sequence
- F T V T V P K D L Y V V E Y G S N M T I E C K F P V E K Q L D L A A L I V Y W E M E D K N I I Q F V H G E E D L K V Q H S S Y R Q R A R L L K D Q L S L G N A A L Q I T D V K L Q D A G V Y R C M I S Y G G A D Y K R I T V K V N A P Y N K I N Q R I L V V D P V T S E H E L T C Q A E G Y P K A E V I W T S S D H Q V L S G K T T T T N S K R E E K L F N V T S T L R I N T T T N E I F Y C T F R R L D P E E N H T A E L V I P E L P L A H P P N E R
- Accession
- Q9NZQ7
- Protein length
- Fragment
- Predicted molecular weight
- 26 kDa
- Amino acids
- 19 to 238
- Nature
- Recombinant
- Tags
- His tag C-Terminus
Specifications
- Form
- Lyophilized
- Additional notes
>90% as determined by SEC-HPLC.Purified by Immobilized metal affinity chromatography.
General info
- Function
Plays a critical role in induction and maintenance of immune tolerance to self (PubMed:11015443, PubMed:28813410, PubMed:28813417, PubMed:31399419). As a ligand for the inhibitory receptor PDCD1/PD-1, modulates the activation threshold of T-cells and limits T-cell effector response (PubMed:11015443, PubMed:28813410, PubMed:28813417, PubMed:36727298). Through a yet unknown activating receptor, may costimulate T-cell subsets that predominantly produce interleukin-10 (IL10) (PubMed:10581077). Can also act as a transcription coactivator: in response to hypoxia, translocates into the nucleus via its interaction with phosphorylated STAT3 and promotes transcription of GSDMC, leading to pyroptosis (PubMed:32929201).
- Sequence similarities
Belongs to the immunoglobulin superfamily. BTN/MOG family.
- Post-translational modifications
Ubiquitinated; STUB1 likely mediates polyubiquitination of PD-L1/CD274 triggering its degradation (PubMed:28813410). Ubiquitinated by MARCHF8; leading to degradation (PubMed:34183449). Deubiquitinated by USP22; leading to stabilization (PubMed:31399419).
- Subcellular localisation
- Early endosome membrane, Recycling endosome membrane
Storage
- Shipped at conditions
- Blue Ice
- Appropriate short-term storage duration
- 1-2 weeks
- Appropriate short-term storage conditions
- +4°C
- Appropriate long-term storage conditions
- -20°C
- Aliquoting information
- Upon delivery aliquot
- Storage information
- Avoid freeze / thaw cycle
This product is an active protein and may elicit a biological response in vivo, handle with caution.
Notes
For a recombinant rabbit monoclonal antibody to PD-L1 in WB and ICC/IF usage, - see ab174838 (clone EPR1161(2))
Supplementary info
- This supplementary information is collated from multiple sources and compiled automatically.
- Activity summary
PD-L1 also known as Programmed Death-Ligand 1 or CD274 is a protein involved in immune modulation. Mechanically PD-L1 interacts with its receptors particularly PD-1 to regulate cellular immune responses. This transmembrane protein has a calculated molecular weight of approximately 33 kDa. PD-L1 is expressed on various cell types including tumor cells and immune cells such as dendritic cells macrophages and B cells. Its expression is often upregulated in response to inflammatory cytokines.
- Biological function summary
PD-L1 plays a central role in immune evasion mechanisms utilized by tumors. It is not part of a larger protein complex but directly interacts with PD-1 and CD80. When PD-L1 binds to PD-1 it sends inhibitory signals leading to decreased T cell activation and proliferation allowing cancer cells to avoid immune destruction. PD-L1 expression provides a mechanism for tumors to suppress immune surveillance facilitating tumor progression.
- Pathways
PD-L1 is integral to the immune checkpoint pathway which is an important regulator of immune response. The interaction between PD-L1 and PD-1 provides a mechanism for immune tolerance which is part of the broader adaptive immune system pathway. PD-L1 is related to other immune checkpoint proteins such as CTLA-4 in its function to limit autoreactivity and promote immune homeostasis.
- Associated diseases and disorders
PD-L1 is most associated with cancer particularly in tumors such as melanoma and non-small cell lung cancer. PD-L1 expression on tumor cells often correlates with poor prognosis. PD-L1 directly interacts with PD-1 in these cancers a target for immunotherapies such as checkpoint inhibitors which aim to block this interaction and restore immune activity against tumors. PD-L1 involvement extends to autoimmune disorders where altered expression can impact tolerance and lead to immune-related tissue damage.
Product promise
We are dedicated to supporting your work with high quality reagents and we are here for you every step of the way should you need us.
In the unlikely event of one of our products not working as expected, you are covered by our product promise.
Full details and terms and conditions can be found here:
Terms & Conditions.
8 product images
Functional Studies - Recombinant human PD-L1 protein (Active) (ab167713)

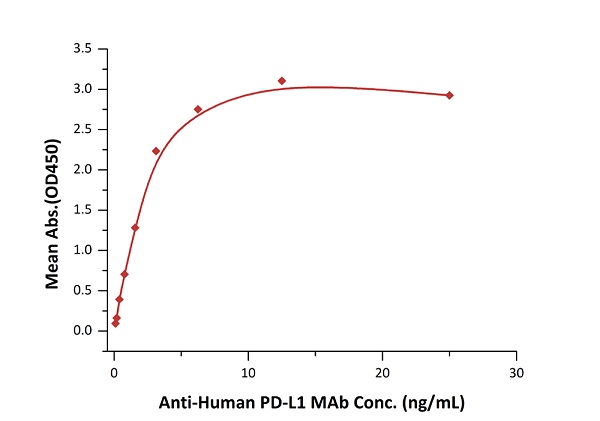

Immobilized ab167713 at 1 μg/mL (100 μL/well) binds Anti-Human PD-L1 MAb (Human IgG1).
Linear range of 0.1-3 ng/mL (QC tested).
Functional Studies - Recombinant human PD-L1 protein (Active) (ab167713)

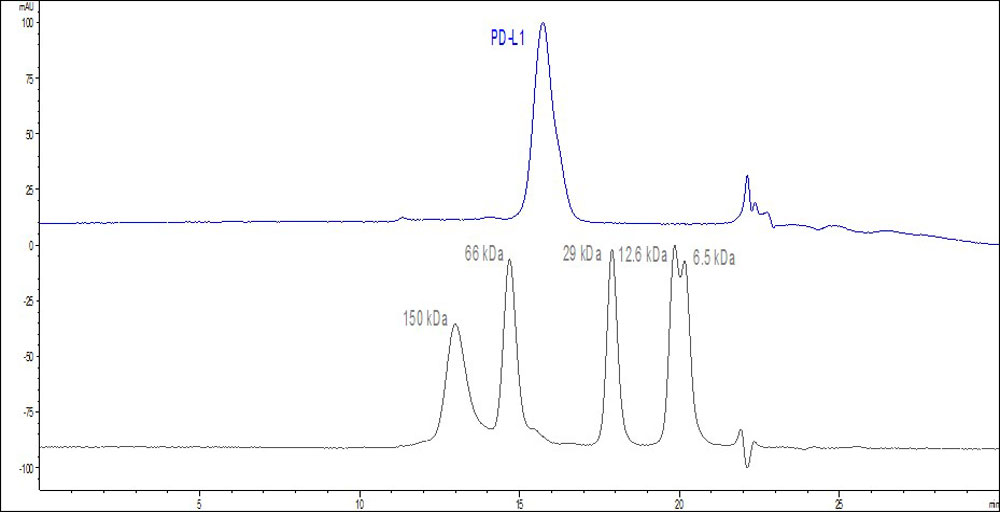

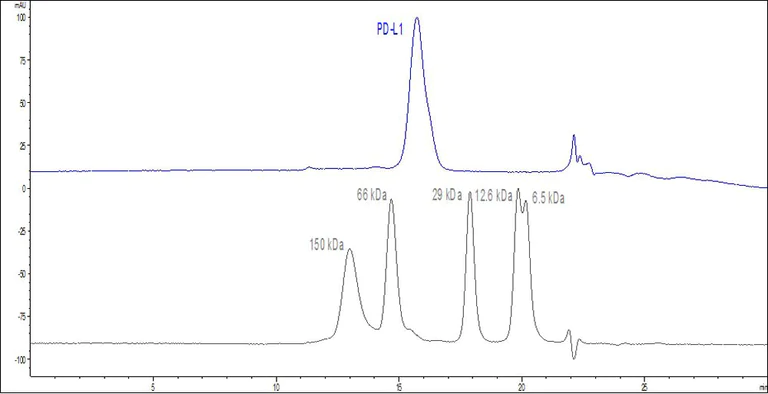

The purity of Human PD-L1 (His Tag) (HPLC verified) was greater than 90% as determined by SEC-HPLC.
Functional Studies - Recombinant human PD-L1 protein (Active) (ab167713)
Immobilized ab167713 on Anti-His Tag (C-term) Antibody, precoated (0.1 μg/well) plate, binds Human PD-1, Mouse IgG2a Fc Tag (HPLC-verified), at 5 μg/mL (100 μL/well).
Linear range of 10-78 ng/mL (Routinely tested).
Functional Studies - Recombinant human PD-L1 protein (Active) (ab167713)

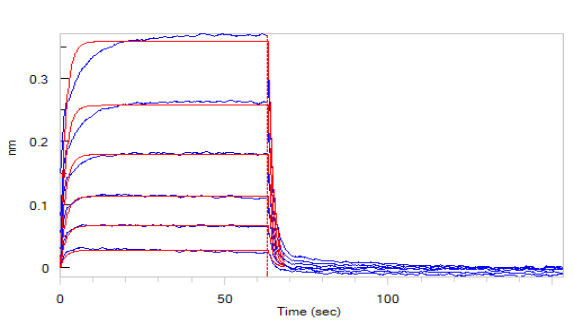

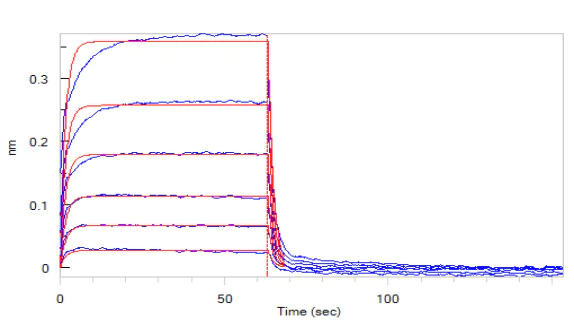

Loaded Recombinant human PD1 protein (Fc Chimera Active) Recombinant human PD1 protein (Fc Chimera Active) ab221398 on ProteinA Biosensor, can bind Human PD-L1, His Tag ab167713 with an affinity constant of 5.3 μM as determined in BLI assay.
Functional Studies - Recombinant human PD-L1 protein (Active) (ab167713)

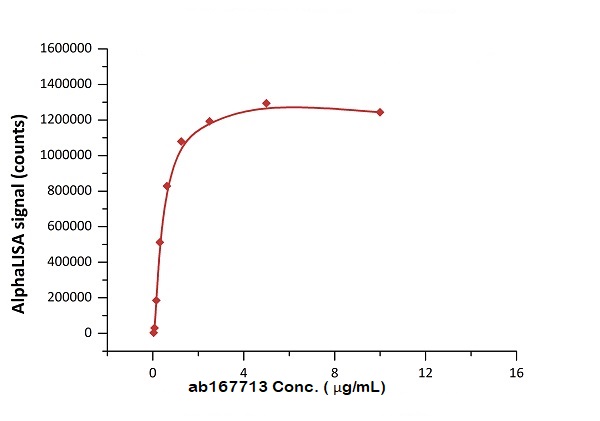

Biotinylated Human PD-1, Fc Tag (ab246137) binds Recombinant human PD-L1 protein ab167713 at 1 μg/mL (5μL/well).
Linear range of 0.02-0.625 μg/mL as determined in a alphaLISA homogeneous assay (Routinely tested).
Functional Studies - Recombinant human PD-L1 protein (Active) (ab167713)

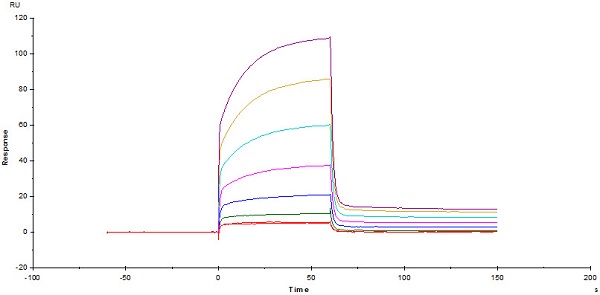

Human PD-1, Fc Tag (Recombinant human PD1 protein (Fc Chimera Active) ab221398), captured on CM5 chip via anti-human IgG Fc antibody, binds ab167713 with an affinity constant of 3.6 μM, as determined in an SPR assay (Biacore T200).
Functional Studies - Recombinant human PD-L1 protein (Active) (ab167713)

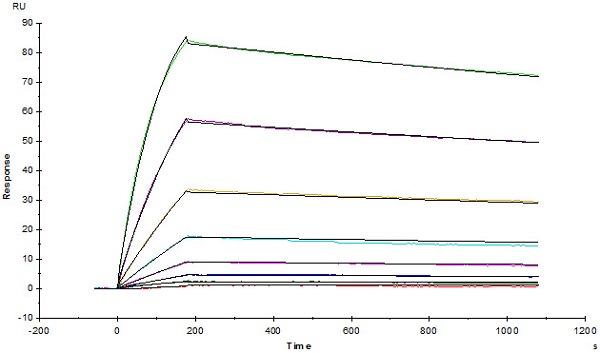

Anti-Human PD-L1 Mab (Human IgG1), captured on CM5 chip via anti-human IgG Fc antibodies surface, binds ab167713 with an affinity constant of 0.286 nM, as determined in a SPR assay (Biacore T200) (Routinely tested).
SDS-PAGE - Recombinant human PD-L1 protein (Active) (ab167713)
Reduced ab167713 on SDS-PAGE, stained overnight with Coomassie Blue.
The purity of the protein is greater than 98%.
The protein migrates as 30-35 kDa under reducing conditions, due to glycosylation.
