Recombinant human PD-L1 protein (Active) is a Human Fragment protein, in the 19 to 238 aa range, expressed in HEK 293, with >=95% purity, <= 0.005 EU/µg endotoxin level and suitable for SDS-PAGE, FuncS, MS, HPLC, sELISA.

This product has no reviews yet! Submit a review
Purity

>=95% SDS-PAGE

Endotoxin level

<= 0.005 EU/µg

Expression system

HEK 293 cells

Tags

Tag free

Applications

SDS-PAGE, FuncS, MS, HPLC, sELISA

Biologically active

Yes

Actual molecular weight

25.1 kDa

Sequence

F T V T V P K D L Y V V E Y G S N M T I E C K F P V E K Q L D L A A L I V Y W E M E D K N I I Q F V H G E E D L K V Q H

S S Y R Q R A R L L K D Q L S L G N A A L Q I T D V K L Q D A G V Y R C M I S Y G G A D Y K R I T V K V N A P Y N K I N

Q R I L V V D P V T S E H E L T C Q A E G Y P K A E V I W T S S D H Q V L S G K T T T T N S K R E E K L F N V T S T L R

I N T T T N E I F Y C T F R R L D P E E N H T A E L V I P E L P L A H P P N E R

Reactivity data

Application

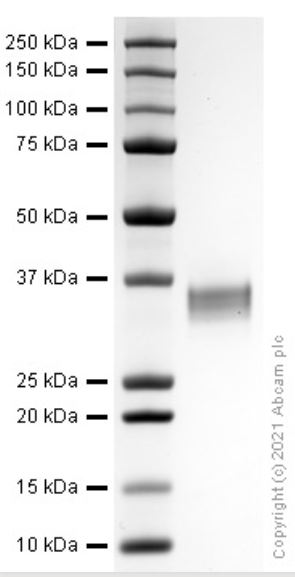

SDS-PAGE
Reactivity
Reacts
Dilution info
-
Notes

-

Application
FuncS
Reactivity
Reacts
Dilution info
-
Notes

-

Application

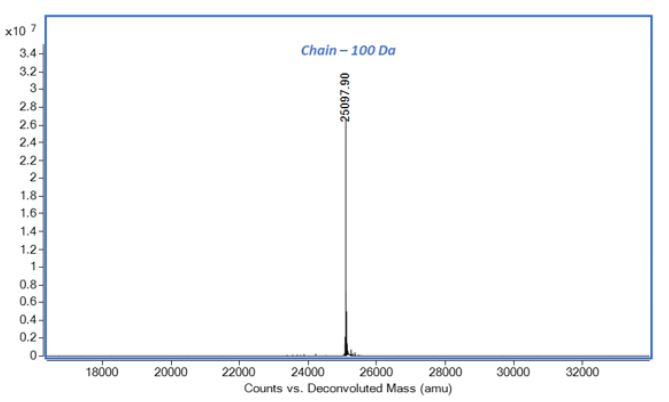

MS
Reactivity
Reacts
Dilution info
-
Notes

-

Application

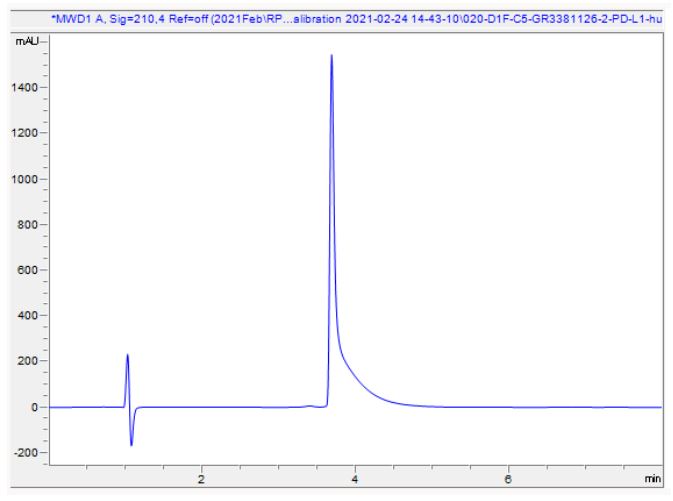

HPLC
Reactivity
Reacts
Dilution info
-
Notes

-

Application

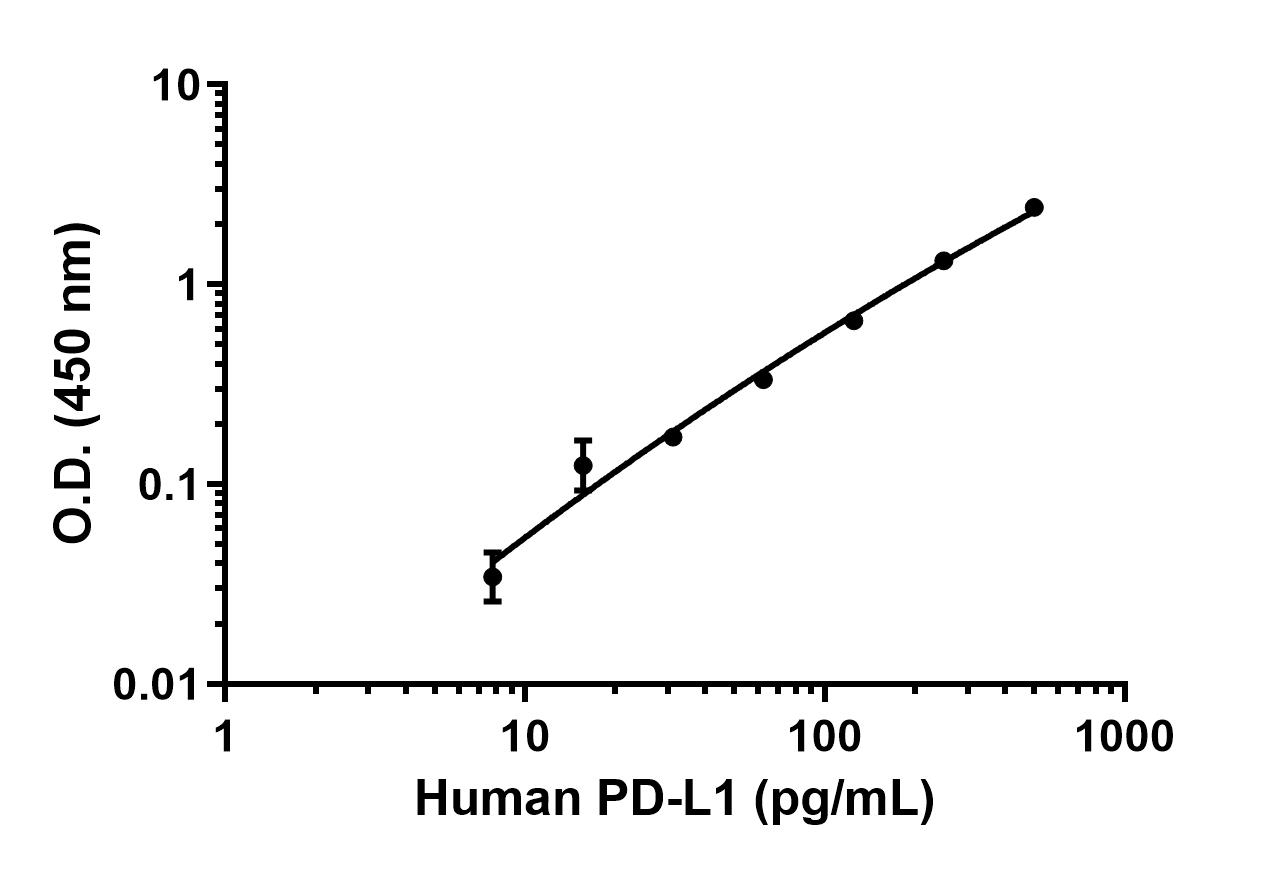

sELISA
Reactivity
Reacts
Dilution info
-
Notes

-

Images

Target data

Recommended products

  1. Loading...
  2. Loading...
  3. Loading...
  4. Loading...

Recombinant human PD-L1 protein (Active) is a Human Fragment protein, in the 19 to 238 aa range, expressed in HEK 293, with >=95% purity, <= 0.005 EU/µg endotoxin level and suitable for SDS-PAGE, FuncS, MS, HPLC, sELISA.

Key facts

Purity

>=95% SDS-PAGE

Endotoxin level

<= 0.005 EU/µg

Expression system

HEK 293 cells

Applications

SDS-PAGE, FuncS, MS, HPLC, sELISA

Biological activity

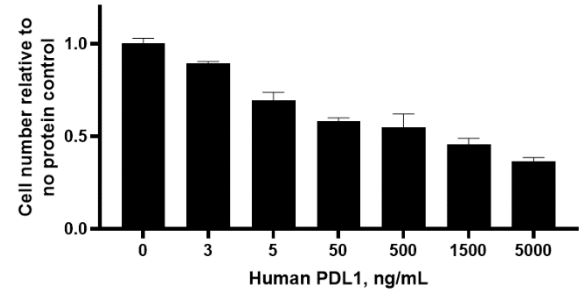

Fully biologically active measured by its ability to inhibit anti-CD3 and anti-CD8 antibody induced T-cell expansion. ED50 for this effect is ≤500 ng/mL with a specific activity of 0.2 x 104 units/mg.

Predicted molecular weight

25.25 kDa

Amino acids

19 to 238

Sequence

F T V T V P K D L Y V V E Y G S N M T I E C K F P V E K Q L D L A A L I V Y W E M E D K N I I Q F V H G E E D L K V Q H

S S Y R Q R A R L L K D Q L S L G N A A L Q I T D V K L Q D A G V Y R C M I S Y G G A D Y K R I T V K V N A P Y N K I N

Q R I L V V D P V T S E H E L T C Q A E G Y P K A E V I W T S S D H Q V L S G K T T T T N S K R E E K L F N V T S T L R

I N T T T N E I F Y C T F R R L D P E E N H T A E L V I P E L P L A H P P N E R

Accession
Q9NZQ7-1
Protein length

Fragment

Animal free

Yes

Nature

Recombinant

Species

Human

Reconstitution

Reconstitute with phosphate buffered saline.Store lyophilized form at room temperature. Reconstitute, aliquot and store at -80°C for 12 months or +4°C for 1 week.Avoid repeated freeze-thaw.Lyophilized contents may appear as either a translucent film or a white power. This variance does not affect the quality of the product. Lyophilized contents may appear as either a translucent film or a white powder. This variance does not affect the quality of the product.

Concentration
Loading...
Storage buffer

pH: 7.4
Constituents: 10.26% Trehalose, 0.727% Dibasic monohydrogen potassium phosphate, 0.248% Potassium phosphate monobasic

Specifications

Form

Lyophilized

Additional notes

=95% by HPLC

General info

Function

Plays a critical role in induction and maintenance of immune tolerance to self (PubMed:11015443, PubMed:28813417, PubMed:28813410). As a ligand for the inhibitory receptor PDCD1/PD-1, modulates the activation threshold of T-cells and limits T-cell effector response (PubMed:11015443, PubMed:28813417, PubMed:28813410). Through a yet unknown activating receptor, may costimulate T-cell subsets that predominantly produce interleukin-10 (IL10) (PubMed:10581077).

Sequence similarities

Belongs to the immunoglobulin superfamily. BTN/MOG family.

Post-translational modifications

Ubiquitinated; STUB1 likely mediates polyubiquitination of PD-L1/CD274 triggering its degradation.

Subcellular localisation

Early endosome membrane, Recycling endosome membrane

Storage

Shipped at conditions

Ambient - Can Ship with Ice

Appropriate long-term storage conditions

Ambient

This product is an active protein and may elicit a biological response in vivo, handle with caution.

Product promise

We are dedicated to supporting your work with high quality reagents and we are here for you every step of the way should you need us.

In the unlikely event of one of our products not working as expected, you are covered by our product promise.

Full details and terms and conditions can be found here:
Terms & Conditions.

Downloads

Product protocols

For this product, it's our understanding that no specific protocols are required. You can:

Please note: All products are 'FOR RESEARCH USE ONLY. NOT FOR USE IN DIAGNOSTIC PROCEDURES'.
