Recombinant human PDGF B protein (Active)

• Mass Spec

Supplier Data

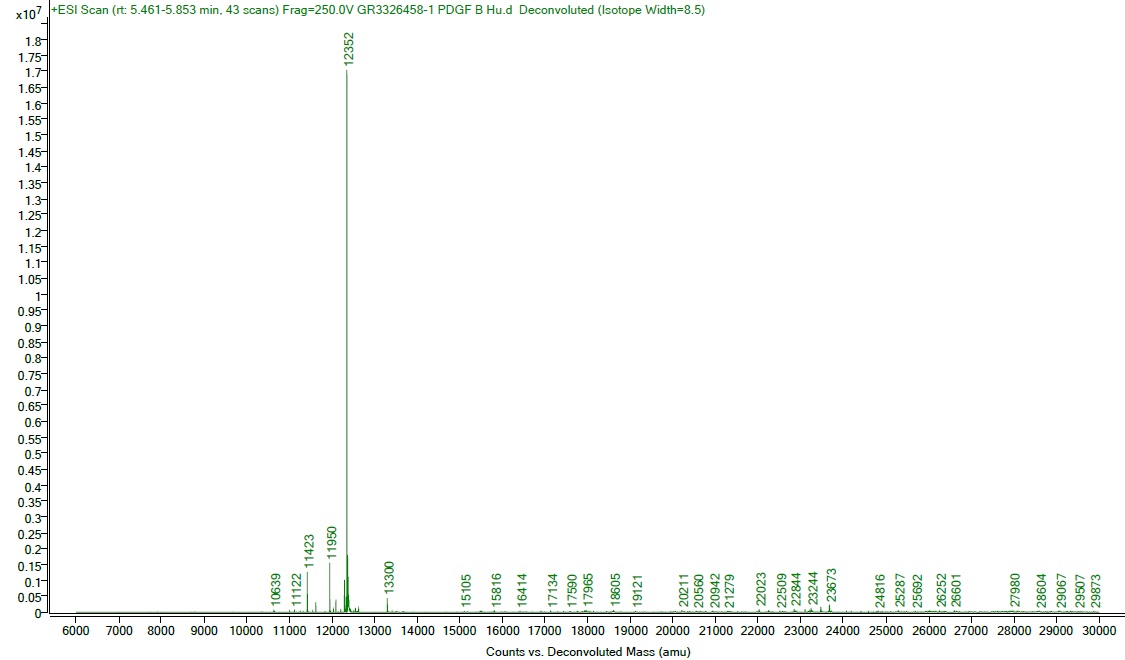

Mass Spectrometry - Recombinant human PDGF B protein (Active) (AB259425)

M + 0.41 Da (Calc. mass 12351.59 ).

The spectrum was recorded with a 6545XT AdvanceBio LC/Q-TOF (Agilent Technologies) and a MabPac RP column (42.1x50 mm, 4 μm, Thermo Scientific). 5 μL of purified protein was injected and the gradient run from 85 % water : FA (99.9 : 0.1 v/v) and 15 % acetonitrile : FA (90 : 9.9 : 0.1 v/v/v) to 55 % water : FA (99.9 : 0.1 v/v) and 45 % acetonitrile : FA (90 : 9.9 : 0.1 v/v/v) within 3 minutes followed by an isocratic step for another 2.5 min. Flow rate was 0.4 mL/min and the column compartment temperature was 60 °C. Data was analysed and deconvoluted using the Bioconfirm software (Agilent Technologies).

• FuncS

Supplier Data

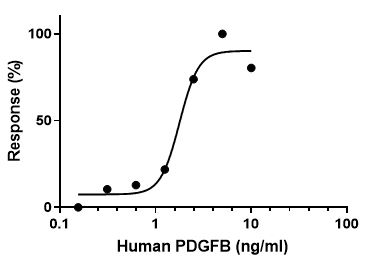

Functional Studies - Recombinant human PDGF B protein (Active) (AB259425)

Fully biologically active compared to a standard. The ED₅₀ is is 0.9388 ng/mL corresponding to a Specific Activity of 1.07 x 10⁶ IU/mg.

• SDS-PAGE

Supplier Data

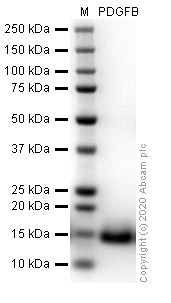

SDS-PAGE - Recombinant human PDGF B protein (Active) (AB259425)

SDS-PAGE analysis of ab259425.

• HPLC

Supplier Data

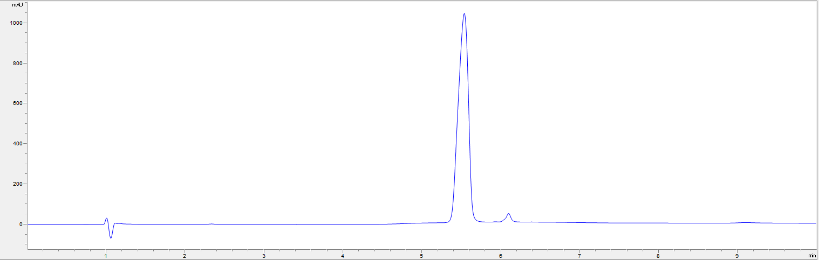

HPLC - Recombinant human PDGF B protein (Active) (AB259425)

Purity 98%.

The spectrum was recorded using a 1260 Infinity II HPLC system with DAD and a MabPac RP column (3.0x100 mm, 4 μm). 5 μL of purified protein was injected and the gradient run from 80 % water : TFA (99.9 : 0.1 v/v) and 20 % acetonitrile : water : TFA (90 : 9.9 : 0.1 v/v/v) to 20 % water : TFA (99.9 : 0.1 v/v) and 80 % acetonitrile : water : TFA (90 : 9.9 : 0.1 v/v/v) within 3 minutes followed by an isocratic step for another 3 min. Flow rate was 0.5 mL/min and the column compartment temperature was 50 °C.
