Recombinant human PKC delta protein is a Human Full Length protein, expressed in Baculovirus infected Sf9, with >90% purity and suitable for SDS-PAGE, WB, FuncS.
Application | Reactivity | Dilution info | Notes |
---|---|---|---|
Application SDS-PAGE | Reactivity Reacts | Dilution info - | Notes - |
Application WB | Reactivity Reacts | Dilution info - | Notes ab60844 can be used as a WB positive control in conjunction with ab86800. |
Application FuncS | Reactivity Reacts | Dilution info - | Notes Kinase assay. |
Select an associated product type
Calcium-independent, phospholipid- and diacylglycerol (DAG)-dependent serine/threonine-protein kinase that plays contrasting roles in cell death and cell survival by functioning as a pro-apoptotic protein during DNA damage-induced apoptosis, but acting as an anti-apoptotic protein during cytokine receptor-initiated cell death, is involved in tumor suppression as well as survival of several cancers, is required for oxygen radical production by NADPH oxidase and acts as positive or negative regulator in platelet functional responses (PubMed:21406692, PubMed:21810427). Negatively regulates B cell proliferation and also has an important function in self-antigen induced B cell tolerance induction (By similarity). Upon DNA damage, activates the promoter of the death-promoting transcription factor BCLAF1/Btf to trigger BCLAF1-mediated p53/TP53 gene transcription and apoptosis (PubMed:21406692, PubMed:21810427). In response to oxidative stress, interact with and activate CHUK/IKKA in the nucleus, causing the phosphorylation of p53/TP53 (PubMed:21406692, PubMed:21810427). In the case of ER stress or DNA damage-induced apoptosis, can form a complex with the tyrosine-protein kinase ABL1 which trigger apoptosis independently of p53/TP53 (PubMed:21406692, PubMed:21810427). In cytosol can trigger apoptosis by activating MAPK11 or MAPK14, inhibiting AKT1 and decreasing the level of X-linked inhibitor of apoptosis protein (XIAP), whereas in nucleus induces apoptosis via the activation of MAPK8 or MAPK9. Upon ionizing radiation treatment, is required for the activation of the apoptosis regulators BAX and BAK, which trigger the mitochondrial cell death pathway. Can phosphorylate MCL1 and target it for degradation which is sufficient to trigger for BAX activation and apoptosis. Is required for the control of cell cycle progression both at G1/S and G2/M phases. Mediates phorbol 12-myristate 13-acetate (PMA)-induced inhibition of cell cycle progression at G1/S phase by up-regulating the CDK inhibitor CDKN1A/p21 and inhibiting the cyclin CCNA2 promoter activity. In response to UV irradiation can phosphorylate CDK1, which is important for the G2/M DNA damage checkpoint activation (By similarity). Can protect glioma cells from the apoptosis induced by TNFSF10/TRAIL, probably by inducing increased phosphorylation and subsequent activation of AKT1 (PubMed:15774464). Is highly expressed in a number of cancer cells and promotes cell survival and resistance against chemotherapeutic drugs by inducing cyclin D1 (CCND1) and hyperphosphorylation of RB1, and via several pro-survival pathways, including NF-kappa-B, AKT1 and MAPK1/3 (ERK1/2). Involved in antifungal immunity by mediating phosphorylation and activation of CARD9 downstream of C-type lectin receptors activation, promoting interaction between CARD9 and BCL10, followed by activation of NF-kappa-B and MAP kinase p38 pathways (By similarity). Can also act as tumor suppressor upon mitogenic stimulation with PMA or TPA. In N-formyl-methionyl-leucyl-phenylalanine (fMLP)-treated cells, is required for NCF1 (p47-phox) phosphorylation and activation of NADPH oxidase activity, and regulates TNF-elicited superoxide anion production in neutrophils, by direct phosphorylation and activation of NCF1 or indirectly through MAPK1/3 (ERK1/2) signaling pathways (PubMed:19801500). May also play a role in the regulation of NADPH oxidase activity in eosinophil after stimulation with IL5, leukotriene B4 or PMA (PubMed:11748588). In collagen-induced platelet aggregation, acts a negative regulator of filopodia formation and actin polymerization by interacting with and negatively regulating VASP phosphorylation (PubMed:16940418). Downstream of PAR1, PAR4 and CD36/GP4 receptors, regulates differentially platelet dense granule secretion; acts as a positive regulator in PAR-mediated granule secretion, whereas it negatively regulates CD36/GP4-mediated granule release (PubMed:19587372). Phosphorylates MUC1 in the C-terminal and regulates the interaction between MUC1 and beta-catenin (PubMed:11877440). The catalytic subunit phosphorylates 14-3-3 proteins (YWHAB, YWHAZ and YWHAH) in a sphingosine-dependent fashion (By similarity). Phosphorylates ELAVL1 in response to angiotensin-2 treatment (PubMed:18285462). Phosphorylates mitochondrial phospholipid scramblase 3 (PLSCR3), resulting in increased cardiolipin expression on the mitochondrial outer membrane which facilitates apoptosis (PubMed:12649167). Phosphorylates SMPD1 which induces SMPD1 secretion (PubMed:17303575).
PKCD, PRKCD, Protein kinase C delta type, Tyrosine-protein kinase PRKCD, nPKC-delta
Recombinant human PKC delta protein is a Human Full Length protein, expressed in Baculovirus infected Sf9, with >90% purity and suitable for SDS-PAGE, WB, FuncS.
pH: 7.5
Constituents: 25% Glycerol (glycerin, glycerine), 0.87% Sodium chloride, 0.79% Tris HCl, 0.00385% (R*,R*)-1,4-Dimercaptobutan-2,3-diol, 0.0038% EGTA, 0.00292% EDTA, 0.00174% PMSF
Affinity purified.
Calcium-independent, phospholipid- and diacylglycerol (DAG)-dependent serine/threonine-protein kinase that plays contrasting roles in cell death and cell survival by functioning as a pro-apoptotic protein during DNA damage-induced apoptosis, but acting as an anti-apoptotic protein during cytokine receptor-initiated cell death, is involved in tumor suppression as well as survival of several cancers, is required for oxygen radical production by NADPH oxidase and acts as positive or negative regulator in platelet functional responses (PubMed:21406692, PubMed:21810427). Negatively regulates B cell proliferation and also has an important function in self-antigen induced B cell tolerance induction (By similarity). Upon DNA damage, activates the promoter of the death-promoting transcription factor BCLAF1/Btf to trigger BCLAF1-mediated p53/TP53 gene transcription and apoptosis (PubMed:21406692, PubMed:21810427). In response to oxidative stress, interact with and activate CHUK/IKKA in the nucleus, causing the phosphorylation of p53/TP53 (PubMed:21406692, PubMed:21810427). In the case of ER stress or DNA damage-induced apoptosis, can form a complex with the tyrosine-protein kinase ABL1 which trigger apoptosis independently of p53/TP53 (PubMed:21406692, PubMed:21810427). In cytosol can trigger apoptosis by activating MAPK11 or MAPK14, inhibiting AKT1 and decreasing the level of X-linked inhibitor of apoptosis protein (XIAP), whereas in nucleus induces apoptosis via the activation of MAPK8 or MAPK9. Upon ionizing radiation treatment, is required for the activation of the apoptosis regulators BAX and BAK, which trigger the mitochondrial cell death pathway. Can phosphorylate MCL1 and target it for degradation which is sufficient to trigger for BAX activation and apoptosis. Is required for the control of cell cycle progression both at G1/S and G2/M phases. Mediates phorbol 12-myristate 13-acetate (PMA)-induced inhibition of cell cycle progression at G1/S phase by up-regulating the CDK inhibitor CDKN1A/p21 and inhibiting the cyclin CCNA2 promoter activity. In response to UV irradiation can phosphorylate CDK1, which is important for the G2/M DNA damage checkpoint activation (By similarity). Can protect glioma cells from the apoptosis induced by TNFSF10/TRAIL, probably by inducing increased phosphorylation and subsequent activation of AKT1 (PubMed:15774464). Is highly expressed in a number of cancer cells and promotes cell survival and resistance against chemotherapeutic drugs by inducing cyclin D1 (CCND1) and hyperphosphorylation of RB1, and via several pro-survival pathways, including NF-kappa-B, AKT1 and MAPK1/3 (ERK1/2). Involved in antifungal immunity by mediating phosphorylation and activation of CARD9 downstream of C-type lectin receptors activation, promoting interaction between CARD9 and BCL10, followed by activation of NF-kappa-B and MAP kinase p38 pathways (By similarity). Can also act as tumor suppressor upon mitogenic stimulation with PMA or TPA. In N-formyl-methionyl-leucyl-phenylalanine (fMLP)-treated cells, is required for NCF1 (p47-phox) phosphorylation and activation of NADPH oxidase activity, and regulates TNF-elicited superoxide anion production in neutrophils, by direct phosphorylation and activation of NCF1 or indirectly through MAPK1/3 (ERK1/2) signaling pathways (PubMed:19801500). May also play a role in the regulation of NADPH oxidase activity in eosinophil after stimulation with IL5, leukotriene B4 or PMA (PubMed:11748588). In collagen-induced platelet aggregation, acts a negative regulator of filopodia formation and actin polymerization by interacting with and negatively regulating VASP phosphorylation (PubMed:16940418). Downstream of PAR1, PAR4 and CD36/GP4 receptors, regulates differentially platelet dense granule secretion; acts as a positive regulator in PAR-mediated granule secretion, whereas it negatively regulates CD36/GP4-mediated granule release (PubMed:19587372). Phosphorylates MUC1 in the C-terminal and regulates the interaction between MUC1 and beta-catenin (PubMed:11877440). The catalytic subunit phosphorylates 14-3-3 proteins (YWHAB, YWHAZ and YWHAH) in a sphingosine-dependent fashion (By similarity). Phosphorylates ELAVL1 in response to angiotensin-2 treatment (PubMed:18285462). Phosphorylates mitochondrial phospholipid scramblase 3 (PLSCR3), resulting in increased cardiolipin expression on the mitochondrial outer membrane which facilitates apoptosis (PubMed:12649167). Phosphorylates SMPD1 which induces SMPD1 secretion (PubMed:17303575).
Belongs to the protein kinase superfamily. AGC Ser/Thr protein kinase family. PKC subfamily.
Autophosphorylated and/or phosphorylated at Thr-507, within the activation loop; phosphorylation at Thr-507 is not a prerequisite for enzymatic activity (PubMed:19801500). Autophosphorylated at Ser-299, Ser-302 and Ser-304 (PubMed:17603046). Upon TNFSF10/TRAIL treatment, phosphorylated at Tyr-155; phosphorylation is required for its translocation to the endoplasmic reticulum and cleavage by caspase-3 (PubMed:15774464). Phosphorylated at Tyr-313, Tyr-334 and Tyr-567; phosphorylation of Tyr-313 and Tyr-567 following thrombin or zymosan stimulation potentiates its kinase activity (PubMed:17570831). Phosphorylated by protein kinase PDPK1; phosphorylation is inhibited by the apoptotic C-terminal cleavage product of PKN2 (PubMed:11781095). Phosphorylated at Tyr-313 through a SYK and SRC mechanism downstream of C-type lectin receptors activation, promoting its activation (By similarity).
This product is an active protein and may elicit a biological response in vivo, handle with caution.
Phosphatidylinositol is the most potent activator of PKC delta.
CREB peptide ab204856 (CREB peptide) can be utilized as a substrate for assessing kinase activity
Protein kinase C delta (PKC delta) often called PKCδ belongs to the novel PKC subfamily. It weighs approximately 78 kDa and functions in various cellular processes. This enzyme exhibits serine/threonine kinase activity and is expressed across numerous tissues including the brain heart and lymphoid organs. PKC delta activation mainly relies on diacylglycerol and phospholipids though it does not require calcium for activation. This target has multiple known phosphorylation sites such as delta 1485 and delta 647 that modulate its enzymatic activity and localization.
PKC delta influences cell growth apoptosis and differentiation through its kinase activity. It acts as an important regulator in the signaling pathways that control these processes. PKC delta is not a part of a traditional complex but interacts with several proteins influencing signaling cascades. In cellular contexts PKC delta positively influences tumor necrosis factor-related pathways and also initiates apoptosis in response to DNA damage.
PKC delta plays an essential role in the regulation of mitogen-activated protein kinase (MAPK) and Janus kinase (JAK) pathways. Within the MAPK pathway PKC delta interacts with proteins like c-Jun N-terminal kinase (JNK) facilitating stress-responsive pathways related to cell death and survival. In the JAK pathway its regulation can impact cytokine signaling and immune responses. PKC delta's function within these pathways positions it as an important mediator and influencer of diverse cellular responses.
PKC delta has significant implications for cancer and cardiovascular diseases. PKC delta promotes tumor cell proliferation in some cancers by altering cell cycle regulation and resist apoptosis. In cardiovascular disorders this protein mediates cardiac hypertrophy and heart failure through its influence on myocyte apoptosis and fibrosis. PKC delta’s interaction with specific proteins like Bcl-2 in cancer and troponin in cardiac conditions highlights its role in pathophysiological processes making it a significant target for therapeutic intervention.
We are dedicated to supporting your work with high quality reagents and we are here for you every step of the way should you need us.
In the unlikely event of one of our products not working as expected, you are covered by our product promise.
Full details and terms and conditions can be found here:
Terms & Conditions.
The specific activity of PKC delta (ab60844) was determined to be 250 nmol/min/mg as per activity assay protocol
Blocking and dilution buffer: 5% NFDM/TBST.
Active human PKC alpha full length protein (Recombinant human PKC alpha protein (Active) ab55672) contains aa1-672 with GST-tag.
Active human PKC beta 1 full length protein (Recombinant human PKC beta 1 protein ab60840) contains aa1-671 with GST-tag.
Active human PKC beta 2 full length protein (Recombinant human PKC beta 2 protein ab60841) contains aa1-673 with GST-tag.
Active human PKC delta full length protein (ab60844) contains aa1-676 with GST-tag.
Active human PKC eta full length protein (Recombinant human PKC eta protein ab60849) contains aa1-683 with GST-tag.
Active human PKC epsilon full length protein (Recombinant human PKC epsilon protein ab60847) contains aa1-737 with GST-tag.
Active human PKC theta full length protein (Recombinant human PKC theta/PRKCQ protein ab56641) contains aa1-706 with GST-tag.
Active human PKC mu full length protein (Recombinant human PKC mu/PKD protein ab60873) contains aa1-912 with GST-tag.

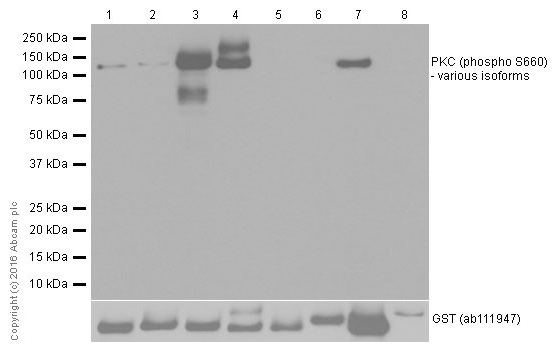

All lanes: Western blot - Anti-PKC (phospho S660) antibody [EP1902Y] (Anti-PKC (phospho S660) antibody [EP1902Y] ab75837) at 1/20000 dilution
Lane 1: Western blot - Recombinant human PKC alpha protein (Active) (Recombinant human PKC alpha protein (Active) ab55672)
Lane 2: Western blot - Recombinant human PKC beta 1 protein (Recombinant human PKC beta 1 protein ab60840)
Lane 3: Western blot - Recombinant human PKC beta 2 protein (Recombinant human PKC beta 2 protein ab60841)
Lane 4: Western blot - Recombinant human PKC delta protein (ab60844)
Lane 5: Western blot - Recombinant human PKC eta protein (Recombinant human PKC eta protein ab60849)
Lane 6: Western blot - Recombinant human PKC epsilon protein (Recombinant human PKC epsilon protein ab60847)
Lane 7: Western blot - Recombinant human PKC theta/PRKCQ protein (Recombinant human PKC theta/PRKCQ protein ab56641)
Lane 8: Western blot - Recombinant human PKC mu/PKD protein (Recombinant human PKC mu/PKD protein ab60873)
All lanes: Western blot - Goat Anti-Rabbit IgG H&L (HRP) (Goat Anti-Rabbit IgG H&L (HRP) ab97051) at 1/20000 dilution
Predicted band size: 77 kDa
Observed band size: 100-150 kDa
Exposure time: 1s

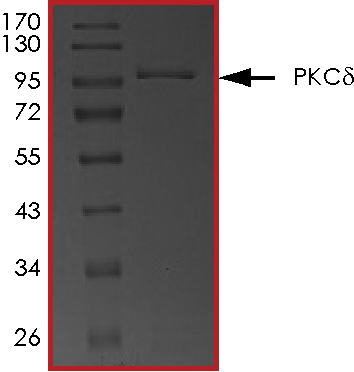

SDS PAGE analysis of ab60844
5% NFDM/TBST

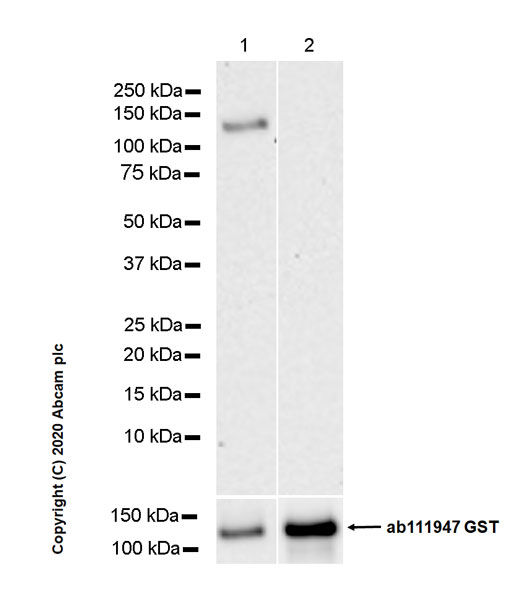

All lanes: Western blot - Anti-PKC alpha antibody [133] (Anti-PKC alpha antibody [133] ab11723) at 1/1000 dilution
Lane 1: Western blot - Recombinant human PKC alpha protein (Active) (Recombinant human PKC alpha protein (Active) ab55672)
Lane 2: Western blot - Recombinant human PKC delta protein (ab60844)
All lanes: Peroxidase-Conjugated Goat anti-Mouse IgG (H+L) at 1/5000 dilution
Predicted band size: 76 kDa
Exposure time: 180s

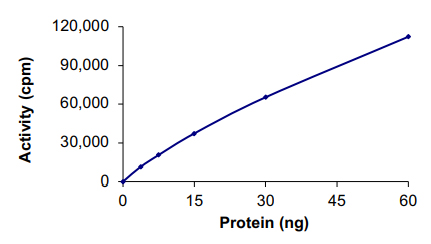

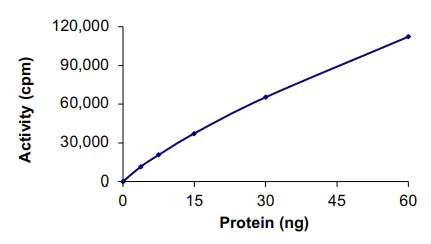

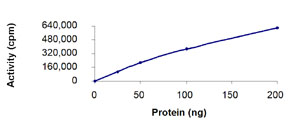

Sample Kinase Activity Plot.

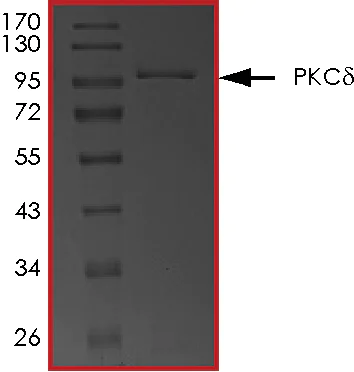

ab60844 on SDS-PAGE, MW ~104 kDa.

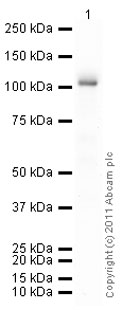

All lanes: Anti-PKC delta antibody (ab86800) at 1 µg/mL
All lanes: Western blot - Recombinant human PKC delta protein (ab60844) at 0.1 µg
All lanes: Goat polyclonal to Rabbit IgG - H&L - Pre-Adsorbed (HRP) (ab65484) at 1/5000 dilution
Developed using the ECL technique.
Performed under reducing conditions.
Exposure time: 4min

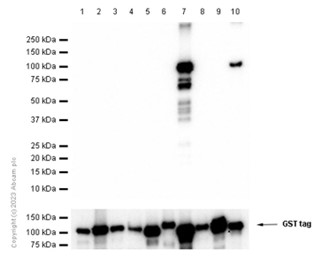

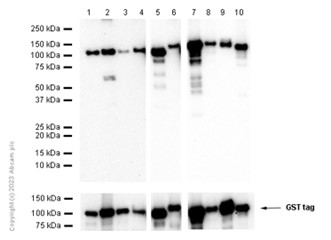

This data was developed using Anti-PKC zeta (phospho T410) + PKC iota (phospho T412) antibody [EP1491Y] ab76129, the same antibody clone in a different buffer formulation.
Blocking and diluting buffer and concentration: 5% NFDM/TBST.
Exposure time: Lane 1-4: 180 seconds; Lane 5-6: 60 seconds; Lane 7-10: 5 seconds.
All lanes: Western blot - Anti-PKC zeta (phospho T410) + PKC iota (phospho T412) antibody [EP1491Y] (Anti-PKC zeta (phospho T410) + PKC iota (phospho T412) antibody [EP1491Y] ab76129) at 1/1000 dilution
Lane 1: Western blot - Recombinant human PKC alpha protein (Active) (Recombinant human PKC alpha protein (Active) ab55672)
Lane 2: Western blot - Recombinant human PKC beta 1 protein (Recombinant human PKC beta 1 protein ab60840)
Lane 3: Western blot - Recombinant human PKC beta 2 protein (Recombinant human PKC beta 2 protein ab60841)
Lane 4: Western blot - Recombinant human PKC gamma protein (Recombinant human PKC gamma protein ab60842)
Lane 5: Western blot - Recombinant human PKC delta protein (ab60844)
Lane 6: Western blot - Recombinant human PKC epsilon protein (Recombinant human PKC epsilon protein ab60847)
Lane 7: Western blot - Recombinant human PKC zeta protein (Recombinant human PKC zeta protein ab60848)
Lane 8: Western blot - Recombinant human PKC eta protein (Recombinant human PKC eta protein ab60849)
Lane 9: Western blot - Recombinant human PKC theta/PRKCQ protein (Recombinant human PKC theta/PRKCQ protein ab56641)
Lane 10: Western blot - Recombinant human PKC iota protein (Recombinant human PKC iota protein ab60850)
All lanes: Western blot - Goat Anti-Rabbit IgG H&L (HRP) (Goat Anti-Rabbit IgG H&L (HRP) ab97051) at 1/20000 dilution
Observed band size: 105 kDa
Blocking and dilution buffer: 5% NFDM/TBST.

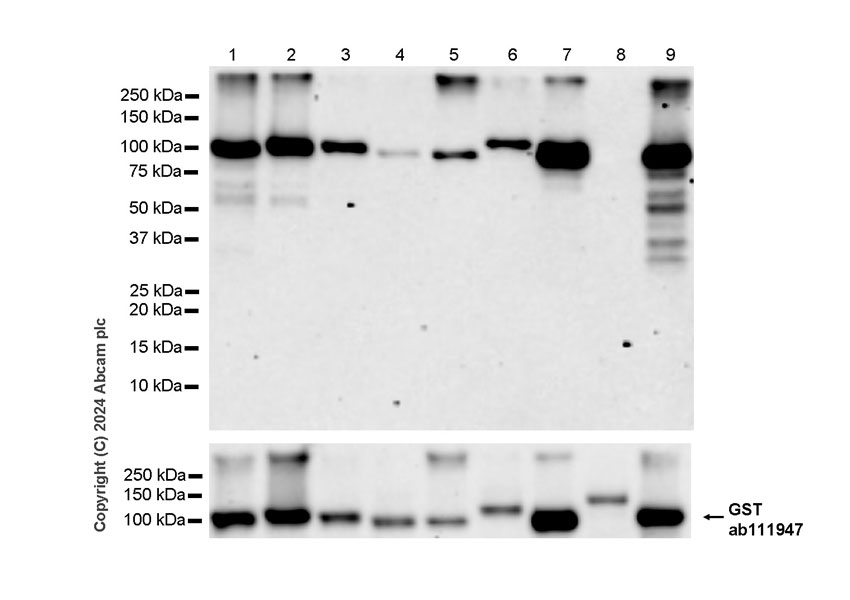

Anti-PKC (phospho T514) antibody [EP2730Y] ab109539 could detect PKC gamma (pT514), PKC alpha (pT497), PKC beta (pT500), PKC delta (pT507), PKC eta (pT513), PKC epsilon (pT566) and PKC theta (pT538).

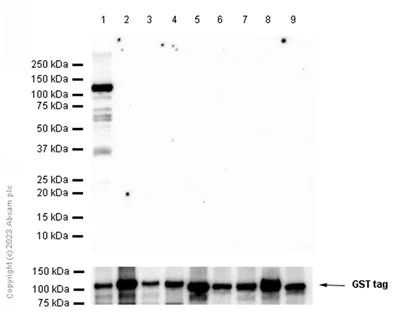

All lanes: Western blot - Anti-PKC (phospho T514) antibody [EP2730Y] (Anti-PKC (phospho T514) antibody [EP2730Y] ab109539) at 1/1000 dilution
Lane 1: Western blot - Recombinant human PKC alpha protein (Active) (Recombinant human PKC alpha protein (Active) ab55672) at 0.5 µg
Lane 2: Western blot - Recombinant human PKC beta 1 protein (Recombinant human PKC beta 1 protein ab60840) at 0.2 µg
Lane 3: Active human PKC beta 2 full length protein at 0.2 µg
Lane 4: Western blot - Recombinant human PKC delta protein (ab60844) at 0.05 µg
Lane 5: Western blot - Recombinant human PKC eta protein (Recombinant human PKC eta protein ab60849) at 0.5 µg
Lane 6: Western blot - Recombinant human PKC epsilon protein (Recombinant human PKC epsilon protein ab60847) at 1 µg
Lane 7: Western blot - Recombinant human PKC theta/PRKCQ protein (Recombinant human PKC theta/PRKCQ protein ab56641) at 0.2 µg
Lane 8: Western blot - Recombinant human PKC mu/PKD protein (Recombinant human PKC mu/PKD protein ab60873) at 1 µg
Lane 9: Western blot - Recombinant human PKC gamma protein (Recombinant human PKC gamma protein ab60842) at 0.1 µg
All lanes: Western blot - Goat Anti-Rabbit IgG H&L (HRP) (Goat Anti-Rabbit IgG H&L (HRP) ab97051) at 1/100000 dilution
Predicted band size: 77 kDa
Observed band size: 80 kDa
Exposure time: 180s
This data was developed using Anti-PKC alpha (phospho S657) antibody [EPR1901(2)] ab180848, the same antibody clone in a different buffer formulation.
Blocking and diluting buffer and concentration: 5% NFDM/TBST.
All lanes: Western blot - Anti-PKC alpha (phospho S657) antibody [EPR1901(2)] (Anti-PKC alpha (phospho S657) antibody [EPR1901(2)] ab180848) at 1/1000 dilution
Lane 1: Western blot - Recombinant human PKC alpha protein (Active) (Recombinant human PKC alpha protein (Active) ab55672)
Lane 2: Western blot - Recombinant human PKC beta 1 protein (Recombinant human PKC beta 1 protein ab60840)
Lane 3: Western blot - Recombinant human PKC beta 2 protein (Recombinant human PKC beta 2 protein ab60841)
Lane 4: Western blot - Recombinant human PKC gamma protein (Recombinant human PKC gamma protein ab60842)
Lane 5: Western blot - Recombinant human PKC delta protein (ab60844)
Lane 6: Western blot - Recombinant human PKC epsilon protein (Recombinant human PKC epsilon protein ab60847)
Lane 7: Western blot - Recombinant human PKC zeta protein (Recombinant human PKC zeta protein ab60848)
Lane 8: Western blot - Recombinant human PKC eta protein (Recombinant human PKC eta protein ab60849)
Lane 9: Western blot - Recombinant human PKC theta/PRKCQ protein (Recombinant human PKC theta/PRKCQ protein ab56641)
Lane 10: Western blot - Recombinant human PKC iota protein (Recombinant human PKC iota protein ab60850)
All lanes: Western blot - Goat Anti-Rabbit IgG H&L (HRP) (Goat Anti-Rabbit IgG H&L (HRP) ab97051) at 1/20000 dilution
Predicted band size: 76 kDa
Observed band size: 105 kDa
Exposure time: 60s

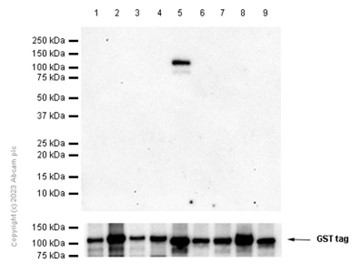

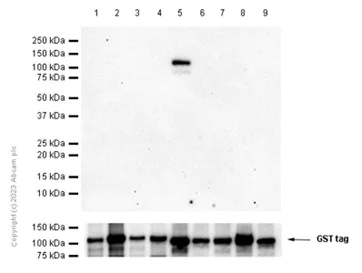

This data was developed using Anti-PKC delta (phospho T507) antibody [EPR1485Y] ab53295, the same antibody clone in a different buffer formulation.
Blocking and diluting buffer and concentration: 5% NFDM/TBST.
All lanes: Western blot - Anti-PKC delta (phospho T507) antibody [EPR1485Y] (Anti-PKC delta (phospho T507) antibody [EPR1485Y] ab53295) at 1/1000 dilution
Lane 1: Western blot - Recombinant human PKC alpha protein (Active) (Recombinant human PKC alpha protein (Active) ab55672)
Lane 2: Western blot - Recombinant human PKC beta 1 protein (Recombinant human PKC beta 1 protein ab60840)
Lane 3: Western blot - Recombinant human PKC beta 2 protein (Recombinant human PKC beta 2 protein ab60841)
Lane 4: Western blot - Recombinant human PKC gamma protein (Recombinant human PKC gamma protein ab60842)
Lane 5: Western blot - Recombinant human PKC delta protein (ab60844)
Lane 6: Western blot - Recombinant human PKC zeta protein (Recombinant human PKC zeta protein ab60848)
Lane 7: Western blot - Recombinant human PKC eta protein (Recombinant human PKC eta protein ab60849)
Lane 8: Western blot - Recombinant human PKC theta/PRKCQ protein (Recombinant human PKC theta/PRKCQ protein ab56641)
Lane 9: Western blot - Recombinant human PKC iota protein (Recombinant human PKC iota protein ab60850)
All lanes: Western blot - Goat Anti-Rabbit IgG H&L (HRP) (Goat Anti-Rabbit IgG H&L (HRP) ab97051) at 1/20000 dilution
Predicted band size: 78 kDa
Observed band size: 105 kDa
Exposure time: 180s
Blocking and diluting buffer and concentration: 5% NFDM/TBST.
Anti-GST antibody [EPR4236] - BSA and Azide free ab235384 was used to detect GST tag.

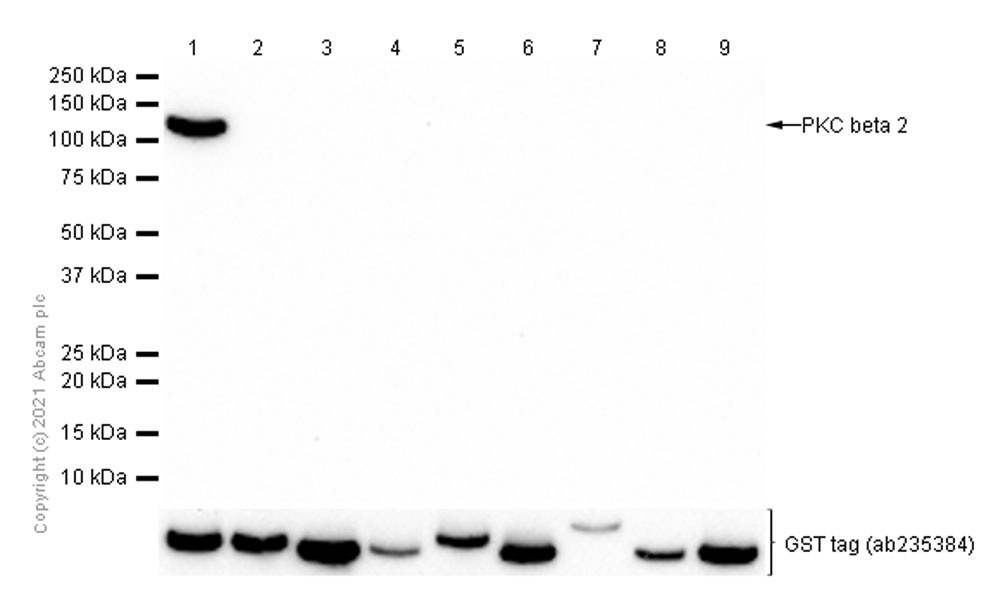

All lanes: Western blot - Anti-PKC beta 2 antibody [Y125] (Anti-PKC beta 2 antibody [Y125] ab32026) at 1/1000 dilution
Lane 1: Western blot - Recombinant human PKC beta 2 protein (Recombinant human PKC beta 2 protein ab60841) at 10 ng
Lane 2: Western blot - Recombinant human PKC beta 1 protein (Recombinant human PKC beta 1 protein ab60840) at 10 ng
Lane 3: Western blot - Recombinant human PKC delta protein (ab60844) at 10 ng
Lane 4: Western blot - Recombinant human PKC eta protein (Recombinant human PKC eta protein ab60849) at 10 ng
Lane 5: Western blot - Recombinant human PKC epsilon protein (Recombinant human PKC epsilon protein ab60847) at 10 ng
Lane 6: Western blot - Recombinant human PKC theta/PRKCQ protein (Recombinant human PKC theta/PRKCQ protein ab56641) at 10 ng
Lane 7: Western blot - Recombinant human PKC mu/PKD protein (Recombinant human PKC mu/PKD protein ab60873) at 10 ng
Lane 8: Western blot - Recombinant human PKC alpha protein (Active) (Recombinant human PKC alpha protein (Active) ab55672) at 10 ng
Lane 9: Western blot - Goat Anti-Rabbit IgG H&L (HRP) (Goat Anti-Rabbit IgG H&L (HRP) ab97051) at 10 ng
All lanes: Western blot - Goat Anti-Rabbit IgG H&L (HRP) (Goat Anti-Rabbit IgG H&L (HRP) ab97051) at 1/20000 dilution
Predicted band size: 77 kDa
Observed band size: 100 kDa
This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (Anti-PKC alpha antibody [Y124] ab32376).
Blocking and diluting buffer and concentration: 5% NFDM/TBST.

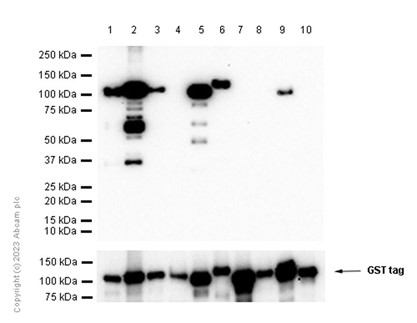

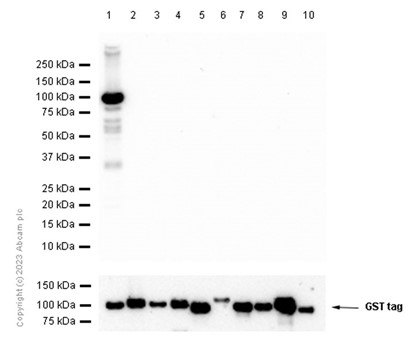

All lanes: Western blot - Anti-PKC alpha antibody [Y124] (Anti-PKC alpha antibody [Y124] ab32376) at 1/2000 dilution
Lane 1: Western blot - Recombinant human PKC alpha protein (Active) (Recombinant human PKC alpha protein (Active) ab55672)
Lane 2: Western blot - Recombinant human PKC beta 1 protein (Recombinant human PKC beta 1 protein ab60840)
Lane 3: Western blot - Recombinant human PKC beta 2 protein (Recombinant human PKC beta 2 protein ab60841)
Lane 4: Western blot - Recombinant human PKC gamma protein (Recombinant human PKC gamma protein ab60842)
Lane 5: Western blot - Recombinant human PKC delta protein (ab60844)
Lane 6: Western blot - Recombinant human PKC epsilon protein (Recombinant human PKC epsilon protein ab60847)
Lane 7: Western blot - Recombinant human PKC zeta protein (Recombinant human PKC zeta protein ab60848)
Lane 8: Western blot - Recombinant human PKC eta protein (Recombinant human PKC eta protein ab60849)
Lane 9: Western blot - Recombinant human PKC theta/PRKCQ protein (Recombinant human PKC theta/PRKCQ protein ab56641)
Lane 10: Western blot - Recombinant human PKC iota protein (Recombinant human PKC iota protein ab60850)
All lanes: Western blot - Goat Anti-Rabbit IgG H&L (HRP) (Goat Anti-Rabbit IgG H&L (HRP) ab97051) at 1/20000 dilution
Predicted band size: 76 kDa
Observed band size: 105 kDa
Exposure time: 20s
This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (Anti-PKC zeta (phospho T560) antibody [EP2037AY] ab62372).
Blocking and diluting buffer and concentration: 5% NFDM/TBST.
All lanes: Western blot - Anti-PKC zeta (phospho T560) antibody [EP2037AY] (Anti-PKC zeta (phospho T560) antibody [EP2037AY] ab62372) at 1/1000 dilution
Lane 1: Western blot - Recombinant human PKC alpha protein (Active) (Recombinant human PKC alpha protein (Active) ab55672)
Lane 2: Western blot - Recombinant human PKC beta 1 protein (Recombinant human PKC beta 1 protein ab60840)
Lane 3: Western blot - Recombinant human PKC beta 2 protein (Recombinant human PKC beta 2 protein ab60841)
Lane 4: Western blot - Recombinant human PKC gamma protein (Recombinant human PKC gamma protein ab60842)
Lane 5: Western blot - Recombinant human PKC delta protein (ab60844)
Lane 6: Western blot - Recombinant human PKC epsilon protein (Recombinant human PKC epsilon protein ab60847)
Lane 7: Western blot - Recombinant human PKC zeta protein (Recombinant human PKC zeta protein ab60848)
Lane 8: Western blot - Recombinant human PKC eta protein (Recombinant human PKC eta protein ab60849)
Lane 9: Western blot - Recombinant human PKC theta/PRKCQ protein (Recombinant human PKC theta/PRKCQ protein ab56641)
Lane 10: Western blot - Recombinant human PKC iota protein (Recombinant human PKC iota protein ab60850)
All lanes: Western blot - Goat Anti-Rabbit IgG H&L (HRP) (Goat Anti-Rabbit IgG H&L (HRP) ab97051) at 1/20000 dilution
Predicted band size: 68 kDa
Observed band size: 105 kDa
Exposure time: 5s
This data was developed using Anti-PKC alpha (phospho T638) antibody [E195] ab32502, the same antibody clone in a different buffer formulation.
Blocking and diluting buffer and concentration: 5% NFDM/TBST.
All lanes: Western blot - Anti-PKC alpha (phospho T638) antibody [E195] (Anti-PKC alpha (phospho T638) antibody [E195] ab32502) at 1/1000 dilution
Lane 1: Western blot - Recombinant human PKC alpha protein (Active) (Recombinant human PKC alpha protein (Active) ab55672)
Lane 2: Western blot - Recombinant human PKC beta 1 protein (Recombinant human PKC beta 1 protein ab60840)
Lane 3: Western blot - Recombinant human PKC beta 2 protein (Recombinant human PKC beta 2 protein ab60841)
Lane 4: Western blot - Recombinant human PKC gamma protein (Recombinant human PKC gamma protein ab60842)
Lane 5: Western blot - Recombinant human PKC delta protein (ab60844)
Lane 6: Western blot - Recombinant human PKC zeta protein (Recombinant human PKC zeta protein ab60848)
Lane 7: Western blot - Recombinant human PKC eta protein (Recombinant human PKC eta protein ab60849)
Lane 8: Western blot - Recombinant human PKC theta/PRKCQ protein (Recombinant human PKC theta/PRKCQ protein ab56641)
Lane 9: Western blot - Recombinant human PKC iota protein (Recombinant human PKC iota protein ab60850)
All lanes: Western blot - Goat Anti-Rabbit IgG H&L (HRP) (Goat Anti-Rabbit IgG H&L (HRP) ab97051) at 1/20000 dilution
Predicted band size: 76 kDa
Observed band size: 105 kDa
Exposure time: 60s
Please note: All products are 'FOR RESEARCH USE ONLY. NOT FOR USE IN DIAGNOSTIC OR THERAPEUTIC PROCEDURES'.
For licensing inquiries, please contact partnerships@abcam.com
