AB221310

Recombinant mouse PD-L1 protein (Fc Chimera Active)

Be the first to review this product! Submit a review

|

(1 Publication)

Recombinant mouse PD-L1 protein (Fc Chimera Active) is a Mouse Fragment protein, in the 19 to 238 aa range, expressed in HEK 293 cells, with >95%, < 1 EU/µg endotoxin level, suitable for SDS-PAGE, ELISA, FuncS.

View Alternative Names

CD274, B7h1, Pdcd1l1, Pdcd1lg1, Pdl1, Cd274, Programmed cell death 1 ligand 1, PD-L1, PDCD1 ligand 1, Programmed death ligand 1, B7 homolog 1, B7-H1

3 Images
ELISA - Recombinant mouse PD-L1 protein (Fc Chimera Active) (AB221310)
  • ELISA

Supplier Data

ELISA - Recombinant mouse PD-L1 protein (Fc Chimera Active) (AB221310)

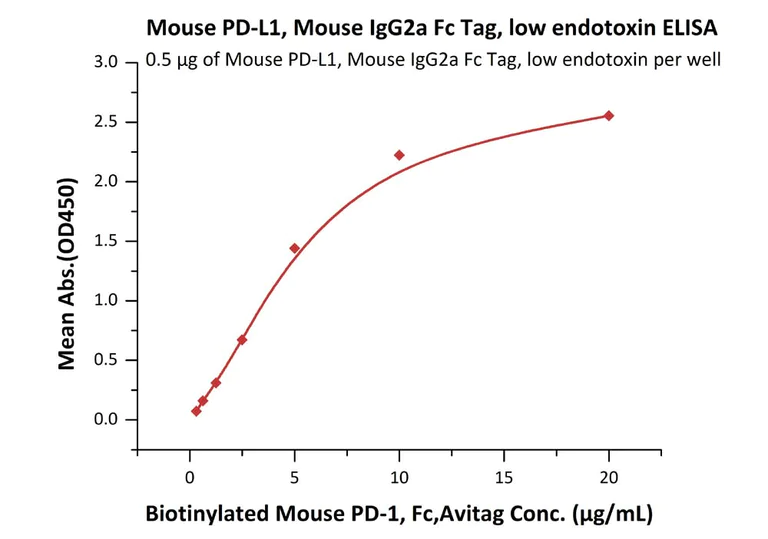

Immobilized ab221310 at 5 μg/mL (100 μL/well) can bind Recombinant mouse PD1 protein (Active) (Biotin) (ab246151) with a linear range of 0.313-5 μg/mL.

ELISA - Recombinant mouse PD-L1 protein (Fc Chimera Active) (AB221310)
  • ELISA

Supplier Data

ELISA - Recombinant mouse PD-L1 protein (Fc Chimera Active) (AB221310)

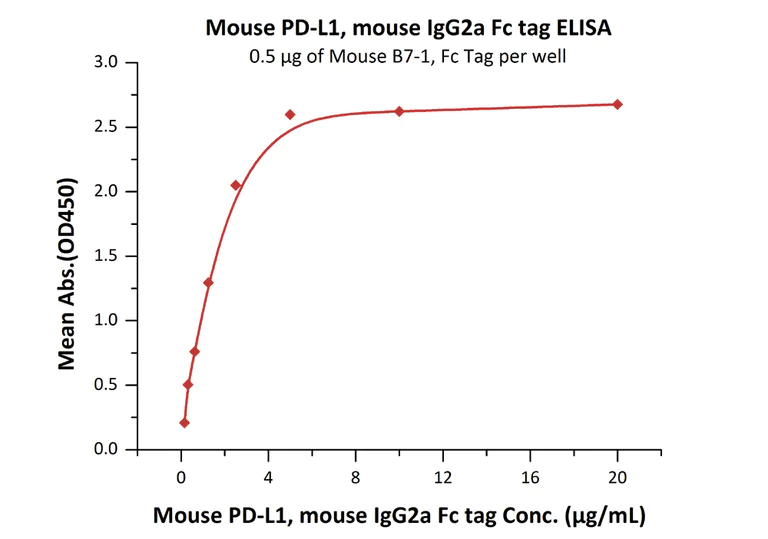

Immobilized Recombinant Mouse CD80 protein (Fc Chimera) (ab207101) at 5 μg/mL (100 μL/well) can bind ab221310 with a linear range of 0.16-2.5 μg/mL.

SDS-PAGE - Recombinant mouse PD-L1 protein (Fc Chimera Active) (AB221310)
  • SDS-PAGE

Supplier Data

SDS-PAGE - Recombinant mouse PD-L1 protein (Fc Chimera Active) (AB221310)

SDS-PAGE analysis of reduced ab221310 stained overnight with Coomassie Blue.

The protein migrates as 65-85 kDa on a SDS-PAGE gel under reducing conditions due to glycosylation.

Key facts

Purity

>95% SDS-PAGE

Endotoxin level

< 1 EU/µg

Expression system

HEK 293 cells

Tags

Fc tag C-Terminus

Applications

FuncS, SDS-PAGE, ELISA

applications

Biologically active

Yes

Biological activity

Measured by its binding ability in a functional ELISA. Immobilized ab221310 at 5 μg/mL (100 μL/well) can bind Recombinant mouse PD1 protein (Active) (Biotin) (ab246151) with a linear range of 0.313-5 μg/mL.

Measured by its binding ability in a functional ELISA. Immobilized Recombinant Mouse CD80 protein (Fc Chimera) (ab207101) at 5 μg/mL (100 μL/well) can bind ab221310 with a linear range of 0.16-2.5 μg/mL.

Accession

Q9EP73

Animal free

No

Carrier free

No

Species

Mouse

Reconstitution

Reconstitute at 400 µg/mL in water

Storage buffer

pH: 7.4 Constituents: PBS, 5% Trehalose

storage-buffer

style
left-column

Complementary Products

Primary Antibodies

AB205921

Anti-PD-L1 antibody [28-8]

BOND RX™ Validated|20ul selling size|Recombinant|KO Validated|Advanced Validation|RabMAb

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-PD-L1 antibody [28-8] (AB205921)

  • 4
  • 15
Proteins & Peptides

AB280753

Recombinant Human PD1 protein

Mass Spectrometry - Recombinant Human PD1 protein (AB280753)

  • 0
  • 0
Secondary Antibodies

AB150077

Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488)

Immunocytochemistry/ Immunofluorescence - Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) (AB150077)

  • 5
  • 20
Primary Antibodies

AB52587

Anti-PD1 antibody [NAT105]

BOND RX™ Validated|Recombinant

Immunohistochemistry (Frozen sections) - Anti-PD1 antibody [NAT105] (AB52587)

  • 5
  • 9
style
left-column

Reactivity data

{ "title": "Reactivity Data", "filters": { "stats": ["", "Reactivity", "Dilution Info", "Notes"] }, "values": { "SDS-PAGE": { "reactivity":"TESTED_AND_REACTS", "dilution-info":"", "notes":"<p></p>" }, "ELISA": { "reactivity":"TESTED_AND_REACTS", "dilution-info":"", "notes":"<p></p>" }, "FuncS": { "reactivity":"TESTED_AND_REACTS", "dilution-info":"", "notes":"" } } }
style
left-column

Product details

This product is stable after storage at:

  • -20°C to -70°C for 12 months in lyophilized state;
  • -70°C for 3 months under sterile conditions after reconstitution.
style
left-column

Sequence info

[{"sequence":"FTITAPKDLYVVEYGSNVTMECRFPVERELDLLALVVYWEKEDEQVIQFVAGEEDLKPQHSNFRGRASLPKDQLLKGNAALQITDVKLQDAGVYCCIISYGGADYKRITLKVNAPYRKINQRISVDPATSEHELICQAEGYPEAEVIWTNSDHQPVSGKRSVTTSRTEGMLLNVTSSLRVNATANDVFYCTFWRSQPGQNHTAELIIPELPATHPPQNRT","proteinLength":"Fragment","predictedMolecularWeight":"51.8 kDa","actualMolecularWeight":null,"aminoAcidEnd":238,"aminoAcidStart":19,"nature":"Recombinant","expressionSystem":"HEK 293 cells","accessionNumber":"Q9EP73","tags":[{"tag":"Fc","terminus":"C-Terminus"}]}]
style
left-column

Properties and storage information

Shipped at conditions
Blue Ice
Appropriate short-term storage conditions
-20°C
Appropriate long-term storage conditions
-20°C
Aliquoting information
Upon delivery aliquot
Storage information
Avoid freeze / thaw cycle
True
style
left-column

Supplementary information

This supplementary information is collated from multiple sources and compiled automatically.

PD-L1 also known as Programmed Death-Ligand 1 or CD274 is a protein involved in immune modulation. Mechanically PD-L1 interacts with its receptors particularly PD-1 to regulate cellular immune responses. This transmembrane protein has a calculated molecular weight of approximately 33 kDa. PD-L1 is expressed on various cell types including tumor cells and immune cells such as dendritic cells macrophages and B cells. Its expression is often upregulated in response to inflammatory cytokines.
Biological function summary

PD-L1 plays a central role in immune evasion mechanisms utilized by tumors. It is not part of a larger protein complex but directly interacts with PD-1 and CD80. When PD-L1 binds to PD-1 it sends inhibitory signals leading to decreased T cell activation and proliferation allowing cancer cells to avoid immune destruction. PD-L1 expression provides a mechanism for tumors to suppress immune surveillance facilitating tumor progression.

Pathways

PD-L1 is integral to the immune checkpoint pathway which is an important regulator of immune response. The interaction between PD-L1 and PD-1 provides a mechanism for immune tolerance which is part of the broader adaptive immune system pathway. PD-L1 is related to other immune checkpoint proteins such as CTLA-4 in its function to limit autoreactivity and promote immune homeostasis.

PD-L1 is most associated with cancer particularly in tumors such as melanoma and non-small cell lung cancer. PD-L1 expression on tumor cells often correlates with poor prognosis. PD-L1 directly interacts with PD-1 in these cancers a target for immunotherapies such as checkpoint inhibitors which aim to block this interaction and restore immune activity against tumors. PD-L1 involvement extends to autoimmune disorders where altered expression can impact tolerance and lead to immune-related tissue damage.
style
left-column

Specifications

Form

Lyophilized

style
left-column

General info

Function

Plays a critical role in induction and maintenance of immune tolerance to self (PubMed : 11238124). As a ligand for the inhibitory receptor PDCD1/PD-1, modulates the activation threshold of T-cells and limits T-cell effector response (PubMed : 11238124). Through a yet unknown activating receptor, may costimulate T-cell subsets that predominantly produce interleukin-10 (IL10) (PubMed : 11015443, PubMed : 12719480).. The PDCD1-mediated inhibitory pathway is exploited by tumors to attenuate anti-tumor immunity and escape destruction by the immune system, thereby facilitating tumor survival (PubMed : 12218188, PubMed : 27281199). The interaction with PDCD1/PD-1 inhibits cytotoxic T lymphocytes (CTLs) effector function (PubMed : 12218188). The blockage of the PDCD1-mediated pathway results in the reversal of the exhausted T-cell phenotype and the normalization of the anti-tumor response, providing a rationale for cancer immunotherapy (PubMed : 12218188).

Sequence similarities

Belongs to the immunoglobulin superfamily. BTN/MOG family.

Post-translational modifications

Ubiquitinated; STUB1 likely mediates polyubiquitination of PD-L1/CD274 triggering its degradation. Ubiquitinated by MARCHF8; leading to degradation. Deubiquitinated by USP22; leading to stabilization.

Subcellular localisation

Early endosome membrane

style
left-column

Product protocols

style
left-column

Target data

Plays a critical role in induction and maintenance of immune tolerance to self (PubMed : 11238124). As a ligand for the inhibitory receptor PDCD1/PD-1, modulates the activation threshold of T-cells and limits T-cell effector response (PubMed : 11238124). Through a yet unknown activating receptor, may costimulate T-cell subsets that predominantly produce interleukin-10 (IL10) (PubMed : 11015443, PubMed : 12719480).. The PDCD1-mediated inhibitory pathway is exploited by tumors to attenuate anti-tumor immunity and escape destruction by the immune system, thereby facilitating tumor survival (PubMed : 12218188, PubMed : 27281199). The interaction with PDCD1/PD-1 inhibits cytotoxic T lymphocytes (CTLs) effector function (PubMed : 12218188). The blockage of the PDCD1-mediated pathway results in the reversal of the exhausted T-cell phenotype and the normalization of the anti-tumor response, providing a rationale for cancer immunotherapy (PubMed : 12218188).
See full target information Cd274
style
left-column

Publications (1)

Recent publications for all applications. Explore the full list and refine your search

Neuron 111:2709-2726.e9 PubMed37348508

2023

PD-L1/PD-1 checkpoint pathway regulates hippocampal neuronal excitability and learning and memory behavior.

Applications

Unspecified application

Species

Unspecified reactive species

Junli Zhao,Sangsu Bang,Kenta Furutani,Aidan McGinnis,Changyu Jiang,Alexus Roberts,Christopher R Donnelly,Qianru He,Michael L James,Miles Berger,Mei-Chuan Ko,Haichen Wang,Richard D Palmiter,Ru-Rong Ji
