AB221326

Recombinant mouse PD1 protein (Fc Chimera)

Be the first to review this product! Submit a review

|

(0 Publication)

Recombinant mouse PD1 protein (Fc Chimera) is a Mouse Fragment protein, in the 21 to 167 aa range, expressed in HEK 293 cells, with >95%, < 1 EU/µg endotoxin level, suitable for SDS-PAGE, FuncS.

View Alternative Names

CD279, Pd1, Pdcd1, Programmed cell death protein 1, Protein PD-1, mPD-1

4 Images
Functional Studies - Recombinant mouse PD1 protein (Fc Chimera) (AB221326)
  • FuncS

Unknown

Functional Studies - Recombinant mouse PD1 protein (Fc Chimera) (AB221326)

Immobilized Mouse PD-L2, Fc Tag at 5 µg/mL (100 µL/well) can bind Mouse PD-1, mouse IgG2a Fc tag with a linear range of 0.078-0.625 µg/mL.

Functional Studies - Recombinant mouse PD1 protein (Fc Chimera) (AB221326)
  • FuncS

Supplier Data

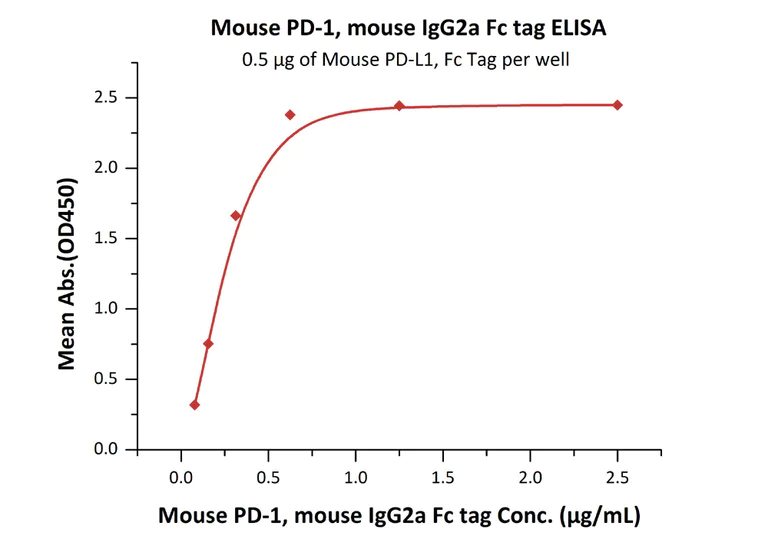

Functional Studies - Recombinant mouse PD1 protein (Fc Chimera) (AB221326)

Immobilized Mouse PD-L1, Fc Tag at 5 µg/mL (100 µL/well) can bind Mouse PD-1, mouse IgG2a Fc tag with a linear range of 0.078-0.313 µg/mL.

SDS-PAGE - Recombinant mouse PD1 protein (Fc Chimera) (AB221326)
  • SDS-PAGE

Unknown

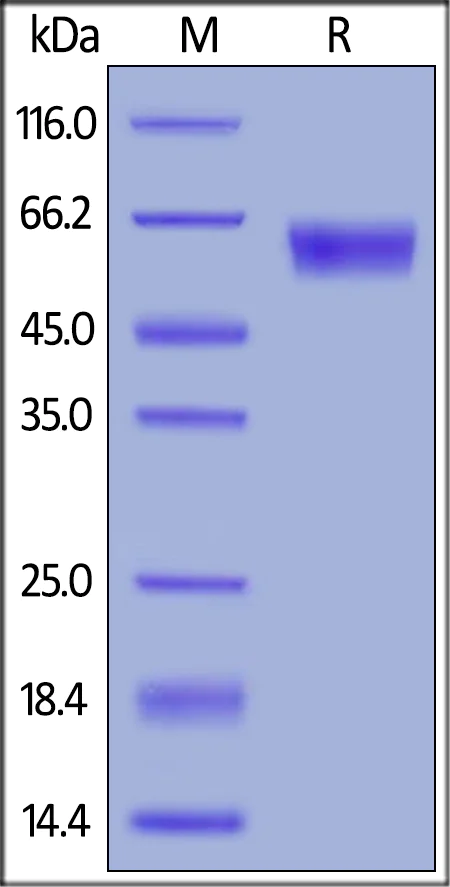

SDS-PAGE - Recombinant mouse PD1 protein (Fc Chimera) (AB221326)

Mouse PD-1, mouse IgG2a Fc tag on SDS-PAGE under reducing (R) and non-reducing (NR) conditions. The gel was stained overnight with Coomassie Blue. The purity of the protein is greater than 90%.

SDS-PAGE - Recombinant mouse PD1 protein (Fc Chimera) (AB221326)
  • SDS-PAGE

Supplier Data

SDS-PAGE - Recombinant mouse PD1 protein (Fc Chimera) (AB221326)

SDS-PAGE analysis of reduced (lane 1) and non-reduced (lane 2) ab221326 staining overnight with Coomassie Blue.

The protein migrates as 55-66 kDa under reducing conditions and 100-130 kDa under non-reducing conditions on SDS-PAGE gel.

Key facts

Purity

>95% SDS-PAGE

Endotoxin level

< 1 EU/µg

Expression system

HEK 293 cells

Tags

Fc tag C-Terminus

Applications

FuncS, SDS-PAGE

applications

Biologically active

Yes

Biological activity

Immobilized Mouse PD-L1, Fc Tag at 5 μg/mL (100 μL/well) can bind Mouse PD-1, mouse IgG2a Fc tag with a linear range of 0.078-0.313 μg/mL.

Accession

Q02242

Animal free

No

Carrier free

No

Species

Mouse

Reconstitution

Reconstitute at 400 µg/mL in water

Storage buffer

pH: 7.4 Constituents: PBS, 5% Trehalose

storage-buffer

style
left-column

Complementary Products

Proteins & Peptides

AB280943

Recombinant human PD-L1 protein (Active)

Premium Bioactive

Sandwich ELISA - Recombinant human PD-L1 protein (Active) (AB280943)

  • 0
  • 0
Primary Antibodies

AB52587

Anti-PD1 antibody [NAT105]

BOND RX™ Validated|Recombinant

Immunohistochemistry (Frozen sections) - Anti-PD1 antibody [NAT105] (AB52587)

  • 5
  • 9
Secondary Antibodies

AB150077

Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488)

Immunocytochemistry/ Immunofluorescence - Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) (AB150077)

  • 5
  • 20
Primary Antibodies

AB8227

Anti-beta Actin antibody - Loading Control

BOND RX™ Validated|Lab Essentials

Western blot - Anti-beta Actin antibody - Loading Control (AB8227)

  • 5
  • 104
style
left-column

Reactivity data

{ "title": "Reactivity Data", "filters": { "stats": ["", "Reactivity", "Dilution Info", "Notes"] }, "values": { "SDS-PAGE": { "reactivity":"TESTED_AND_REACTS", "dilution-info":"", "notes":"<p></p>" }, "FuncS": { "reactivity":"TESTED_AND_REACTS", "dilution-info":"", "notes":"<p></p>" } } }
style
left-column

Product details

Programmed cell death protein 1 (PD-1) is also known as CD279 and PDCD1, is a type I membrane protein and is a member of the extended CD28/CTLA-4 family of T cell regulators. PDCD1 is expressed on the surface of activated T cells, B cells, macrophages, myeloid cells and a subset of thymocytes. PD-1 has two ligands, PD-L1 and PD-L2, which are members of the B7 family. PD-L1 is expressed on almost all murine tumor cell lines, including PA1 myeloma, P815 mastocytoma, and B16 melanoma upon treatment with IFN-γ. PD-L2 expression is more restricted and is expressed mainly by DCs and a few tumor lines. PD1 inhibits the T-cell proliferation and production of related cytokines including IL-1, IL-4, IL-10 and IFN-γ by suppressing the activation and transduction of PI3K/AKT pathway. In addition, coligation of PD1 inhibits BCR-mediating signal by dephosphorylating key signal transducer. In vitro, treatment of anti-CD3 stimulated T cells with PD-L1-Ig results in reduced T cell proliferation and IFN-γ secretion. Monoclonal antibodies targeting PD-1 that boost the immune system are being developed for the treatment of cancer.
style
left-column

Sequence info

[{"sequence":"SGWLLEVPNGPWRSLTFYPAWLTVSEGANATFTCSLSNWSEDLMLNWNRLSPSNQTEKQAAFCNGLSQPVQDARFQIIQLPNRHDFHMNILDTRRNDSGIYLCGAISLHPKAKIEESPGAELVVTERILETSTRYPSPSPKPEGRFQ","proteinLength":"Fragment","predictedMolecularWeight":"43.7 kDa","actualMolecularWeight":null,"aminoAcidEnd":167,"aminoAcidStart":21,"nature":"Recombinant","expressionSystem":"HEK 293 cells","accessionNumber":"Q02242","tags":[{"tag":"Fc","terminus":"C-Terminus"}]}]
style
left-column

Properties and storage information

Shipped at conditions
Blue Ice
Appropriate long-term storage conditions
-20°C
Storage information
Avoid freeze / thaw cycle
True
style
left-column

Supplementary information

This supplementary information is collated from multiple sources and compiled automatically.

PD1 also known as Programmed Cell Death Protein 1 or PDCD1 is a transmembrane protein that plays a critical role in regulating immune responses. It has a mass of approximately 55 kDa. PD1 is expressed on the surface of T cells B cells and some myeloid cells. PD1’s expression increases upon activation of these immune cells assisting in maintaining peripheral tolerance. Researchers often use PD1 mouse models and chimeric antibodies to explore the function of PD1 for experimental purposes. Antibodies such as anti-PD1 such as EH12.2H7 help in blocking PD1 interaction to study its role further.
Biological function summary

PD1 serves as an inhibitory receptor acting as a checkpoint in the immune system. It becomes part of an immune-suppressive complex when it binds with its ligands PD-L1 or PD-L2 which are expressed on various cell types including some tumor cells. This interaction suppresses the proliferation of T cells and cytokine production contributing to immune homeostasis. By controlling T cell activity PD1 limits autoimmunity but can also reduce the immune system's capability to attack cancer cells.

Pathways

PD1 functions in the immune checkpoint pathway a critical regulatory circuit in immune regulation. The engagement of PD1 with its ligands initiates a cascade that inhibits the function and proliferation of T cells through downstream SHP-2 phosphatase activity. This pathway frequently involves other regulatory proteins like CTLA-4 and is an important mechanism by which the body modulates immune responses. Related pathways often intersect with those involving T cell receptor signaling and contribute to the overall modulation of immune activity.

PD1 has a significant role in cancer and autoimmune disorders. PD1 expression can allow tumors to evade immune surveillance making PD1 a target for cancer therapies such as anti-PD1 antibodies which aim to block PD1 and restore T cell activity. The interaction of PD1 with cancer-related proteins like PD-L1 facilitates tumor immune evasion. In autoimmune disorders PD1’s regulation of immune balance can become dysregulated leading to persistent immune activation and tissue damage. Understanding PD1 and its interaction with proteins such as PD-L1 helps in developing therapeutic strategies for both cancer and autoimmune conditions.
style
left-column

Specifications

Form

Lyophilized

style
left-column

General info

Function

Inhibitory receptor on antigen activated T-cells that plays a critical role in induction and maintenance of immune tolerance to self (PubMed : 10485649, PubMed : 11209085, PubMed : 11698646, PubMed : 21300912). Delivers inhibitory signals upon binding to ligands, such as CD274/PDCD1L1 and CD273/PDCD1LG2 (PubMed : 11015443, PubMed : 11224527, PubMed : 18287011, PubMed : 18641123, PubMed : 22641383). Following T-cell receptor (TCR) engagement, PDCD1 associates with TCR-CD3 in the immunological synapse and directly inhibits T-cell activation (PubMed : 22641383). Suppresses T-cell activation through the recruitment of PTPN11/SHP-2 : following ligand-binding, PDCD1 is phosphorylated within the ITSM motif, leading to the recruitment of the protein tyrosine phosphatase PTPN11/SHP-2 that mediates dephosphorylation of key TCR proximal signaling molecules, such as ZAP70, PRKCQ/PKCtheta and CD247/CD3zeta (PubMed : 11698646, PubMed : 22641383). The PDCD1-mediated inhibitory pathway is exploited by tumors to attenuate anti-tumor immunity and facilitate tumor survival (By similarity).

Post-translational modifications

Ubiquitinated at Lys-235 by the SCF(FBXO38) complex, leading to its proteasomal degradation. Ubiquitinated via 'Lys-48'-linked polyubiquitin chains. Deubiquitinated and thus stabilized by USP5.. Tyrosine phosphorylated at Tyr-225 (within ITIM motif) and Tyr-248 (ITSM motif) upon ligand binding (PubMed:11698646, PubMed:22641383). Phosphorylation at Tyr-248 by FYN promotes the recruitment of the protein tyrosine phosphatase PTPN11/SHP-2 that mediates dephosphorylation of key TCR proximal signaling molecules, such as ZAP70, PRKCQ/PKCtheta and CD247/CD3zeta (PubMed:22641383). Phosphorylation at Thr-236 promotes the recruitment of the deubiquitinase USP5 (By similarity).
