10nm Gold Nanoparticles (10 OD) (ab269934) is an aqueous suspension of spherical metallic nanoparticles.
Images
Key facts
- Form
Liquid
Recommended products
10nm Gold Nanoparticles (10 OD) (ab269934) is an aqueous suspension of spherical metallic nanoparticles.
Key facts
- Form
Liquid
- Storage buffer
pH: 7
Constituents: 0.055% Gold nanoparticles, 0.00003% Sodium citrate
Storage
- Shipped at conditions
Ambient - Cannot Ship with Ice
- Appropriate long-term storage conditions
+4°C
- Storage information
Do Not Freeze
Notes
10nm Gold Nanoparticles (10 OD) (ab269934) is an aqueous suspension of spherical metallic nanoparticles manufactured to the highest standard to ensure:
- Uniform spherical shape
- Narrow size distribution: 10nm ± 1nm, <10% CV
- Ultra high quality
- Batch to batch consistency
- High efficiency antibody binding for maximum sensitivity
- Available at high concentrations to simplify assay development.
This product is manufactured by Expedeon, an Abcam company. It was previously called 10nm Gold Nanoparticles (10 OD). Expedeon product code 3010-0020 is the same as the 20 mL size of this product and code 3010-0100 is the same as the 100 mL size.
Our colloidal Gold Nanoparticles are suspended in citrate buffer and are suitable for:
- Protein adsorption
- Oligonucleotide adsorption
- Surface modifications.
Narrow size distribution and consistent shape is important and preferable for most applications.
A consistent, spherical shape means that particles are less prone to aggregation, which can be a problem associated with gold nanoparticles. Furthermore uniform shape ensures consistent binding of antibodies, ensuring reliable assay results.
Each batch of 10nm colloidal gold undergoes TEM analysis to ensure all the requirements are met.
- Mean diameter 9–11nm
- SD <1nm
- CV% <10%
- %Irregular Shapes <10%
Product promise
We are dedicated to supporting your work with high quality reagents and we are here for you every step of the way should you need us.
In the unlikely event of one of our products not working as expected, you are covered by our product promise.
Full details and terms and conditions can be found here:
Terms & Conditions.
3 product images
Electron Microscopy - 10nm Gold Nanoparticles (10 OD) (ab269934)
Electron microscopy (TEM) example pictures showing the high consistency of size and shape of 10nm Gold Nanoparticles (10 OD) (ab269934) (A) compared to that of aggregated, irregular shaped and sized gold nanoparticles of a leading competitor (B).
Spectrum - 10nm Gold Nanoparticles (10 OD) (ab269934)
Size distribution of 10nm Gold Nanoparticles (10 OD) (ab269934) displaying a narrow size distribution with a CV (standard deviation / diameter) of less than 10%.
Spectrum - 10nm Gold Nanoparticles (10 OD) (ab269934)

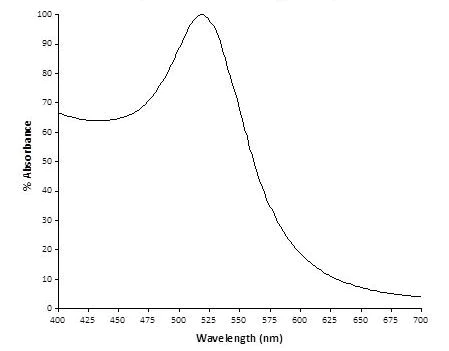

UV-Vis spectrum of 10nm Gold Nanoparticles (10 OD) (ab269934).
