AB171522

TMB ELISA Substrate (Highest Sensitivity)

Be the first to review this product! Submit a review

|

(21 Publications)

TMB ELISA Substrate (Highest Sensitivity) is a ready-to use tetramethylbenzidine solution for ELISA applications.

- Detects horseraddish peroxydase (HRP)
- Blue reaction product - can be read at 370 nm or in a range of 620 to 650 nm
- Combined with Stop solutions for TMB substrate: develops a yellow product that can be read at 450 nm
2 Images
ELISA - TMB ELISA Substrate (Highest Sensitivity) (AB171522)
  • ELISA

Unknown

ELISA - TMB ELISA Substrate (Highest Sensitivity) (AB171522)

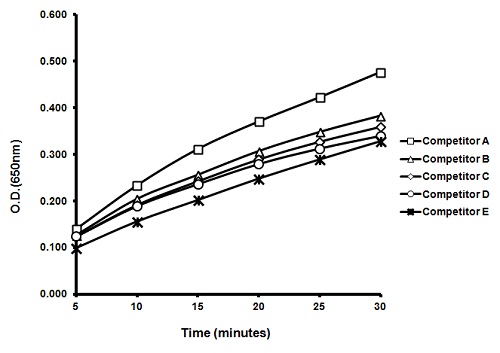

Rapid Detection
TMB ELISA Substrate (Highest Sensitive) (ab171522) has the fastest overall enzyme kinetics for rapid color formation and improved assay sensitivity and performance.

ELISA - TMB ELISA Substrate (Highest Sensitivity) (AB171522)
  • ELISA

Unknown

ELISA - TMB ELISA Substrate (Highest Sensitivity) (AB171522)

Key facts

Applications

ELISA

applications

Form

Liquid

form

Storage buffer

pH: 1 - 5 Constituents: 79% Water, 0.1% Hydrogen peroxide, 0.05% 3,3',5,5'-Tetramethylbenzidine

storage-buffer

Reactivity data

{ "title": "Reactivity Data", "filters": { "stats": ["", "Reactivity", "Dilution Info", "Notes"] }, "values": { "IHC-P": { "reactivity":"TESTED_AND_DOES_NOT_REACT", "dilution-info":"", "notes":"<p></p>" }, "IHC-Fr": { "reactivity":"TESTED_AND_DOES_NOT_REACT", "dilution-info":"", "notes":"<p></p>" }, "ELISA": { "reactivity":"TESTED_AND_REACTS", "dilution-info":"", "notes":"<p></p>" } } }

Product details

Abcam's TMB ELISA Substrate (Highest Sensitive) detects horseradish peroxidase (HRP) activity and contains 3,3',5,5'-tetramethylbenzidine in a mildly acidic buffer. The substrate is supplied as a ready to use solution. Unreacted substrate should be colorless or very light yellow in appearance. When this substrate system is reacted with peroxidase, a soluble blue reaction product is obtained. The reaction can be stopped using appropriate stop solution, producing a soluble yellow or soluble blue reaction product, depending upon the stop reagent used, which is stable for at least 1 hour. ab171522 is not recommended for membrane or immunohistochemical applications that require a precipitating reaction product.

Product Use:
ab171522 is supplied as a ready to use solution. The product should be allowed to equilibrate to room temperature (25°C) prior to use. For microwell applications, 100 μL of substrate solution is added to each well. A soluble blue reaction product develops which can be read at 370 nm or in a range of 620 nm to 650 nm. For best results, sample absorbance values should be monitored and read before absorbance values exceed 2.0 OD units. In endpoint assays, the substrate reaction can be stopped using equal volumes of 1 N HCl, 0.6 N sulfuric acid, or one of the stop solutions (ab171529 and ab171531). Addition of acid turns the blue color to yellow and stops the enzymatic reaction. In the case of the 650 nm Stop Solutions for TMB Substrate (ab171531), the blue color does not change. Since stopping the reaction increases sample absorbance values approximately three fold, unless using the 650 nm Stop Solutions for TMB Substrate (ab171531), sample OD values should be monitored and substrate reaction stopped when values reach approximately 0.7 OD units. After stopping with the 450 nm Stop Solutions for TMB Substrate (ab171529), a soluble yellow product develops which is read in the 450 nm range. Stopping with the 650 nm Stop Solutions for TMB Substrate (ab171531) produces a soluble blue product which is read in the 650 nm range. Dilution of the substrate is not recommended. To reduce the intensity of a reaction, it is recommended that the antibodies or conjugates be diluted.

Storage Instructions:

Exposure to direct sunlight and other UV sources should be avoided due to the light sensitive nature of the TMB molecule.

Properties and storage information

Shipped at conditions
Ambient - Can Ship with Ice
Appropriate short-term storage conditions
+4°C
Appropriate long-term storage conditions
+4°C
Storage information
Store in the dark
