TMB ELISA Substrate (Slowest Kinetic Rate) is a ready-to use tetramethylbenzidine solution for ELISA applications.

- Detects horseraddish peroxydase (HRP)
- Blue reaction product - can be read at 370 nm or in a range of 620 to 650 nm
- Combined with Stop solutions for TMB substrate: develops a yellow product that can be read at 450 nm

Be the first to review this product! Submit a review

Images

ELISA - TMB ELISA Substrate (Slowest Kinetic Rate) (AB171527), expandable thumbnail
  • ELISA - TMB ELISA Substrate (Slowest Kinetic Rate) (AB171527), expandable thumbnail
  • ELISA - TMB ELISA Substrate (Slowest Kinetic Rate) (AB171527), expandable thumbnail

Publications

Key facts

Applications
ELISA
Form
Liquid

Reactivity data

Application
ELISA
Reactivity
Reacts
Dilution info
1/1
Notes

100 µL of substrate solution is added to each well.

Application
IHC-P
Reactivity
No
Dilution info
-
Notes

-

Application
IHC-Fr
Reactivity
No
Dilution info
-
Notes

-

Associated Products

Select an associated product type

5 products for Alternative Product

Recommended products

TMB ELISA Substrate (Slowest Kinetic Rate) is a ready-to use tetramethylbenzidine solution for ELISA applications.

- Detects horseraddish peroxydase (HRP)
- Blue reaction product - can be read at 370 nm or in a range of 620 to 650 nm
- Combined with Stop solutions for TMB substrate: develops a yellow product that can be read at 450 nm

Key facts

Applications
ELISA
Form
Liquid
Storage buffer

pH: 1 - 5
Constituents: 79% Water, 0.1% Hydrogen peroxide, 0.05% 3,3',5,5'-Tetramethylbenzidine

Storage

Shipped at conditions
Ambient - Can Ship with Ice
Appropriate short-term storage conditions
+4°C
Appropriate long-term storage conditions
+4°C

Notes

Abcam's TMB ELISA Substrate (Slowest Kinetic Rate) contains 3,3',5,5'-tetramethylbenzidine in a mildly acidic buffer. The substrate is supplied as a ready to use solution. Unreacted substrate should be colorless or very light yellow in appearance. When this substrate system is reacted with peroxidase, a soluble blue reaction product is obtained. The reaction can be stopped using appropriate stop solution (see below), producing a soluble yellow or soluble blue reaction product, depending upon the stop reagent used, which is stable for at least 1 hour. ab171527 is not recommended for membrane or immunohistochemical applications that require a precipitating reaction product.

Product Use:
1. Allow substrate to equilibrate to room temperature (25°C) before use. Be sure to protect it from light during this process.
2. After final antibody incubation and wash steps, tap the ELISA plate to remove excess liquid and add 100 μL of TMB substrate. The amount of substrate used should be tailored to your assay requirements.
3. A soluble, blue color will slowly develop and can be read at 650 nm.
4. Color development time can range between 10-40 minutes depending on the assay and will also depend on the method used to stop the reaction (see below). It is recommended that development time be optimized for your particular assay condition, however, a substrate color development time of less than 10 minutes is not recommended to ensure consistency of results.
5. In endpoint assays, the substrate reaction can be stopped using equal volumes of 1 N HCl, 0.6 N sulfuric acid, or one of the Stop Solutions for TMB Substrates. (See 6a and 6b for O.D. recommendations)
6. Stop Solutions have been optimized based on the desired endpoint.
a) The 450 nm Stop Solution is 450 nm Stop Solution for TMB Substrate ab171529. They produce a soluble yellow product. Since stopping the reaction increases sample absorbance values approximately 2.5 fold, the maximum O.D. at 650 nm should be 1.2 to 1.3.
b) The 650 nm Stop Solution is 650 nm Stop Solution for TMB Substrate ab171531, which maintains the soluble blue color. Stopping with these reagents allows for the generation of O.D. values at 650 nm of up to 3.0, above which absorbance values are no longer linear with concentration. The 650 nm Stop Reagents are recommended for assays that need a large dynamic range without sacrificing detection limit.
7. If the reaction color is too intense, it is recommended that you dilute either your antibody or conjugate. Dilution of the TMB substrate is NOT recommended.

Storage Instructions:

Exposure to direct sunlight and other UV sources should be avoided due to the light sensitive nature of the TMB molecule.

Product promise

We are dedicated to supporting your work with high quality reagents and we are here for you every step of the way should you need us.

In the unlikely event of one of our products not working as expected, you are covered by our product promise.

Full details and terms and conditions can be found here:
Terms & Conditions.

3 product images

  • ELISA - TMB ELISA Substrate (Slowest Kinetic Rate) (ab171527), expandable thumbnail

    ELISA - TMB ELISA Substrate (Slowest Kinetic Rate) (ab171527)

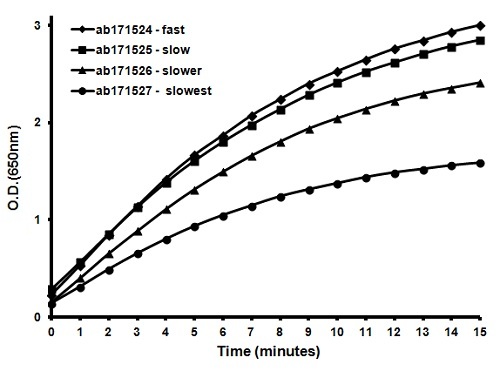

    Comparison of the kinetic curves of several TMB substrates at 500 pg/mL msIgG monitored over time at 650 nm.

  • ELISA - TMB ELISA Substrate (Slowest Kinetic Rate) (ab171527), expandable thumbnail

    ELISA - TMB ELISA Substrate (Slowest Kinetic Rate) (ab171527)

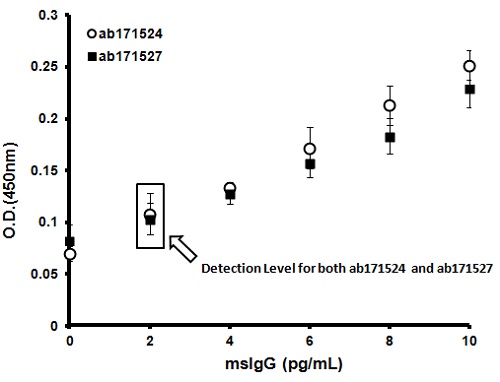

    Expanded graph at the lower concentrations using TMB ELISA Substrate (Fast Kinetic Rate) (TMB ELISA Substrate (Fast Kinetic Rate) ab171524) and TMB ELISA Substrate (Slowest Kinetic Rate) (ab171527). Both TMB ELISA Substrate (Fast Kinetic Rate) ab171524 and ab171527 have the same detection limit.

  • ELISA - TMB ELISA Substrate (Slowest Kinetic Rate) (ab171527), expandable thumbnail

    ELISA - TMB ELISA Substrate (Slowest Kinetic Rate) (ab171527)

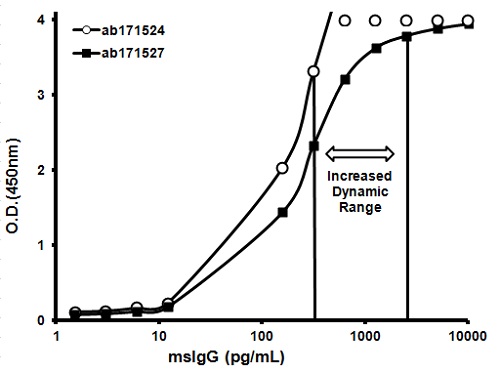

    Standard curve comparison for TMB ELISA Substrate (Fast Kinetic Rate) (TMB ELISA Substrate (Fast Kinetic Rate) ab171524) and TMB ELISA Substrate (Slowest Kinetic Rate) (ab171527) stopped and read at 450 nm. Results show an extended dynamic range when ab171527 is used.

Downloads

Product protocols

For this product, it's our understanding that no specific protocols are required. You can:

Please note: All products are 'FOR RESEARCH USE ONLY. NOT FOR USE IN DIAGNOSTIC OR THERAPEUTIC PROCEDURES'.
