AB325300

Alpaca monoclonal [14A4] Anti-Mouse IgG2a/b antibody (ATTO 488) - FluoTag®-X2

Be the first to review this product! Submit a review

|

(0 Publication)

Fully defined & ready-to-go fluorescent camelid single-domain antibody (sdAb) conjugates featuring FluoTag® and Smart Secondaries® technologies.

  • Quantitative and reliable readout in all fluorescence-based analyses
  • Defined number of fluorophores enhance brightness of signals
  • Improved localization accuracy ideal for super resolution imaging
  • Recognizes conventional immunoglobulins with exquisite species and isotype specificity

View Alternative Names

Immunoglobulin heavy chain gamma polypeptide, Ighg

2 Images
Immunocytochemistry/ Immunofluorescence - Alpaca monoclonal [14A4] Anti-Mouse IgG2a/b antibody (ATTO 488) - FluoTag®-X2 (AB325300)
  • ICC/IF

Supplier Data

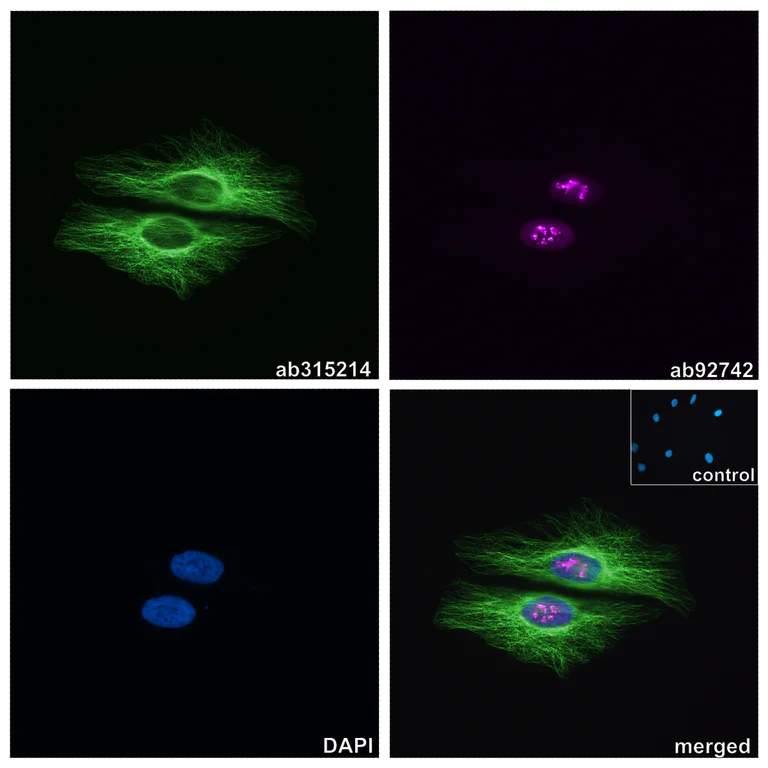

Immunocytochemistry/ Immunofluorescence - Alpaca monoclonal [14A4] Anti-Mouse IgG2a/b antibody (ATTO 488) - FluoTag®-X2 (AB325300)

Immunofluorescent analysis of 4% paraformaldehyde fixed, 0.1% TritonX-100 permeabilized, quenched with 0.1M ammonium chloride, and blocked with 10% normal goat serum in PBS HeLa (human cervical cancer cells) cells labelling beta Tubulin with ab315214 at 1 : 2000 (0.50 µg/ml) dilution, followed by ab325300 Alpaca monoclonal [14A4] Anti-Mouse IgG2a/b antibody (ATTO 488) - FluoTag®-X2 at 1/500 (0.15 µg/ml per sdAb) dilution (green).

Confocal image showing cytoplasmic staining in HeLa cells (shown in green). The counterstain was observed in purple. Nuclear DNA was labelled with DAPI (shown in blue).

Image was taken with a fluorescence microscope (Zeiss Axio Imager Z1).

ab92742 anti-Ki67 antibody was used to counterstain Ki67 at 1/1000 (0.85 µg/ml) dilution (purple).

Secondary antibody only control : Secondary antibody is ab325300 Alpaca monoclonal [14A4] Anti-Mouse IgG2a/b antibody (ATTO 488) - FluoTag®-X2 at 1/500 (0.15 µg/ml per sdAb) dilution.

Other - Alpaca monoclonal [14A4] Anti-Mouse IgG2a/b antibody (ATTO 488) - FluoTag®-X2 (AB325300)
  • Other

Supplier Data

Other - Alpaca monoclonal [14A4] Anti-Mouse IgG2a/b antibody (ATTO 488) - FluoTag®-X2 (AB325300)

Smart Secondary®

Smart Secondary® sdAb generally recognize the Fc domain on the respective primary antibody (the only exception being the FluoTag-X2 anti-Mouse Kappa light chain). Due to the inherent symmetry of the target antibody, two secondary nanobodies will be able to bind each primary antibody. Our secondary FluoTag®-X2 reagents will therefore target 4 fluorophores to each primary antibody. Our anti-Rabbit IgG tools are also available as FluoTag®-X4.

This reagent is a blend of two sdAbs independently binding the same target molecule. As each target site is present twice and each sdAb carries two fluorophores, this reagent can target up to eight fluorophores to each primary antibody – ideal for bright images!

Key facts

Host species

Alpaca

Target species

Mouse

Target isotype

IgG2a, IgG2b

Target specificity

Heavy chain hinge

Minimal cross-reactivity
Pre-adsorbed

No

Conjugation

ATTO 488

Excitation/Emission
Applications

ICC/IF

applications

Clonality

Monoclonal

Clone number

14A4

Isotype

IgG

Immunogen

The exact immunogen used to generate this antibody is proprietary information.

Reactivity data

{ "title": "Reactivity Data", "filters": { "stats": ["", "Reactivity", "Dilution Info", "Notes"] }, "values": { "ICC/IF": { "reactivity":"TESTED_AND_REACTS", "dilution-info":"1/500", "notes":"<p></p>" } } }

Product details

FluoTags®

FluoTags are fully defined & ready-to-go fluorescent camelid single-domain antibody (sdAb) conjugates. All FluoTags® carry a defined number of fluorophores at known positions. Accordingly, they are available as FluoTag®-X2 or FluoTag®X4.

Together with their monovalent binding mode, the defined fluorophore conjugation of FluoTags® results in a more quantitative and reliable readout in all fluorescence-based analyses. Due to the small size the fluorophore displacement from the bound target protein is very low and therefore FluoTags® are ideal for standard super resolution technologies.

FluoTag®-X2 (One target - One sdAb – Two fluorophores (1:1:2)

FluoTag®-X2 reagents are composed of a single sdAb carrying two fluorophores per protein molecule. The maximal displacement of fluorophores from the antigen-binding surface is ~3 nm. FluoTag®-X2 reagents show good tissue penetration features.

Features:

  • High affinity monovalent binding + two fluorophores per sdAb for brighter signals
  • Reagent is made from small-sized proteins. This ensures optimal access to the respective target protein, also in crowded environment or 3D samples.

Smart Secondaries®

Smart Secondaries® are a unique set of high-affinity single-domain antibodies recognizing conventional immunoglobulins with exquisite species and isotype specificity. They provide unique benefits for all antibody-based assays in research and diagnostics by combining reproducible specificity and production with small and high-affinity monovalent binding. The technology offers surprising new possibilities like one-step indirect immunofluorescence or easy multiplexing.

In comparison to conventional secondary reagents, Smart Secondary® nanobodies feature significant advantages:

  1. Small probes for enhanced staining speed and improved tissue penetration and higher resolution.
  2. Monoclonal tools: Clearly defined species specificity – once and forever!
  3. Isotype specificity for independent detection of mouse IgG1 and IgG2a/b isotypes.
  4. Recombinant production for reliable quality, scalability and reproducibility without using animals.
  5. Monovalent binding mode – Pre-incubation without clustering primary antibodies and therefore one-step indirect immunofluorescence possible!
  6. Extraordinarily strong binding allows one-step multi-colour staining and imaging even with primary antibodies from identical species and isotype (Multiplexing)
  7. Equipped with propriety FX technology for improved post-fixation and enhanced performance in demanding application (e.g., expansion microscopy, DNA-PAINT, dSTORM, etc.

Properties and storage information

Form
Liquid
Purification technique
Size-exclusion chromatography
Storage buffer
Constituents: PBS, 50% Glycerol (glycerin, glycerine)
Shipped at conditions
Blue Ice
Appropriate short-term storage duration
1 month
Appropriate short-term storage conditions
-20°C
Appropriate long-term storage conditions
-80°C
Aliquoting information
Upon delivery aliquot
Storage information
Avoid freeze / thaw cycle

Product protocols

websiteProtocolBooklet
en
websiteProtocolBooklet
en

Product promise

We are committed to supporting your work with high-quality reagents, and we're here for you every step of the way. In the unlikely event that one of our products does not perform as expected, you're protected by our Product Promise.
For full details, please see our Terms & Conditions

Please note: All products are 'FOR RESEARCH USE ONLY. NOT FOR USE IN DIAGNOSTIC OR THERAPEUTIC PROCEDURES'.
