Goat Anti-Chicken IgY H&L (Alexa Fluor® 488) preadsorbed

40 product images

•

  Immunocytochemistry/ Immunofluorescence - Goat Anti-Chicken IgY H&L (Alexa Fluor® 488) preadsorbed (ab150173)

  ICC/IF image of ab89984 stained HeLa cells. The cells were 4% formaldehyde fixed (10 min) and then incubated in 1%BSA / 10% normal goat serum / 0.3M glycine in 0.1% PBS-Tween for 1h to permeabilise the cells and block non-specific protein-protein interactions. The cells were then incubated with the antibody (ab89984, 5µg/ml) overnight at +4°C. The secondary antibody (green) was ab150173 Alexa Fluor® 488 goat anti-chicken IgG (H+L) used at 2µg/ml for 1h. DAPI was used to stain the cell nuclei (blue) at a concentration of 1.43µM.

•

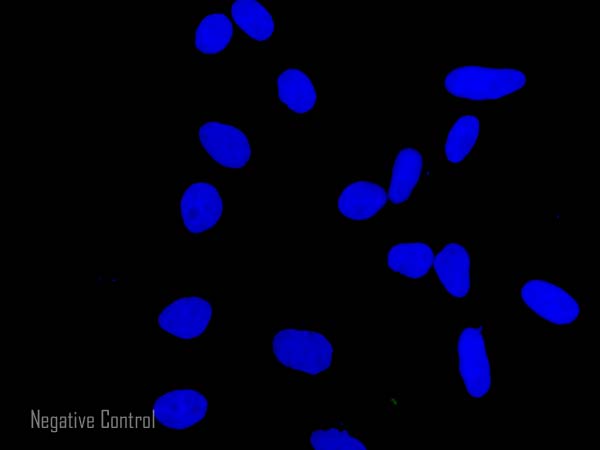

  Immunocytochemistry/ Immunofluorescence - Goat Anti-Chicken IgY H&L (Alexa Fluor® 488) preadsorbed (ab150173)

  HeLa cells showing negative staining by ICC/IF using only secondary antibody. The cells were 4% formaldehyde fixed (10 min) and then incubated in 1%BSA / 10% normal goat serum / 0.3M glycine in 0.1% PBS-Tween for 1h to permeabilise the cells and block non-specific protein-protein interactions. The secondary antibody (green) was ab150173 Alexa Fluor® 488 goat anti-chicken IgG (H+L) used at 2µg/ml for 1h. DAPI was used to stain the cell nuclei (blue) at a concentration of 1.43µM.

•

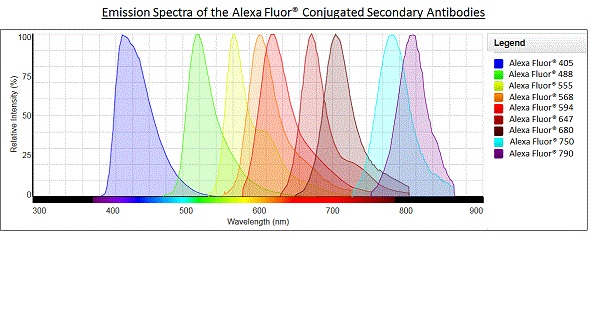

  Alexa Fluor® - Goat Anti-Chicken IgY H&L (Alexa Fluor® 488) preadsorbed (ab150173)
•

  Immunohistochemistry (Frozen sections) - Goat Anti-Chicken IgY H&L (Alexa Fluor® 488) preadsorbed (ab150173)
•

  Immunocytochemistry/ Immunofluorescence - Goat Anti-Chicken IgY H&L (Alexa Fluor® 488) preadsorbed (ab150173)

  Immunofluorescent analysis of 4% Paraformaldehyde-fixed, 0.1% Triton X-100 permeabilized Jurkat (human T cell leukemia T lymphocyte from peripheral blood) cells labeling IL-2 with Anti-IL-2 antibody [EPR20055] - Chicken IgY (Chimeric) ab306565 at 1/100 dilution, followed by ab150173 Goat Anti-Chicken IgY H&L (Alexa Fluor® 488) preadsorbed antibody at 1/1000 dilution (2 ug/ml) (Green).
  Confocal image showing cytoplasmic staining in Jurkat cells treated with TPA (40 nM) and A23187 (2 uM) for 1 h, then together with BFA (300 ng/ml) for another 23 h.
  Image was taken with a confocal microscope (Leica-Microsystems, TCS SP8). Alexa Fluor® 594 Anti-alpha Tubulin antibody [DM1A] - Microtubule Marker ab195889 Anti-alpha Tubulin mouse monoclonal antibody - Microtubule Marker (Alexa Fluor® 594) was used to counterstain tubulin at 1/200 dilution (2.5ug/ml) (Red). The nuclear counterstain was DAPI (Blue).

  Secondary antibody only control: Secondary antibody is ab150173 Goat Anti-Chicken IgY H&L (Alexa Fluor® 488) preadsorbed at 1/1000 dilution (2 ug/ml).

•

  Immunocytochemistry/ Immunofluorescence - Goat Anti-Chicken IgY H&L (Alexa Fluor® 488) preadsorbed (ab150173)

  Immunofluorescent analysis of 100% methanol-fixed, 0.1% TritonX-100 permeabilized HepG2 (human hepatocellular carcinoma epithelial cell) cells labelling CTSD (cathepsin D) with Anti-Cathepsin D antibody [EPR3057Y] - Chicken IgY (Chimeric) ab302646 at 1/100 (8.1 ug/ml ) dilution, followed by ab150173 Goat Anti-Chicken IgY H&L (Alexa Fluor® 488) preadsorbed antibody at 1/1000 2 ug/ml dilution (Green). Confocal image showing cytoplasmic staining in HepG2 cell line is observed. Anti-beta Tubulin antibody [EPR16774] - Loading Control ab179513 Anti-beta Tubulin rabbit monoclonal antibody was used to counterstain tubulin at 1/200 10ug/ml dilution (Red). The Nuclear counterstain was DAPI (Blue). Secondary antibody only control: Secondary antibody is ab150173 Goat Anti-Chicken IgY H&L (Alexa Fluor® 488) preadsorbed at 1/1000 2 ug/ml dilution.

•

  Immunocytochemistry/ Immunofluorescence - Goat Anti-Chicken IgY H&L (Alexa Fluor® 488) preadsorbed (ab150173)

  Immunofluorescent analysis of 100% methanol-fixed, 0.1% TritonX-100 permeabilized Neuro-2a (mouse neuroblastoma neuroblast) cells labelling CTSD (cathepsin D) with Anti-Cathepsin D antibody [EPR3057Y] - Chicken IgY (Chimeric) ab302646 at 1/100 (8.1 ug/ml ) dilution, followed by ab150173 Goat Anti-Chicken IgY H&L (Alexa Fluor® 488) preadsorbed antibody at 1/1000 2 ug/ml dilution (Green). Confocal image showing cytoplasmic staining in Neuro-2a cell line is observed. Anti-beta Tubulin antibody [EPR16774] - Loading Control ab179513 Anti-beta Tubulin rabbit monoclonal antibody was used to counterstain tubulin at 1/200 10ug/ml dilution (Red). The Nuclear counterstain was DAPI (Blue). Secondary antibody only control: Secondary antibody is ab150173 Goat Anti-Chicken IgY H&L (Alexa Fluor® 488) preadsorbed at 1/1000 2 ug/ml dilution.

•

  Immunocytochemistry/ Immunofluorescence - Goat Anti-Chicken IgY H&L (Alexa Fluor® 488) preadsorbed (ab150173)

  Immunofluorescent analysis of 4% Paraformaldehyde-fixed, 0.1% TritonX-100 permeabilized HeLa (human cervix adenocarcinoma epithelial cell) cells labelling GM130 with Anti-GM130 antibody [EP892Y] - Chicken IgY (Chimeric) ab302489 at 1/500 (1.814 ug/ml) dilution, followed by ab150173 Goat Anti-Chicken IgY H&L (Alexa Fluor® 488) preadsorbed antibody at 1/1000 2 ug/ml dilution (Green). Confocal image showing golgi staining in HeLa cell line is observed. Anti-GM130 antibody [EP892Y] - cis-Golgi Marker ab52649 Anti-GM130 rabbit monoclonal antibody - cis-Golgi Marker was used to counterstain tubulin at 1/100 5ug/ml dilution (Red). The Nuclear counterstain was DAPI (Blue). Secondary antibody only control: Secondary antibody is ab150173 Goat Anti-Chicken IgY H&L (Alexa Fluor® 488) preadsorbed at 1/1000 2 ug/ml dilution.

•

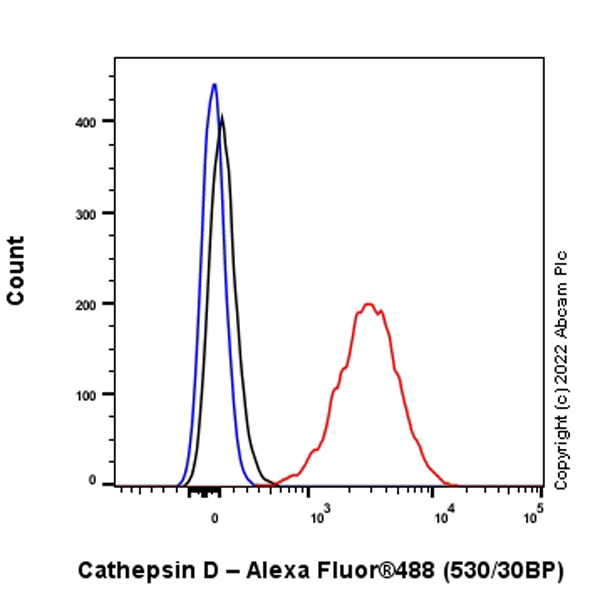

  Flow Cytometry (Intracellular) - Goat Anti-Chicken IgY H&L (Alexa Fluor® 488) preadsorbed (ab150173)

  Flow cytometric analysis of 4% paraformaldehyde fixed 90% methanol permeabilized HepG2 (human hepatocellular carcinoma epithelial cell) cells labelling CTSD (cathepsin D) with Anti-Cathepsin D antibody [EPR3057Y] - Chicken IgY (Chimeric) ab302646 at 1/1000 dilution (0.1ug) (Red) compared with a Chicken IgY (Black) isotype control and an unlabelled control (cells without incubation with primary antibody and secondary antibody) (Blue). A Goat anti-Chicken IgY H&L (Alexa Fluor® 488, ab150173) at 1/2000 dilution was used as the secondary antibody.

•

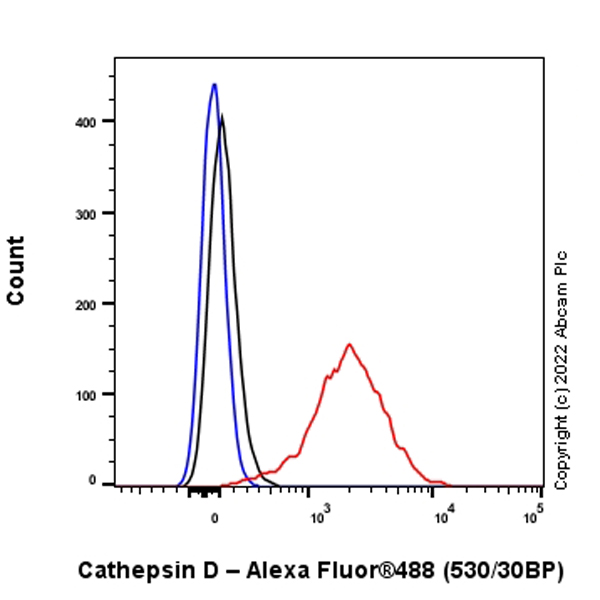

  Flow Cytometry (Intracellular) - Goat Anti-Chicken IgY H&L (Alexa Fluor® 488) preadsorbed (ab150173)

  Flow cytometric analysis of 4% paraformaldehyde fixed 90% methanol permeabilized Neuro-2a (mouse neuroblastoma neuroblast) cells labelling CTSD (cathepsin D) with Anti-Cathepsin D antibody [EPR3057Y] - Chicken IgY (Chimeric) ab302646 at 1/1000 dilution (0.1ug) (Red) compared with a Chicken IgY (Black) isotype control and an unlabelled control (cells without incubation with primary antibody and secondary antibody) (Blue). A Goat anti-Chicken IgY H&L (Alexa Fluor® 488, ab150173) at 1/2000 dilution was used as the secondary antibody.

•

  Flow Cytometry (Intracellular) - Goat Anti-Chicken IgY H&L (Alexa Fluor® 488) preadsorbed (ab150173)

  Flow cytometric analysis of 4% paraformaldehyde fixed 90% methanol permeabilized HeLa (human cervix adenocarcinoma epithelial cell) cells labelling GM130 with Anti-GM130 antibody [EP892Y] - Chicken IgY (Chimeric) ab302489 at 1/1000 dilution (0.1ug) (Red) compared with a Chicken IgY (Black) isotype control and an unlabelled control (cells without incubation with primary antibody and secondary antibody) (Blue). A Goat anti-Chicken IgY H&L (Alexa Fluor® 488, ab150173) at 1/2000 dilution was used as the secondary antibody.

•

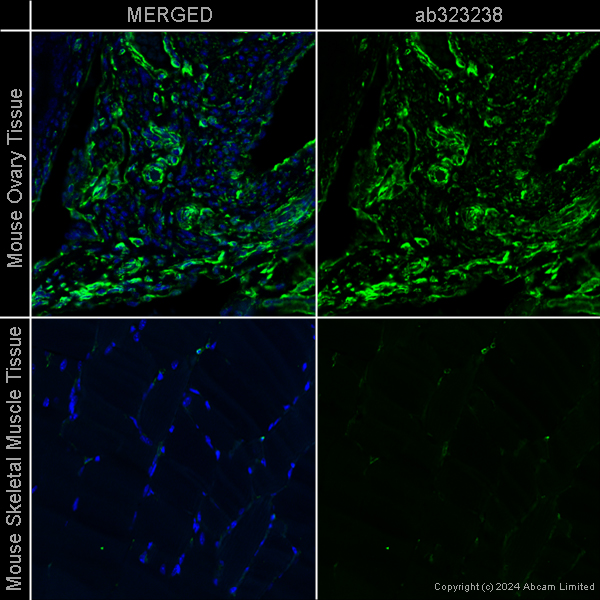

  Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Goat Anti-Chicken IgY H&L (Alexa Fluor® 488) preadsorbed (ab150173)

  Immunofluorescence staining of VIM in sections of formalin-fixed paraffin-embedded mouse ovary (positive) and mouse skeletal muscle (negative).

  Performed on a Leica BOND. The section was pre-treated using heat mediated antigen retrieval with sodium citrate (pH6.0) for 20 minutes. The section was then incubated at room temperature for 1 hour with Anti-Vimentin antibody [EPR3776] - Cytoskeleton Marker – Chicken IgY (Chimeric) ab323238 at 1/500 dilution and then incubated for 1 hour with ab150173 Goat Anti-Chicken IgG H&L (Alexa Fluor® 488) preadsorbed at 1/1000 dilution (shown in green). Nuclear DNA was labelled with DAPI (shown in blue). The section was then mounted using Dako Fluorescence Mounting Medium®.Image was taken with a confocal microscope (Leica-Microsystems, TCS SP8).For other IHC staining systems (automated and non-automated), customers should optimize variable parameters such as antigen retrieval conditions, antibody concentrations and incubation times.

•

  Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Goat Anti-Chicken IgY H&L (Alexa Fluor® 488) preadsorbed (ab150173)

  Immunofluorescence staining of VIM in sections of formalin-fixed paraffin-embedded human kidney (positive) and human skeletal muscle (negative)*.

  Performed on a Leica BOND. The section was pre-treated using heat mediated antigen retrieval with sodium citrate (pH6.0) for 20 minutes. The section was then incubated at room temperature for 1 hour with Anti-Vimentin antibody [EPR3776] - Cytoskeleton Marker – Chicken IgY (Chimeric) ab323238 at 1/500 dilution and then incubated for 1 hour with ab150173 Goat Anti-Chicken IgG H&L (Alexa Fluor® 488) preadsorbed at 1/1000 dilution (shown in green). Nuclear DNA was labelled with DAPI (shown in blue). The section was then mounted using Dako Fluorescence Mounting Medium®.
  Image was taken with a confocal microscope (Leica-Microsystems, TCS SP8).For other IHC staining systems (automated and non-automated), customers should optimize variable parameters such as antigen retrieval conditions, antibody concentrations and incubation times.
  *Tissue obtained from the Human Research Tissue Bank, supported by the NIHR Cambridge Biomedical Research Centre.

•

  Immunocytochemistry/ Immunofluorescence - Goat Anti-Chicken IgY H&L (Alexa Fluor® 488) preadsorbed (ab150173)

  Anti-Vimentin antibody [EPR3776] - Cytoskeleton Marker – Chicken IgY (Chimeric) ab323238 staining VIM in Hap1 (positive) and Hap1-VIM KO (negative) cells. The cells were fixed with 100% methanol (5 min), permeabilized with 0.1% PBS-Triton X-100 for 5 minutes and then blocked with 1% BSA/10% normal goat serum/0.3M glycine in 0.1%PBS-Tween for 1h. The cells were then incubated overnight at 4° C with Anti-Vimentin antibody [EPR3776] - Cytoskeleton Marker – Chicken IgY (Chimeric) ab323238 at 1ug/ml (shown in green) and Alexa Fluor® 594 Anti-alpha Tubulin antibody [EP1332Y] - Microtubule Marker ab202272, Alexa Fluor® 594 Rabbit monoclonal [EP1332Y] to alpha Tubulin - Microtubule Marker (shown in pseudocolour magenta). Cells were then incubated with ab150173, Goat Anti-Chicken IgY H&L (Alexa Fluor® 488) preadsorbed at 1/1000 dilution. Nuclear DNA was labelled with DAPI (shown in blue).

  Also suitable in cells fixed with 4% paraformaldehyde (10 min).

  Image was acquired with a high-content analyser (Operetta CLS, Perkin Elmer) and a maximum intensity projection of confocal sections is shown.

•

  Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Goat Anti-Chicken IgY H&L (Alexa Fluor® 488) preadsorbed (ab150173)

  Immunofluorescence staining of GFAP in sections of formalin-fixed paraffin-embedded rat brain (positive) and rat skeletal muscle (negative).Performed on a Leica BOND. The section was pre-treated using heat mediated antigen retrieval with sodium citrate (pH6.0) for 20 minutes. The section was then incubated at room temperature for 1 hour with Anti-GFAP antibody [EPR1034Y] – Chicken IgY (Chimeric) ab323239 at 1/500 dilution and then incubated for 1 hour with ab150173 Goat Anti-Chicken IgG H&L (Alexa Fluor® 488) preadsorbed at 1/1000 dilution (shown in green). Nuclear DNA was labelled with DAPI (shown in blue). The section was then mounted using Dako Fluorescence Mounting Medium®.Image was taken with a confocal microscope (Leica-Microsystems, TCS SP8).For other IHC staining systems (automated and non-automated), customers should optimize variable parameters such as antigen retrieval conditions, antibody concentrations and incubation times.

•

  Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Goat Anti-Chicken IgY H&L (Alexa Fluor® 488) preadsorbed (ab150173)

  Immunofluorescence staining of GFAP in sections of formalin-fixed paraffin-embedded mouse brain (positive) and mouse skeletal muscle (negative).Performed on a Leica BOND. The section was pre-treated using heat mediated antigen retrieval with sodium citrate (pH6.0) for 20 minutes. The section was then incubated at room temperature for 1 hour with Anti-GFAP antibody [EPR1034Y] – Chicken IgY (Chimeric) ab323239 at 1/500 dilution and then incubated for 1 hour with ab150173 Goat Anti-Chicken IgG H&L (Alexa Fluor® 488) preadsorbed at 1/1000 dilution (shown in green). Nuclear DNA was labelled with DAPI (shown in blue). The section was then mounted using Dako Fluorescence Mounting Medium®.Image was taken with a confocal microscope (Leica-Microsystems, TCS SP8).For other IHC staining systems (automated and non-automated), customers should optimize variable parameters such as antigen retrieval conditions, antibody concentrations and incubation times.

•

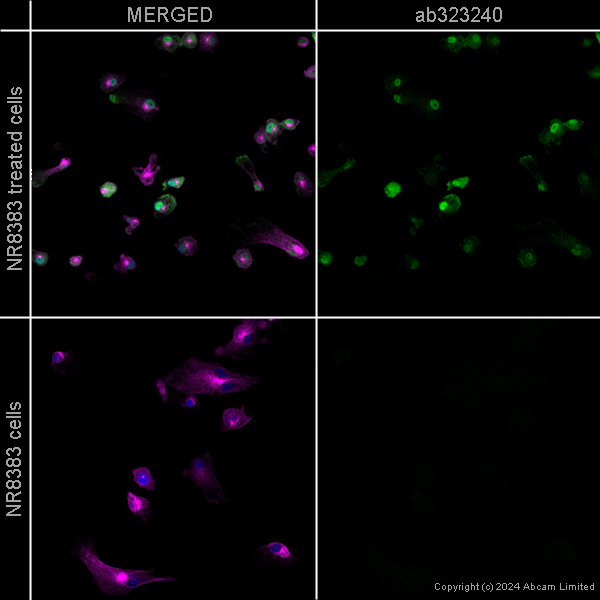

  Immunocytochemistry/ Immunofluorescence - Goat Anti-Chicken IgY H&L (Alexa Fluor® 488) preadsorbed (ab150173)

  Anti-IL-1 beta antibody [EPR23851-127] – Chicken IgY (Chimeric) ab323240 staining IL1B in NR8383 +/- 100ng/ml LPS 7h, with 1ug/ml Brefeldin A for last 3h cells. The cells were fixed with 4% paraformaldehyde (10 min), permeabilized with 0.1% PBS-Triton X-100 for 5 minutes and then blocked with 1% BSA/10% normal goat serum/0.3M glycine in 0.1%PBS-Tween for 1h. The cells were then incubated overnight at 4° C with Anti-IL-1 beta antibody [EPR23851-127] – Chicken IgY (Chimeric) ab323240 at 5ug/ml (shown in green) and Alexa Fluor® 594 Anti-alpha Tubulin antibody [EP1332Y] - Microtubule Marker ab202272, Alexa Fluor® 594 Rabbit monoclonal [EP1332Y] to alpha Tubulin - Microtubule Marker (shown in pseudocolour magenta). Cells were then incubated with ab150173, Goat Anti-Chicken IgY H&L (Alexa Fluor® 488) preadsorbed at 1/1000 dilution. Nuclear DNA was labelled with DAPI (shown in blue).

  Also suitable in cells fixed with 100% methanol (5 min).

  Image was acquired with a high-content analyser (Operetta CLS, Perkin Elmer) and a maximum intensity projection of confocal sections is shown.

•

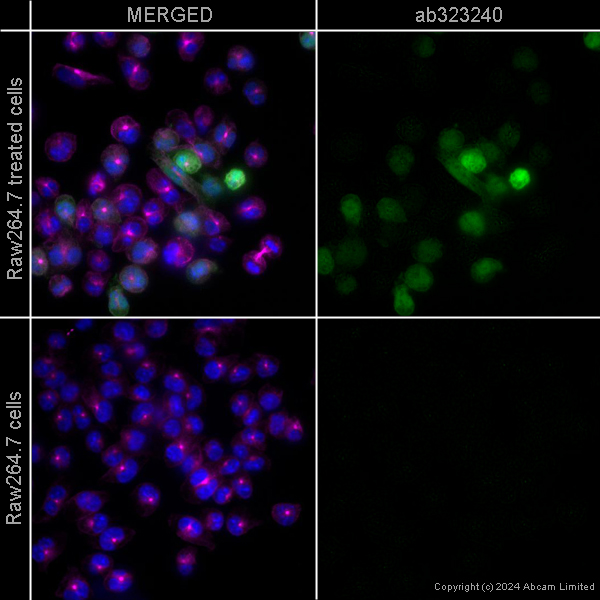

  Immunocytochemistry/ Immunofluorescence - Goat Anti-Chicken IgY H&L (Alexa Fluor® 488) preadsorbed (ab150173)

  Anti-IL-1 beta antibody [EPR23851-127] – Chicken IgY (Chimeric) ab323240 staining IL1B in Raw264.7 +/- 100ng/ml LPS 7h, with 1ug/ml Brefeldin A for last 3h cells. The cells were fixed with 4% paraformaldehyde (10 min), permeabilized with 0.1% PBS-Triton X-100 for 5 minutes and then blocked with 1% BSA/10% normal goat serum/0.3M glycine in 0.1%PBS-Tween for 1h. The cells were then incubated overnight at 4° C with Anti-IL-1 beta antibody [EPR23851-127] – Chicken IgY (Chimeric) ab323240 at 5ug/ml (shown in green) and Alexa Fluor® 594 Anti-alpha Tubulin antibody [EP1332Y] - Microtubule Marker ab202272, Alexa Fluor® 594 Rabbit monoclonal [EP1332Y] to alpha Tubulin - Microtubule Marker (shown in pseudocolour magenta). Cells were then incubated with ab150173, Goat Anti-Chicken IgY H&L (Alexa Fluor® 488) preadsorbed at 1/1000 dilution. Nuclear DNA was labelled with DAPI (shown in blue).

  Also suitable in cells fixed with 100% methanol (5 min).

  Image was acquired with a high-content analyser (Operetta CLS, Perkin Elmer) and a maximum intensity projection of confocal sections is shown.

•

  Immunocytochemistry/ Immunofluorescence - Goat Anti-Chicken IgY H&L (Alexa Fluor® 488) preadsorbed (ab150173)

  Anti-IL-1 beta antibody [EPR23851-127] – Chicken IgY (Chimeric) ab323240 staining IL1B in wild-type THP-1 cells and IL1B knockout THP-1 cells +/- TPA (80nM overnight) and LPS (100ng/ml, 6h) cells. The cells were fixed with 4% paraformaldehyde (10 min), permeabilized with 0.1% PBS-Triton X-100 for 5 minutes and then blocked with 1% BSA/10% normal goat serum/0.3M glycine in 0.1%PBS-Tween for 1h. The cells were then incubated overnight at 4° C with Anti-IL-1 beta antibody [EPR23851-127] – Chicken IgY (Chimeric) ab323240 at 1ug/ml (shown in green) and Alexa Fluor® 594 Anti-alpha Tubulin antibody [EP1332Y] - Microtubule Marker ab202272, Alexa Fluor® 594 Rabbit monoclonal [EP1332Y] to alpha Tubulin - Microtubule Marker (shown in pseudocolour magenta). Cells were then incubated with ab150173, Goat Anti-Chicken IgY H&L (Alexa Fluor® 488) preadsorbed at 1/1000 dilution. Nuclear DNA was labelled with DAPI (shown in blue).

  Also suitable in cells fixed with 100% methanol (5 min).

  Image was acquired with a high-content analyser (Operetta CLS, Perkin Elmer) and a maximum intensity projection of confocal sections is shown.

•

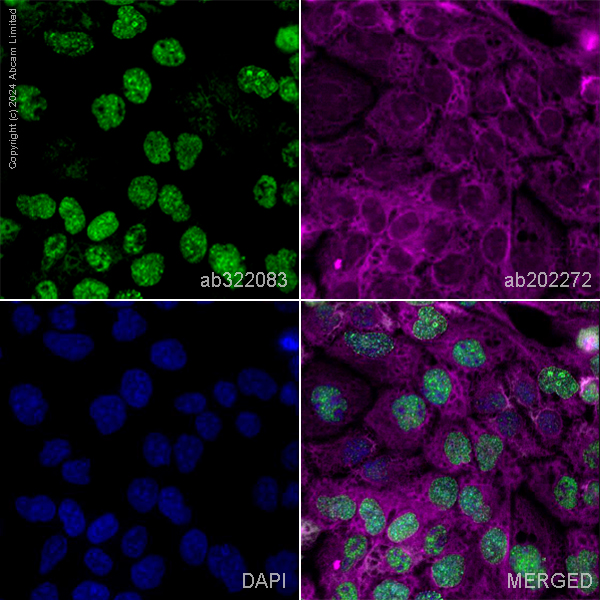

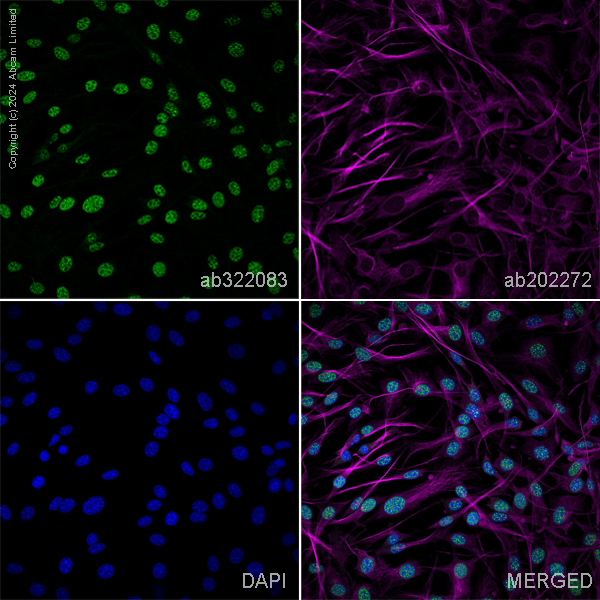

  Immunocytochemistry/ Immunofluorescence - Goat Anti-Chicken IgY H&L (Alexa Fluor® 488) preadsorbed (ab150173)

  Anti-PCNA [EPR3821] – Chicken IgY (Chimeric) ab322083 staining PCNA in A-431 cells. The cells were fixed with 100% methanol (5 min), permeabilized with 0.1% PBS-Triton X-100 for 5 minutes and then blocked with 1% BSA/10% normal goat serum/0.3M glycine in 0.1%PBS-Tween for 1h. The cells were then incubated overnight at 4°C with Anti-PCNA [EPR3821] – Chicken IgY (Chimeric) ab322083 at 1µg/ml (shown in green) and Alexa Fluor® 594 Anti-alpha Tubulin antibody [EP1332Y] - Microtubule Marker ab202272, Alexa Fluor® 594 Rabbit monoclonal [EP1332Y] to alpha Tubulin - Microtubule Marker (shown in pseudocolour magenta). Cells were then incubated with ab150173, Goat Anti-Chicken IgY H&L (Alexa Fluor® 488) preadsorbed at 1/1000 dilution. Nuclear DNA was labelled with DAPI (shown in blue). Image was acquired with a high-content analyser (Operetta CLS, Perkin Elmer) and a maximum intensity projection of confocal sections is shown.

  This data was developed using the same antibody clone in a different buffer formulation.

•

  Immunocytochemistry/ Immunofluorescence - Goat Anti-Chicken IgY H&L (Alexa Fluor® 488) preadsorbed (ab150173)

  Anti-PCNA [EPR3821] – Chicken IgY (Chimeric) ab322083 staining PCNA in NIH/3T3 cells. The cells were fixed with 100% methanol (5 min), permeabilized with 0.1% PBS-Triton X-100 for 5 minutes and then blocked with 1% BSA/10% normal goat serum/0.3M glycine in 0.1%PBS-Tween for 1h. The cells were then incubated overnight at 4°C with Anti-PCNA [EPR3821] – Chicken IgY (Chimeric) ab322083 at 1µg/ml (shown in green) and Alexa Fluor® 594 Anti-alpha Tubulin antibody [EP1332Y] - Microtubule Marker ab202272, Alexa Fluor® 594 Rabbit monoclonal [EP1332Y] to alpha Tubulin - Microtubule Marker (shown in pseudocolour magenta). Cells were then incubated with ab150173, Goat Anti-Chicken IgY H&L (Alexa Fluor® 488) preadsorbed at 1/1000 dilution. Nuclear DNA was labelled with DAPI (shown in blue). Image was acquired with a high-content analyser (Operetta CLS, Perkin Elmer) and a maximum intensity projection of confocal sections is shown.

  This data was developed using the same antibody clone in a different buffer formulation.

•

  Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Goat Anti-Chicken IgY H&L (Alexa Fluor® 488) preadsorbed (ab150173)

  Immunofluorescence staining of PCNA in sections of formalin-fixed paraffin-embedded human colon*.
  Performed on a Leica BOND. The section was pre-treated using heat mediated antigen retrieval with sodium citrate (pH6.0) for 20 minutes. The section was then incubated at room temperature for 1 hour with Anti-PCNA [EPR3821] – Chicken IgY (Chimeric) ab322083 at 1/100 dilution and then incubated for 1 hour with ab150173 Goat Anti-Chicken IgY H&L (Alexa Fluor® 488) preadsorbed at 1/1000 dilution (shown in green). Nuclear DNA was labelled with DAPI (shown in blue). The section was then mounted using Dako Fluorescence Mounting Medium®.
  Image was taken with a confocal microscope (Leica-Microsystems, TCS SP8).
  For other IHC staining systems (automated and non-automated), customers should optimize variable parameters such as antigen retrieval conditions, antibody concentrations and incubation times. This data was developed using the same antibody clone in a different buffer formulation.
  *Tissue obtained from the Human Research Tissue Bank, supported by the NIHR Cambridge Biomedical Research Centre.

•

  Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Goat Anti-Chicken IgY H&L (Alexa Fluor® 488) preadsorbed (ab150173)

  Immunofluorescence staining of PCNA in sections of formalin-fixed paraffin-embedded mouse testis.
  Performed on a Leica BOND. The section was pre-treated using heat mediated antigen retrieval with sodium citrate (pH6.0) for 20 minutes. The section was then incubated at room temperature for 1 hour with Anti-PCNA [EPR3821] – Chicken IgY (Chimeric) ab322083 at 1/500 dilution and then incubated for 1 hour with ab150173 Goat Anti-Chicken IgY H&L (Alexa Fluor® 488) preadsorbed at 1/1000 dilution (shown in green). Nuclear DNA was labelled with DAPI (shown in blue). The section was then mounted using Dako Fluorescence Mounting Medium®.
  Image was taken with a confocal microscope (Leica-Microsystems, TCS SP8).
  For other IHC staining systems (automated and non-automated), customers should optimize variable parameters such as antigen retrieval conditions, antibody concentrations and incubation times. This data was developed using the same antibody clone in a different buffer formulation.

•

  Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Goat Anti-Chicken IgY H&L (Alexa Fluor® 488) preadsorbed (ab150173)

  Immunofluorescence staining of ACTA2 in sections of formalin-fixed paraffin-embedded mouse stomach (positive) and mouse brain (negative)*.
  Performed on a Leica BOND. The section was pre-treated using heat mediated antigen retrieval with sodium citrate (pH6.0) for 20 minutes. The section was then incubated at room temperature for 1 hour with Anti-alpha smooth muscle Actin [EPR5368] – Chicken IgY (Chimeric) ab321866 at 1/500 dilution and then incubated for 1 hour with ab150173 Goat Anti-Chicken IgY H&L (Alexa Fluor® 488) preadsorbed at 1/1000 dilution (shown in green). Nuclear DNA was labelled with DAPI (shown in blue). The section was then mounted using Dako Fluorescence Mounting Medium®.
  Image was taken with a confocal microscope (Leica-Microsystems, TCS SP8). This data was developed using the same antibody clone in a different buffer formulation.
  For other IHC staining systems (automated and non-automated), customers should optimize variable parameters such as antigen retrieval conditions, antibody concentrations and incubation times.

•

  Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Goat Anti-Chicken IgY H&L (Alexa Fluor® 488) preadsorbed (ab150173)

  Immunofluorescence staining of ACTA2 in sections of formalin-fixed paraffin-embedded human colon (positive) and human cerebellum (negative)*.
  Performed on a Leica BOND. The section was pre-treated using heat mediated antigen retrieval with sodium citrate (pH6.0) for 20 minutes. The section was then incubated at room temperature for 1 hour withab321866 at 1/500 dilution and then incubated for 1 hour with ab150173 Goat Anti-Chicken IgY H&L (Alexa Fluor® 488) preadsorbed at 1/1000 dilution (shown in green). Nuclear DNA was labelled with DAPI (shown in blue). The section was then mounted using Dako Fluorescence Mounting Medium®.
  Image was taken with a confocal microscope (Leica-Microsystems, TCS SP8).
  For other IHC staining systems (automated and non-automated), customers should optimize variable parameters such as antigen retrieval conditions, antibody concentrations and incubation times. This data was developed using the same antibody clone in a different buffer formulation.
  *Tissue obtained from the Human Research Tissue Bank, supported by the NIHR Cambridge Biomedical Research Centre.

•

  Immunocytochemistry/ Immunofluorescence - Goat Anti-Chicken IgY H&L (Alexa Fluor® 488) preadsorbed (ab150173)

  Anti-alpha smooth muscle Actin [EPR5368] – Chicken IgY (Chimeric) ab321866 staining ACTA2 in HeLa (positive) and A431 (negative) cells. The cells were fixed with 100% methanol (5 min), permeabilized with 0.1% PBS-Triton X-100 for 5 minutes and then blocked with 1% BSA/10% normal goat serum/0.3M glycine in 0.1%PBS-Tween for 1h. The cells were then incubated overnight at 4°C with Anti-alpha smooth muscle Actin [EPR5368] – Chicken IgY (Chimeric) ab321866 at 1µg/ml (shown in green) and Alexa Fluor® 594 Anti-alpha Tubulin antibody [EP1332Y] - Microtubule Marker ab202272, Alexa Fluor® 594 Rabbit monoclonal [EP1332Y] to alpha Tubulin - Microtubule Marker (shown in pseudocolour magenta). Cells were then incubated with ab150173, Goat Anti-Chicken IgY H&L (Alexa Fluor® 488) preadsorbed at 1/1000 dilution. Nuclear DNA was labelled with DAPI (shown in blue).

  Also suitable in cells fixed with 4% paraformaldehyde (10 min).

  Image was acquired with a high-content analyser (Operetta CLS, Perkin Elmer) and a maximum intensity projection of confocal sections is shown.

  This data was developed using the same antibody clone in a different buffer formulation.

•

  Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Goat Anti-Chicken IgY H&L (Alexa Fluor® 488) preadsorbed (ab150173)

  Immunofluorescence staining of LC3B in sections of formalin-fixed paraffin-embedded mouse brain (positive) and mouse liver (negative).
  Performed on a Leica BOND. The section was pre-treated using heat mediated antigen retrieval with sodium citrate (pH6.0) for 20 minutes. The section was then incubated at room temperature for 1 hour with Anti-LC3B antibody [EPR18709] - Autophagosome Marker – Chicken IgY (Chimeric) ab322912 at 1/100 dilution and then incubated for 1 hour with ab150173 Goat Anti-Chicken IgY H&L (Alexa Fluor® 488) preadsorbed at 1/1000 dilution (shown in green). Nuclear DNA was labelled with DAPI (shown in blue). The section was then mounted using Dako Fluorescence Mounting Medium®.
  Image was taken with a confocal microscope (Leica-Microsystems, TCS SP8).
  For other IHC staining systems (automated and non-automated), customers should optimize variable parameters such as antigen retrieval conditions, antibody concentrations and incubation times.

•

  Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Goat Anti-Chicken IgY H&L (Alexa Fluor® 488) preadsorbed (ab150173)

  Immunofluorescence staining of LC3B in sections of formalin-fixed paraffin-embedded human brain (positive) and human heart muscle (negative)*.
  Performed on a Leica BOND. The section was pre-treated using heat mediated antigen retrieval with sodium citrate (pH6.0) for 20 minutes. The section was then incubated at room temperature for 1 hour with Anti-LC3B antibody [EPR18709] - Autophagosome Marker – Chicken IgY (Chimeric) ab322912 at 1/100 dilution and then incubated for 1 hour with ab150173 Goat Anti-Chicken IgY H&L (Alexa Fluor® 488) preadsorbed at 1/1000 dilution (shown in green). Nuclear DNA was labelled with DAPI (shown in blue). The section was then mounted using Dako Fluorescence Mounting Medium®.
  Image was taken with a confocal microscope (Leica-Microsystems, TCS SP8).
  For other IHC staining systems (automated and non-automated), customers should optimize variable parameters such as antigen retrieval conditions, antibody concentrations and incubation times.
  *Tissue obtained from the Human Research Tissue Bank, supported by the NIHR Cambridge Biomedical Research Centre.

•

  Immunocytochemistry/ Immunofluorescence - Goat Anti-Chicken IgY H&L (Alexa Fluor® 488) preadsorbed (ab150173)

  Anti-LC3B antibody [EPR18709] - Autophagosome Marker – Chicken IgY (Chimeric) ab322912 staining LC3B in NIH/3T3 +/- Chloroquine (50µM 24 hours) cells. The cells were fixed with 100% methanol (5 min), permeabilized with 0.1% PBS-Triton X-100 for 5 minutes and then blocked with 1% BSA/10% normal goat serum/0.3M glycine in 0.1%PBS-Tween for 1h. The cells were then incubated overnight at 4°C with Anti-LC3B antibody [EPR18709] - Autophagosome Marker – Chicken IgY (Chimeric) ab322912 at 1µg/ml (shown in green) and Alexa Fluor® 594 Anti-alpha Tubulin antibody [EP1332Y] - Microtubule Marker ab202272, Alexa Fluor® 594 Rabbit monoclonal [EP1332Y] to alpha Tubulin - Microtubule Marker (shown in pseudocolour magenta). Cells were then incubated with ab150173, Goat Anti-Chicken IgY H&L (Alexa Fluor® 488) preadsorbed at 1/1000 dilution. Nuclear DNA was labelled with DAPI (shown in blue). Image was acquired with a high-content analyser (Operetta CLS, Perkin Elmer) and a maximum intensity projection of confocal sections is shown.

•

  Immunocytochemistry/ Immunofluorescence - Goat Anti-Chicken IgY H&L (Alexa Fluor® 488) preadsorbed (ab150173)

  Anti-LC3B antibody [EPR18709] - Autophagosome Marker – Chicken IgY (Chimeric) ab322912 staining LC3B in HAP1 cells (wildtype and MAP1LC3B knockout) +/- Chloroquine (50µM 24 hours) cells. The cells were fixed with 100% methanol (5 min), permeabilized with 0.1% PBS-Triton X-100 for 5 minutes and then blocked with 1% BSA/10% normal goat serum/0.3M glycine in 0.1%PBS-Tween for 1h. The cells were then incubated overnight at 4°C with Anti-LC3B antibody [EPR18709] - Autophagosome Marker – Chicken IgY (Chimeric) ab322912 at 1µg/ml (shown in green) and Alexa Fluor® 594 Anti-alpha Tubulin antibody [EP1332Y] - Microtubule Marker ab202272, Alexa Fluor® 594 Rabbit monoclonal [EP1332Y] to alpha Tubulin - Microtubule Marker (shown in pseudocolour magenta). Cells were then incubated with ab150173, Goat Anti-Chicken IgY H&L (Alexa Fluor® 488) preadsorbed at 1/1000 dilution. Nuclear DNA was labelled with DAPI (shown in blue). Image was acquired with a high-content analyser (Operetta CLS, Perkin Elmer) and a maximum intensity projection of confocal sections is shown.

•

  Immunocytochemistry/ Immunofluorescence - Goat Anti-Chicken IgY H&L (Alexa Fluor® 488) preadsorbed (ab150173)

  Immunofluorescent analysis of 4% Paraformaldehyde-fixed, 0.1% TritonX-100 permeabilized SH-SY5Y (human neuroblastoma epithelial cell) cells labelling NEFH with Anti-NEFH antibody [EPR20020] - Chicken IgY (Chimeric) ab317042 at 1/500 (2.098 ug/ml) dilution, followed by ab150173 Goat Anti-Chicken IgY H&L (Alexa Fluor® 488) preadsorbed antibody at 1/1000 dilution (Green).

  Confocal image showing cytoplasmic staining in SH-SY5Y cell line (shown in green). The counterstain was observed in magenta. Nuclear DNA was labeled with DAPI (shown in blue).

  Negative control: MCF7 (PMID: 25985363).

  Image was taken with a confocal microscope (Leica-Microsystems, TCS SP8).


  Alexa Fluor® 594 Anti-alpha Tubulin antibody [DM1A] - Microtubule Marker ab195889 Anti-alpha Tubulin mouse monoclonal antibody - Microtubule Marker (Alexa Fluor® 594) was used to counterstain tubulin at 1/200 2.5 ug/ml dilution (Magenta). The Nuclear counterstain was DAPI (Blue).

  Secondary antibody only control: Secondary antibody is ab150173 Goat Anti-Chicken IgY H&L (Alexa Fluor® 488) preadsorbed at 1/1000 dilution.

•

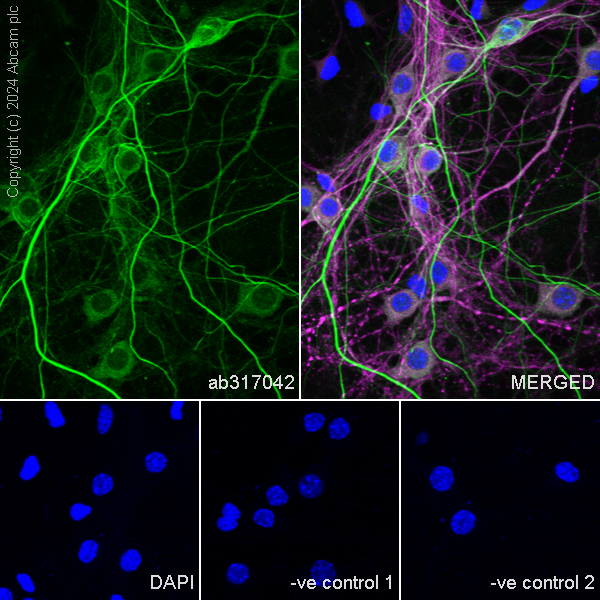

  Immunocytochemistry/ Immunofluorescence - Goat Anti-Chicken IgY H&L (Alexa Fluor® 488) preadsorbed (ab150173)

  Immunofluorescent analysis of 4% Paraformaldehyde-fixed, 0.1% TritonX-100 permeabilized mouse primary neural/glia cell cells labelling NEFH with Anti-NEFH antibody [EPR20020] - Chicken IgY (Chimeric) ab317042 at 1/500 (2.098 ug/ml) dilution, followed by ab150173 Goat Anti-Chicken IgY H&L (Alexa Fluor® 488) preadsorbed antibody at 1/1000 dilution (Green).

  Confocal image showing positive staining in mouse primary neuron (shown in green). The counterstain was observed in magenta. Nuclear DNA was labeled with DAPI (shown in blue).

  Image was taken with a confocal microscope (Leica-Microsystems, TCS SP8).


  Anti-MAP2 antibody [HM-2] - Neuronal Marker ab11267 Anti-MAP2 mouse monoclonal antibody was used to counterstain tubulin at 1/200 4ug/ml dilution (Magenta). The Nuclear counterstain was DAPI (Blue).

  -ve control 1: Anti-NEFH antibody [EPR20020] - Chicken IgY (Chimeric) ab317042 at 1/50 dilution, followed by Goat Anti-Mouse IgG H&L (Alexa Fluor® 594) preadsorbed ab150120 Goat Anti-Mouse IgG H&L (Alexa Fluor® 594) antibody at 1/1000 dilution.

  -ve control 2: Anti-MAP2 antibody [HM-2] - Neuronal Marker ab11267 at 1/200 dilution, followed by ab150173 Goat Anti-Chicken IgY H&L (Alexa Fluor® 488) preadsorbed antibody at 1/1000 dilution.

•

  Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Goat Anti-Chicken IgY H&L (Alexa Fluor® 488) preadsorbed (ab150173)

  Immunofluorescence staining of Iba1 in a section of formalin-fixed paraffin-embedded mouse brain. Performed on a Leica BOND. The section was pre-treated using heat mediated antigen retrieval with sodium citrate (pH6.0) for 20 minutes. The section was then incubated at room temperature for 1 hour with Anti-Iba1 antibody [EPR16588] – Chicken IgY (Chimeric) – BSA and Azide Free ab318305 at 1 μg/ml, and then incubated for 1 hour with ab150173, Goat Anti-Chicken IgY H&L (Alexa Fluor® 488) preadsorbed at 1/1000 dilution (shown in green). Nuclear DNA was labelled with DAPI (shown in blue). The section was then mounted using Dako Fluorescence Mounting Medium®.

  Image was taken with a confocal microscope (Leica-Microsystems, TCS SP8).

  For other IHC staining systems (automated and non-automated), customers should optimize variable parameters such as antigen retrieval conditions, antibody concentrations and incubation times.

•

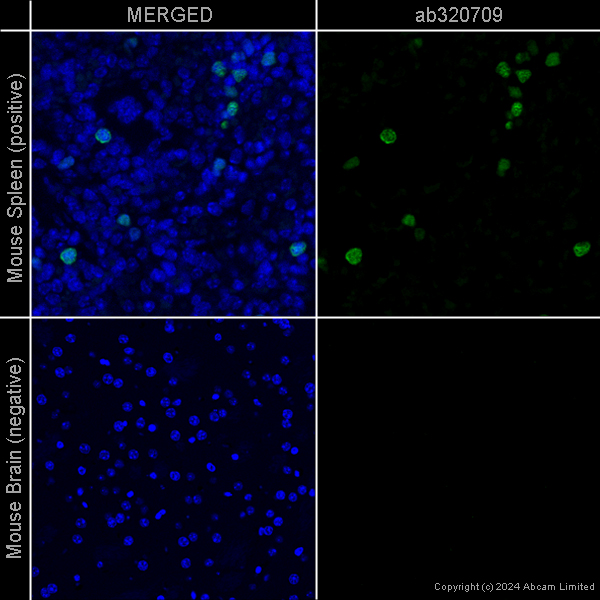

  Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Goat Anti-Chicken IgY H&L (Alexa Fluor® 488) preadsorbed (ab150173)

  Immunofluorescence staining of KI67 in sections of formalin-fixed paraffin-embedded mouse spleen (positive) and mouse brain (negative).
  Performed on a Leica BOND. The section was pre-treated using heat mediated antigen retrieval with sodium citrate (pH6.0) for 20 minutes. The section was then incubated at room temperature for 1 hour with Anti-Ki67 [SP6] – Chicken IgY (Chimeric) ab320709 at 1/100 dilution and then incubated for 1 hour with ab150173 Goat Anti-Chicken IgY H&L (Alexa Fluor® 488) preadsorbed at 1/1000 dilution (shown in green). Nuclear DNA was labeled with DAPI (shown in blue). The section was then mounted using Dako Fluorescence Mounting Medium®.
  Image was taken with a confocal microscope (Leica-Microsystems, TCS SP8).
  For other IHC staining systems (automated and non-automated), customers should optimize variable parameters such as antigen retrieval conditions, antibody concentrations and incubation times.

•

  Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Goat Anti-Chicken IgY H&L (Alexa Fluor® 488) preadsorbed (ab150173)

  Immunofluorescence staining of KI67 in sections of formalin-fixed paraffin-embedded rat spleen (positive) and rat brain (negative).
  Performed on a Leica BOND. The section was pre-treated using heat mediated antigen retrieval with sodium citrate (pH6.0) for 20 minutes. The section was then incubated at room temperature for 1 hour with Anti-Ki67 [SP6] – Chicken IgY (Chimeric) ab320709 at 1/100 dilution and then incubated for 1 hour with ab150173 Goat Anti-Chicken IgY H&L (Alexa Fluor® 488) preadsorbed at 1/1000 dilution (shown in green). Nuclear DNA was labeled with DAPI (shown in blue). The section was then mounted using Dako Fluorescence Mounting Medium®.
  Image was taken with a confocal microscope (Leica-Microsystems, TCS SP8).
  For other IHC staining systems (automated and non-automated), customers should optimize variable parameters such as antigen retrieval conditions, antibody concentrations and incubation times.

•

  Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Goat Anti-Chicken IgY H&L (Alexa Fluor® 488) preadsorbed (ab150173)

  Immunofluorescence staining of KI67 in sections of formalin-fixed paraffin-embedded human tonsil (positive) and human brain (negative)*.
  Performed on a Leica BOND. The section was pre-treated using heat mediated antigen retrieval with sodium citrate (pH6.0) for 20 minutes. The section was then incubated at room temperature for 1 hour with Anti-Ki67 [SP6] – Chicken IgY (Chimeric) ab320709 at 1/500 dilution and then incubated for 1 hour with ab150173 Goat Anti-Chicken IgY H&L (Alexa Fluor® 488) preadsorbed at 1/1000 dilution (shown in green). Nuclear DNA was labeled with DAPI (shown in blue). The section was then mounted using Dako Fluorescence Mounting Medium®.
  Image was taken with a confocal microscope (Leica-Microsystems, TCS SP8).
  For other IHC staining systems (automated and non-automated), customers should optimize variable parameters such as antigen retrieval conditions, antibody concentrations and incubation times.
  *Tissue obtained from the Human Research Tissue Bank, supported by the NIHR Cambridge Biomedical Research Centre.

•

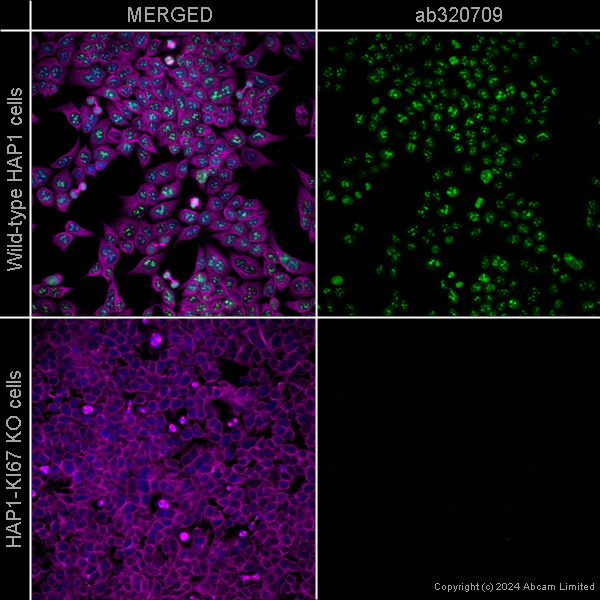

  Immunocytochemistry/ Immunofluorescence - Goat Anti-Chicken IgY H&L (Alexa Fluor® 488) preadsorbed (ab150173)

  Anti-Ki67 [SP6] – Chicken IgY (Chimeric) ab320709 staining KI67 in Hap1 (positive) and Hap1-KI67 (negative) cells. The cells were fixed with 100% methanol (5 min), permeabilized with 0.1% PBS-Triton X-100 for 5 minutes and then blocked with 1% BSA/10% normal goat serum/0.3M glycine in 0.1%PBS-Tween for 1h. The cells were then incubated overnight at 4°C with Anti-Ki67 [SP6] – Chicken IgY (Chimeric) ab320709 at 1 ug/ml (shown in green) and Alexa Fluor® 594 Anti-alpha Tubulin antibody [EP1332Y] - Microtubule Marker ab202272, Alexa Fluor® 594 Rabbit monoclonal [EP1332Y] to alpha Tubulin - Microtubule Marker (shown in pseudocolour magenta). Cells were then incubated with ab150173, Goat Anti-Chicken IgY H&L (Alexa Fluor® 488) preadsorbed at 1/1000 dilution. Nuclear DNA was labeled with DAPI (shown in blue). Also suitable in cells fixed with 4% paraformaldehyde (10 min). Image was acquired with a high-content analyser (Operetta CLS, Perkin Elmer) and a maximum intensity projection of confocal sections is shown.

•

  Flow Cytometry (Intracellular) - Goat Anti-Chicken IgY H&L (Alexa Fluor® 488) preadsorbed (ab150173)

  Flow cytometric analysis of 4% paraformaldehyde fixed 90% methanol permeabilized SH-SY5Y (human neuroblastoma epithelial cell) cells labelling MAP2 with Anti-MAP2 antibody [EPR19691] - Chicken IgY (Chimeric) ab318993 at 1/1000 dilution (0.1 ug)(Red) compared with a Chicken IgY (Black) isotype control and an unlabelled control (cells without incubation with primary antibody and secondary antibody) (Blue).

  Goat anti-Chicken IgY H&L (Alexa Fluor® 488, ab150173) at 1/5000 dilution was used as the secondary antibody.

•

  Flow Cytometry (Intracellular) - Goat Anti-Chicken IgY H&L (Alexa Fluor® 488) preadsorbed (ab150173)

  Flow cytometric analysis of 4% paraformaldehyde fixed 90% methanol permeabilized Neuro-2a (mouse neuroblastoma neuroblast) cells labelling MAP2 with Anti-MAP2 antibody [EPR19691] - Chicken IgY (Chimeric) ab318993 at 1/1000 dilution (0.1 ug)(Red) compared with a Chicken IgY (Black) isotype control and an unlabelled control (cells without incubation with primary antibody and secondary antibody) (Blue).

  Goat anti-Chicken IgY H&L (Alexa Fluor® 488, ab150173) at 1/5000 dilution was used as the secondary antibody.

•

  Flow Cytometry (Intracellular) - Goat Anti-Chicken IgY H&L (Alexa Fluor® 488) preadsorbed (ab150173)

  Flow cytometric analysis of 4% paraformaldehyde fixed 90% methanol permeabilized PC-12 (rat adrenal gland pheochromocytoma cell) cells labelling MAP2 with Anti-MAP2 antibody [EPR19691] - Chicken IgY (Chimeric) ab318993 at 1/1000 dilution (0.1 ug)(Red) compared with a Chicken IgY (Black) isotype control and an unlabelled control (cells without incubation with primary antibody and secondary antibody) (Blue).

  Goat anti-Chicken IgY H&L (Alexa Fluor® 488, ab150173) at 1/5000 dilution was used as the secondary antibody.
