Anti-alpha Tubulin antibody [DM1A] - Loading Control

• WB

Supplier Data

Western blot - Anti-alpha Tubulin antibody [DM1A] - Loading Control (AB7291)

Merged signal (red and green). Green - ab7291 observed at 52 kDa. Red - loading control, ab181602, observed at 38 kDa.

All samples were subjected to SDS-PAGE. The membrane was blocked with 3% NF Milk. ab7291 and ab181602 (Rabbit anti GAPDH loading control) were incubated overnight at 4°C at 1/1,000 and 1/20,000 dilution respectively. Blots were developed with Goat anti-Mouse IgG H&L (IRDye^® 800CW) preabsorbed ab216772 and Goat anti-Rabbit IgG H&L (IRDye^® 680RD) preabsorbed ab216777 secondary antibodies at 1/20000 dilution for 1 hour at room temperature before imaging.

All lanes:

Western blot - Anti-alpha Tubulin antibody [DM1A] - Loading Control (ab7291) at 1/1000 dilution

Lane 1:

HeLa cell lysate at 20 µg

Lane 2:

PC12 cell lysate at 20 µg

Lane 3:

SV40LT-SMC cell lysate at 20 µg

Lane 4:

NIH/3T3 cell lysate at 20 µg

Lane 5:

Rat liver tissue lysate at 20 µg

Lane 6:

Rat heart tissue lysate at 20 µg

Secondary

All lanes:

Western blot - Goat anti-Mouse IgG H&L (IRDye® 800CW) preadsorbed (<a href='/ko/products/secondary-antibodies/goat-mouse-igg-h-l-irdye-800cw-preadsorbed-ab216772'>ab216772</a>) at 1/20000 dilution

Predicted band size: 50 kDa

false

• ICC/IF

Lab

Immunocytochemistry/ Immunofluorescence - Anti-alpha Tubulin antibody [DM1A] - Loading Control (AB7291)

Immunofluorescent analysis of 4% Paraformaldehyde fixed 0.1% Triton X-100 permeabilized wild-type HeLa (human cervical adenocarcinoma epithelial cell) and gamma Synuclein/SNCG knockout HeLa cells (ab265623) labelling gamma Synuclein/SNCG with the target antibody at 1/50 (2.06 μg/ml) followed by ab150081 Goat Anti-Rabbit IgG H&L (Alexa Fluor^® 488) preadsorbed antibody as secondary at 1/1000 (2 μg/ml) dilution. Confocal image showing partial nuclear and cytoplasmic staining in wild-type HeLa cells (shown in green), with no staining observed in gamma Synuclein/SNCG knockout HeLa cells. ab7291 Anti-alpha Tubulin mouse monoclonal antibody at 1/1000 (1 μg/ml) followed by ab150120 Goat Anti-Mouse IgG H&L (Alexa Fluor^® 594) at 1/1000 (2 μg/ml) dilution was used as a counterstain (shown in magenta). Nuclear DNA was labelled with DAPI (shown in blue). Image was taken with a confocal microscope (Leica-Microsystems, TCS SP8).

• ICC/IF

Lab

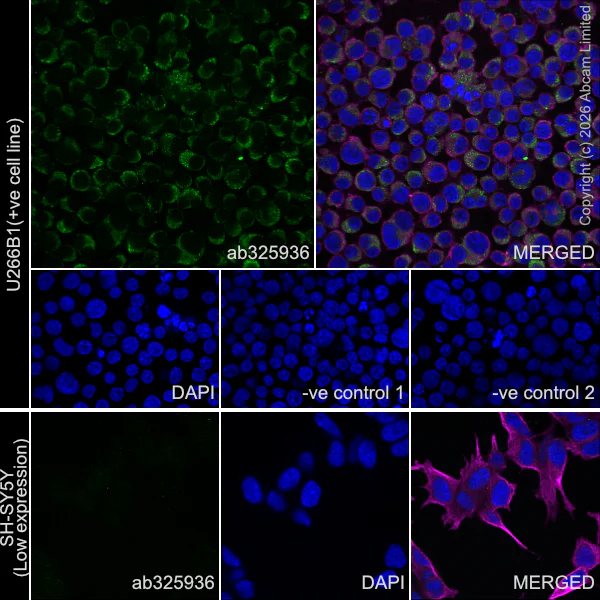

Immunocytochemistry/ Immunofluorescence - Anti-alpha Tubulin antibody [DM1A] - Loading Control (AB7291)

Immunofluorescent analysis of 4% Paraformaldehyde-fixed, 0.1% TritonX-100 permeabilized U266B1 (human multiple myeloma B lymphocyte) SH-SY5Y (human neuroblastoma epithelial cell) cells labelling NLRP11 with ab325936 at 1/200 (2.615 μg/ml) dilution , followed by ab150081 Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed antibody at 1/1000 dilution (Green).

Confocal image showing cytoplasmic staining in U266B1 cell line (shown in green). The counterstain was observed in magenta. Nuclear DNA was labelled with DAPI (shown in blue). Low expression : SH-SY5Y. Image was taken with a confocal microscope (Leica-Microsystems, TCS SP8).

ab7291 Anti-alpha Tubulin mouse monoclonal antibody was used to counterstain tubulin at 1/1000 dilution (Magenta). The Nuclear counterstain was DAPI (Blue).

-ve control 1 : ab325936 at 1/200 dilution, followed by ab150120 at 1/1000 dilution.-ve control 2 : ab7291 at 1/1000 dilution, followed by ab150081 at 1/1000 dilution.

• ICC/IF

Lab

Immunocytochemistry/ Immunofluorescence - Anti-alpha Tubulin antibody [DM1A] - Loading Control (AB7291)

Immunofluorescent analysis of 4% Paraformaldehyde-fixed, 0.1% TritonX-100 permeabilized T-47D (human ductal breast epithelial tumor epithelial cell) cells labelling PUS3 with ab324614 at 1/50 (9.98 μg/ml) dilution, followed by ab150081 Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed antibody at 1/1000 dilution (Green).

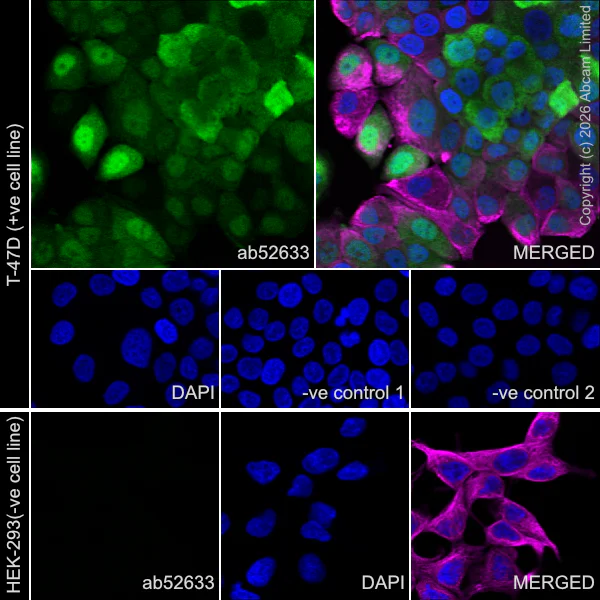

Confocal image showing nuclear staining in T-47D cell line (shown in green). The counterstain was observed in magenta. Nuclear DNA was labelled with DAPI (shown in blue). Image was taken with a confocal microscope (Leica-Microsystems, TCS SP8).

ab7291 Anti-alpha Tubulin mouse monoclonal antibody was used to counterstain tubulin at 1/1000 dilution, followed by ab150120 Goat Anti-Mouse IgG H&L (Alexa Fluor® 594) at 1/1000 dilution (Magenta). The Nuclear counterstain was DAPI (Blue).

-ve control 1 : ab324614 at 1/50 dilution, followed by ab150120 at 1/1000 dilution.
-ve control 2 : ab7291 at 1/1000 dilution, followed by ab150081 at 1/1000 dilution.

• ICC/IF

Lab

Immunocytochemistry/ Immunofluorescence - Anti-alpha Tubulin antibody [DM1A] - Loading Control (AB7291)

Immunofluorescent analysis of 4% Paraformaldehyde-fixed, 0.1% TritonX-100 permeabilized DLD-1(human colorectal adenocarcinoma epithelial cell) transfected with scrambled siRNA and DLD-1 transfected with siRNA targeting BRD8 labelling BRD8/p120 with ab325801 at 1/500 (1.032 μg/ml) dilution, followed by ab150081 Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed antibody at 1/1000 dilution (Green).

Confocal image showing nuclear staining in DLD-1 cells (shown in green) transfected with scrambled siRNA, showing decreased staining in DLD-1 cells transfected siRNA targeting BRD8. The counterstain was observed in magenta. Nuclear DNA was labelled with DAPI (shown in blue). Image was taken with a confocal microscope (Leica-Microsystems, TCS SP8).

ab7291 Anti-alpha Tubulin mouse monoclonal antibody was used to counterstain tubulin at 1/1000 dilution (Magenta). The Nuclear counterstain was DAPI (Blue).

• ICC/IF

Lab

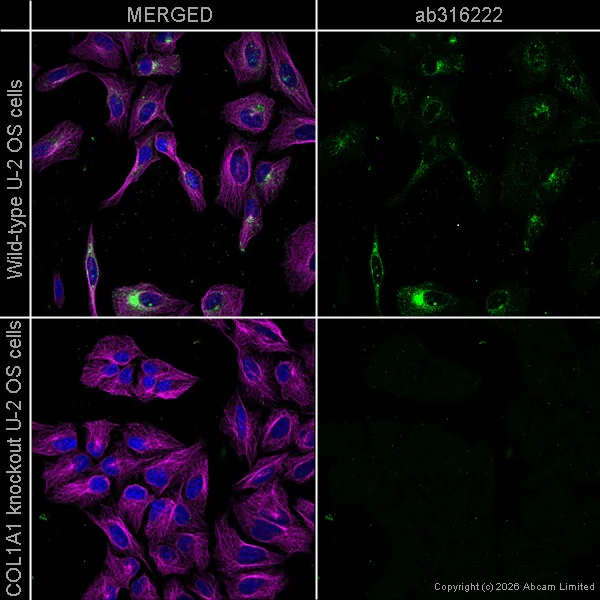

Immunocytochemistry/ Immunofluorescence - Anti-alpha Tubulin antibody [DM1A] - Loading Control (AB7291)

ab316222 staining COL1A1 in Wild-type U-2 OS (positive) and COL1A1 knockout U-2 OS (negative) cells (ab273846). The cells were fixed with 100% methanol (5 min), permeabilized with 0.1% PBS-Triton X-100 for 5 minutes and then blocked with 1% BSA/10% normal goat serum/0.3M glycine in 0.1%PBS-Tween for 1h. The cells were then incubated for 2 hours at room temperature with ab316222 at 1 ug/ml (shown in green) and ab7291, Anti-alpha Tubulin antibody [DM1A] - Loading Control (shown in pseudocolour magenta). Cells were then incubated with ab150081, Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed at 1/1000 dilution and ab150119, Goat Anti-Mouse IgG H&L (Alexa Fluor® 647) preadsorbed at 1/1000 dilution for 1 hour at room temperature. Nuclear DNA was labeled with DAPI (shown in blue). Also suitable in cells fixed with 4% paraformaldehyde (10 min). Image was acquired with a high-content analyser (Operetta CLS, Revvity) and a maximum intensity projection of confocal sections is shown.

• ICC/IF

Lab

Immunocytochemistry/ Immunofluorescence - Anti-alpha Tubulin antibody [DM1A] - Loading Control (AB7291)

Immunofluorescent analysis of 4% Paraformaldehyde-fixed, 0.1% TritonX-100 permeabilized Parental HEK293T (human embryonic kidney epithelial cell) and GRN KO HEK293T (ab266739) cells labelling with ab327420 at 1/50 (9.92 μg/ml) dilution, followed by ab150081 Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed antibody at 1/1000 dilution (Green).

Confocal image showing cytoplasmic staining in parental HEK293T cell line (shown in green). The counterstain was observed in magenta. Nuclear DNA was labelled with DAPI (shown in blue). Image was taken with a confocal microscope (Leica-Microsystems, TCS SP8).

ab7291 Anti-alpha Tubulin mouse monoclonal antibody was used to counterstain tubulin at 1/1000 dilution (Magenta). The Nuclear counterstain was DAPI (Blue).

• ICC/IF

Lab

Immunocytochemistry/ Immunofluorescence - Anti-alpha Tubulin antibody [DM1A] - Loading Control (AB7291)

Immunofluorescent analysis of 4% Paraformaldehyde-fixed, 0.1% TritonX-100 permeabilized Parental HeLa (human cervical adenocarcinoma epithelial cell) and SNX2 KO HeLa, ab265908 cells labelling SNX2 with ab326422 at 1/100 (5.29 μg/ml) dilution, followed by ab150081 Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed antibody at 1/1000 dilution (Green).

Confocal image showing cytoplasmic staining in parental HeLa cells and no staining in SNX2 knockout HeLa cells (shown in green). The counterstain was observed in magenta. Nuclear DNA was labelled with DAPI (shown in blue).

Image was taken with a confocal microscope (Leica-Microsystems, TCS SP8).

ab7291 Anti-alpha Tubulin mouse monoclonal antibody was used to counterstain tubulin at 1/1000 (1 ug/ml) dilution, followed by ab150120 Goat Anti-Mouse IgG H&L (Alexa Fluor® 594) at 1/1000 (2 ug/ml) dilution (Magenta).

• ICC/IF

Lab

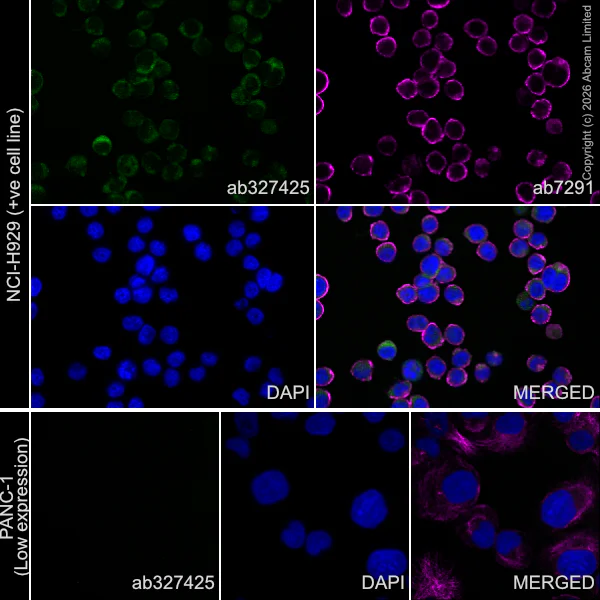

Immunocytochemistry/ Immunofluorescence - Anti-alpha Tubulin antibody [DM1A] - Loading Control (AB7291)

Immunofluorescent analysis of 100% methanol-fixed, 0.1% TritonX-100 permeabilized NCI-H929 (human Bone B lymphocyte) and PANC-1(human pancreatic epithelioid carcinoma epithelial cell) cells labelling KIF13B with ab327425 at 1/500 (1.006 μg/ml) dilution, followed by ab150081 Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed antibody at 1/1000 dilution (Green).

Confocal image showing cytoplasmic staining in NCI-H929 cells (shown in green). The counterstain was observed in magenta. Nuclear DNA was labelled with DAPI (shown in blue).

Low expression : PANC-1.

Image was taken with a confocal microscope (Leica-Microsystems, TCS SP8).

ab7291 Anti-alpha Tubulin mouse monoclonal antibody was used to counterstain tubulin at 1/1000 (1 ug/ml) dilution, followed by ab150120 Goat Anti-Mouse IgG H&L (Alexa Fluor® 594) at 1/1000 (2 ug/ml) dilution (Magenta).

• ICC/IF

Lab

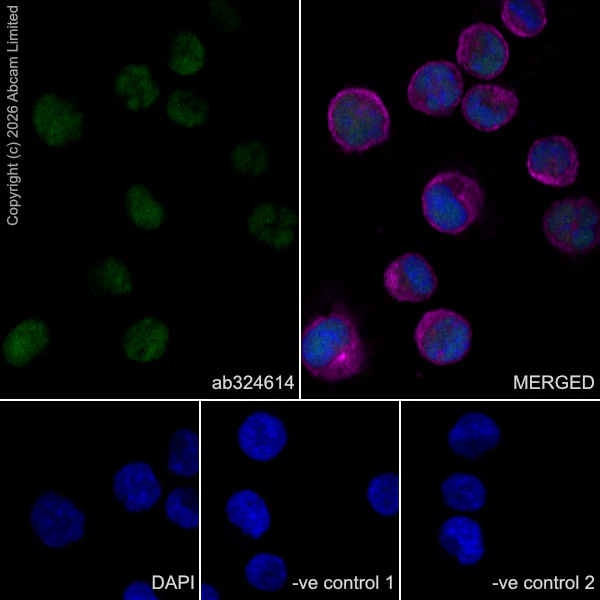

Immunocytochemistry/ Immunofluorescence - Anti-alpha Tubulin antibody [DM1A] - Loading Control (AB7291)

Immunofluorescent analysis of 4% Paraformaldehyde-fixed, 0.1% TritonX-100 permeabilized K-562 (human chronic myelogenous leukemia lymphoblast) cells labelling PUS3 with ab324614 at 1/50 (9.98 μg/ml) dilution, followed by ab150081 Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed antibody at 1/1000 dilution (Green).

Confocal image showing nuclear staining in K-562 cell line (shown in green). The counterstain was observed in magenta. Nuclear DNA was labelled with DAPI (shown in blue). Image was taken with a confocal microscope (Leica-Microsystems, TCS SP8).

ab7291 Anti-alpha Tubulin mouse monoclonal antibody was used to counterstain tubulin at 1/1000 dilution, followed by ab150120 Goat Anti-Mouse IgG H&L (Alexa Fluor® 594) at 1/1000 dilution (Magenta). The Nuclear counterstain was DAPI (Blue).

-ve control 1 : ab324614 at 1/50 dilution, followed by ab150120 at 1/1000 dilution,
-ve control 2 : ab7291 at 1/1000 dilution, followed by ab150081 at 1/1000 dilution.

• ICC/IF

Lab

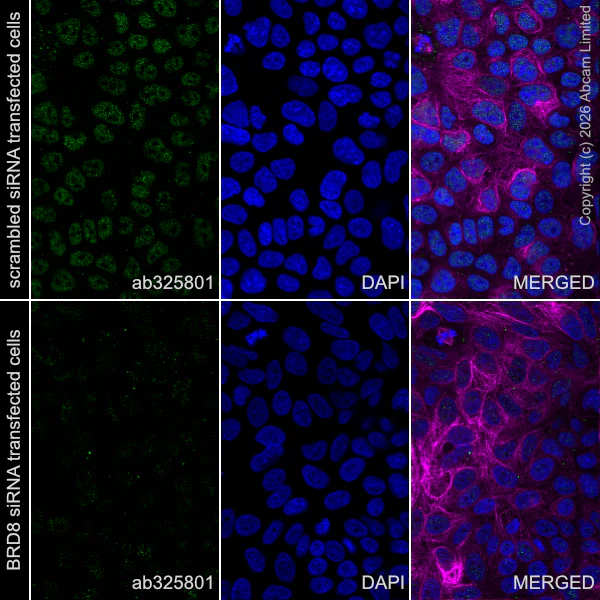

Immunocytochemistry/ Immunofluorescence - Anti-alpha Tubulin antibody [DM1A] - Loading Control (AB7291)

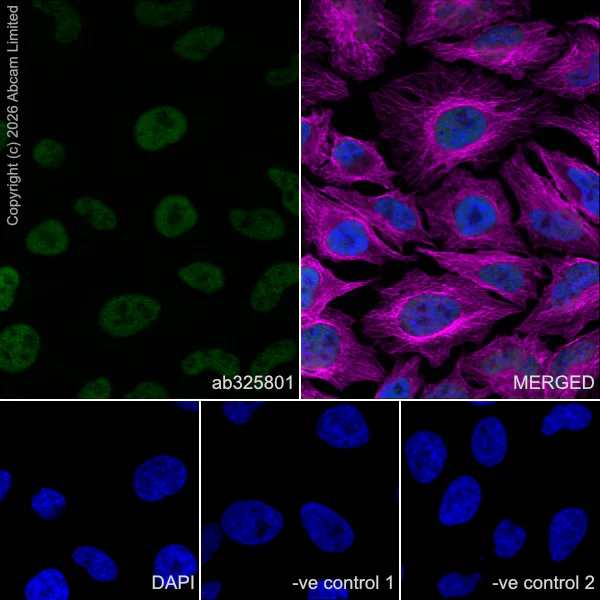

Immunofluorescent analysis of 4% Paraformaldehyde-fixed, 0.1% TritonX-100 permeabilized HeLa (human cervical adenocarcinoma epithelial cell) labelling BRD8/p120 with ab325801 at 1/500 (1.032 μg/ml) dilution, followed by ab150081 Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed antibody at 1/1000 dilution (Green).

Confocal image showing nuclear staining in HeLa cell line (shown in green). The counterstain was observed in magenta. Nuclear DNA was labelled with DAPI (shown in blue). Image was taken with a confocal microscope (Leica-Microsystems, TCS SP8).

ab7291 Anti-alpha Tubulin mouse monoclonal antibody was used to counterstain tubulin at 1/1000 dilution (Magenta). The Nuclear counterstain was DAPI (Blue).

-ve control 1 : ab325801 at 1/500 dilution, followed by ab150120 at 1/1000 dilution.
-ve control 2 : ab7291 at 1/1000 dilution, followed by ab150081 at 1/1000 dilution.

• ICC/IF

Supplier Data

Immunocytochemistry/ Immunofluorescence - Anti-alpha Tubulin antibody [DM1A] - Loading Control (AB7291)

PFA-fixed HeLa cells were stained with ab7291 Anti-alpha Tubulin antibody [DM1A] at a 1 : 2000 dilution, followed by ab325288 Alpaca monoclonal [10A4] Anti-Mouse IgG1 antibody (ATTO 488) at a 1 : 500 dilution (green).

Counterstained with ab92742 Anti-Ki67 antibody [EPR3610] at a 1 : 1000 dilution (purple). DAPI staining (blue).

Control-staining in the absence of primary antibodies.

• ICC/IF

Supplier Data

Immunocytochemistry/ Immunofluorescence - Anti-alpha Tubulin antibody [DM1A] - Loading Control (AB7291)

Immunofluorescent analysis of 4% paraformaldehyde fixed, 0.1% TritonX-100 permeabilized, quenched with 0.1M ammonium chloride, and blocked with 10% normal goat serum in PBS HeLa (human cervical cancer cells) cells labelling alpha Tubulin with ab7291 at 1/2000 (0.50 µg/ml) dilution, followed by ab325286 Alpaca monoclonal [10A4] Anti-Mouse IgG1 antibody (AZdye 568) at 1/500 (0.15 µg/ml per sdAb) dilution (red).

Confocal image showing cytoplasmic staining in HeLa cells (shown in red). The counterstain was observed in yellow. Nuclear DNA was labelled with DAPI (shown in blue).

Image was taken with a fluorescence microscope (Zeiss Axio Imager Z1).

ab92742 anti-Ki67 antibody was used to counterstain Ki67 at 1/1000 (0.85 µg/ml) dilution (yellow).

Secondary antibody only control : Secondary antibody is ab325286 Alpaca monoclonal [10A4] Anti-Mouse IgG1 antibody (AZdye 568) at 1/500 (0.15 µg/ml per sdAb) dilution.

• ICC/IF

Lab

Immunocytochemistry/ Immunofluorescence - Anti-alpha Tubulin antibody [DM1A] - Loading Control (AB7291)

Immunofluorescent analysis of 4% Paraformaldehyde-fixed, 0.1% TritonX-100 permeabilized A431 (human epidermoid carcinoma epithelial cell) labelling with ab327420 at 1/50 (9.92 μg/ml) dilution, followed by ab150081 Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed antibody at 1/1000 dilution (Green).

Confocal image showing cytoplasmic staining in A431 cell line (shown in green). The counterstain was observed in magenta. Nuclear DNA was labelled with DAPI (shown in blue). Image was taken with a confocal microscope (Leica-Microsystems, TCS SP8).

ab7291 Anti-alpha Tubulin mouse monoclonal antibody was used to counterstain tubulin at 1/1000 dilution (Magenta). The Nuclear counterstain was DAPI (Blue).

• ICC/IF

Lab

Immunocytochemistry/ Immunofluorescence - Anti-alpha Tubulin antibody [DM1A] - Loading Control (AB7291)

Immunofluorescent analysis of 4% Paraformaldehyde-fixed, 0.1% TritonX-100 permeabilized TT (human thyroid carcinoma epithelial cell) SH-SY5Y (human neuroblastoma epithelial cell) cells labelling DLL1 with ab327088 at 1/50 (10.18 μg/ml) dilution , followed by ab150081 Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed antibody at 1/1000 dilution (Green).

Confocal image showing membranous and cytoplasmic staining in TT cells and no staining in SH-SY5Y cells (shown in green). The counterstain was observed in magenta. Nuclear DNA was labelled with DAPI (shown in blue). Low expression : SH-SY5Y (PMID : 28525978). Image was taken with a confocal microscope (Leica-Microsystems, TCS SP8).

ab7291 Anti-alpha Tubulin mouse monoclonal antibody was used to counterstain tubulin at 1/1000 dilution (Magenta). The Nuclear counterstain was DAPI (Blue).

-ve control 1 : ab327088 at 1/50 dilution, followed by ab150120 at 1/1000 dilution.-ve control 2 : ab7291 at 1/1000 dilution, followed by ab150081 at 1/1000 dilution.

• ICC/IF

Lab

Immunocytochemistry/ Immunofluorescence - Anti-alpha Tubulin antibody [DM1A] - Loading Control (AB7291)

Immunofluorescent analysis of 4% Paraformaldehyde fixed, 0.1% Triton X-100 permeabilized T-47D (human ductal breast epithelial tumour epithelial cell) cells and HEK-293 (human embryonic kidney epithelial cell) cells labelling gamma Synuclein/SNCG with the primary antibody at 1/50 (2.06 μg/ml), followed by ab150081 Goat Anti-Rabbit IgG H&L (Alexa Fluor^® 488) preadsorbed antibody as secondary at 1/1000 (2 μg/ml) dilution. Confocal image showing nuclear and cytoplasmic staining in T-47D cells (shown in green). ab7291 Anti-alpha Tubulin mouse monoclonal antibody at 1/1000 (1 μg/ml) followed by ab150120 Goat Anti-Mouse IgG H&L (Alexa Fluor^® 594) at 1/1000 (2 μg/ml) was used as a counterstain (shown in magenta). Nuclear DNA was labelled with DAPI (shown in blue).

Negative control : HEK-293 (human embryonic kidney epithelial cell) cells. Negative control 1 was stained with ab52633 at 1/50 followed by ab150120 Goat Anti-Mouse IgG H&L (Alexa Fluor^® 594) at 1/1000 (2 μg/ml). Negative control 2 was stained with ab7291 Anti-alpha Tubulin mouse monoclonal antibody at 1/1000 (1 μg/ml) followed by ab150081 Goat Anti-Rabbit IgG H&L (Alexa Fluor^® 488) preadsorbed antibody at 1/1000 (2 μg/ml).

Image was taken with a confocal microscope (Leica-Microsystems, TCS SP8).

• ICC/IF

Lab

Immunocytochemistry/ Immunofluorescence - Anti-alpha Tubulin antibody [DM1A] - Loading Control (AB7291)

Immunofluorescent analysis of 4% Paraformaldehyde-fixed, 0.1% TritonX-100 permeabilized HeLa (human cervical adenocarcinoma epithelial cell) cells labelling SNX2 with ab326422 at 1/50 (10.58 μg/ml) dilution, followed by ab150081 Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed antibody at 1/1000 dilution (Green).

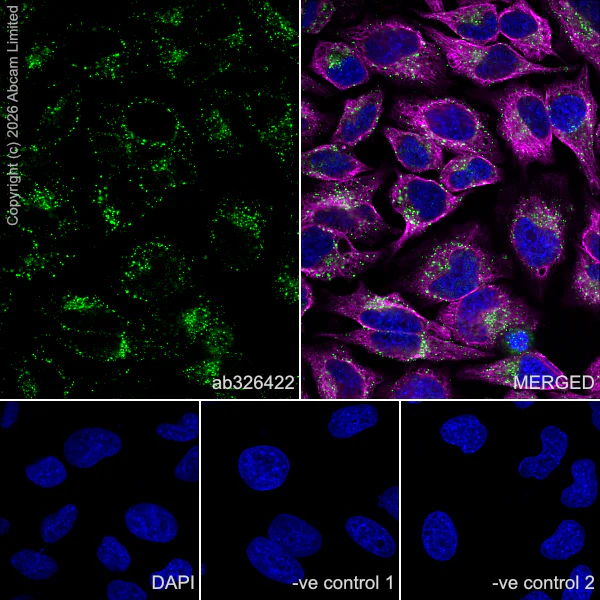

Confocal image showing cytoplasmic staining in HeLa cell line (shown in green). The counterstain was observed in magenta. Nuclear DNA was labelled with DAPI (shown in blue). Image was taken with a confocal microscope (Leica-Microsystems, TCS SP8).

ab7291 Anti-alpha Tubulin mouse monoclonal antibody was used to counterstain tubulin at 1/1000 (1 ug/ml) dilution, followed by ab150120 Goat Anti-Mouse IgG H&L (Alexa Fluor® 594) at 1/1000 (2 ug/ml) dilution (Magenta).

-ve control 1 : ab326422 at 1/50 dilution, followed by ab150120 at 1/1000 dilution.

-ve control 2 : ab7291 at 1/1000 dilution, followed by ab150081 at 1/1000 dilution.

• ICC/IF

Lab

Immunocytochemistry/ Immunofluorescence - Anti-alpha Tubulin antibody [DM1A] - Loading Control (AB7291)

Immunofluorescent analysis of 4% Paraformaldehyde-fixed, 0.1% TritonX-100 permeabilized SH-SY5Y (human neuroblastoma epithelial cell) SW480 (human colorectal adenocarcinoma epithelial cell) cells labelling Zinc finger MIZ domain-containing protein 1 with ab326070 at 1/1000 (0.498 µg/ml) dilution, followed by ab150081 Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed antibody at 1/1000 dilution (Green).

Confocal image showing nuclear staining in SH-SY5Y cells (shown in green). The counterstain was observed in magenta. Nuclear DNA was labelled with DAPI (shown in blue).
Low expression : SW480.
Image was taken with a confocal microscope (Leica-Microsystems, TCS SP8).

ab7291 Anti-alpha Tubulin mouse monoclonal antibody was used to counterstain tubulin at 1/1000 dilution (Magenta). The Nuclear counterstain was DAPI (Blue).

-ve control 1 : ab326070 at 1/1000 dilution, followed by ab150120 at 1/1000 dilution.
-ve control 2 : ab7291 at 1/1000 dilution, followed by ab150081 at 1/1000 dilution.

• ICC/IF

Lab

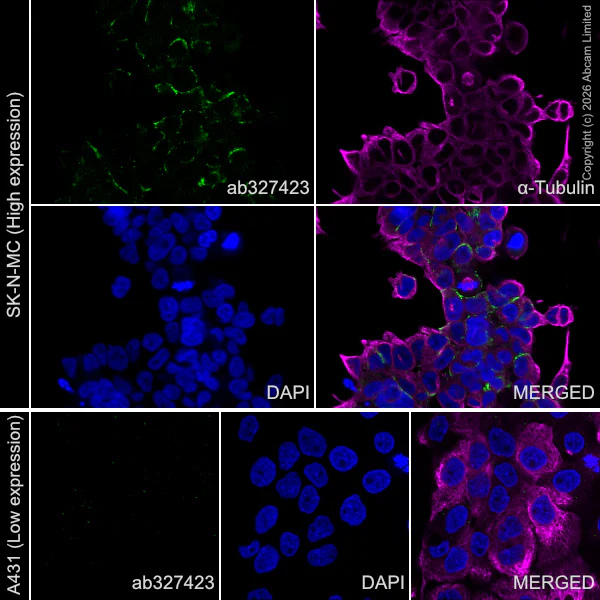

Immunocytochemistry/ Immunofluorescence - Anti-alpha Tubulin antibody [DM1A] - Loading Control (AB7291)

Immunofluorescent analysis of 4% Paraformaldehyde-fixed, 0.1% TritonX-100 permeabilized SK-N-MC (human brain epithelial cell) and A431 (human epidermoid carcinoma epithelial cell) cells labelling P2X2 with ab327423 at 1/50 (10.06 μg/ml) dilution, followed by ab150081 Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed antibody at 1/1000 dilution (Green).

Confocal image showing membranous staining in SK-N-MC cell line and no staining in A431 cell line(shown in green). The counterstain was observed in magenta. Nuclear DNA was labelled with DAPI (shown in blue).

Low expression : A431.

Image was taken with a confocal microscope (Leica-Microsystems, TCS SP8).

ab7291 Anti-alpha Tubulin mouse monoclonal antibody was used to counterstain tubulin at 1/1000 (1 ug/ml) dilution, followed by ab150120 Goat Anti-Mouse IgG H&L (Alexa Fluor® 594) at 1/1000 (2 ug/ml) dilution (Magenta).

• ICC/IF

Lab

Immunocytochemistry/ Immunofluorescence - Anti-alpha Tubulin antibody [DM1A] - Loading Control (AB7291)

Immunofluorescent analysis of 100% methanol-fixed, 0.1% TritonX-100 permeabilized wildtype HAP1 (human chronic myelogenous leukemia near-haploid cell) untreated, wildtype HAP1 treated with TNF alpha (100 ng/ml) and IKK-16 (1µM) for 4 hours, SQSTM1 knockout HAP1 untreated and SQSTM1 knockout HAP1 treated with TNF alpha (100 ng/ml) and IKK-16 (1µM) for 4 hours labelling SQSTM1 / p62 with ab325681 at 1/50 (10.24 ug/ml) dilution, followed by ab150081 Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed antibody at 1/1000 dilution (Green).

Confocal image showing increased cytoplasmic staining in wildtype HAP1 cells treated with TNF alpha (100 ng/ml) and IKK-16 (1uM) for 4 hours (panel B). No staining was observed in untreated wildtype HAP1 cells (panel A), untreated SQSTM1 knockout HAP1 cells (panel C), or SQSTM1 knockout HAP1 cells treated with TNF alpha (100 ng/ml) and IKK-16 (1uM) for 4 hours (panel D). The counterstain was observed in magenta. Nuclear DNA was labelled with DAPI (shown in blue). Image was taken with a confocal microscope (Leica-Microsystems, TCS SP8).

ab7291 Anti-alpha Tubulin mouse monoclonal antibody was used to counterstain tubulin at 1/1000 dilution, followed by ab150120 Goat Anti-Mouse IgG H&L (Alexa Fluor® 594) at a 1/1000 dilution (Magenta).

• ICC/IF

Supplier Data

Immunocytochemistry/ Immunofluorescence - Anti-alpha Tubulin antibody [DM1A] - Loading Control (AB7291)

Immunofluorescent analysis of 4% Paraformaldehyde-fixed, 0.1% TritonX-100 permeabilized HeLa (human cervical adenocarcinoma epithelial cell) cells labelling Transportin 1/MIP with ab324273 at 1/50 (10.33 ug/ml) dilution, followed by ab150081 Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed antibody at 1/1000 2ug/ml dilution (Green).

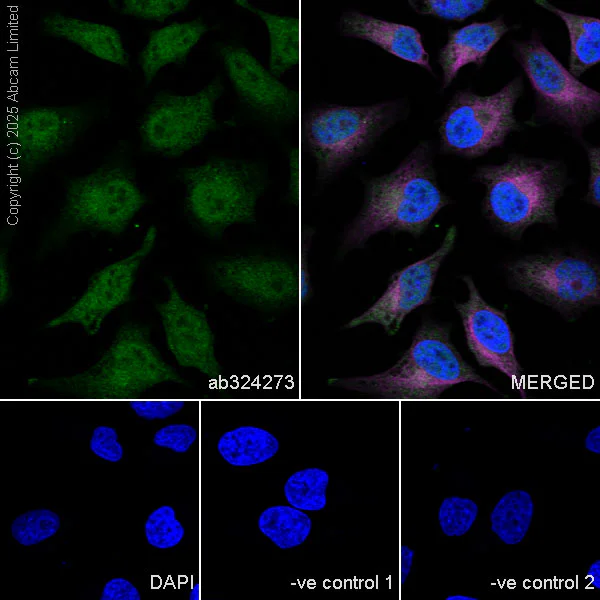

Confocal image showing nuclear and cytoplasmic staining in HeLa cell line (shown in green). The counterstain was observed in magenta. Nuclear DNA was labeled with DAPI (shown in blue).Image was taken with a confocal microscope(Leica-Microsystems, TCS SP8).

ab7291 Anti-alpha Tubulin mouse monoclonal antibody was used to counterstain tubulin at 1/1000 1ug/ml dilution (Magenta). The Nuclear counterstain was DAPI (Blue).

-ve control 1 : ab324273 at 1/50 dilution, followed by ab150120 Goat Anti-Mouse IgG H&L (Alexa Fluor® 594) antibody at 1/1000 dilution. -ve control 2 : ab7291 at 1/1000 dilution, followed by ab150081 Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) antibody at 1/1000 dilution.

• ICC/IF

Lab

Immunocytochemistry/ Immunofluorescence - Anti-alpha Tubulin antibody [DM1A] - Loading Control (AB7291)

Immunofluorescent analysis of 100% methanol-fixed, 0.1% TritonX-100 permeabilized HeLa(human cervical adenocarcinoma epithelial cell) untreated, HeLa treated with TNF alpha (100 ng/ml) and IKK-16(1uM) for 4 hours and HeLa treated with TNF alpha (100 ng/ml), IKK-16(1uM) and Z-VAD-FM(20uM) for 4 hours cells labelling SQSTM1 / p62 with ab325681 at 1/50 (10.24 ug/ml) dilution, followed by ab150081 Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed antibody at 1/1000 dilution (Green).

Confocal image showing increased cytoplasmic staining in HeLa cells treated with TNF alpha (100 ng/ml) and IKK-16 (1uM) for 4 hours (panel B). No staining was observed in untreated HeLa cells (panel A), or HeLa cells treated with TNF alpha (100 ng/ml), IKK-16 (1uM) and Z-VAD-FM (20uM) for 4 hours (panel C). The counterstain was observed in magenta. Nuclear DNA was labelled with DAPI (shown in blue). Image was taken with a confocal microscope (Leica-Microsystems, TCS SP8).

ab7291 Anti-alpha Tubulin mouse monoclonal antibody was used to counterstain tubulin at 1/1000 dilution, followed by ab150120 Goat Anti-Mouse IgG H&L (Alexa Fluor® 594) at 1/1000 dilution (Magenta).

• ICC/IF

Lab

Immunocytochemistry/ Immunofluorescence - Anti-alpha Tubulin antibody [DM1A] - Loading Control (AB7291)

Immunofluorescent analysis of 4% Paraformaldehyde fixed 0.1% Triton X-100 permeabilized THP-1 (human monocytic leukemia monocyte) and HeLa(human cervical adenocarcinoma epithelial cell) cells labelling TLR2 with ab325499 at 1/50 (9.82 μg/ml) followed by ab150081 Goat Anti-Rabbit IgG H&L (Alexa Fluor^® 488) preadsorbed antibody as secondary at 1/1000 (2 μg/ml) dilution. The Confocal image showing cytoplasmic staining in THP-1 cell line (shown in green). The counterstain (ab7291) was observed in magenta. Nuclear DNA was labelled with DAPI (shown in blue). Low expression : HeLa

Image was taken with a confocal microscope (Leica-Microsystems, TCS SP8).

• ICC/IF

Lab

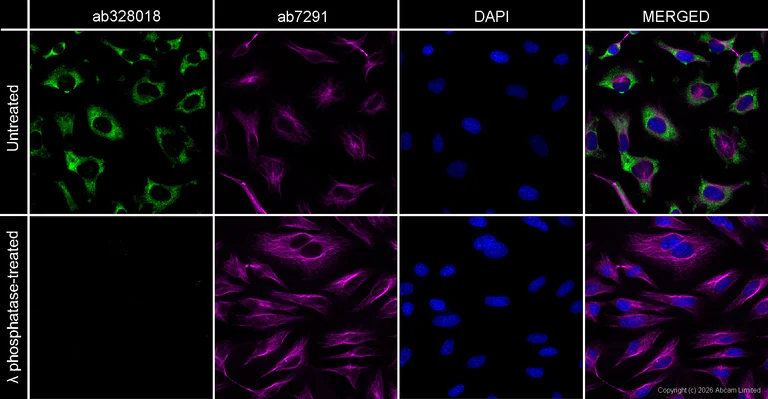

Immunocytochemistry/ Immunofluorescence - Anti-alpha Tubulin antibody [DM1A] - Loading Control (AB7291)

Immunofluorescent analysis of 100% methanol-fixed, 0.1% TritonX-100 permeabilized HeLa cells labelling LARP1 with ab328018 at 1/500 (1 ug/mL) dilution , followed by ab150081 Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed antibody at 1/1000 dilution (Green).

ab328018 staining LARP1 (phospho S689) in HeLa cells treated with 2000 U/mL lambda phosphatase or untreated. The cells were fixed with 100% methanol (5 min), permeabilized with 0.1% PBS-Triton X-100 for 5 minutes and then blocked with 1% BSA/10% normal rabbit serum/0.3M glycine in 0.1%PBS-Tween for 1h. The cells were then incubated overnight at 4°C with ab328018 at 1μg/mL (shown in green) and ab7291, Mouse monoclonal [DM1A] to alpha Tubulin - Loading Control (shown in pseudocolour magenta). Cells were then incubated with ab150081, Goat polyclonal Secondary Antibody to Rabbit IgG - H&L (Alexa Fluor® 488), pre-adsorbed and ab150120, Goat polyclonal Secondary Antibody to Mouse IgG - H&L (Alexa Fluor® 594), pre-adsorbed at 1/1000 dilution. Nuclear DNA was labelled with DAPI (shown in blue). Image was acquired with a high-content analyser (Operetta CLS, Perkin Elmer) and a maximum intensity projection of confocal sections is shown.

• ICC/IF

Supplier Data

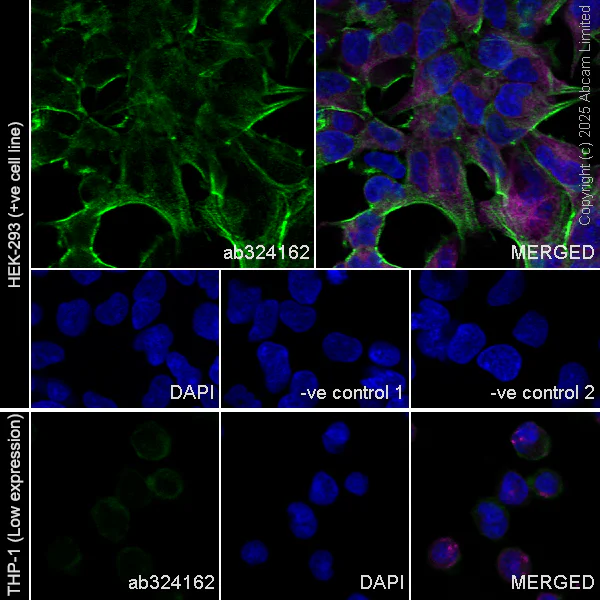

Immunocytochemistry/ Immunofluorescence - Anti-alpha Tubulin antibody [DM1A] - Loading Control (AB7291)

Immunofluorescent analysis of 4% Paraformaldehyde-fixed, 0.1% TritonX-100 permeabilized HEK-293 (human embryonic kidney epithelial cell) cells labelling KIAA1279 with ab324162 at 1/200 (2.535 ug/ml) dilution, followed by ab150081 Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed antibody at 1/1000 2ug/ml dilution (Green).

Confocal image showing cytoplasmic staining in HEK-293 cell line (shown in green). The counterstain was observed in magenta. Nuclear DNA was labelled with DAPI (shown in blue). Image was taken with a confocal microscope (Leica-Microsystems, TCS SP8).
Low expression : THP-1.

ab7291 Anti-alpha Tubulin mouse monoclonal antibody was used to counterstain tubulin at 1/1000 1ug/ml dilution (Magenta). The Nuclear counterstain was DAPI (Blue).

-ve control 1 : ab324162 at 1/200 dilution, followed by ab150120 Goat Anti-Mouse IgG H&L (Alexa Fluor® 594) antibody at 1/1000 dilution. -ve control 2 : ab7291 at 1/1000 dilution, followed by ab150081 Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) antibody at 1/1000 dilution.

• ICC/IF

Supplier Data

Immunocytochemistry/ Immunofluorescence - Anti-alpha Tubulin antibody [DM1A] - Loading Control (AB7291)

Immunofluorescent analysis of 4% paraformaldehyde fixed, 0.1% TritonX-100 permeabilized, quenched with 0.1M ammonium chloride, and blocked with 10% normal goat serum in PBS HeLa (human cervical cancer cells) cells labelling Ki67 with ab92742 at 1/1000 (0.85 µg/ml) dilution, followed by ab325295 Alpaca multiclonal [10E10 / 8C10] Anti-Rabbit IgG antibody (AZdye 568) at 1/500 (0.08 µg/ml per sdAb) dilution (red).

Confocal image showing cytoplasmic staining in HeLa cells (shown in red). The counterstain was observed in orange. Nuclear DNA was labelled with DAPI (shown in blue).

Image was taken with a fluorescence microscope (Zeiss Axio Imager Z1).

ab7291 anti-alpha Tubulin was used to counterstain alpha Tubulin at 1/2000 (0.50 µg/ml) dilution (orange).

Secondary antibody only control : Secondary antibody is ab325295 Alpaca multiclonal [10E10 / 8C10] Anti-Rabbit IgG antibody (AZdye 568) at 1/500 (0.08 µg/ml per sdAb) dilution.

• ICC/IF

Supplier Data

Immunocytochemistry/ Immunofluorescence - Anti-alpha Tubulin antibody [DM1A] - Loading Control (AB7291)

Immunofluorescent analysis of 4% paraformaldehyde fixed, 0.1% TritonX-100 permeabilized, quenched with 0.1M ammonium chloride, and blocked with 10% normal goat serum in PBS HeLa (human cervical cancer cells) cells labelling Ki67 with ab92742 at 1/1000 (0.85 µg/ml) dilution, followed by ab325297 Alpaca multiclonal [10E10 / 8C10] Anti-Rabbit IgG antibody (ATTO 488) at 1/500 (0.08 µg/ml per sdAb) dilution (green).

Confocal image showing cytoplasmic staining in HeLa cells (shown in green). The counterstain was observed in purple. Nuclear DNA was labelled with DAPI (shown in blue).

Image was taken with a fluorescence microscope (Zeiss Axio Imager Z1).

ab7291 anti-alpha Tubulin was used to counterstain alpha Tubulin at 1/2000 (0.50 µg/ml) dilution (purple).

Secondary antibody only control : Secondary antibody is ab325297 Alpaca multiclonal [10E10 / 8C10] Anti-Rabbit IgG antibody (ATTO 488) at 1/500 (0.08 µg/ml per sdAb) dilution.

• ICC/IF

Supplier Data

Immunocytochemistry/ Immunofluorescence - Anti-alpha Tubulin antibody [DM1A] - Loading Control (AB7291)

Immunofluorescent analysis of 4% Paraformaldehyde-fixed, 0.1% TritonX-100 permeabilized HeLa (human cervical adenocarcinoma epithelial cell) cells labelling NBR1 with ab324910 at 1/50 (10.08 ug/ml) dilution, followed by ab150081 Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed antibody at 1/1000 (2 ug/ml) dilution (Green).

Confocal image showing increased cytoplasmic staining in HeLa cell line treated with bafilomycin A1 (0.2 uM) for 24 hours (shown in green). The counterstain was observed in magenta. Nuclear DNA was labelled with DAPI (shown in blue). Image was taken with a confocal microscope (Leica-Microsystems, TCS SP8).

ab7291 Anti-alpha Tubulin mouse monoclonal antibody was used to counterstain tubulin at 1/1000 (1 ug/ml) dilution, followed by ab150120 Goat Anti-Mouse IgG H&L (Alexa Fluor® 594) at 1/1000 (2 ug/ml) dilution (Magenta).

Secondary antibody only control : Secondary antibody is ab150081 Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed at 1/1000 (2 ug/ml) dilution.

• ICC/IF

Lab

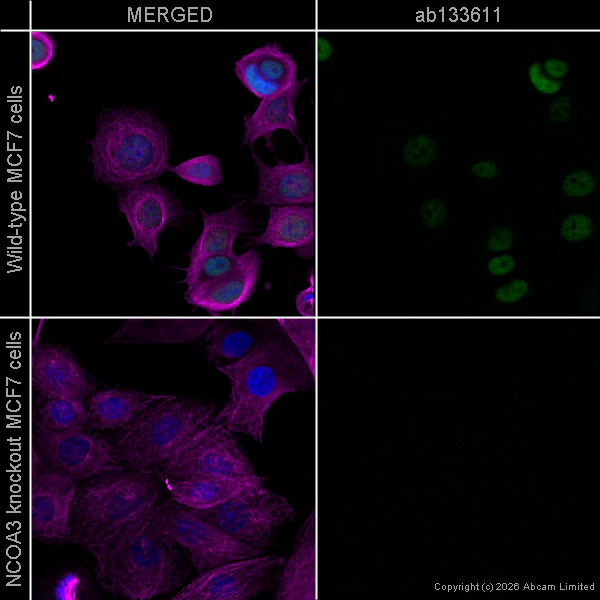

Immunocytochemistry/ Immunofluorescence - Anti-alpha Tubulin antibody [DM1A] - Loading Control (AB7291)

ab133611 staining NCOA3 in MCF-7 (positive) and MCF-7-NCOA3 KO (negative) cells (ab275827). The cells were fixed with 4% Paraformaldehyde (10 min), permeabilized with 0.1% PBS-Triton X-100 for 5 minutes and then blocked with 1% BSA/10% normal goat serum/0.3M glycine in 0.1%PBS-Tween for 1h. The cells were then incubated for 2 hours at room temperature with ab133611 at 0.2 µg/ml (shown in green) and ab7291, Anti-alpha Tubulin antibody [DM1A] - Loading Control (shown in pseudocolour magenta). Cells were then incubated with ab150081, Goat Anti-Rabbit IgG H&L (Alexa Fluor^® 488) preadsorbed at 1/1000 dilution and ab150120, Goat Anti-Mouse IgG H&L (Alexa Fluor^® 594) preadsorbed at 1/1000 dilution for 1 hour at room temperature. Nuclear DNA was labeled with DAPI (shown in blue). Also suitable in cells fixed with 100% Methanol (5 min). Image was acquired with a high-content analyser (Operetta CLS, Revvity) and a maximum intensity projection of confocal sections is shown.

• ICC/IF

Lab

Immunocytochemistry/ Immunofluorescence - Anti-alpha Tubulin antibody [DM1A] - Loading Control (AB7291)

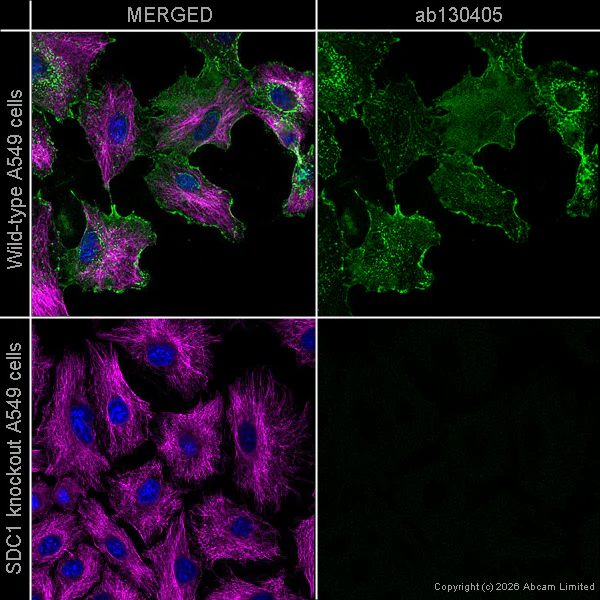

ab130405 staining SDC1 in A549 (positive) and A549-SDC1 KO (negative) cells. The cells were fixed with 100% methanol (5 min), permeabilized with 0.1% PBS-Triton X-100 for 5 minutes and then blocked with 1% BSA/10% normal goat serum/0.3M glycine in 0.1%PBS-Tween for 1h. The cells were then incubated for 2 hours at room temperature with ab130405 at 0.2 µg/ml (shown in green) and ab7291, Anti-alpha Tubulin antibody [DM1A] - Loading Control (shown in pseudocolour magenta). Cells were then incubated with ab150081, Goat Anti-Rabbit IgG H&L (Alexa Fluor^® 488) preadsorbed at 1/1000 dilution and ab150120, Goat Anti-Mouse IgG H&L (Alexa Fluor^® 594) preadsorbed at 1/1000 dilution for 1 hour at room temperature. Nuclear DNA was labeled with DAPI (shown in blue). Image was acquired with a high-content analyser (Operetta CLS, Revvity) and a maximum intensity projection of confocal sections is shown.

• ICC/IF

Supplier Data

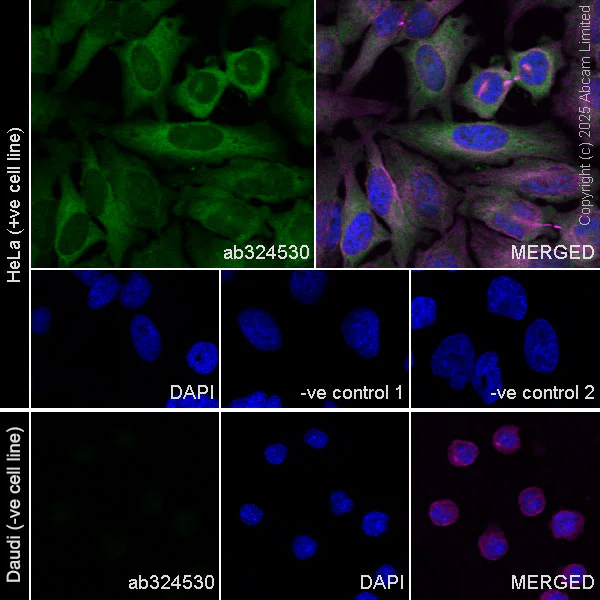

Immunocytochemistry/ Immunofluorescence - Anti-alpha Tubulin antibody [DM1A] - Loading Control (AB7291)

Immunofluorescent analysis of 4% Paraformaldehyde-fixed, 0.1% TritonX-100 permeabilized HeLa (human cervical adenocarcinoma epithelial cell) cells labelling PHGDH/Malate dehydrogenase with ab324530 at 1/200 (2.595 ug/ml) dilution, followed by ab150081 Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed antibody at 1/1000 dilution (Green).

Confocal image showing cytoplasmic and nuclear staining in HeLa cell line (shown in green). The counterstain was observed in magenta. Nuclear DNA was labelled with DAPI (shown in blue).
Negative control : Daudi (PMID : 35316216).
Image was taken with a confocal microscope (Leica-Microsystems, TCS SP8).

ab7291 Anti-alpha Tubulin mouse monoclonal antibody was used to counterstain tubulin at 1/1000 dilution (Magenta). The Nuclear counterstain was DAPI (Blue).

-ve control 1 : ab324530 at 1/200 dilution, followed by ab150120 Goat Anti-Mouse IgG H&L (Alexa Fluor® 594) antibody at 1/1000 dilution. -ve control 2 : ab7291 at 1/1000 dilution, followed by ab150081 Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) antibody at 1/1000 dilution.

• ICC/IF

Lab

Immunocytochemistry/ Immunofluorescence - Anti-alpha Tubulin antibody [DM1A] - Loading Control (AB7291)

Immunofluorescent analysis of 100% methanol-fixed, 0.1% TritonX-100 permeabilized 786-O (human kidney epithelial cell) HeLa (human cervical adenocarcinoma epithelial cell) cells labelling TNFSF10 with ab327838 at 1/500 (1.004 μg/ml) dilution , followed by ab150081 Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed antibody at 1/1000 dilution (Green).

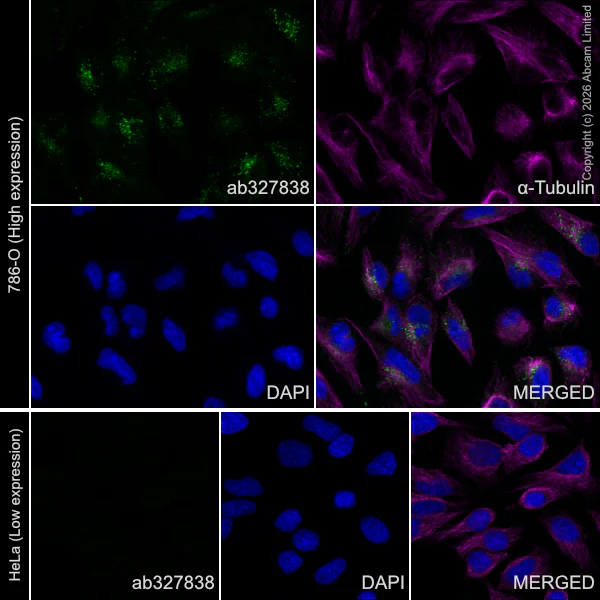

Confocal image showing cytoplasmic staining in 786-O cell line (shown in green). The counterstain was observed in magenta. Nuclear DNA was labelled with DAPI (shown in blue). Low expression : HeLa. Image was taken with a confocal microscope (Leica-Microsystems, TCS SP8).

ab7291 Anti-alpha Tubulin mouse monoclonal antibody was used to counterstain tubulin at 1/1000 dilution (Magenta). The Nuclear counterstain was DAPI (Blue).

Secondary antibody only control : Secondary antibody is ab150081 Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed at 1/1000 dilution.

• ICC/IF

Supplier Data

Immunocytochemistry/ Immunofluorescence - Anti-alpha Tubulin antibody [DM1A] - Loading Control (AB7291)

Immunofluorescent analysis of 4% Paraformaldehyde-fixed, 0.1% TritonX-100 permeabilized HUVEC (human umbilical vein endothelial cell) cells labelling VE Cadherin (phospho Y685) with ab325018 at 1/1000 (0.495 ug/ml) dilution, followed by ab150081 Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed antibody at 1/1000 (2 ug/ml) dilution (Green).

Confocal image showing membranous and cytoplasmic staining in HUVEC cells (shown in green) treated with 100 uM Pervanadate for 10 mins, and showing no staining in untreated HUVEC cells. The counterstain was observed in magenta. Nuclear DNA was labelled with DAPI (shown in blue). Image was taken with a confocal microscope (Leica-Microsystems, TCS SP8).

ab7291 Anti-alpha Tubulin mouse monoclonal antibody was used to counterstain tubulin at 1/1000 (1 ug/ml) dilution, followed by ab150120 Goat Anti-Mouse IgG H&L (Alexa Fluor® 594) at 1/1000 (2 ug/ml) dilution (Magenta).

• ICC/IF

Lab

Immunocytochemistry/ Immunofluorescence - Anti-alpha Tubulin antibody [DM1A] - Loading Control (AB7291)

Immunofluorescent analysis of 4% Paraformaldehyde-fixed, 0.1% TritonX-100 permeabilized A549 (human lung carcinoma epithelial cell) transfected with scrambled siRNA A549 cells transfected with siRNA targeting QRICH1 cells labelling QRICH1 with ab326365 at 1/500 (1.028 µg/ml) dilution , followed by ab150081 Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed antibody at 1/1000 dilution (Green).

Confocal image showing nuclear staining in A549 cells (shown in green) transfected with scrambled siRNA and reduced staining in A549 cells transfected with siRNA targeting QRICH1. The counterstain was observed in magenta. Nuclear DNA was labelled with DAPI (shown in blue). Image was taken with a confocal microscope (Leica-Microsystems, TCS SP8).

ab7291 Anti-alpha Tubulin mouse monoclonal antibody was used to counterstain tubulin at 1/1000 dilution (Magenta). The Nuclear counterstain was DAPI (Blue).

Secondary antibody only control : Secondary antibody is ab150081 Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed at 1/1000 dilution.

• ICC/IF

Supplier Data

Immunocytochemistry/ Immunofluorescence - Anti-alpha Tubulin antibody [DM1A] - Loading Control (AB7291)

Immunofluorescent analysis of 4% Paraformaldehyde-fixed, 0.1% TritonX-100 permeabilized DLD-1(human colorectal adenocarcinoma epithelial cell) cells labelling Ferroptosis suppressor protein 1 with ab324520 at 1/50 dilution, followed by ab150081 Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed antibody at 1/1000 dilution (Green).

Confocal image showing cytoplasmic staining in DLD-1 cells (shown in green). The counterstain was observed in magenta. Nuclear DNA was labelled with DAPI (shown in blue).
Low expression : T-47D
Image was taken with a confocal microscope (Leica-Microsystems, TCS SP8).

ab7291 Anti-alpha Tubulin mouse monoclonal antibody was used to counterstain tubulin at 1/1000 (1 ug/ml) dilution, followed by ab150120 Goat Anti-Mouse IgG H&L (Alexa Fluor® 594) at 1/1000 (2 ug/ml) dilution (Magenta).

-ve control 1 : ab324520 at 1/50 dilution, followed by ab150120 Goat Anti-Mouse IgG H&L (Alexa Fluor® 594) antibody at 1/1000 dilution.
-ve control 2 : ab7291 at 1/1000 dilution, followed by ab150081 Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed antibody at 1/1000 dilution.

• ICC/IF

Lab

Immunocytochemistry/ Immunofluorescence - Anti-alpha Tubulin antibody [DM1A] - Loading Control (AB7291)

Immunofluorescent analysis of 4% Paraformaldehyde-fixed, 0.1% TritonX-100 permeabilized K-562 (human chronic myelogenous leukemia lymphoblast) HepG2 (human hepatocellular carcinoma epithelial cell) cells labelling Leptin Receptor with ab325970 at 1/50 (10.02 µg/ml) dilution , followed by ab150081 Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed antibody at 1/1000 dilution (Green).

Confocal image showing cytoplasmic staining in K-562 cells and weak staining in HepG2 cells (shown in green). The counterstain was observed in magenta. Nuclear DNA was labelled with DAPI (shown in blue). Low expression : HepG2(PMID : 22207628). Image was taken with a confocal microscope (Leica-Microsystems, TCS SP8).

ab7291 Anti-alpha Tubulin mouse monoclonal antibody was used to counterstain tubulin at 1/1000 dilution (Magenta). The Nuclear counterstain was DAPI (Blue).

-ve control 1 : ab325970 at 1/50 dilution, followed by ab150120 at 1/1000 dilution.-ve control 2 : ab7291 at 1/1000 dilution, followed by ab150081 at 1/1000 dilution.

• ICC/IF

Lab

Immunocytochemistry/ Immunofluorescence - Anti-alpha Tubulin antibody [DM1A] - Loading Control (AB7291)

Immunofluorescent analysis of 4% Paraformaldehyde-fixed, 0.1% TritonX-100 permeabilized TF-1 (human erythroleukemia erythroblast) Daudi (human Burkitt's lymphoma lymphoblast) cells labelling Leptin Receptor with ab325970 at 1/50 (10.02 µg/ml) dilution , followed by ab150081 Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed antibody at 1/1000 dilution (Green).

Confocal image showing cytoplasmic staining in TF-1 cells and weak staining in Daudi cells (shown in green). The counterstain was observed in magenta. Nuclear DNA was labelled with DAPI (shown in blue). Low expression : Daudi. Image was taken with a confocal microscope (Leica-Microsystems, TCS SP8).

ab7291 Anti-alpha Tubulin mouse monoclonal antibody was used to counterstain tubulin at 1/1000 dilution (Magenta). The Nuclear counterstain was DAPI (Blue).

-ve control 1 : ab325970 at 1/50 dilution, followed by ab150120 at 1/1000 dilution.-ve control 2 : ab7291 at 1/1000 dilution, followed by ab150081 at 1/1000 dilution.

• ICC/IF

Lab

Immunocytochemistry/ Immunofluorescence - Anti-alpha Tubulin antibody [DM1A] - Loading Control (AB7291)

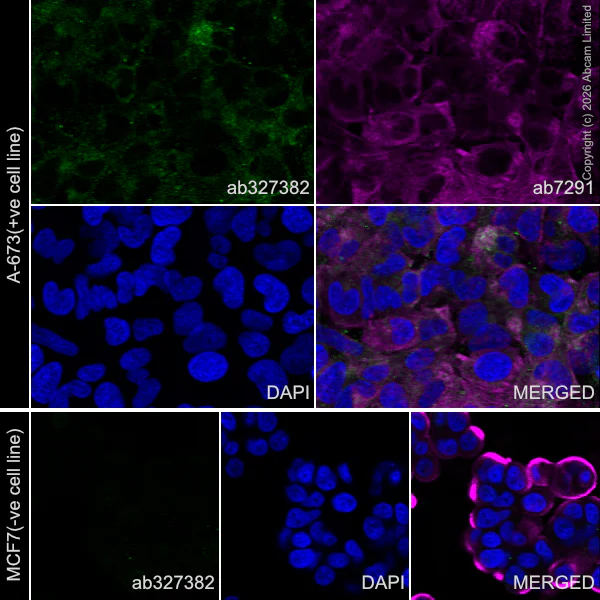

Immunofluorescent analysis of 4% Paraformaldehyde-fixed, 0.1% TritonX-100 permeabilized A-673 (human muscle Ewings sarcoma cell line) and MCF7 (human breast adenocarcinoma epithelial cell) cells labelling Ten-1 with ab327382 at 1/50 (9.48 μg/ml) dilution, followed by ab150081 Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed antibody at 1/1000 dilution (Green).

Confocal image showing cytoplasmic staining in A-673 cells (shown in green). The counterstain was observed in magenta. Nuclear DNA was labelled with DAPI (shown in blue).

Negative control : MCF7.

Image was taken with a confocal microscope (Leica-Microsystems, TCS SP8).

ab7291 Anti-alpha Tubulin mouse monoclonal antibody was used to counterstain tubulin at 1/1000 (1 ug/ml) dilution, followed by ab150120 Goat Anti-Mouse IgG H&L (Alexa Fluor® 594) at 1/1000 (2 ug/ml) dilution (Magenta).

• ICC/IF

Lab

Immunocytochemistry/ Immunofluorescence - Anti-alpha Tubulin antibody [DM1A] - Loading Control (AB7291)

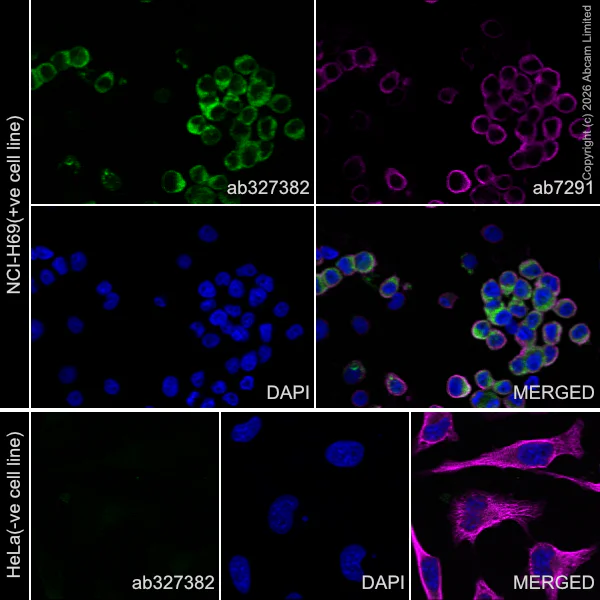

Immunofluorescent analysis of 4% Paraformaldehyde-fixed, 0.1% TritonX-100 permeabilized NCI-H69 (human lung small cell carcinoma cell line) and HeLa (human cervical adenocarcinoma epithelial cell) cells labelling Ten-1 with ab327382 at 1/50 (9.48 μg/ml) dilution, followed by ab150081 Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed antibody at 1/1000 dilution (Green).

Confocal image showing cytoplasmic staining in NCI-H69 cells (shown in green). The counterstain was observed in magenta. Nuclear DNA was labelled with DAPI (shown in blue).

Negative control : HeLa.

Image was taken with a confocal microscope (Leica-Microsystems, TCS SP8).

ab7291 Anti-alpha Tubulin mouse monoclonal antibody was used to counterstain tubulin at 1/1000 (1 ug/ml) dilution, followed by ab150120 Goat Anti-Mouse IgG H&L (Alexa Fluor® 594) at 1/1000 (2 ug/ml) dilution (Magenta).

• ICC/IF

Lab

Immunocytochemistry/ Immunofluorescence - Anti-alpha Tubulin antibody [DM1A] - Loading Control (AB7291)

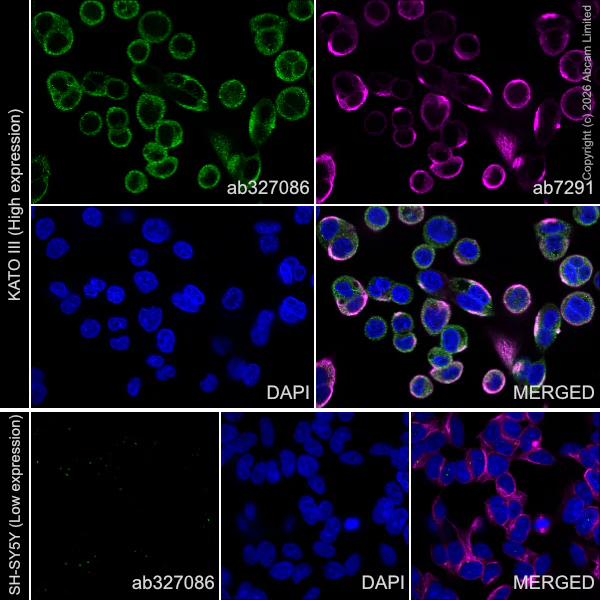

Immunofluorescent analysis of 4% Paraformaldehyde-fixed, 0.1% TritonX-100 permeabilized KATO III (human stomach spherical) and SH-SY5Y (human neuroblastoma epithelial cell) labelling ACSL5 with ab327086 at 1/50 (10.26 μg/ml) dilution, followed by ab150081 Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed antibody at 1/1000 dilution (Green).

Confocal image showing cytoplasmic staining in KATO III cells and no staining in SH-SY5Y cells (shown in green). The counterstain was observed in magenta. Nuclear DNA was labelled with DAPI (shown in blue).
Low expression : SH-SY5Y.
Image was taken with a confocal microscope (Leica-Microsystems, TCS SP8).

ab7291 Anti-alpha Tubulin mouse monoclonal antibody was used to counterstain tubulin at 1/1000 dilution (Magenta). The Nuclear counterstain was DAPI (Blue).

• ICC/IF

Lab

Immunocytochemistry/ Immunofluorescence - Anti-alpha Tubulin antibody [DM1A] - Loading Control (AB7291)

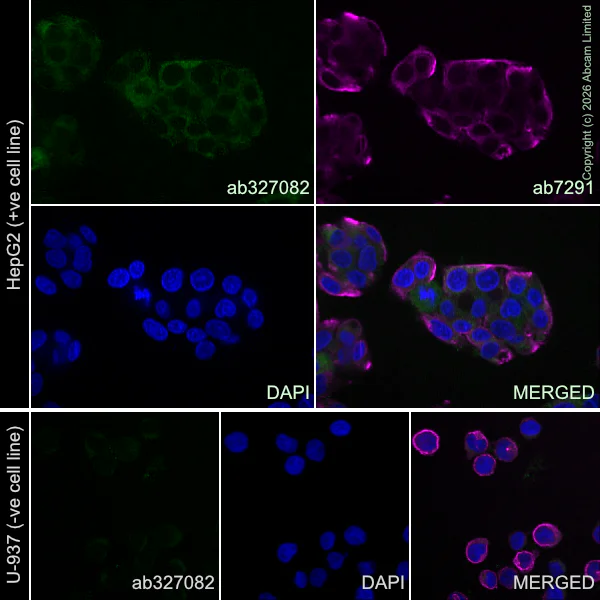

Immunofluorescent analysis of 4% Paraformaldehyde-fixed, 0.1% TritonX-100 permeabilized HepG2 (human hepatocellular carcinoma epithelial cell) U-937 (human histiocytic lymphoma monocyte) cells labelling with ab327082 at 1/50 (10.06 μg/ml) dilution , followed by ab150081 Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed antibody at 1/1000 dilution (Green).

Confocal image showing increased cytoplasmic staining in neurnal differntiated SH-SY5Y cells (shown in green). The counterstain was observed in magenta. Nuclear DNA was labelled with DAPI (shown in blue). Image was taken with a confocal microscope (Leica-Microsystems, TCS SP8). Negative control : U-937

ab7291 Anti-alpha Tubulin mouse monoclonal antibody was used to counterstain tubulin at 1/1000 dilution (Magenta). The Nuclear counterstain was DAPI (Blue).

Secondary antibody only control : Secondary antibody is ab150081 Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed at 1/1000 dilution.
