APC Anti-Cardiac Troponin T antibody [EPR20266]

• IHC-P

Supplier Data

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - APC Anti-Cardiac Troponin T antibody [EPR20266] (AB317475)

Immunohistochemical analysis of paraffin-embedded Human skeletal muscl tissue labeling Cardiac Troponin T with ab317475 at 1/100 (5.0 ug/ml) dilution.

Negative control : no staining on human skeletal muscle. The section was incubated with ab317475 for 60 mins at room temperature (shown in red). Nuclear DNA was labeled with DAPI (shown in blue). The section was then mounted using Fluoromount®. The immunostaining was performed on a Leica Biosystems BOND RX instrument. Image was taken with a confocal microscope (Leica-Microsystems, TCS SP8). Counterstained with DAPI.

Heat mediated antigen retrieval was performed with Tris-EDTA buffer (pH 9.0, Epitope Retrieval Solution2) for 40 mins.

• IHC-P

Supplier Data

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - APC Anti-Cardiac Troponin T antibody [EPR20266] (AB317475)

Immunohistochemical analysis of paraffin-embedded Human cardiac muscle tissue labeling Cardiac Troponin T with ab317475 at 1/100 (5.0 ug/ml) dilution.

Cytoplasmic staining on human cardiac myocytes. The section was incubated with ab317475 for 60 mins at room temperature (shown in red). Nuclear DNA was labeled with DAPI (shown in blue). The section was then mounted using Fluoromount®. The immunostaining was performed on a Leica Biosystems BOND RX instrument. Image was taken with a confocal microscope (Leica-Microsystems, TCS SP8). Counterstained with DAPI.

Heat mediated antigen retrieval was performed with Tris-EDTA buffer (pH 9.0, Epitope Retrieval Solution2) for 40 mins

• ICC/IF

Supplier Data

Immunocytochemistry/ Immunofluorescence - APC Anti-Cardiac Troponin T antibody [EPR20266] (AB317475)

Immunofluorescent analysis of 4% Paraformaldehyde-fixed, 0.1% TritonX-100 permeabilized L6 (rat skeletal muscle myoblast) cells labelling Cardiac Troponin T with ab317475 at 1/50 dilution (Magenta). Confocal image showing cytoplasmic staining in L6 cells (shown in magenta). The counterstain was observed in green. Nuclear DNA was labeled with DAPI (shown in blue). Image was taken with a confocal microscope(Leica-Microsystems, TCS SP8).

ab195887 Anti-alpha Tubulin mouse monoclonal antibody - Microtubule Marker (Alexa Fluor® 488) was used to counterstain tubulin at 1/200 (2.5ug/ml) dilution (Green). The Nuclear counterstain was DAPI (Blue).

• IHC-P

Supplier Data

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - APC Anti-Cardiac Troponin T antibody [EPR20266] (AB317475)

Immunohistochemical analysis of paraffin-embedded Mouse cardiac muscle tissue labeling Cardiac Troponin T with ab317475 at 1/100 (5.0 ug/ml) dilution.

Cytoplasmic staining on mouse cardiac myocytes. The section was incubated with ab317475 for 60 mins at room temperature (shown in red). Nuclear DNA was labeled with DAPI (shown in blue). The section was then mounted using Fluoromount®. The immunostaining was performed on a Leica Biosystems BOND RX instrument. Image was taken with a confocal microscope (Leica-Microsystems, TCS SP8). Counterstained with DAPI.

Heat mediated antigen retrieval was performed with Tris-EDTA buffer (pH 9.0, Epitope Retrieval Solution2) for 40 mins.

• IHC-P

Supplier Data

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - APC Anti-Cardiac Troponin T antibody [EPR20266] (AB317475)

Immunohistochemical analysis of paraffin-embedded Rat cardiac muscle tissue labeling Cardiac Troponin T with ab317475 at 1/100 (5.0 ug/ml) dilution.

Cytoplasmic staining on rat cardiac myocytes. The section was incubated with ab317475 for 60 mins at room temperature (shown in red). Nuclear DNA was labeled with DAPI (shown in blue). The section was then mounted using Fluoromount®. The immunostaining was performed on a Leica Biosystems BOND RX instrument. Image was taken with a confocal microscope (Leica-Microsystems, TCS SP8). Counterstained with DAPI.

Heat mediated antigen retrieval was performed with Tris-EDTA buffer (pH 9.0, Epitope Retrieval Solution2) for 40 mins.

• ICC/IF

Supplier Data

Immunocytochemistry/ Immunofluorescence - APC Anti-Cardiac Troponin T antibody [EPR20266] (AB317475)

Immunofluorescent analysis of 4% Paraformaldehyde-fixed, 0.1% TritonX-100 permeabilized HL-1 (mouse atrial muscle cell) cells labelling Cardiac Troponin T with ab317475 at 1/50 dilution (Magenta). Confocal image showing cytoplasmic staining in HL-1 cells (shown in magenta). The counterstain was observed in green. Nuclear DNA was labeled with DAPI (shown in blue). Image was taken with a confocal microscope(Leica-Microsystems, TCS SP8).

ab195887 Anti-alpha Tubulin mouse monoclonal antibody - Microtubule Marker (Alexa Fluor® 488) was used to counterstain tubulin at 1/200 (2.5ug/ml) dilution (Green). The Nuclear counterstain was DAPI (Blue).

• Flow Cyt (Intra)

Supplier Data

Flow Cytometry (Intracellular) - APC Anti-Cardiac Troponin T antibody [EPR20266] (AB317475)

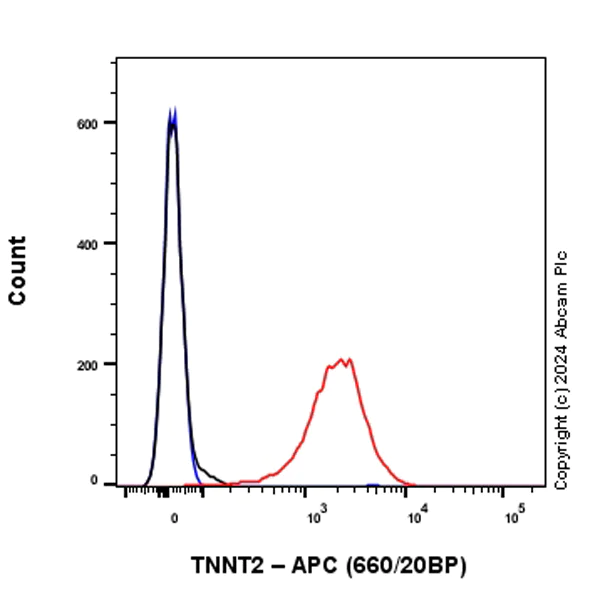

Flow cytometric analysis of 4% paraformaldehyde fixed 90% methanol permeabilized HL-1 (mouse atrial muscle cell) cells labelling Cardiac Troponin T with ab317475 at 1/500 dilution (0.1ug) (Red) compared with a Rabbit IgG monoclonal [EPR25A] - Isotype Control (Allophycocyanin) (ab232814) (Black) isotype control and an unlabelled control (cells without incubation with primary antibody and secondary antibody) (Blue).

• Flow Cyt (Intra)

Supplier Data

Flow Cytometry (Intracellular) - APC Anti-Cardiac Troponin T antibody [EPR20266] (AB317475)

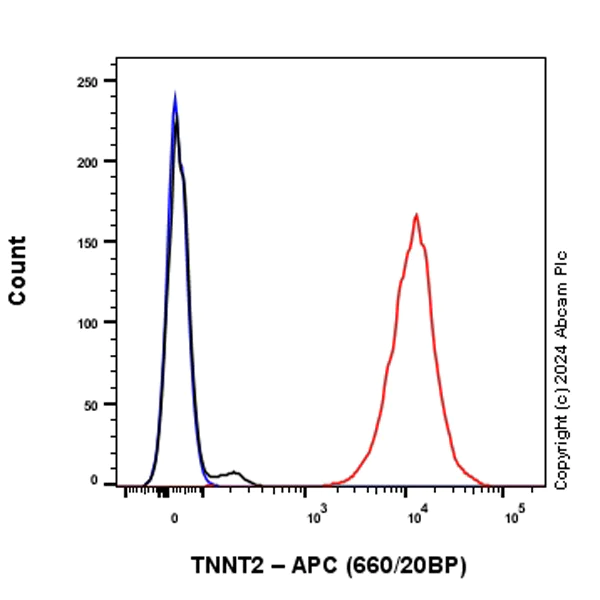

Flow cytometric analysis of 4% paraformaldehyde fixed 90% methanol permeabilized L6 (rat skeletal muscle myoblast) cells labelling Cardiac Troponin T with ab317475 at 1/500 dilution (0.1ug) (Red) compared with a Rabbit IgG monoclonal [EPR25A] - Isotype Control (Allophycocyanin) (ab232814) (Black) isotype control and an unlabelled control (cells without incubation with primary antibody and secondary antibody) (Blue).
