Anti-BNP antibody [EPR31228-653]

• ICC/IF

Lab

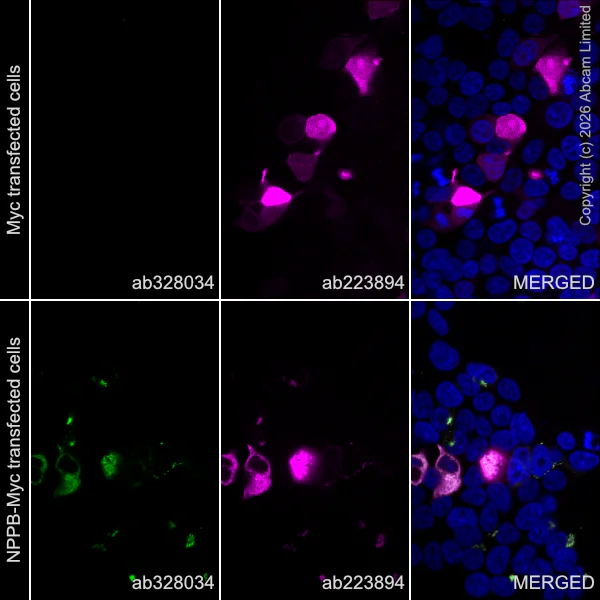

Immunocytochemistry/ Immunofluorescence - Anti-BNP antibody [EPR31228-653] (AB328034)

Immunofluorescent analysis of 4% Paraformaldehyde-fixed, 0.1% TritonX-100 permeabilized 293T (human embryonic kidney epithelial cell) cells transfected with an empty expression vector containing a myc-His-tag® and 293T cells transfected with a mouse NPPB protein expression vector containing a myc-His-tag® labelling BNP with ab328034 at 1/2000 (0.257 μg/ml) dilution, followed by ab150081 Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed antibody at 1/1000 dilution (Green).

Confocal image showing cytoplasmic staining in 293T cells (shown in green) transfected with a mouse NPPB protein expression vector containing a myc-His-tag®. The counterstain was observed in magenta. Nuclear DNA was labelled with DAPI (shown in blue). Image was taken with a confocal microscope (Leica-Microsystems, TCS SP8).

ab223894 Anti-Myc tag mouse monoclonal antibody (Alexa Fluor® 594) was used to counterstain myc at 1/100 dilution (Magenta). The Nuclear counterstain was DAPI (Blue).

• ICC/IF

Lab

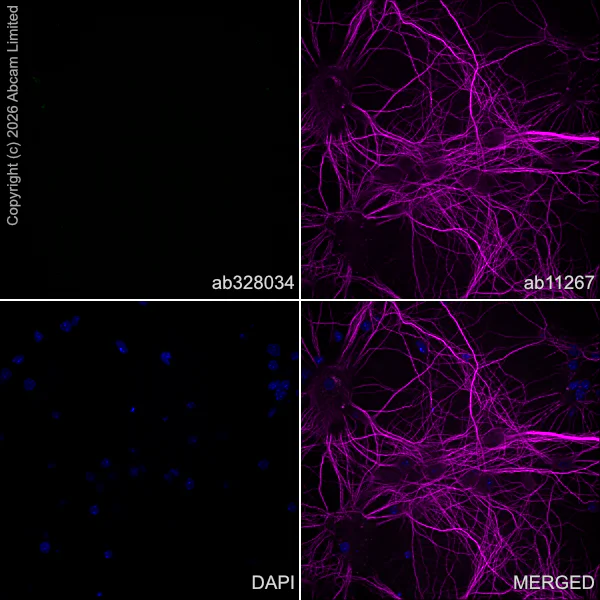

Immunocytochemistry/ Immunofluorescence - Anti-BNP antibody [EPR31228-653] (AB328034)

Immunofluorescent analysis of 4% Paraformaldehyde-fixed, 0.1% TritonX-100 permeabilized mouse primary neural/glia cells labelling BNP with ab328034 at 1/2000 (0.257 μg/ml) dilution, followed by ab150081 Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed antibody at 1/1000 dilution (Green).

Negative : Confocal image showing no staining in mouse primary neural/glia cells (shown in green)(PMID : 8182124). The counterstain was observed in magenta. Nuclear DNA was labelled with DAPI (shown in blue). Image was taken with a confocal microscope (Leica-Microsystems, TCS SP8).Confocal scanning Z step was set as 0.3 μm followed by image processing with maximum Z projection.

ab11267 Anti-MAP2 mouse monoclonal antibody was used to counterstain MAP2 at 1/500 dilution (Magenta). The Nuclear counterstain was DAPI (Blue).

• ICC/IF

Lab

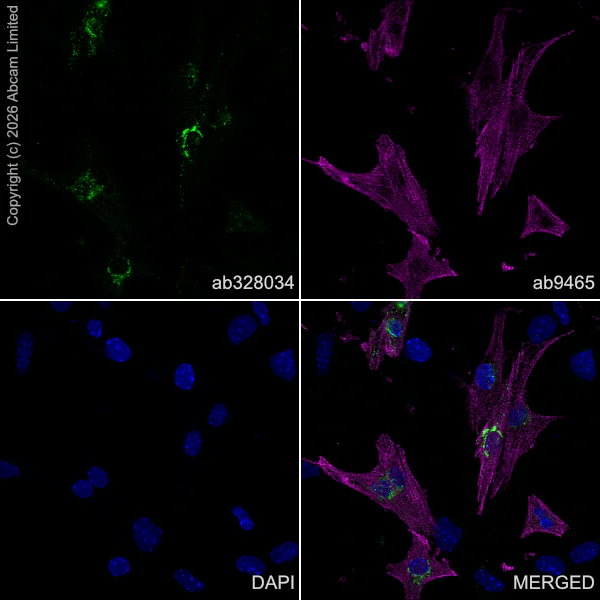

Immunocytochemistry/ Immunofluorescence - Anti-BNP antibody [EPR31228-653] (AB328034)

Immunofluorescent analysis of 4% Paraformaldehyde-fixed, 0.1% TritonX-100 permeabilized Mouse cardiomyocyte cells labelling BNP with ab328034 at 1/2000 (0.257 μg/ml) dilution, followed by ab150081 Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed antibody at 1/1000 dilution (Green).

Confocal image showing cytoplasmic staining in mouse cardiomyocytes (shown in green). The counterstain was observed in magenta. Nuclear DNA was labelled with DAPI (shown in blue). Image was taken with a confocal microscope (Leica-Microsystems, TCS SP8).

ab9465 Anti-Sarcomeric Alpha Actinin mouse monoclonal antibody was used to counterstain Sarcomeric Alpha Actinin at 1/1000 dilution (Magenta). The Nuclear counterstain was DAPI (Blue).

• WB

Lab

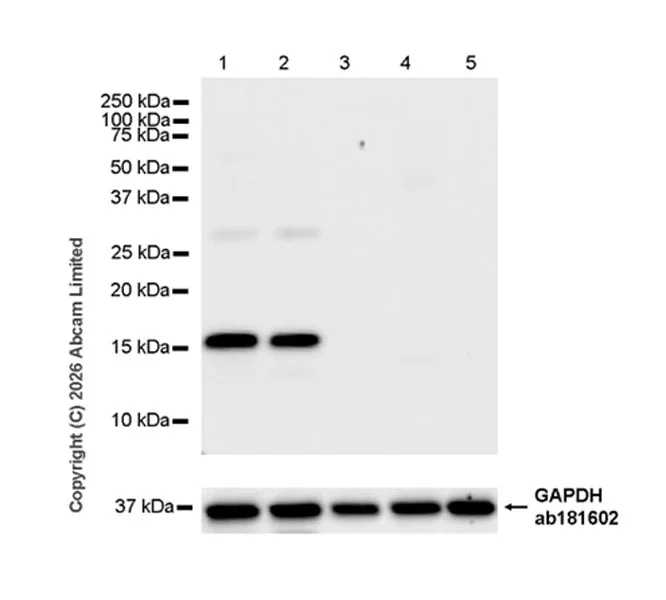

Western blot - Anti-BNP antibody [EPR31228-653] (AB328034)

Blocking and diluting buffer and concentration : 5% NFDM/TBST.

Negative control : liver, spleen, brain (PMID : 8182124).

Samples are non-boiled as boiling may cause protein aggregation.

In Western blot, Anti-GAPDH antibody [EPR16891] - Loading Control (ab181602) (1 : 200000) (36KDa).

All lanes:

Western blot - Anti-BNP antibody [EPR31228-653] (ab328034) at 1/1000 dilution

Lane 1:

Mouse atrium tissue lysate at 40 µg

Lane 2:

Mouse ventricle tissue lysate at 40 µg

Lane 3:

Mouse liver tissue lysate at 40 µg

Lane 4:

Mouse spleen tissue lysate at 40 µg

Lane 5:

Mouse brain tissue lysate at 40 µg

Secondary

All lanes:

Western blot - Goat Anti-Rabbit IgG H&L (HRP) (<a href='/ko/products/secondary-antibodies/goat-rabbit-igg-h-l-hrp-ab97051'>ab97051</a>) at 1/20000 dilution

Observed band size: 15 kDa,36 kDa

false

Exposure time: 15s
