Anti-CD18 antibody [MEM-48] - Low endotoxin, Azide free

• Flow Cyt

Unknown

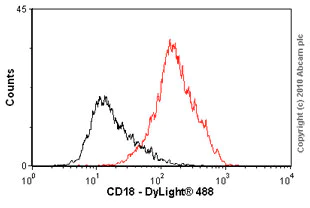

Flow Cytometry - Anti-CD18 antibody [MEM-48] - Low endotoxin, Azide free (AB46700)

Overlay histogram showing peripheral blood lymphocytes stained with ab46700 (red line). The cells were incubated with the antibody (ab46700, 1μg/1x10⁶ cells) for 30 min at 4°C. The secondary antibody used was DyLight^® 488 goat anti-mouse IgG (H&L) (ab96879) at 1/200 dilution for 30 min at 4°C. Isotype control antibody (black line) was mouse IgG1 [ICIGG1] (ab91353, 2μg/1x10⁶ cells) used under the same conditions. Acquisition of >5,000 events was performed gating on peripheral blood lymphocytes.

• Flow Cyt

Supplier Data

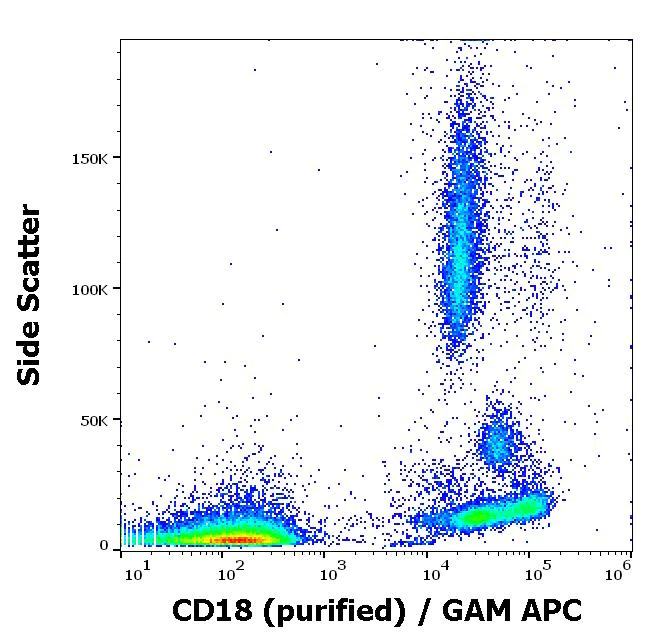

Flow Cytometry - Anti-CD18 antibody [MEM-48] - Low endotoxin, Azide free (AB46700)

Separation of human leukocytes (red-filled) from CD18 negative blood debris (black-dashed) in flow cytometry analysis (surface staining) of human peripheral whole blood stained using ab46700 (concentration in sample 1 μg/ml).

• Flow Cyt

Supplier Data

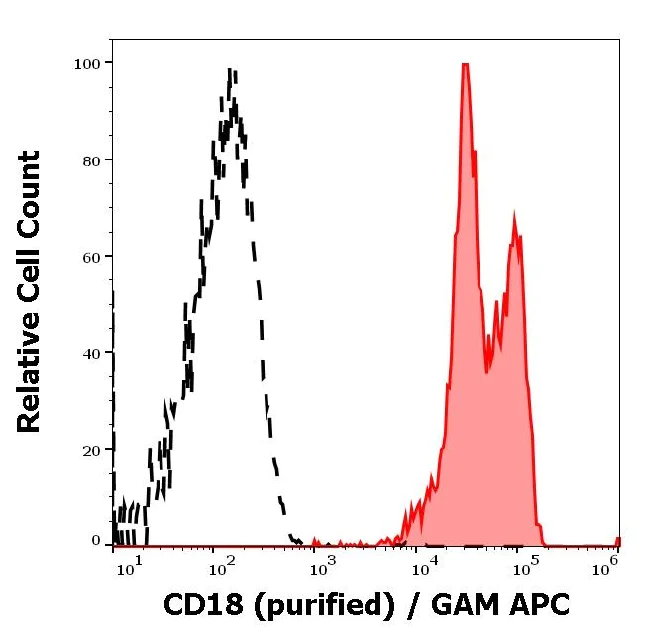

Flow Cytometry - Anti-CD18 antibody [MEM-48] - Low endotoxin, Azide free (AB46700)

Flow cytometry surface staining pattern of human peripheral whole blood stained using ab46700 (concentration in sample 1 μg/ml).

• WB

Supplier Data

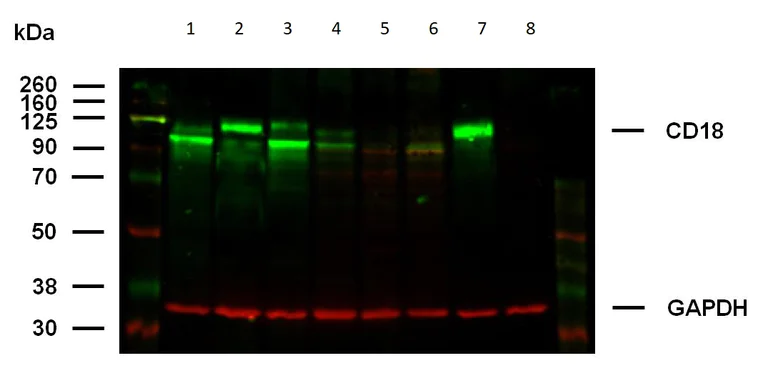

Western blot - Anti-CD18 antibody [MEM-48] - Low endotoxin, Azide free (AB46700)

The reactivity of MEM-48 antibody was assessed by comparing binding signals in a panel of various human cell samples. Western blotting analysis was performed on RIPA buffer extracts of THP-1, Kg1a, U937, HPB-ALL, Raji, Jurkat, leukocytes, and HeLa cells, mixed and heated (100°C, 5 min) with reducing (2-mercaptoethanol) SDS-loading buffer. Samples were resolved using 10% SDS-PAGE gel.

Nitrocellulose membrane blot was probed with ab46700 (2 µg/ml), followed by IRDye 800CW Goat-anti-Mouse IgG (green). For multiplex fluorescent Western blot detection, mouse anti-GAPDH monoclonal antibody FF26A conjugated with DyLight 680 (0.1 µg/ml) was used as the loading control (red).

CD18 was detected at ~90-100 kDa in the respective cell lines.

All lanes:

Western blot - Anti-CD18 antibody [MEM-48] - Low endotoxin, Azide free (ab46700) at 2 µg/mL

Lane 1:

THP-1

Lane 2:

Kg1a

Lane 3:

U937

Lane 4:

HPB-ALL

Lane 5:

Raji

Lane 6:

Jurkat

Lane 7:

Leukocytes

Lane 8:

HeLa

Secondary

All lanes:

IRDye 800CW Goat-anti-Mouse IgG

Observed band size: 90-100 kDa
