Anti-CD80 antibody [RM1133] - BSA and Azide free

• IHC-P

Supplier Data

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-CD80 antibody [RM1133] - BSA and Azide free (AB315833)

This data was developed using ab315832, the same antibody clone in a different buffer formulation.

Immunohistochemical analysis of paraffin-embedded Human skeletal muscle tissue labeling CD80 with ab315832 at 1/200 (2.635 ug/ml) dilution, followed by a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection).

Low expression tissue : nearly no staining on human skeletal muscle. The section was incubated with ab315832 for 30 mins at room temperature.
The immunostaining was performed on a Leica Biosystems BOND® RX instrument.

Counterstained with Hematoxylin.

Secondary antibody only control : Secondary antibody is a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection).

Heat mediated antigen retrieval was performed with Tris-EDTA buffer (pH 9.0, Epitope Retrieval Solution2) for 20 mins.

• IHC-P

Supplier Data

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-CD80 antibody [RM1133] - BSA and Azide free (AB315833)

This data was developed using ab315832, the same antibody clone in a different buffer formulation.

Immunohistochemical analysis of paraffin-embedded Human tonsil tissue labeling CD80 with ab315832 at 1/200 (2.635 ug/ml) dilution, followed by a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection).

Positive staining on the human tonsil. The section was incubated with ab315832 for 30 mins at room temperature.
The immunostaining was performed on a Leica Biosystems BOND® RX instrument.

Counterstained with Hematoxylin.

Secondary antibody only control : Secondary antibody is a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection).

Heat mediated antigen retrieval was performed with Tris-EDTA buffer (pH 9.0, Epitope Retrieval Solution2) for 20 mins.

• IHC-P

Supplier Data

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-CD80 antibody [RM1133] - BSA and Azide free (AB315833)

This data was developed using ab315832, the same antibody clone in a different buffer formulation.

Immunohistochemical analysis of paraffin-embedded Human hodgkin's lymphoma tissue labeling CD80 with ab315832 at 1/200 (2.635 ug/ml) dilution, followed by a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection).

Positive staining on the human hodgkin's lymphoma. The section was incubated with ab315832 for 30 mins at room temperature.
The immunostaining was performed on a Leica Biosystems BOND® RX instrument.

Counterstained with Hematoxylin.

Secondary antibody only control : Secondary antibody is a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection).

Heat mediated antigen retrieval was performed with Tris-EDTA buffer (pH 9.0, Epitope Retrieval Solution2) for 20 mins.

• ICC/IF

Supplier Data

Immunocytochemistry/ Immunofluorescence - Anti-CD80 antibody [RM1133] - BSA and Azide free (AB315833)

This data was developed using ab315832, the same antibody clone in a different buffer formulation.

Immunofluorescent analysis of 4% Paraformaldehyde-fixed, 0.1% TritonX-100 permeabilized CD80 knock out Raji (CD80 knockout human Burkitt's lymphoma B lymphocyte cell line) cells labelling CD80 with ab315832 at 1/200 (2.635 ug/ml) dilution, followed by ab150081 Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed antibody at 1/1000 (2 ug/mL) dilution (Green).

Confocal image showing membranous staining in wild-type Raji cell line, and negative staining in CD80 knock out Raji cell line.
Image was taken with a confocal microscope(Leica-Microsystems, TCS SP8).

ab195889 Anti-alpha Tubulin mouse monoclonal antibody - Microtubule Marker (Alexa Fluor® 594) was used to counterstain tubulin at 1/200 (2.5ug/ml) dilution (Red). The Nuclear counterstain was DAPI (Blue).

Secondary antibody only control : Secondary antibody is ab150081 Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed at 1/1000 (2 ug/mL) dilution.

• Flow Cyt

Supplier Data

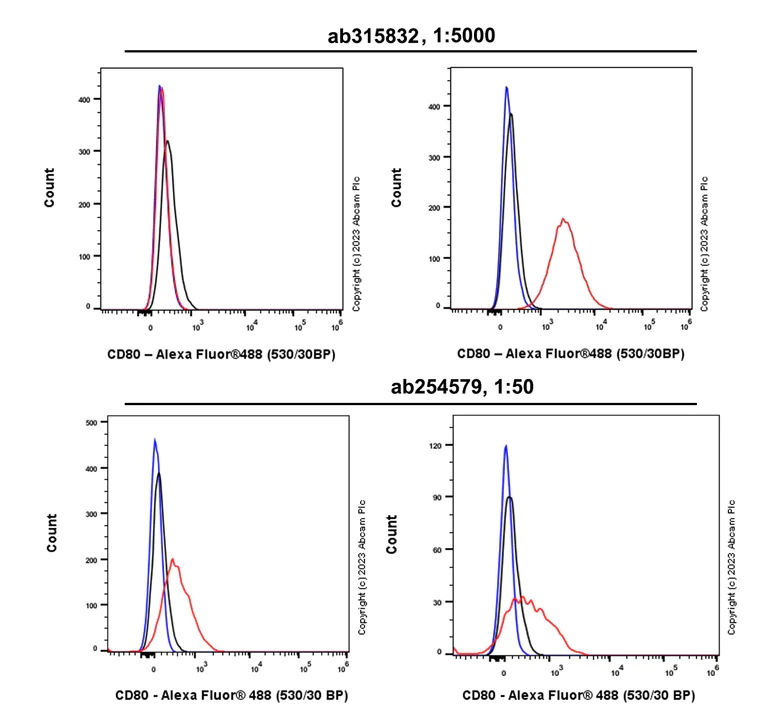

Flow Cytometry - Anti-CD80 antibody [RM1133] - BSA and Azide free (AB315833)

This data was developed using ab315832, the same antibody clone in a different buffer formulation.

Flow cytometric analysis of CD80 KO Raji (human CD80 knockout Burkitt's lymphoma B lymphocyte, Left) / Parental Raji (Right) cells labelling CD80 with ab315832 at 1/5000 dilution (0.01 ug)/Red compared with a Rabbit monoclonal IgG (ab172730) (Black) isotype control and an unlabelled control (cells without incubation with primary antibody and secondary antibody) (Blue).

Goat Anti-Rabbit IgG (Alexa Fluor® 488, ab150081) at 1/5000 dilution was used as the secondary antibody.

In flow cytometry, ab315832 (upper) shows positive staining on Raji and no staining on CD80 KO Raji, while ab254579 (lower) was shown non-specific binding CD80.
The upper images are applied with Anti-CD80 antibody (ab315832) at 1/5000 dilution and the lower images are applied with Anti-CD80 antibody (ab254579) at 1/50 dilution.

• IP

Supplier Data

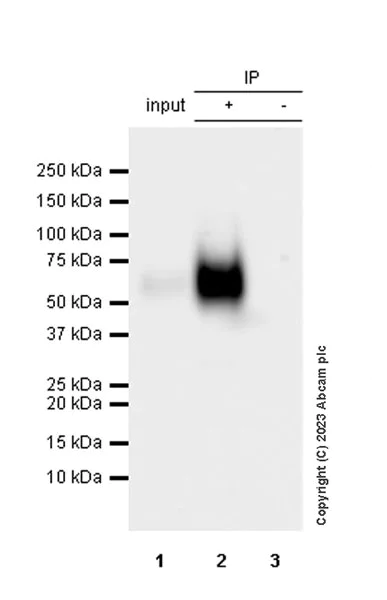

Immunoprecipitation - Anti-CD80 antibody [RM1133] - BSA and Azide free (AB315833)

This data was developed using ab315832, the same antibody clone in a different buffer formulation.

CD80 was immunoprecipitated from 0.35 mg Raji (human Burkitt's lymphoma B lymphocyte) whole cell lysate with ab315832 at 1/30 dilution (2ug in 0.35mg lysates). Western blot was performed on the immunoprecipitate using ab315832 at 1/1000 dilution. VeriBlot for IP secondary antibody(HRP)(ab131366) was used at 1/5000 dilution.

Blocking and diluting buffer and concentration : 5% NFDM/TBST.

All lanes:

Immunoprecipitation - Anti-CD80 antibody [RM1133] (<a href='/ko/products/primary-antibodies/cd80-antibody-rm1133-ab315832'>ab315832</a>) at 1/1000 dilution

Lane 1:

Raji (human Burkitt's lymphoma B lymphocyte) whole cell lysate

Lane 2:

<a href='/ko/products/primary-antibodies/cd80-antibody-rm1133-ab315832'>ab315832</a> at 1/30 IP in Raji (human Burkitt's lymphoma B lymphocyte) whole cell lysate

Lane 3:

Rabbit monoclonal IgG (<a href='/ko/products/primary-antibodies/rabbit-igg-monoclonal-epr25a-isotype-control-ab172730'>ab172730</a>) instead of <a href='/ko/products/primary-antibodies/cd80-antibody-rm1133-ab315832'>ab315832</a> in Raji whole cell lysate

Secondary

All lanes:

Immunoprecipitation - VeriBlot for IP Detection Reagent (HRP) (<a href='/ko/products/reagents/veriblot-for-ip-detection-reagent-hrp-ab131366'>ab131366</a>) at 1/5000 dilution

false

Exposure time: 180s

• WB

Supplier Data

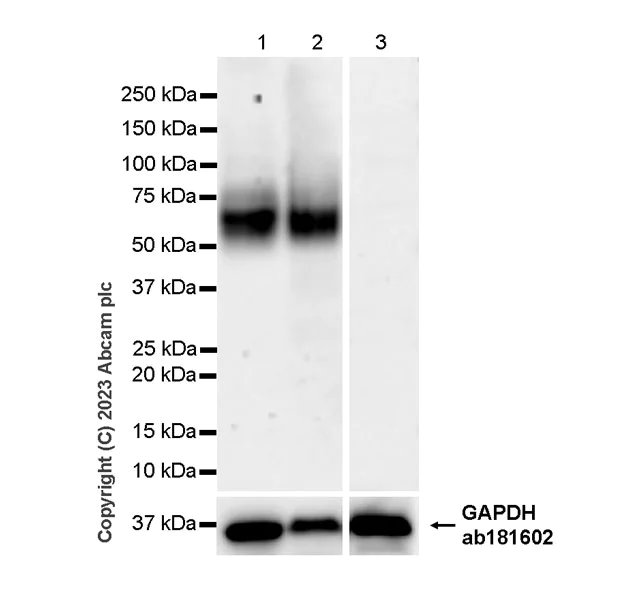

Western blot - Anti-CD80 antibody [RM1133] - BSA and Azide free (AB315833)

This data was developed using ab315832, the same antibody clone in a different buffer formulation.

Blocking and diluting buffer and concentration : 5% NFDM/TBST.

Negative control : HUVEC (PMID : 15064090), 293T.

The molecular mass observed is consistent with what has been described in the literature (PMID : 7544014, PMID : 9079798); 55-60 kDa is due to glycosylation (PMID : 9654121).

This blot was developed using a high sensitivity ECL substrate (Lanes 6-7). The high-sensitivity ECL substrate used allows for the detection of proteins in the mid-femtogram range.

In Western blot, Anti-GAPDH antibody [EPR16891] - Loading Control  (ab181602) staining at 1/200000 dilution.

All lanes:

Western blot - Anti-CD80 antibody [RM1133] (<a href='/ko/products/primary-antibodies/cd80-antibody-rm1133-ab315832'>ab315832</a>) at 1/1000 dilution

Lane 1:

Raji (human Burkitts lymphoma B lymphocyte) whole cell lysate at 20 µg

Lane 2:

Daudi (human Burkitts lymphoma lymphoblast) whole cell lysate at 20 µg

Lane 3:

HDLM-2 (human Hodgkin lymphoma cell) whole cell lysate at 20 µg

Lane 4:

HUVEC (human umbilical vein endothelial cell) whole cell lysate at 20 µg

Lane 5:

293T (human embryonic kidney epithelial cell) whole cell lysate at 20 µg

Secondary

All lanes:

Western blot - Goat Anti-Rabbit IgG H&L (HRP) (<a href='/ko/products/secondary-antibodies/goat-rabbit-igg-h-l-hrp-ab97051'>ab97051</a>) at 1/20000 dilution

Observed band size: 55-60 kDa,36 kDa

true

Exposure time: 26s

• WB

Supplier Data

Western blot - Anti-CD80 antibody [RM1133] - BSA and Azide free (AB315833)

This data was developed using ab315832, the same antibody clone in a different buffer formulation.

Low expression tissue : skeletal muscle.

Blocking and diluting buffer and concentration : 5% NFDM/TBST.

In Western blot, Anti-GAPDH antibody [EPR16891] - Loading Control (ab181602) staining at 1/200000 dilution.

All lanes:

Western blot - Anti-CD80 antibody [RM1133] (<a href='/ko/products/primary-antibodies/cd80-antibody-rm1133-ab315832'>ab315832</a>) at 1/1000 dilution

Lane 1:

Human tonsil tissue lysate at 20 µg

Lane 2:

Human spleen tissue lysate at 20 µg

Lane 3:

Human skeletal muscle tissue lysate at 20 µg

Secondary

All lanes:

Goat Anti-Rabbit IgG (HRP) with minimal cross-reactivity with human IgG at 1/1000 dilution

Observed band size: 55-60 kDa,36 kDa

false

Exposure time: 180s

• WB

Supplier Data

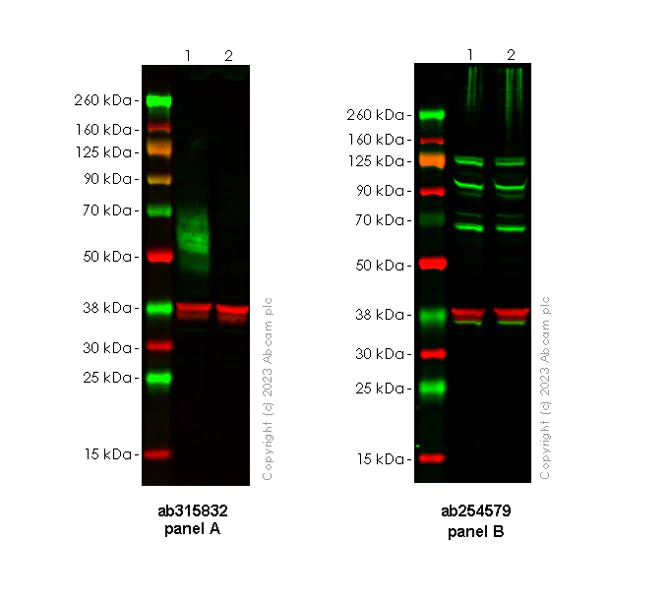

Western blot - Anti-CD80 antibody [RM1133] - BSA and Azide free (AB315833)

This data was developed using ab315832, the same antibody clone in a different buffer formulation.

Western blot : Anti-CD80 antibody (panel A : ab315832, panel B : ab254579) staining at 1/1000 dilution, shown in green; Mouse anti-GAPDH antibody [6C5](ab8245) loading control staining at 1/20000 dilution, shown in red.

In Western blot, ab315832 (panel A) was shown to bind specifically to CD80, while ab254579 (panel B) was shown non-specific binding CD80. Target of interest was observed at 55-60 kDa in wild-type Raji cell lysates (lane 1) with no signal observed at this size in CD80 knockout cell line (lane 2, knockout cell line ab273873/knockout cell lysate ab273827). To generate this image, samples were first run on an SDS-PAGE gel then transferred onto an immobilon-FL PVDF membrane. Membranes were blocked in a fluorescent western blot (TBS-based) blocking solution before incubation with primary antibodies overnight at 4 °C. Blots were washed in TBS-T, incubated with secondary antibodies Goat anti-Rabbit IgG H&L 800CW and Goat anti-Mouse IgG H&L 680RD at 1/20000 dilution for 1 h at room temperature, washed again then imaged.

All lanes:

Western blot - Anti-CD80 antibody [RM1133] (<a href='/ko/products/primary-antibodies/cd80-antibody-rm1133-ab315832'>ab315832</a>) at 1/1000 dilution

Lane 1:

Wild-type Raji (human Burkitts lymphoma B lymphocyte) whole cell lysate at 20 µg

Lane 2:

CD80 knockout Raji whole cell lysate at 20 µg

Secondary

All lanes:

Goat Anti-Rabbit IgG H&L (800CW) and Goat Anti-Mouse IgG H&L (680RD) at 1/20000 dilution

Observed band size: 55-60 kDa

false
