Anti-DR5 antibody [EPR19310]

• Flow Cyt (Intra)

Supplier Data

Flow Cytometry (Intracellular) - Anti-DR5 antibody [EPR19310] (AB199357)

Intracellular flow cytometric analysis of 4% paraformaldehyde-fixed HCT 116 (Human colorectal carcinoma cell line) cells labeling DR5with ab199357 at 1/70 dilution (red) compared with aRabbit IgG,monoclonal [EPR25A] - Isotype Control (ab172730) (black) and an unlabelled control (cells without incubation with primary antibody and secondary antibody; blue). Goat anti Rabbit IgG (Alexa Fluorr^® 488) at 1/2000 dilution was used as the secondary antibody.

• ICC/IF

Supplier Data

Immunocytochemistry/ Immunofluorescence - Anti-DR5 antibody [EPR19310] (AB199357)

Immunofluorescent analysis of 4% paraformaldehyde-fixed, 0.1% Triton X-100 permeabilized HCT 116 (Human colorectal carcinoma cell line) cells labeling DR5 with ab199357 at 1/100 dilution, followed by Goat Anti-Rabbit IgG (Alexa Fluor^® 488) (ab150077) secondary antibody at 1/1000 dilution (green). Confocal image showing membranous and cytoplasmic staining on HCT 116 cells. The nuclear counter stain is DAPI (blue). Tubulin is detected with Anti-alpha Tubulin antibody [DM1A] - Loading Control (ab7291) at 1/1000 dilution and Goat Anti-Mouse IgG H&L (Alexa Fluor® 594) preadsorbed (ab150120) at 1/1000 dilution (red).

The negative controls are as follows :
-ve control 1 : ab199357 at 1/100 dilution followed by ab150120 at 1/1000 dilution.
-ve control 2 : ab7291 at 1/1000 dilution followed by ab150077 at 1/1000 dilution.

• ICC/IF

Supplier Data

Immunocytochemistry/ Immunofluorescence - Anti-DR5 antibody [EPR19310] (AB199357)

Immunofluorescent analysis of 4% paraformaldehyde-fixed, 0.1% Triton X-100 permeabilized HT1080 (Human fibrosarcoma cell line) cells labeling DR5 with ab199357 at 1/100 dilution, followed by Goat Anti-Rabbit IgG (Alexa Fluor^® 488) (ab150077) secondary antibody at 1/1000 dilution (green). Confocal image showing cytoplasmic staining on HT1080 cells. The nuclear counter stain is DAPI (blue).

Tubulin is detected with Anti-alpha Tubulin antibody [DM1A] - Loading Control (ab7291) at1/1000 dilution and Goat Anti-Mouse IgG H&L (Alexa Fluor® 594) preadsorbed (ab150120) at 1/1000 dilution (red).

The negative controls are as follows :
-ve control 1 : ab199357 at 1/100 dilution followed by ab150120 at 1/1000 dilution.
-ve control 2 : ab7291 at 1/1000 dilution followed by ab150077 at 1/1000 dilution.

• IP

Supplier Data

Immunoprecipitation - Anti-DR5 antibody [EPR19310] (AB199357)

DR5 was immunoprecipitated from 0.35mg of HT1080 (Human fibrosarcoma cell line) treated with 5μM MG132 for 4 hour whole cell lysate with ab199357 at 1/30 dilution. Western blot was performed from the immunoprecipitate using ab199357 at 1/1000 dilution. VeriBlot for IP Detection Reagent (HRP) (ab131366), was used for detection at 1/10000 dilution.

Lane 1 : HT1080 treated with 5μM MG132 for 4 hour whole cell lysate, 10μg (Input).

Lane 2 : ab199357 IP in HT1080 treated with 5μM MG132 for 4 hour whole cell lysate.

Lane 3 : Rabbit IgG,monoclonal [EPR25A] - Isotype Control (ab172730) instead of ab199357 in HT1080 treated with 5μM MG132 for 4 hour whole cell lysate.

Blocking and dilution buffer and concentration : 5% NFDM/TBST.

Exposure time : 10 seconds.

All lanes:

Immunoprecipitation - Anti-DR5 antibody [EPR19310] (ab199357)

Predicted band size: 47 kDa

false

• IP

Supplier Data

Immunoprecipitation - Anti-DR5 antibody [EPR19310] (AB199357)

DR5 was immunoprecipitated from 0.35mg of HCT 116 (Human colorectal carcinoma cell line) whole cell lysate with ab199357 at 1/30 dilution. Western blot was performed from the immunoprecipitate using ab199357 at 1/1000 dilution. VeriBlot for IP Detection Reagent (HRP) (ab131366), was used for detection at 1/10000 dilution.

Lane 1 : HCT 116 whole cell lysate, 10μg (Input).

Lane 2 : ab199357 IP in HCT 116 whole cell lysate.

Lane 3 : Rabbit IgG,monoclonal [EPR25A] - Isotype Control (ab172730) instead of ab199357 in HCT 116 whole cell lysate.

Blocking and dilution buffer and concentration : 5% NFDM/TBST.

Exposure time : 10 seconds.

All lanes:

Immunoprecipitation - Anti-DR5 antibody [EPR19310] (ab199357)

Predicted band size: 47 kDa

false

• WB

Supplier Data

Western blot - Anti-DR5 antibody [EPR19310] (AB199357)

Blocking/Dilution buffer : 5% NFDM/TBST.

Exposure time : Lane 1-2 : 3 minutes; Lane 3 : 10 seconds; Lane 4 : 8 seconds.

The expression profile is consistent with what has been described in the literature (PMID : 20515924; PMID : 16297203).

All lanes:

Western blot - Anti-DR5 antibody [EPR19310] (ab199357) at 1/1000 dilution

Lane 1:

Human melanoma lysate at 10 µg

Lane 2:

HeLa (Human epithelial cell line from cervix adenocarcinoma) whole cell lysate at 10 µg

Lane 3:

HepG2 (Human liver hepatocellular carcinoma cell line) whole cell lysate at 10 µg

Lane 4:

HT1080 (Human fibrosarcoma cell line) whole cell lysate at 10 µg

Secondary

All lanes:

Western blot - Goat Anti-Rabbit IgG H&L (HRP) (<a href='/ko/products/secondary-antibodies/goat-rabbit-igg-h-l-hrp-ab97051'>ab97051</a>) at 1/100000 dilution

Predicted band size: 47 kDa

Observed band size: 40 kDa,48 kDa

false

• WB

Supplier Data

Western blot - Anti-DR5 antibody [EPR19310] (AB199357)

Blocking/Dilution buffer : 5% NFDM/TBST.

Doxorubicin treatment elevated the expression of DR5 (PMID : 12496481; PMID : 11468181; PMID : 11090076). The expression profile is consistent with what has been described in the literature (PMID : 20515924; PMID : 16297203).

All lanes:

Western blot - Anti-DR5 antibody [EPR19310] (ab199357) at 1/1000 dilution

Lane 1:

Untreated HCT 116 (Human colorectal carcinoma cell line) whole cell lysate at 20 µg

Lane 2:

HCT 116 (Human colorectal carcinoma cell line) treated with 0.5μM/ml doxorubicin for 24 hours whole cell lysate at 20 µg

Secondary

All lanes:

Western blot - Goat Anti-Rabbit IgG H&L (HRP) (<a href='/ko/products/secondary-antibodies/goat-rabbit-igg-h-l-hrp-ab97051'>ab97051</a>) at 1/100000 dilution

Predicted band size: 47 kDa

Observed band size: 40 kDa,48 kDa

false

Exposure time: 8s

• WB

Lab

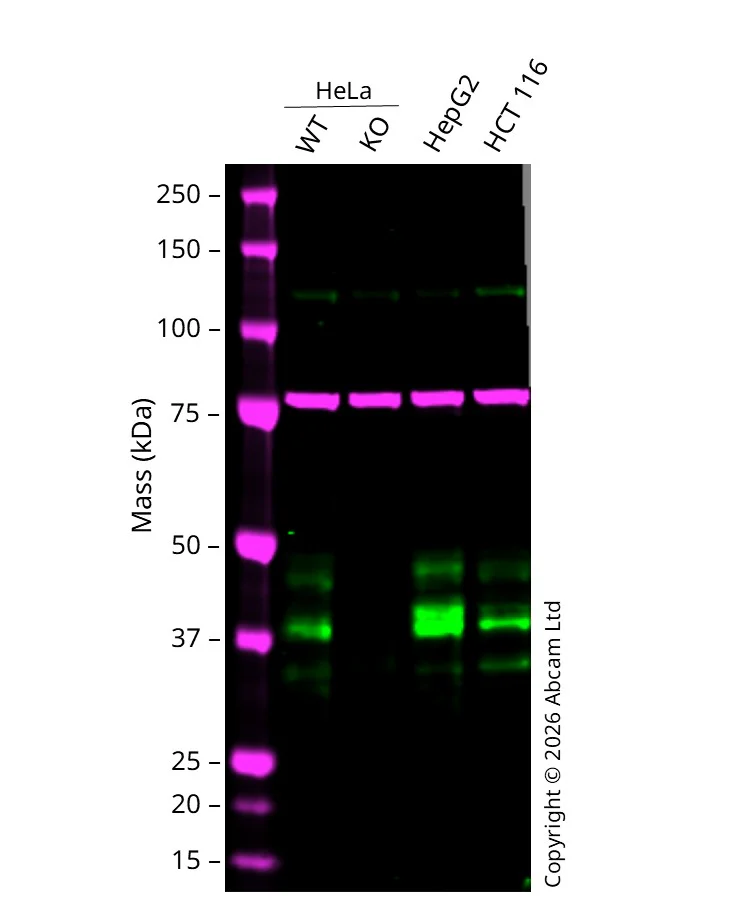

Western blot - Anti-DR5 antibody [EPR19310] (AB199357)

Western blot : Anti-DR5 antibody [EPR19310] ab199357 staining at 1/1000 dilution, shown in green; Mouse anti-CANX ab238078 loading control staining at 1/20000 dilution, shown in magenta. A band was observed at 37-50 kDa in Wild-type HeLa cell lysates with no signal observed at this size in TNFRSF10B knockout HeLa cell line. To generate this image, samples were run on an SDS-PAGE gel then transferred onto a nitrocellulose membrane. Membranes were blocked in 5% Milk in TBS-0.1 % Tween^® 20 (TBS-T) before incubation with primary antibodies overnight at 4 °C. Blots were washed four times in TBS-T, incubated with secondary antibodies for 1 h at room temperature, washed again four times then imaged. Secondary antibodies used were Goat anti-Rabbit 800CW and Goat anti-Mouse 680RD at 1/20,000 dilution.

All lanes:

Western blot - Anti-DR5 antibody [EPR19310] (ab199357) at 1/1000 dilution

Lane 1:

Wild-type HeLa cell lysates at 20 µg

Lane 2:

Western blot - Human TNFRSF10B (DR5) knockout HeLa cell line (<a href='/ko/products/cell-lines/human-tnfrsf10b-dr5-knockout-hela-cell-line-ab264922'>ab264922</a>) at 20 µg

Lane 3:

HepG2 cell lysates at 20 µg

Lane 4:

HCT 116 cell lysates at 20 µg

Secondary

All lanes:

Goat anti-Rabbit 800CW & Goat anti-Mouse 680RD at 1/20000 dilution

Predicted band size: 47 kDa

Observed band size: 37-50 kDa

false
