Anti-Histone H3 antibody [EPR16987] - Nuclear Marker and ChIP Grade

• IHC-P

Supplier Data

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Histone H3 antibody [EPR16987] - Nuclear Marker and ChIP Grade (AB176842)

Immunohistochemical analysis of paraffin-embedded Human colon tissue labeling Histone H3 with ab176842 at 1/500 dilution, followed by Goat Anti-Rabbit HRP (IgG; H&L) secondary antibody (ab97051) at 1/500 dilution. Nuclear staining on glandular epithelium of Human colon tissue is observed. Counter stained with Hematoxylin.

Negative control : Used PBS instead of primary antibody, secondary antibody Goat Anti-Rabbit IgG H&L (HRP) (ab97051) at 1/500 dilution.

Perform heat mediated antigen retrieval with Tris/EDTA buffer pH 9.0 before commencing with IHC staining protocol.

• ICC/IF

Lab

Immunocytochemistry/ Immunofluorescence - Anti-Histone H3 antibody [EPR16987] - Nuclear Marker and ChIP Grade (AB176842)

Immunofluorescent analysis of 4% paraformaldehyde-fixed, 0.1% Triton X-100 permeabilized HeLa (Human epithelial cells from cervix adenocarcinoma) cells labeling Histone H3 with ab176842 at 1/2000 dilution, followed by Goat anti-rabbit Alexa Fluor® 488 (IgG) (ab150077) secondary antibody at 1/400 dilution (green). Confocal image showing nuclear staining on HeLa cell line. The nuclear counter stain is DAPI (blue). Tubulin is detected with ab7291 (anti-Tubulin mouse mAb) at 1/500 dilution and ab150120 (goat anti-mouse AlexaFluor®594 Goat secondary antibody) at 1/500 dilution (red).
The negative controls are as follows;
-ve control 1 : ab176842 at 1/2000 dilution followed by ab150120 (AlexaFluor®594 Goat anti-Mouse secondary) at 1/500 dilution.
-ve control 2 : ab7291 (anti-Tubulin mouse mAb) at 1/500 dilution followed by ab150077 (Alexa Fluor®488 Goat Anti-Rabbit IgG H&L) at 1/400 dilution.

• Flow Cyt (Intra)

Lab

Flow Cytometry (Intracellular) - Anti-Histone H3 antibody [EPR16987] - Nuclear Marker and ChIP Grade (AB176842)

Intracellular Flow Cytometry analysis of HeLa (human cervix adenocarcinoma) cells labeling Histone H3 with purified ab176842 at 1/40 dilution (10ug/ml) (red). Cells were fixed with 4% paraformaldehyde and permeabilised with 90% methanol. A Goat anti rabbit IgG (Alexa Fluor^® 488) (1/2000 dilution) was used as the secondary antibody. Rabbit monoclonal IgG (Black) was used as the isotype control, cells without incubation with primary antibody and secondary antibody (Blue) was used as the unlabeled control.

• ChIP

Unknown

ChIP - Anti-Histone H3 antibody [EPR16987] - Nuclear Marker and ChIP Grade (AB176842)

Chromatin was prepared from HeLa cells according to the Abcam X-ChIP protocol. Cells were fixed with formaldehyde for 10 minutes. The ChIP was performed with 25μg of chromatin, 2μg of ab176842 (red), and 20μl of Protein A/G sepharose beads. No antibody was added to the beads control (grey). The immunoprecipitated DNA was quantified by real time PCR (Taqman approach for active and inactive loci, Sybr green approach for heterochromatic loci). Primers and probes are located in the first kb of the transcribed region.

• IHC-P

Supplier Data

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Histone H3 antibody [EPR16987] - Nuclear Marker and ChIP Grade (AB176842)

Immunohistochemical analysis of paraffin-embedded Mouse liver tissue labeling Histone H3 with ab176842 at 1/500 dilution, followed by Goat Anti-Rabbit HRP (IgG H&L) secondary antibody (ab97051) at 1/500 dilution. Nuclear staining on mouse liver tissue is observed. Counter stained with Hematoxylin.

Negative control : Used PBS instead of primary antibody, secondary antibody Goat Anti-Rabbit IgG H&L (HRP) (ab97051) at 1/500 dilution.

Perform heat mediated antigen retrieval with Tris/EDTA buffer pH 9.0 before commencing with IHC staining protocol.

• IHC-P

Supplier Data

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Histone H3 antibody [EPR16987] - Nuclear Marker and ChIP Grade (AB176842)

Immunohistochemical analysis of paraffin-embedded Rat pancreas tissue labeling Histone H3 with ab176842 at 1/500 dilution, followed by Goat Anti-Rabbit HRP (IgG H&L) secondary antibody (ab97051) at 1/500 dilution. Nuclear staining on rat pancreas tissue is observed. Counter stained with Hematoxylin.

Negative control : Used PBS instead of primary antibody, secondary antibody Goat Anti-Rabbit IgG H&L (HRP) (ab97051) at 1/500 dilution.

Perform heat mediated antigen retrieval with Tris/EDTA buffer pH 9.0 before commencing with IHC staining protocol.

• WB

Supplier Data

Western blot - Anti-Histone H3 antibody [EPR16987] - Nuclear Marker and ChIP Grade (AB176842)

Blocking and diluting buffer and concentration : 5% NFDM/TBST.

Puromycin is a naturally occurring aminonucleoside antibiotic that inhibits protein synthesis by ribosome-catalyzed incorporation into the C-terminus of elongating nascent chains, blocking further extension and resulting in premature termination of translation.

In Western blot, Anti-Histone H3 antibody [EPR16987] - Nuclear Marker and ChIP Grade (ab176842) staining at 1/100000 dilution.

Exposure time : Lane 1-2 : 1 second, Lane 3-4 : 6 seconds, Lane 5-6 : 3 seconds.

All lanes:

Western blot - Anti-Puromycin antibody [EPR27218-173] (<a href='/ko/products/primary-antibodies/puromycin-antibody-epr27218-173-ab315887'>ab315887</a>) at 1/1000 dilution

Lane 1:

Untreated HeLa (human cervical adenocarcinoma epithelial cell) whole cell lysate at 20 µg

Lane 2:

HeLa treated with 1uM Puromycin for 30min whole cell lysate at 20 µg

Lane 3:

Untreated NIH/3T3 (mouse embryonic fibroblast) whole cell lysate at 20 µg

Lane 4:

NIH/3T3 treated with 1uM Puromycin for 30min whole cell lysate at 20 µg

Lane 5:

Untreated C6 (rat glial tumor glial cell) whole cell lysate at 20 µg

Lane 6:

C6 treated with 1uM Puromycin for 30min whole cell lysate at 20 µg

Secondary

All lanes:

Western blot - Goat Anti-Rabbit IgG H&L (HRP) (<a href='/ko/products/secondary-antibodies/goat-rabbit-igg-h-l-hrp-ab97051'>ab97051</a>) at 1/20000 dilution

Observed band size: 10-250 kDa,15 kDa

false

• WB

Supplier Data

Western blot - Anti-Histone H3 antibody [EPR16987] - Nuclear Marker and ChIP Grade (AB176842)

ErbB2 / HER2 (phospho Y1221 + Y1222) expression can be induced by EGF treatment (PMID : 7728765).

In Western blot, Anti-Histone H3 antibody [EPR16987] - Nuclear Marker and ChIP Grade (ab176842) staining at 1/100000 dilution.

In Western blot, Anti-ErbB2 / HER2 antibody - Total protein control (ab214275) staining at 1/1000 dilution.

All lanes:

Western blot - Anti-ErbB2 / HER2 (phospho Y1221 + Y1222) antibody [EPR28391-67] (<a href='/ko/products/primary-antibodies/erbb2-her2-phospho-y1221-y1222-antibody-epr28391-67-ab316758'>ab316758</a>) at 1/1000 dilution

Lane 1:

Untreated HeLa (human cervix adenocarcinoma epithelial cell) starved for 4 hours whole cell lysate (untreated membrane) at 20 µg

Lane 2:

HeLa starved for 4 hours, then treated with /ml EGF for 15 minutes whole cell lysate (untreated membrane) at 20 µg

Lane 3:

HeLa starved for 4 hours, then treated with /ml EGF for 15 minutes whole cell lysate (alkaline phosphatase treated membrane) at 20 µg

Secondary

All lanes:

Western blot - Goat Anti-Rabbit IgG H&L (HRP) (<a href='/ko/products/secondary-antibodies/goat-rabbit-igg-h-l-hrp-ab97051'>ab97051</a>) at 1/100000 dilution

Observed band size: 180 kDa,15 kDa

false

Exposure time: 81s

• WB

Supplier Data

Western blot - Anti-Histone H3 antibody [EPR16987] - Nuclear Marker and ChIP Grade (AB176842)

The expression of TOPBP1 S1138 is upregulated in response to hydroxyurea treatment (PMID : 17446169).

Lysates were freshly made and used for Western blotting immediately to minimize protein degradation.

In Western blot, Anti-Histone H3 antibody [EPR16987] - Nuclear Marker and ChIP Grade (ab176842) staining at 1/100000 dilution.

In Western blot, Anti-TOPBP1 antibody staining at 1/1000 dilution.

All lanes:

Western blot - Anti-TopBP1 (phospho S1138) antibody [EPR27056-2] (<a href='/ko/products/primary-antibodies/topbp1-phospho-s1138-antibody-epr27056-2-ab316746'>ab316746</a>) at 1/1000 dilution

Lane 1:

Untreated U-2 OS (human bone osteosarcoma epithelial cell) whole cell lysate (untreated membrane) at 30 µg

Lane 2:

U-2 OS treated with 2mM hydroxyurea for 24h whole cell lysate (untreated membrane) at 30 µg

Lane 3:

U-2 OS treated with 2mM hydroxyurea for 24h whole cell lysate (alkaline phosphatase treated membrane) at 30 µg

Secondary

All lanes:

Western blot - Goat Anti-Rabbit IgG H&L (HRP) (<a href='/ko/products/secondary-antibodies/goat-rabbit-igg-h-l-hrp-ab97051'>ab97051</a>) at 1/20000 dilution

Observed band size: 170 kDa,15 kDa

false

Exposure time: 92s

• WB

Supplier Data

Western blot - Anti-Histone H3 antibody [EPR16987] - Nuclear Marker and ChIP Grade (AB176842)

Negative control : Jurkat

Low expression : liver

In Western blot, Anti-Histone H3 antibody [EPR16987] - Nuclear Marker and ChIP Grade (ab176842) staining at 1/100000 dilution.

Exposure time : Lane1-2 : 15seconds, lane3-5 : 180 seconds

All lanes:

Western blot - Anti-MNDA antibody [EPR28267-44] (<a href='/ko/products/primary-antibodies/mnda-antibody-epr28267-44-ab316967'>ab316967</a>) at 1/1000 dilution

Lane 1:

U-937 (human histiocytic lymphoma monocyte) whole cell lysate at 20 µg

Lane 2:

Jurkat (human t cell leukemia t lymphocyte from peripheral blood) whole cell lysate at 20 µg

Lane 3:

Human spleen tissue lysate at 20 µg

Lane 4:

Human tonsil tissue lysate at 20 µg

Lane 5:

Human liver tissue lysate at 20 µg

Secondary

All lanes:

Western blot - Goat Anti-Rabbit IgG H&L (HRP) (<a href='/ko/products/secondary-antibodies/goat-rabbit-igg-h-l-hrp-ab97051'>ab97051</a>) at 1/100000 dilution

Observed band size: 27 kDa,15 kDa

false

• WB

Lab

Western blot - Anti-Histone H3 antibody [EPR16987] - Nuclear Marker and ChIP Grade (AB176842)

Blocking and diluting buffer and concentration : 5% BSA/TBST.

In Western blot, Anti-Histone H3 antibody [EPR16987] - Nuclear Marker and ChIP Grade (ab176842) 1 : 100000 (15Kda).

All lanes:

Western blot - Anti-Histone H3.1 (asym-Di-methyl R17) antibody [EPR29607-55] (<a href='/ko/products/primary-antibodies/histone-h31-asym-di-methyl-r17-antibody-epr29607-55-ab324457'>ab324457</a>) at 1/1000 dilution

All lanes:

HeLa (human cervical adenocarcinoma epithelial cell) histone fraction at 20 µg

Secondary

All lanes:

Western blot - Goat Anti-Rabbit IgG H&L (HRP) (<a href='/ko/products/secondary-antibodies/goat-rabbit-igg-h-l-hrp-ab97051'>ab97051</a>) at 1/100000 dilution

Observed band size: 15 kDa

false

Exposure time: 8s

• WB

Supplier Data

Western blot - Anti-Histone H3 antibody [EPR16987] - Nuclear Marker and ChIP Grade (AB176842)

The molecular weight observed is consistent with what has been described in the literature (PMID : 38240850).

The identity of the lower MW bands are unknown.

In Western blot, Anti-GAPDH antibody [EPR16891] - Loading Control (ab181602) staining at 1/200000 dilution.

In Western blot, Anti-Histone H3 antibody [EPR16987] - Nuclear Marker and ChIP Grade (ab176842) staining at 1/100000 dilution.

All lanes:

Western blot - Anti-SOX4 antibody [EPR28132-51] (<a href='/ko/products/primary-antibodies/sox4-antibody-epr28132-51-ab316850'>ab316850</a>) at 1/1000 dilution

Lane 1:

DLD-1 (human colorectal adenocarcinoma epithelial cell) nuclear fraction at 20 µg

Lane 2:

DLD-1 cytoplasmic fraction at 20 µg

Secondary

All lanes:

Western blot - Goat Anti-Rabbit IgG H&L (HRP) (<a href='/ko/products/secondary-antibodies/goat-rabbit-igg-h-l-hrp-ab97051'>ab97051</a>) at 1/20000 dilution

Observed band size: 70 kDa,36 kDa,15 kDa

false

Exposure time: 59s

• WB

Lab

Western blot - Anti-Histone H3 antibody [EPR16987] - Nuclear Marker and ChIP Grade (AB176842)

Blocking and diluting buffer and concentration : 5% NFDM/TBST.

Performed under reducing conditions.

In Western blot, ab325636 was shown to bind specifically to RIPK3. Target of interest was observed at 37-50 kDa in wild-type THP-1 cell lysates (lane 1) with no signal observed at this size in RIPK3 knockout cell line (lane 2)(knockout cell line ab280065).

In Western blot, Anti-Histone H3 antibody [EPR16987] - Nuclear Marker and ChIP Grade (ab176842) (1 : 100000) (17KDa).

All lanes:

Western blot - Anti-RIP3 antibody [RM1355] (ab325636) at 1/1000 dilution

Lane 1:

Wilde-type THP-1 (human monocytic leukemia monocyte) whole cell lysate at 20 µg

Lane 2:

Western blot - Human RIPK3 knockout THP-1 cell line (<a href='/ko/products/cell-lines/human-ripk3-knockout-thp-1-cell-line-ab280065'>ab280065</a>) at 20 µg

Secondary

All lanes:

Western blot - Goat Anti-Rabbit IgG H&L (HRP) (<a href='/ko/products/secondary-antibodies/goat-rabbit-igg-h-l-hrp-ab97051'>ab97051</a>) at 1/20000 dilution

Observed band size: 37-56 kDa,17 kDa

false

Exposure time: 180s

• WB

Lab

Western blot - Anti-Histone H3 antibody [EPR16987] - Nuclear Marker and ChIP Grade (AB176842)

Blocking and diluting buffer and concentration : 5% NFDM/TBST.

Low expression : MCF7, HeLa

Samples are non-boiled as boiling may cause protein aggregation.

In Western blot, Anti-Histone H3 antibody [EPR16987] - Nuclear Marker and ChIP Grade (ab176842) 1 : 100000 (15Kda).

All lanes:

Western blot - Anti-GPCR GPR97 antibody [EPR30227-586] (<a href='/ko/products/primary-antibodies/gpcr-gpr97-antibody-epr30227-586-ab325332'>ab325332</a>) at 1/1000 dilution

Lane 1:

SU-DHL-1 (human histiocytic lymphoblast-like cell) whole cell lysate at 40 µg

Lane 2:

MCF7 (human breast adenocarcinoma epithelial cell) whole cell lysate at 40 µg

Lane 3:

HeLa (human cervical adenocarcinoma epithelial cell) whole cell lysate at 40 µg

Secondary

All lanes:

Western blot - Goat Anti-Rabbit IgG H&L (HRP) (<a href='/ko/products/secondary-antibodies/goat-rabbit-igg-h-l-hrp-ab97051'>ab97051</a>) at 1/20000 dilution

Observed band size: 38 kDa,15 kDa

false

Exposure time: 180s

• WB

Supplier Data

Western blot - Anti-Histone H3 antibody [EPR16987] - Nuclear Marker and ChIP Grade (AB176842)

Blocking and diluting buffer and concentration : 5% NFDM/TBST.

Low expression : Calu-3.

The identity of the bands higher than 50 kDa are unknown.

In Western blot, Anti-Histone H3 antibody [EPR16987] - Nuclear Marker and ChIP Grade (ab176842) staining at 1/100000 dilution.

All lanes:

Western blot - Anti-Aldolase C antibody [EPR26896-61] - C-terminal (<a href='/ko/products/primary-antibodies/aldolase-c-antibody-epr26896-61-c-terminal-ab323506'>ab323506</a>) at 1/1000 dilution

Lane 1:

U-87 MG (human glioblastoma-astrocytoma epithelial cell) whole cell lysate at 20 µg

Lane 2:

LNCaP (human prostate carcinoma epithelial cell) whole cell lysate at 20 µg

Lane 3:

Calu-3 (human lung adenocarcinoma epithelial cell) whole cell lysate at 20 µg

Lane 4:

RAW 264.7 (mouse Abelson murine leukemia virus-induced tumor macrophage) whole cell lysate at 20 µg

Secondary

All lanes:

Western blot - Goat Anti-Rabbit IgG H&L (HRP) (<a href='/ko/products/secondary-antibodies/goat-rabbit-igg-h-l-hrp-ab97051'>ab97051</a>) at 1/20000 dilution

Observed band size: 39 kDa,15 kDa

false

Exposure time: 8s

• WB

Supplier Data

Western blot - Anti-Histone H3 antibody [EPR16987] - Nuclear Marker and ChIP Grade (AB176842)

In Western blot, Anti-Histone H3 antibody [EPR16987] - Nuclear Marker and ChIP Grade (ab176842) staining at 1/100000 dilution.

All lanes:

Western blot - Anti-AIMP2/p38 antibody [EPR29127-48] (<a href='/ko/products/primary-antibodies/aimp2-p38-antibody-epr29127-48-ab316937'>ab316937</a>) at 1/1000 dilution

Lane 1:

HeLa (human cervical adenocarcinoma epithelial cell) transfected with scrambled siRNA control whole cell lysate at 20 µg

Lane 2:

HeLa transfected with siRNA specifically targeting AIMP2 whole cell lysate at 20 µg

Secondary

All lanes:

Western blot - Goat Anti-Rabbit IgG H&L (HRP) (<a href='/ko/products/secondary-antibodies/goat-rabbit-igg-h-l-hrp-ab97051'>ab97051</a>) at 1/100000 dilution

Observed band size: 35 kDa,15 kDa

false

Exposure time: 180s

• WB

Supplier Data

Western blot - Anti-Histone H3 antibody [EPR16987] - Nuclear Marker and ChIP Grade (AB176842)

In Western blot, Anti-Histone H3 antibody [EPR16987] - Nuclear Marker and ChIP Grade (ab176842) staining at 1/100000 dilution.

In Western blot, Anti-ErbB2 / HER2 antibody - Total protein control (ab214275) staining at 1/1000 dilution.

All lanes:

Western blot - Anti-ErbB2 / HER2 (phospho Y1221 + Y1222) antibody [EPR28391-67] (<a href='/ko/products/primary-antibodies/erbb2-her2-phospho-y1221-y1222-antibody-epr28391-67-ab316758'>ab316758</a>) at 1/1000 dilution

Lane 1:

Untreated T47D (human ductal breast epithelial tumor epithelial cell) starved for 4 hours whole cell lysate (untreated membrane) at 20 µg

Lane 2:

T47D starved for 4 hours, then treated with /ml Neuregulin for 10 minutes whole cell lysate (untreated membrane) at 20 µg

Lane 3:

T47D starved for 4 hours, then treated with /ml Neuregulin for 10 minutes whole cell lysate (alkaline phosphatase treated membrane) at 20 µg

Secondary

All lanes:

Western blot - Goat Anti-Rabbit IgG H&L (HRP) (<a href='/ko/products/secondary-antibodies/goat-rabbit-igg-h-l-hrp-ab97051'>ab97051</a>) at 1/100000 dilution

Observed band size: 180 kDa,15 kDa

false

Exposure time: 103s

• WB

Supplier Data

Western blot - Anti-Histone H3 antibody [EPR16987] - Nuclear Marker and ChIP Grade (AB176842)

Blocking and diluting buffer and concentration : 5% NFDM/TBST.

Low expression : liver

EphA4 full-length is approximately 120 kDa, band around 45 kDa is EphA4-ICD (PMID : 31879527).

The identity of the lower MW band at approximately 25 kDa is unknown.

All lanes:

Western blot - Anti-Eph receptor A4/SEK antibody [EPR30307-560] (<a href='/ko/products/primary-antibodies/eph-receptor-a4-sek-antibody-epr30307-560-ab324353'>ab324353</a>) at 1/1000 dilution

Lane 1:

A-172 (human brain glioblastoma cell ) whole cell lysate at 20 µg

Lane 2:

HT-1376 (human urinary bladder carcinoma epithelial cell) whole cell lysate at 20 µg

Lane 3:

Human cerebellum tissue lysate at 20 µg

Lane 4:

Human liver tissue lysate at 20 µg

Secondary

All lanes:

Goat Anti-Rabbit IgG (HRP) with minimal cross-reactivity with human IgG at 1/2000 dilution

Observed band size: 120 kDa,45 kDa,15 kDa

false

Exposure time: 6s

• WB

Supplier Data

Western blot - Anti-Histone H3 antibody [EPR16987] - Nuclear Marker and ChIP Grade (AB176842)

CD226 is a glycoprotein of approximately 60-90 kDa and detected as a 37-kDa band after treated with Peptide : N-glycosidase F (PNGase F).

In Western blot, Anti-Histone H3 antibody [EPR16987] - Nuclear Marker and ChIP Grade (ab176842) staining at 1/100000 dilution.

Blocking and dilution buffer and concentration : 5% NFDM/TBST

All lanes:

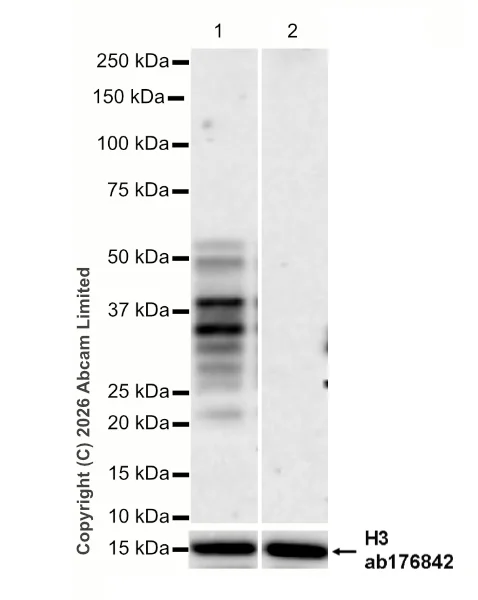

Western blot - Anti-CD226 antibody [RM2068] (<a href='/ko/products/primary-antibodies/cd226-antibody-rm2068-ab320009'>ab320009</a>) at 1/1000 dilution

Lane 1:

Untreated HEL (human erythroleukemia erythroblast) whole cell lysate at 20 µg

Lane 2:

HEL whole cell lysate treated with Peptide:N-glycosidase F (PNGase F) at 20 µg

Secondary

All lanes:

Western blot - Goat Anti-Rabbit IgG H&L (HRP) (<a href='/ko/products/secondary-antibodies/goat-rabbit-igg-h-l-hrp-ab97051'>ab97051</a>) at 1/20000 dilution

Observed band size: 37 kDa,60-90 kDa,15 kDa

false

Exposure time: 26s

• WB

Supplier Data

Western blot - Anti-Histone H3 antibody [EPR16987] - Nuclear Marker and ChIP Grade (AB176842)

Low expression : spleen (PMID : 2171047).

In Western blot, Anti-Histone H3 antibody [EPR16987] - Nuclear Marker and ChIP Grade (ab176842) staining at 1/100000 dilution.

All lanes:

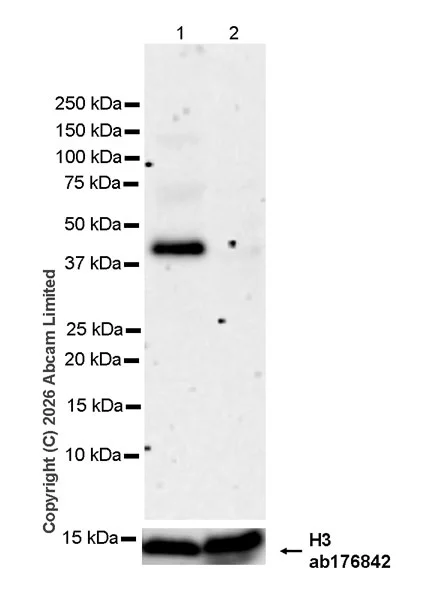

Western blot - Anti-DBI antibody [EPR28926-2] (<a href='/ko/products/primary-antibodies/dbi-antibody-epr28926-2-ab317823'>ab317823</a>) at 1/1000 dilution

Lane 1:

Human liver tissue lysate at 20 µg

Lane 2:

Human cerebellum tissue lysate at 20 µg

Lane 3:

Human spleen tissue lysate at 20 µg

Secondary

All lanes:

Goat Anti-Rabbit IgG (HRP) with minimal cross-reactivity with human IgG at 1/2000 dilution

Observed band size: 11 kDa,36 kDa

false

Exposure time: 180s

• WB

Supplier Data

Western blot - Anti-Histone H3 antibody [EPR16987] - Nuclear Marker and ChIP Grade (AB176842)

The expression of Histone H3 (propionyl K23) is upregulated in response to sodium propionate treatment (PMID : 32010779).

The identity of the bands above 37 kDa are unknown.

In Western blot, Anti-GAPDH antibody [EPR16891] - Loading Control (ab181602) staining at 1/200000 dilution.

In Western blot, Anti-Histone H3 antibody [EPR16987] - Nuclear Marker and ChIP Grade (ab176842) staining at 1/100000 dilution.

All lanes:

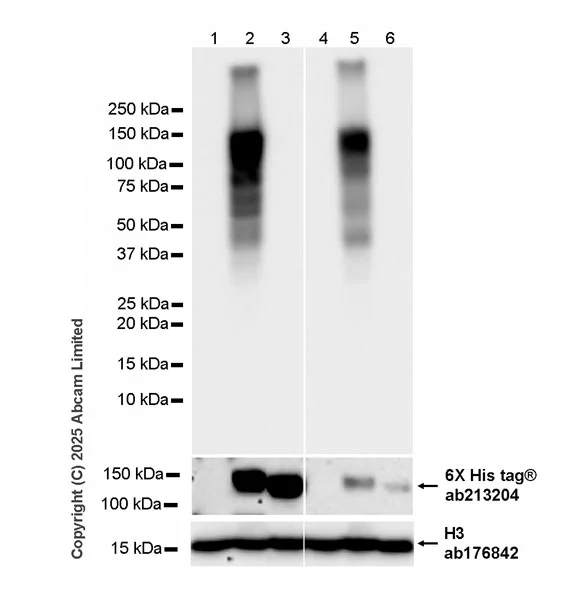

Western blot - Anti-Histone H3 (propionyl K23) antibody [EPR28672-86] (<a href='/ko/products/primary-antibodies/histone-h3-propionyl-k23-antibody-epr28672-86-ab317819'>ab317819</a>) at 1/1000 dilution

Lane 1:

Untreated HepG2 (human hepatocellar carcinoma epithelial cell) whole cell lysate at 20 µg

Lane 2:

HepG2 treated with 10mM sodium propionate for 4 hours whole cell lysate at 20 µg

Lane 3:

Untreated HeLa (human cervical adenocarcinoma epithelial cell) whole cell lysate at 20 µg

Lane 4:

Hela treated with 10mM sodium propionate for 4 hours whole cell lysate at 20 µg

Lane 5:

Untreated MEF (mouse embryo fibroblast) whole cell lysate at 20 µg

Lane 6:

MEF treated with 10mM sodium propionate for 24 hours whole cell lysate at 20 µg

Secondary

All lanes:

Western blot - Goat Anti-Rabbit IgG H&L (HRP) (<a href='/ko/products/secondary-antibodies/goat-rabbit-igg-h-l-hrp-ab97051'>ab97051</a>) at 1/20000 dilution

Observed band size: 15 kDa,36 kDa

false

Exposure time: 180s

• WB

Supplier Data

Western blot - Anti-Histone H3 antibody [EPR16987] - Nuclear Marker and ChIP Grade (AB176842)

Negative control : Hela (PMID : 35164755), PANC-1

The molecular weight observed is consistent with what has been described in the literature (PMID : 36631513).

Samples are non-boiled as boiling may cause protein aggregation.

In Western blot, Anti-Histone H3 antibody [EPR16987] - Nuclear Marker and ChIP Grade (ab176842) staining at 1/100000 dilution.

All lanes:

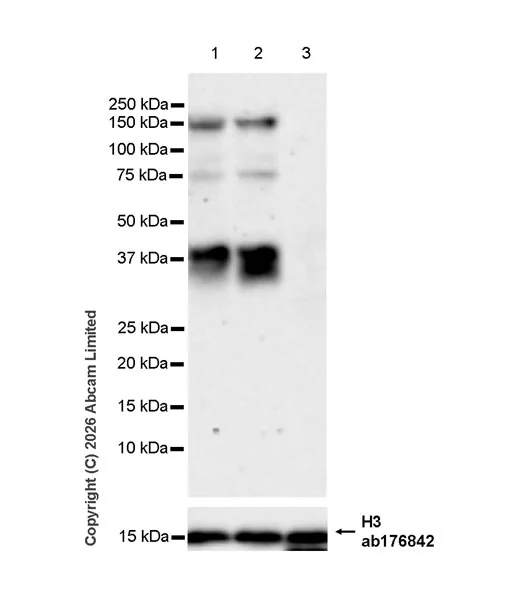

Western blot - Anti-VE Cadherin antibody [RM2022] (<a href='/ko/products/primary-antibodies/ve-cadherin-antibody-rm2022-ab318152'>ab318152</a>) at 1/1000 dilution

Lane 1:

HUVEC (human umbilical vein endothelial cell) whole cell lysate at 20 µg

Lane 2:

HeLa (human cervical adenocarcinoma epithelial cell) whole cell lysate at 20 µg

Lane 3:

PANC-1 (human pancreatic epithelioid carcinoma epithelial cell) whole cell lysate at 20 µg

Secondary

All lanes:

Goat Anti-Rabbit IgG (HRP) with minimal cross-reactivity with human IgG at 1/2000 dilution

Observed band size: 75-120 kDa,15 kDa

false

Exposure time: 15s

• WB

Lab

Western blot - Anti-Histone H3 antibody [EPR16987] - Nuclear Marker and ChIP Grade (AB176842)

Blocking and diluting buffer and concentration : 5% NFDM/TBST. ab181602 was used as GAPDH loading control. ab176842 was for Histone H3 detection.

All lanes:

Western blot - Anti-Histone H3 (acetyl K9) antibody [Y28] - ChIP Grade (<a href='/ko/products/primary-antibodies/histone-h3-acetyl-k9-antibody-y28-chip-grade-ab32129'>ab32129</a>) at 1/10000 dilution

Lane 1:

HeLa (Human cervix adenocarcinoma epithelial cell) whole cell lysate at 15 µg

Lane 2:

HeLa (Human cervix adenocarcinoma epithelial cell) treated with 500ng/ml Trichostatin A for 4 hours whole cell lysate at 15 µg

Secondary

All lanes:

Western blot - Goat Anti-Rabbit IgG H&L (HRP) (<a href='/ko/products/secondary-antibodies/goat-rabbit-igg-h-l-hrp-ab97051'>ab97051</a>) at 1/20000 dilution

Predicted band size: 15 kDa

Observed band size: 15 kDa

false

• WB

Lab

Western blot - Anti-Histone H3 antibody [EPR16987] - Nuclear Marker and ChIP Grade (AB176842)

Blocking and diluting buffer and concentration : 5% NFDM/TBST.

In Western blot, Anti-Histone H3 antibody [EPR16987] - Loading Control (ab176842) (1 : 100000) (36KDa); Anti-6X His tag® antibody [EPR20547] - ChIP Grade (ab213204) (1 : 5000)(150-250kDa).

All lanes:

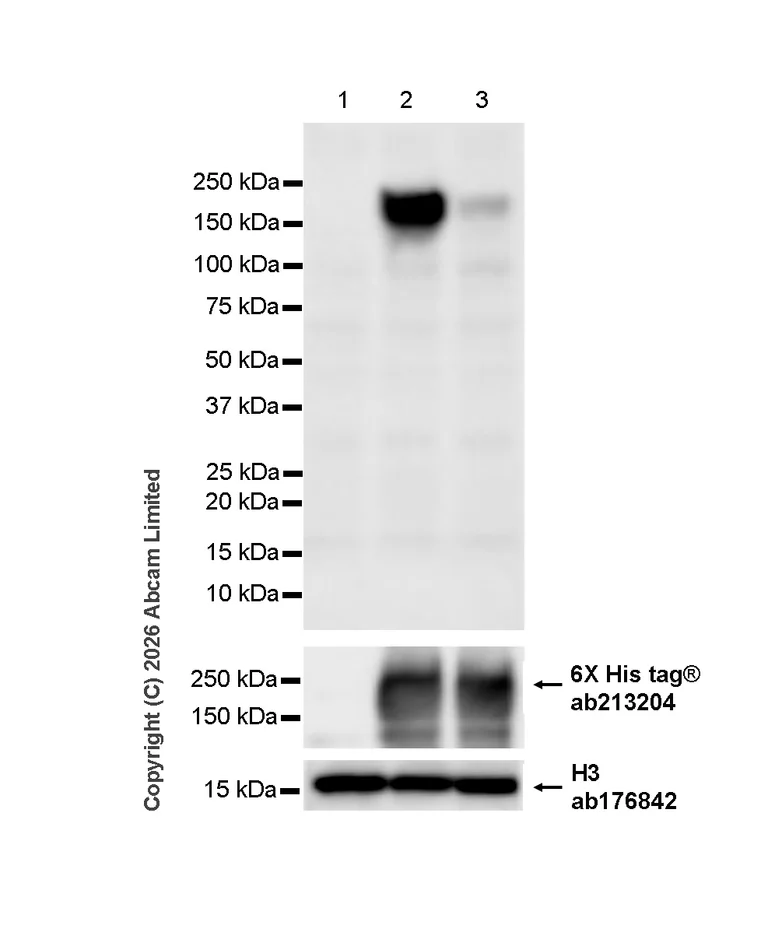

Western blot - Anti-SOS1 (phospho Y1196) antibody [TR16-7-3] (<a href='/ko/products/primary-antibodies/sos1-phospho-y1196-antibody-tr16-7-3-ab325592'>ab325592</a>) at 1/1000 dilution

Lane 1:

293T (human embryonic kidney epithelial cell) transfected with an empty vector containing a myc-His-tag® whole cell lysate at 20 µg

Lane 2:

293T transfected with a human wild-type SOS1 expression vector containing a myc-His-tag® whole cell lysate at 20 µg

Lane 3:

293T transfected with a human SOS1 (Y1196A mutation) expression vector containing a myc-His-tag® whole cell lysate at 20 µg

Secondary

All lanes:

Peroxidase-Conjugated Goat anti-Mouse IgG (H+L) at 1/10000 dilution

Observed band size: 152 kDa,36 kDa,150-250 kDa

false

Exposure time: 3s

• WB

Lab

Western blot - Anti-Histone H3 antibody [EPR16987] - Nuclear Marker and ChIP Grade (AB176842)

Blocking and diluting buffer and concentration : 5% NFDM/TBST.

Low expression : liver.

In Western blot, Anti-Histone H3 antibody [EPR16987] - Nuclear Marker and ChIP Grade (ab176842) 1 : 100000 (15Kda).

All lanes:

Western blot - Anti-MURF1 antibody [EPR29784-48] (<a href='/ko/products/primary-antibodies/murf1-antibody-epr29784-48-ab327341'>ab327341</a>) at 1/1000 dilution

Lane 1:

Human skeletal muscle tissue lysate at 50 µg

Lane 2:

Human liver tissue lysate at 50 µg

Secondary

All lanes:

Goat Anti-Rabbit IgG (HRP) with minimal cross-reactivity with human IgG at 1/2000 dilution

Observed band size: 40 kDa,15 kDa

false

Exposure time: 180s

• WB

Lab

Western blot - Anti-Histone H3 antibody [EPR16987] - Nuclear Marker and ChIP Grade (AB176842)

Blocking and diluting buffer and concentration : 5% NFDM/TBST.

The antibody shows weak reactivity with HEK293T cell lines overexpressing human Ret (Y1062A mutant)

In Western blot, Anti-Ret antibody (ab134100) (1 : 1000) (150KDa); Anti-6X His tag® antibody [EPR20547] - ChIP Grade (ab213204) (1 : 5000)(150KDa); Anti-Histone H3 antibody [EPR16987] - Nuclear Marker and ChIP Grade (ab176842) 1 : 100000 (15Kda).

All lanes:

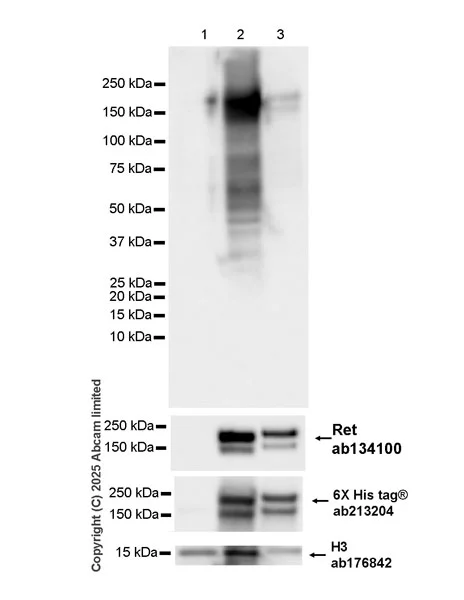

Western blot - Anti-Ret (phospho Y1062) antibody [EPR30639-507] (<a href='/ko/products/primary-antibodies/ret-phospho-y1062-antibody-epr30639-507-ab326572'>ab326572</a>) at 1/1000 dilution

Lane 1:

293T cells transfected with an empty vector containing a his-tag treated with 100uM pervanadate for 10 min whole cell lysate at 20 µg

Lane 2:

293T cells transfected with a human wild-type Ret expression vector containing a his-tag were treated with 100uM Pervanadate for 10 mins, whole cell lysate at 20 µg

Lane 3:

293T cells transfected with a human Ret(Y1062A mutant) expression vector containing a his-tag were treated with 100uM Pervanadate for 10 mins, whole cell lysate at 2 µg

Secondary

All lanes:

Western blot - Goat Anti-Rabbit IgG H&L (HRP) (<a href='/ko/products/secondary-antibodies/goat-rabbit-igg-h-l-hrp-ab97051'>ab97051</a>) at 1/100000 dilution

Observed band size: 150 kDa,15 kDa

false

Exposure time: 8s

• WB

Lab

Western blot - Anti-Histone H3 antibody [EPR16987] - Nuclear Marker and ChIP Grade (AB176842)

This blot was produced using a 4-12% Bis-tris gel under the MES buffer system. The gel was run at 200V for 35 minutes before being transferred onto a Nitrocellulose membrane at 30V for 70 minutes. The membrane was then blocked for an hour using 2% Bovine Serum Albumin before being incubated with ab176842 overnight at 4°C. Antibody binding was detected using an anti-rabbit antibody conjugated to HRP, and visualised using ECL development solution ab133406.

All lanes:

Western blot - Anti-Histone H3 antibody [EPR16987] - Nuclear Marker and ChIP Grade (ab176842) at 1 µg

Lane 1:

HeLa (Human epithelial carcinoma cell line) Whole Cell Lysate at 10 µg

Lane 2:

NIH 3T3 (Mouse embryonic fibroblast cell line) Whole Cell Lysate at 10 µg

Lane 3:

Drosophila embryo nuclear extract (from melanogaster embryos 0-12hr) at 10 µg

Lane 4:

S.cerevisiae (Y190) Whole Cell Lysate at 20 µg

Lane 5:

S.pombe Whole Cell Lysate at 20 µg

Secondary

All lanes:

Peroxidase AffiniPure Goat Anti-Rabbit IgG (H+L) at 1/50000 dilution

Predicted band size: 15 kDa

Observed band size: 17 kDa

true

Exposure time: 5s

• WB

Lab

Western blot - Anti-Histone H3 antibody [EPR16987] - Nuclear Marker and ChIP Grade (AB176842)

Blocking and diluting buffer and concentration : 5% NFDM/TBST.

In Western blot, ab326362 was shown to bind specifically to CTSL. Target of interest was observed at 25 kDa in wild-type HEK-293T cell lysates (lane 1) with no signal observed at this size in CTSL HEK-293T knockout cell lysate(ab257213)/cell line (lane 2)(ab255449).

In Western blot, Anti-Histone H3 antibody [EPR16987] - Nuclear Marker and ChIP Grade (ab176842) 1 : 100000 (15Kda).

All lanes:

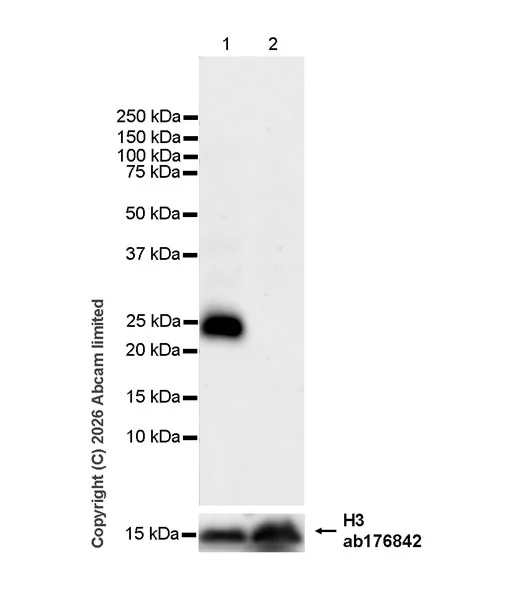

Western blot - Anti-Cathepsin L/MEP antibody [EPR30887-518] (<a href='/ko/products/primary-antibodies/cathepsin-l-mep-antibody-epr30887-518-ab326362'>ab326362</a>) at 1/1000 dilution

Lane 1:

Wild-type HEK-293T (human embryonic kidney epithelial cell) whole cell lysate at 80 µg

Lane 2:

Western blot - Human CTSL (Cathepsin L/MEP) knockout HEK-293T cell lysate (<a href='/ko/products/cell-lysates/human-ctsl-cathepsin-l-mep-knockout-hek-293t-cell-lysate-ab257213'>ab257213</a>) at 80 µg

Secondary

All lanes:

Western blot - Goat Anti-Rabbit IgG H&L (HRP) (<a href='/ko/products/secondary-antibodies/goat-rabbit-igg-h-l-hrp-ab97051'>ab97051</a>) at 1/20000 dilution

Observed band size: 25 kDa,15 kDa

false

Exposure time: 48s

• WB

Supplier Data

Western blot - Anti-Histone H3 antibody [EPR16987] - Nuclear Marker and ChIP Grade (AB176842)

Blocking and diluting buffer and concentration : 5% NFDM/TBST.

In Western blot, Anti-Histone H3 antibody [EPR16987] - Nuclear Marker and ChIP Grade (ab176842) staining at 1/100000 dilution.

All lanes:

Western blot - Anti-DAP12 antibody [EPR29151-41] (<a href='/ko/products/primary-antibodies/dap12-antibody-epr29151-41-ab323318'>ab323318</a>) at 1/1000 dilution

Lane 1:

Untreated THP-1 (human monocytic leukemia monocyte) whole cell lysate at 20 µg

Lane 2:

THP-1 cells differentiated with TPA (12-O-Tetradecanoylphorbol-13-acetate) whole cell lysate at 20 µg

Secondary

All lanes:

Western blot - Goat Anti-Rabbit IgG H&L (HRP) (<a href='/ko/products/secondary-antibodies/goat-rabbit-igg-h-l-hrp-ab97051'>ab97051</a>) at 1/100000 dilution

Observed band size: 11 kDa,12 kDa,15 kDa

false

Exposure time: 26s

• WB

Lab

Western blot - Anti-Histone H3 antibody [EPR16987] - Nuclear Marker and ChIP Grade (AB176842)

Blocking and diluting buffer and concentration : 5% NFDM/TBST.

Low expression : U-937 (PMID : 1384316).

Samples are non-boiled as boiling may cause protein aggregation.

The identity of the bands between 75 kDa and 150 kDa is unknown.

In Western blot, Anti-Histone H3 antibody [EPR16987] - Nuclear Marker and ChIP Grade (ab176842) 1 : 100000 (15Kda).

All lanes:

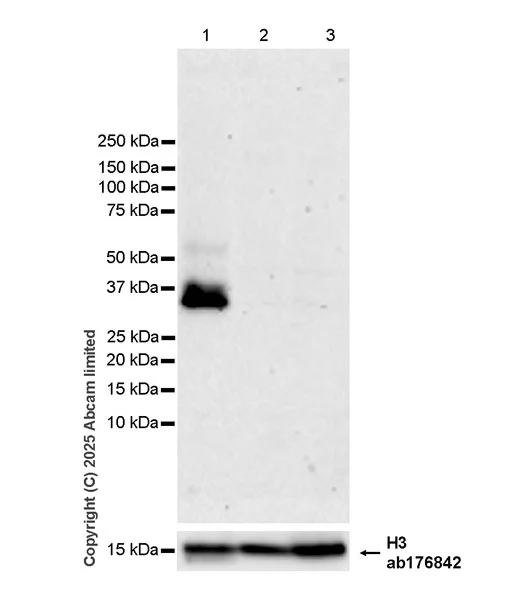

Western blot - Anti-CD72 antibody [EPR29739-526] (ab327352) at 1/1000 dilution

Lane 1:

Raji (human Burkitt's lymphoma B lymphocyte) whole cell lysate at 50 µg

Lane 2:

Ramos (human Burkitt's lymphoma B lymphocyte) whole cell lysate at 50 µg

Lane 3:

U-937 (human histiocytic lymphoma monocyte) whole cell lysate at 50 µg

Secondary

All lanes:

Western blot - Goat Anti-Rabbit IgG H&L (HRP) (<a href='/ko/products/secondary-antibodies/goat-rabbit-igg-h-l-hrp-ab97051'>ab97051</a>) at 1/20000 dilution

Observed band size: 35-40 kDa,15 kDa

false

Exposure time: 180s

• WB

Lab

Western blot - Anti-Histone H3 antibody [EPR16987] - Nuclear Marker and ChIP Grade (AB176842)

Blocking and diluting buffer and concentration : 5% NFDM/TBST.

In Western blot, ab322735 was shown to bind specifically to ATP13A2. Target of interest was observed at 150 kDa in wild-type HEK-293 cell lysates (lane 1) with no signal observed at this size in ATP13A2 knockout cell line (lane 2)(knockout cell line ab274925)(knockout lysate ab274983)

Samples are non-boiled as boiling may cause protein aggregation.

In Western blot, Anti-Histone H3 antibody [EPR16987] - Nuclear Marker and ChIP Grade (ab176842) 1 : 100000 (15Kda).

All lanes:

Western blot - Anti-ATP13A2 antibody [MJF-D29756-28] (<a href='/ko/products/primary-antibodies/atp13a2-antibody-mjf-d29756-28-ab322735'>ab322735</a>) at 1/1000 dilution

Lane 1:

HEK-293 (human embryonic kidney epithelial cell) whole cell lysate at 50 µg

Lane 2:

Western blot - Human ATP13A2 knockout HEK-293 cell lysate (<a href='/ko/products/cell-lysates/human-atp13a2-knockout-hek-293-cell-lysate-ab274983'>ab274983</a>) at 50 µg

Secondary

All lanes:

Goat Anti-Rabbit IgG (HRP) with minimal cross-reactivity with human IgG at 1/2000 dilution

Observed band size: 150 kDa,15 kDa

false

Exposure time: 92s

• WB

Lab

Western blot - Anti-Histone H3 antibody [EPR16987] - Nuclear Marker and ChIP Grade (AB176842)

This blot was produced using 4-20% SDS-PAGE containing 15 μg of HeLa whole cell lysate per lane at 150V for 1hr before being transferred onto a 0.45 μm PVDF membrane at 75V for 1hr. The membrane was then blocked for 1hr using 5% NFDM/TBST, then incubated with ab176842 (1/2000) at room temperature for 1hr. After being washed three times in TBST, the membrane was incubated with Peroxidase conjugated goat anti-rabbit IgG (H+L) (ab97051) at 1/20,000 dilution for 1hr at room temperature. The membrane was washed three times again. Then the signal was developed using the ECL technique.

ab176842 was stored at a range of temperatures (+4°C, +22°C, +37°C) for 1 week before being tested in WB. The image shows the band intensity remains relatively constant across all storage temperatures, demonstrating that antibody activity is not affected under these conditions. This data was generated as part of a structured antibody stability study supporting Abcam’s transition from cold‑chain to ambient shipping.

All lanes:

Western blot - Anti-Histone H3 antibody [EPR16987] - Nuclear Marker and ChIP Grade (ab176842) at 1/2000 dilution

All lanes:

HeLa whole cell lysate at 15 µg with NDFM/TBST

Secondary

All lanes:

Western blot - Goat Anti-Rabbit IgG H&L (HRP) (<a href='/ko/products/secondary-antibodies/goat-rabbit-igg-h-l-hrp-ab97051'>ab97051</a>) at 1/20000 dilution

false

Exposure time: 3s

• WB

Supplier Data

Western blot - Anti-Histone H3 antibody [EPR16987] - Nuclear Marker and ChIP Grade (AB176842)

Blocking and diluting buffer and concentration : 5% NFDM/TBST.

Performed under reducing conditions.

In Western blot, ab324563 was shown to bind specifically to NEDD4. Target of interest was observed at 115 kDa in wild-type HAP1 cell lysates (lane 2) with no signal observed at this size in NEDD4 knockout cell line (lane 1) (lane 1, knockout cell line ab

ab256783).

To minimize protein degradation, cells/tissues were lysed immediately after harvest and then applied to a gel and transfer membrane for Western blotting as soon as possible.

The samples are unboiled.

All lanes:

Western blot - Anti-NEDD4 antibody [EPR30127-570] (<a href='/ko/products/primary-antibodies/nedd4-antibody-epr30127-570-ab324563'>ab324563</a>) at 1/1000 dilution

Lane 1:

NEDD4 knockout parental HAP1 (human chronic myelogenous leukemia near-haploid cell ) whole cell lysate at 20 µg

Lane 2:

Parental HAP1 whole cell lysate at 20 µg

Secondary

All lanes:

Western blot - Goat Anti-Rabbit IgG H&L (HRP) (<a href='/ko/products/secondary-antibodies/goat-rabbit-igg-h-l-hrp-ab97051'>ab97051</a>) at 1/100000 dilution

Observed band size: 115 kDa,15 kDa

false

Exposure time: 37s

• WB

Lab

Western blot - Anti-Histone H3 antibody [EPR16987] - Nuclear Marker and ChIP Grade (AB176842)

Blocking and diluting buffer and concentration : 5% NFDM/TBST.

The antibody reacts with both the ROR gamma and ROR gamma t isoforms.

In Western blot, Anti-Histone H3 antibody [EPR16987] - Nuclear Marker and ChIP Grade (ab176842) 1 : 100000 (15Kda);
Anti-6X His tag® antibody [EPR20547] - ChIP Grade (ab213204) (1 : 5000)(37,55kDa).

All lanes:

Western blot - Anti-ROR gamma antibody [EPR27137-10] (<a href='/ko/products/primary-antibodies/ror-gamma-antibody-epr27137-10-ab325651'>ab325651</a>) at 1/1000 dilution

Lane 1:

293T (human embryonic kidney epithelial cell) cells transfected with an empty vector containing a myc-His-tag® whole cell lysate at 20 µg

Lane 2:

293T cells transfected with human ROR gamma t expression vector containing a myc-His-tag® whole cell lysate at 20 µg

Lane 3:

293T cells transfected with human ROR gamma expression vector containing a myc-His-tag® whole cell lysate at 10 µg

Secondary

All lanes:

Western blot - Goat Anti-Rabbit IgG H&L (HRP) (<a href='/ko/products/secondary-antibodies/goat-rabbit-igg-h-l-hrp-ab97051'>ab97051</a>) at 1/100000 dilution

Observed band size: 37 kDa,55 kDa,15 kDa

false

Exposure time: 180s

• WB

Lab

Western blot - Anti-Histone H3 antibody [EPR16987] - Nuclear Marker and ChIP Grade (AB176842)

Blocking and diluting buffer and concentration : 5% NFDM/TBST.

Low expression : Hela, 293T.

Samples are non-boiled as boiling may cause protein aggregation.

In Western blot, Anti-Histone H3 antibody [EPR16987] - Nuclear Marker and ChIP Grade (ab176842) 1 : 100000 (15Kda).

All lanes:

Western blot - Anti-EBV Induced Gene 2/EBI2 antibody [EPR27339-553] (ab325923) at 1/1000 dilution

Lane 1:

HDLM-2 (human Hodgkin lymphoma cell) whole cell lysate at 50 µg

Lane 2:

MJ [G11] (human Peripheral blood T lymphoblast) whole cell lysate at 50 µg

Lane 3:

HeLa (human cervical adenocarcinoma epithelial cell) whole cell lysate at 50 µg

Lane 4:

293T (human embryonic kidney epithelial cell) whole cell lysate at 50 µg

Lane 5:

Human tonsil tissule lysate at 50 µg

Lane 6:

Human lymph node tissule lysate at 50 µg

Secondary

All lanes:

Goat Anti-Rabbit IgG (HRP) with minimal cross-reactivity with human IgG at 1/2000 dilution

Observed band size: 42-70 kDa,15 kDa

false

Exposure time: 81s

• WB

Lab

Western blot - Anti-Histone H3 antibody [EPR16987] - Nuclear Marker and ChIP Grade (AB176842)

Blocking and diluting buffer and concentration : 5% NFDM/TBST.

In Western blot, Anti-Histone H3 antibody [EPR16987] - Loading Control (ab176842) (1 : 100000) (36KDa); Anti-6X His tag® antibody [EPR20547] - ChIP Grade (ab213204) (1 : 5000)(150-250kDa).

All lanes:

Western blot - Anti-SOS1 (phospho Y1196) antibody [TF7-28-23] (<a href='/ko/products/primary-antibodies/sos1-phospho-y1196-antibody-tf7-28-23-ab325591'>ab325591</a>) at 1/1000 dilution

Lane 1:

293T (human embryonic kidney epithelial cell) transfected with an empty vector containing a myc-His-tag® whole cell lysate at 20 µg

Lane 2:

293T transfected with a human wild-type SOS1 expression vector containing a myc-His-tag® whole cell lysate at 20 µg

Lane 3:

293T transfected with a human SOS1 (Y1196A mutation) expression vector containing a myc-His-tag® whole cell lysate at 20 µg

Secondary

All lanes:

Peroxidase-Conjugated Goat anti-Mouse IgG (H+L) at 1/10000 dilution

Observed band size: 152 kDa,36 kDa,150-250 kDa

true

Exposure time: 180s

• WB

Lab

Western blot - Anti-Histone H3 antibody [EPR16987] - Nuclear Marker and ChIP Grade (AB176842)

Blocking and diluting buffer and concentration : 5% NFDM/TBST

Anti-Histone H3 antibody [EPR16987] - Nuclear Marker and ChIP Grade (ab176842) was used as a loading control at a 1/100000 dilution.

Negative control : HeLa (PMID : 10492038).

The lower bands (~27–35 kDa) represent apoptosis-related cleavage fragments (PMID : 20395555; 32682001).

All lanes:

Western blot - Anti-MNDA antibody [253A] (<a href='/ko/products/primary-antibodies/mnda-antibody-253a-ab188566'>ab188566</a>) at 1/1000 dilution

Lane 1:

THP-1 (human monocytic leukemia monocyte) whole cell lysate at 20 µg

Lane 2:

HeLa (human cervical adenocarcinoma epithelial cell) whole cell lysate at 20 µg

Secondary

All lanes:

Peroxidase-Conjugated Goat anti-Mouse IgG (H+L) at 1/10000 dilution

Observed band size: 47 kDa

false

Exposure time: 37s

• WB

Lab

Western blot - Anti-Histone H3 antibody [EPR16987] - Nuclear Marker and ChIP Grade (AB176842)

Blocking and diluting buffer and concentration : 5% NFDM/TBST.

Performed under reducing conditions.

In Western blot, ab325424 was shown to bind specifically to SUFU. Target of interest was observed at 30, 35, 53 kDa in wild-type HAP1cell lysates (lane 1) and in wild-type HEK cell lysates (lane 3) with no signal observed at this size in SUFU knockout HAP1cell line (lane 2) and SUFU knockout HEK293T cell line (lane 4, knockout cell line ab267282 / knockout cell lysate ab257718).

The low MW band are due to degradation.

In Western blot, Anti-Histone H3 antibody [EPR16987] - Nuclear Marker and ChIP Grade (ab176842) 1 : 100000 (15Kda).

All lanes:

Western blot - Anti-SUFU antibody [EPR30547-60] (<a href='/ko/products/primary-antibodies/sufu-antibody-epr30547-60-ab325424'>ab325424</a>) at 1/1000 dilution

Lane 1:

Parental HAP1 (human chronic myelogenous leukemia near-haploid cell) whole cell lysate at 20 µg

Lane 2:

SUFU knockout HAP1 whole cell lysate at 20 µg

Lane 3:

Parental HEK293T (human embryonic kidney epithelial cell) whole cell lysate at 20 µg

Lane 4:

SUFU knockout HEK293T whole cell lysate at 20 µg

Lane 5:

HEL (human erythroleukemia erythroblast) whole cell lysate at 20 µg

Lane 6:

293T whole cell lysate at 20 µg

Lane 7:

NIH/3T3 (mouse embryonic fibroblast) whole cell lysate at 20 µg

Secondary

All lanes:

Western blot - Goat Anti-Rabbit IgG H&L (HRP) (<a href='/ko/products/secondary-antibodies/goat-rabbit-igg-h-l-hrp-ab97051'>ab97051</a>) at 1/100000 dilution

Observed band size: 30 kDa,35 kDa,53 kDa,37 kDa

false

Exposure time: 15s

• WB

Lab

Western blot - Anti-Histone H3 antibody [EPR16987] - Nuclear Marker and ChIP Grade (AB176842)

Blocking and diluting buffer and concentration : 5% NFDM/TBST.

The identity of the lower MW band at approximately 15 kDa is unknown.

In Western blot, Anti-Histone H3 antibody [EPR16987] - Nuclear Marker and ChIP Grade (ab176842) 1 : 100000 (15Kda).

Exposure time : Lane 1 : 180 seconds, lane 2 : 26 seconds

All lanes:

Western blot - Anti-Histone H2A (ubiquityl K119) antibody [EPR28331-576] (<a href='/ko/products/primary-antibodies/histone-h2a-ubiquityl-k119-antibody-epr28331-576-ab325796'>ab325796</a>) at 1/1000 dilution

Lane 1:

HeLa (human cervical adenocarcinoma epithelial cell) histone fraction at 20 µg

Lane 2:

NIH/3T3 (mouse embryonic fibroblast) histone fraction at 20 µg

Secondary

All lanes:

Western blot - Goat Anti-Rabbit IgG H&L (HRP) (<a href='/ko/products/secondary-antibodies/goat-rabbit-igg-h-l-hrp-ab97051'>ab97051</a>) at 1/20000 dilution

Observed band size: 22 kDa,15 kDa

false

• WB

Lab

Western blot - Anti-Histone H3 antibody [EPR16987] - Nuclear Marker and ChIP Grade (AB176842)

Blocking and diluting buffer and concentration : 5% NFDM/TBST.

In Western blot, Anti-Histone H3 antibody [EPR16987] - Nuclear Marker and ChIP Grade (ab176842) (1 : 100000) (15Kda).

All lanes:

Western blot - Anti-HIF-1 alpha antibody [SIMA343B] (<a href='/ko/products/primary-antibodies/hif-1-alpha-antibody-sima343b-ab325355'>ab325355</a>) at 1/1000 dilution

Lane 1:

293T (human embryonic kidney epithelial cell) cell transfected with an empty vector containing a myc-his-tag, whole cell lysate at 20 µg

Lane 2:

293T cells transfected with a human HIF-1 alpha expression vector containing a myc-his-tag, whole cell lysate at 20 µg

Lane 3:

293T cells transfected with a human EPAS1 expression vector containing a myc-his-tag, whole cell lysate at 20 µg

Lane 4:

293T cell transfected with an empty vector containing a myc-his-tag, whole cell lysate at 20 µg

Lane 5:

293T cells transfected with a mouse HIF-1 alpha expression vector containing a myc-his-tag, whole cell lysate at 20 µg

Lane 6:

293T cells transfected with a mouse EPAS1 expression vector containing a myc-his-tag, whole cell lysate at 20 µg

Secondary

All lanes:

Western blot - Goat Anti-Rat IgG H&L (HRP) (<a href='/ko/products/secondary-antibodies/goat-rat-igg-h-l-hrp-ab205720'>ab205720</a>) at 1/10000 dilution

Observed band size: 110 kDa,15 kDa

false

Exposure time: 1s
