AB324241

Anti-HIV-1 gp140 antibody [3B3] - BSA and Azide free

Be the first to review this product! 리뷰 제출

|

(0 출판물)

Mouse Recombinant Monoclonal ENV antibody. Carrier free. Suitable for WB, ICC/IF, I-ELISA and reacts with Transfected cell lysate - HIV-1 M:B_HXB2R, Transfected cell line - HIV-1 M:B_HXB2R, Recombinant fragment - HIV-1 M:B_HXB2R samples.
3 이미지
Immunocytochemistry/ Immunofluorescence - Anti-HIV-1 gp140 antibody [3B3] - BSA and Azide free (AB324241)
  • ICC/IF

Supplier Data

Immunocytochemistry/ Immunofluorescence - Anti-HIV-1 gp140 antibody [3B3] - BSA and Azide free (AB324241)

This data was developed using ab322236, the same antibody clone in a different buffer formulation.

Immunofluorescent analysis of 4% Paraformaldehyde-fixed, 0.1% TritonX-100 permeabilized 293T (human embryonic kidney epithelial cell) cells labelling HIV-1 gp140 with ab322236 at 1/100 (10 ug/ml) dilution, followed by ab150117 Goat Anti-Mouse IgG H&L (Alexa Fluor® 488) preadsorbed antibody at 1/1000 dilution (Green).

Confocal image showing positive staining in 293T cells transfected with a Human immunodeficiency virus type 1 group M subtype B (isolate HXB2) (HIV-1) Envelope glycoprotein gp160 expression vector containing a myc-His-tag®. The counterstain was observed in magenta. Nuclear DNA was labeled with DAPI (shown in blue).
Image was taken with a confocal microscope(Leica-Microsystems, TCS SP8).

ab9106 Anti-Myc Rabbit polyclonal antibody was used to counterstain tubulin at 1/200 dilution (Magenta). The Nuclear counterstain was DAPI (Blue).

Secondary antibody only control : Secondary antibody is ab150117 Goat Anti-Mouse IgG H&L (Alexa Fluor® 488) preadsorbed at 1/1000 dilution.

Indirect ELISA - Anti-HIV-1 gp140 antibody [3B3] - BSA and Azide free (AB324241)
  • I-ELISA

Supplier Data

Indirect ELISA - Anti-HIV-1 gp140 antibody [3B3] - BSA and Azide free (AB324241)

This data was developed using ab322236, the same antibody clone in a different buffer formulation.

Indirect ELISA analysis of ab322236 at 2000-0 ng/ml. The Secondary antibody used was Alkaline Phosphatase-conjugated AffiniPure Goat Anti-Mouse IgG (H+L) at 1 : 1000 dilution dilution.

Antigen : Human immunodeficiency Virus type 1 Group M Subtype B Envelope Glycoprotein gp160.

Antigen concentration : 1000 ng/ml

Western blot - Anti-HIV-1 gp140 antibody [3B3] - BSA and Azide free (AB324241)
  • WB

Supplier Data

Western blot - Anti-HIV-1 gp140 antibody [3B3] - BSA and Azide free (AB324241)

This data was developed using ab322236, the same antibody clone in a different buffer formulation.

Blocking and diluting buffer and concentration : 5% NFDM/TBST.

In Western blot, Anti-GAPDH antibody [EPR16891] - Loading Control (ab181602) staining at 1/200000 dilution.

In Western blot, Anti-6X His tag® antibody [EPR20547] - ChIP Grade (ab213204) staining at 1/5000 dilution.

All lanes:

Western blot - Anti-HIV-1 gp140 antibody [3B3] (<a href='/ko/products/primary-antibodies/hiv-1-gp140-antibody-3b3-ab322236'>ab322236</a>) at 1/1000 dilution

Lane 1:

293T (human embryonic kidney epithelial cell) transfected with an empty vector containing a myc-his-tag at 20 µg

Lane 2:

293T cells transfected with a Human immunodeficiency virus type 1 group M subtype B (isolate HXB2) (HIV-1) Envelope glycoprotein gp160 expression vector containing a myc-his-tag whole cell lysate at 20 µg

Secondary

All lanes:

Peroxidase-Conjugated Goat anti-Mouse IgG (H+L) at 1/10000 dilution

Observed band size: 100-150 kDa,36 kDa

false

Exposure time: 3s

관련 conjugated 항체와 다양한 조성의 항체 (1)

주요 정보

Host species

Mouse

Clonality

Monoclonal

Clone number

3B3

Isotype

IgG2b

Carrier free

Yes

Reacts with

HIV-1 M:B_HXB2R

Applications

I-ELISA, ICC/IF, WB

applications

Immunogen

The exact immunogen used to generate this antibody is proprietary information.

style
left-column

보완 제품

Sample Prep & Detection Kits

AB102890

HRP Conjugation Kit - Lightning-Link®

Conjugation - HRP Conjugation Kit - Lightning-Link® (AB102890)

  • 4
  • 3
Proteins & Peptides

AB307486

Recombinant HIV surface protein gp120 (Active)

Premium Bioactive

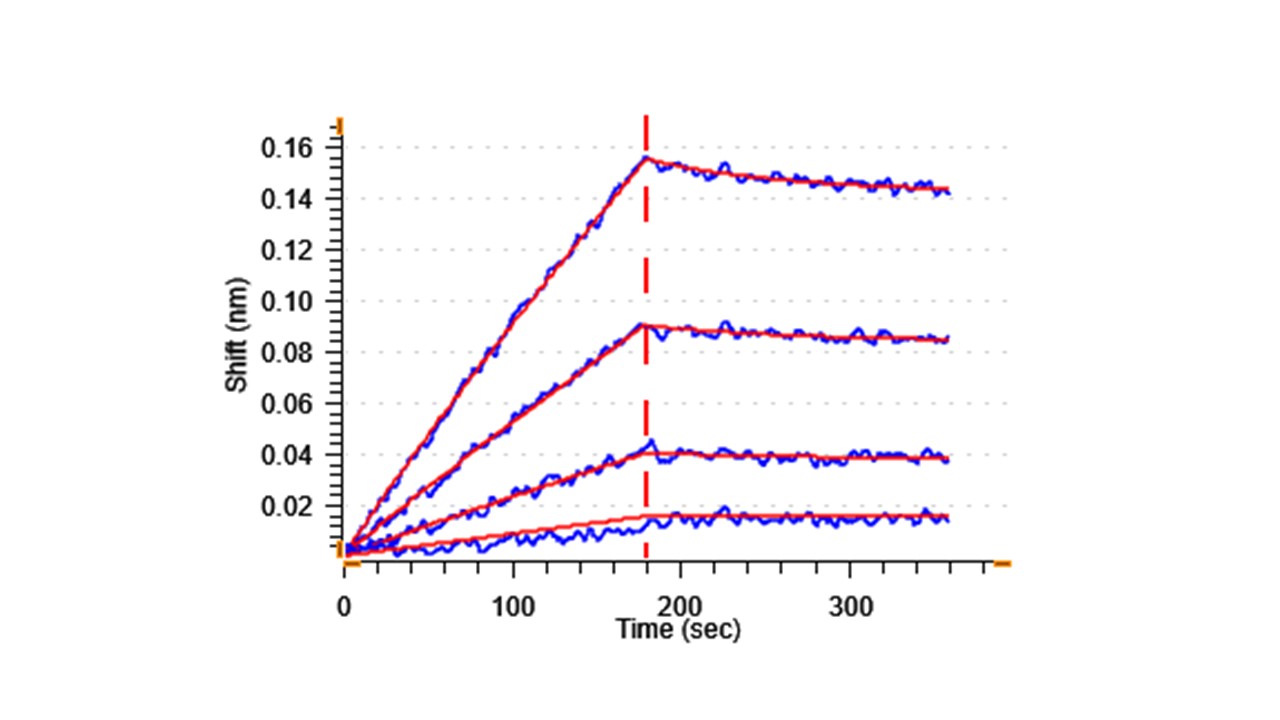

Functional Studies - Recombinant HIV surface protein gp120 (Active) (AB307486)

  • 0
  • 0
Primary Antibodies

AB21179

Anti-HIV1 gp120 antibody

  • 5
  • 1
Primary Antibodies

AB63911

Anti-HIV1 Reverse Transcriptase antibody

Western blot - Anti-HIV1 Reverse Transcriptase antibody (AB63911)

  • 0
  • 0
style
left-column

Reactivity 정보

{ "title": "Reactivity Data", "filters": { "stats": ["", "Species", "Dilution Info", "Notes"], "tabs": { "all-applications": {"fullname" : "All Applications", "shortname": "All Applications"}, "WB" : {"fullname" : "Western blot", "shortname":"WB"}, "ICCIF" : {"fullname" : "Immunocytochemistry/ Immunofluorescence", "shortname":"ICC/IF"}, "IELISA" : {"fullname" : "Indirect ELISA", "shortname":"I-ELISA"}, "FlowCyt" : {"fullname" : "Flow Cytometry", "shortname":"Flow Cyt"} }, "product-promise": { "all": "all", "testedAndGuaranteed": "tested", "guaranteed": "expected", "predicted": "predicted", "notRecommended": "not-recommended" } }, "values": { "HIV-1 M:B_HXB2R": { "WB-species-checked": "predicted", "WB-species-dilution-info": "", "WB-species-notes": "", "ICCIF-species-checked": "predicted", "ICCIF-species-dilution-info": "", "ICCIF-species-notes": "", "IELISA-species-checked": "predicted", "IELISA-species-dilution-info": "", "IELISA-species-notes": "", "FlowCyt-species-checked": "notRecommended", "FlowCyt-species-dilution-info": "", "FlowCyt-species-notes": "" }, "Recombinant fragment - HIV-1 M:B_HXB2R": { "WB-species-checked": "notRecommended", "WB-species-dilution-info": "", "WB-species-notes": "", "ICCIF-species-checked": "notRecommended", "ICCIF-species-dilution-info": "", "ICCIF-species-notes": "", "IELISA-species-checked": "testedAndGuaranteed", "IELISA-species-dilution-info": "", "IELISA-species-notes": "<p></p>", "FlowCyt-species-checked": "notRecommended", "FlowCyt-species-dilution-info": "", "FlowCyt-species-notes": "" }, "Transfected cell line - HIV-1 M:B_HXB2R": { "WB-species-checked": "notRecommended", "WB-species-dilution-info": "", "WB-species-notes": "", "ICCIF-species-checked": "testedAndGuaranteed", "ICCIF-species-dilution-info": "", "ICCIF-species-notes": "<p></p>", "IELISA-species-checked": "notRecommended", "IELISA-species-dilution-info": "", "IELISA-species-notes": "", "FlowCyt-species-checked": "notRecommended", "FlowCyt-species-dilution-info": "", "FlowCyt-species-notes": "<p></p>" }, "Transfected cell lysate - HIV-1 M:B_HXB2R": { "WB-species-checked": "testedAndGuaranteed", "WB-species-dilution-info": "", "WB-species-notes": "<p></p>", "ICCIF-species-checked": "notRecommended", "ICCIF-species-dilution-info": "", "ICCIF-species-notes": "", "IELISA-species-checked": "notRecommended", "IELISA-species-dilution-info": "", "IELISA-species-notes": "", "FlowCyt-species-checked": "notRecommended", "FlowCyt-species-dilution-info": "", "FlowCyt-species-notes": "" } } }
style
left-column

제품 세부 정보

ab324241 is the carrier-free version of ab322236.

What are the advantages of a recombinant monoclonal antibody?
This product is a recombinant monoclonal antibody, which offers several advantages including:

  • - High batch-to-batch consistency and reproducibility
  • - Improved sensitivity and specificity
  • - Long-term security of supply
  • - Animal-free batch production

For more information, read more on recombinant antibodies.

Conjugation ready
Our carrier-free antibodies are typically supplied in a PBS-only formulation, purified and free of BSA, sodium azide and glycerol. This conjugation-ready format is designed for use with fluorochromes, metal isotopes, oligonucleotides, and enzymes, which makes them ideal for antibody labelling, functional and cell-based assays, flow-based assays (e.g. mass cytometry) and Multiplex Imaging applications.

Use our conjugation kits for antibody conjugates that are ready-to-use in as little as 20 minutes with 1 minute hands-on-time and 100% antibody recovery: available for fluorescent dyes, HRP, biotin and gold.

Compatibility
This product is compatible with the Maxpar® Antibody Labeling Kit from Fluidigm, without the need for antibody preparation. Maxpar® is a trademark of Fluidigm Canada Inc.

Want a custom formulation?
This antibody clone is manufactured by Abcam. If you require a custom buffer formulation or conjugation for your experiments, please contact orders@abcam.com

style
left-column

특성 및 보관 정보

제형
Liquid
Purification 테크닉
Affinity purification Protein A
보관 버퍼
pH: 7.2 - 7.4 Constituents: PBS
배송 시 보관 조건
Blue Ice
적절한 단기 보관 조건
+4°C
적절한 장기 보관 조건
+4°C
style
left-column
style
left-column
style
left-column

제품 프로토콜

For this product, it's our understanding that no specific protocols are required. You can visit:
style
left-column

타겟 정보

Envelope glycoprotein gp160. Oligomerizes in the host endoplasmic reticulum into predominantly trimers. In a second time, gp160 transits in the host Golgi, where glycosylation is completed. The precursor is then proteolytically cleaved in the trans-Golgi and thereby activated by cellular furin or furin-like proteases to produce gp120 and gp41.. Surface protein gp120. Attaches the virus to the host lymphoid cell by binding to the primary receptor CD4. This interaction induces a structural rearrangement creating a high affinity binding site for a chemokine coreceptor like CXCR4 and/or CCR5. Acts as a ligand for CD209/DC-SIGN and CLEC4M/DC-SIGNR, which are respectively found on dendritic cells (DCs), and on endothelial cells of liver sinusoids and lymph node sinuses. These interactions allow capture of viral particles at mucosal surfaces by these cells and subsequent transmission to permissive cells. HIV subverts the migration properties of dendritic cells to gain access to CD4+ T-cells in lymph nodes. Virus transmission to permissive T-cells occurs either in trans (without DCs infection, through viral capture and transmission), or in cis (following DCs productive infection, through the usual CD4-gp120 interaction), thereby inducing a robust infection. In trans infection, bound virions remain infectious over days and it is proposed that they are not degraded, but protected in non-lysosomal acidic organelles within the DCs close to the cell membrane thus contributing to the viral infectious potential during DCs' migration from the periphery to the lymphoid tissues. On arrival at lymphoid tissues, intact virions recycle back to DCs' cell surface allowing virus transmission to CD4+ T-cells.. Transmembrane protein gp41. Acts as a class I viral fusion protein. Under the current model, the protein has at least 3 conformational states : pre-fusion native state, pre-hairpin intermediate state, and post-fusion hairpin state. During fusion of viral and target intracellular membranes, the coiled coil regions (heptad repeats) assume a trimer-of-hairpins structure, positioning the fusion peptide in close proximity to the C-terminal region of the ectodomain. The formation of this structure appears to drive apposition and subsequent fusion of viral and target cell membranes. Complete fusion occurs in host cell endosomes and is dynamin-dependent, however some lipid transfer might occur at the plasma membrane. The virus undergoes clathrin-dependent internalization long before endosomal fusion, thus minimizing the surface exposure of conserved viral epitopes during fusion and reducing the efficacy of inhibitors targeting these epitopes. Membranes fusion leads to delivery of the nucleocapsid into the cytoplasm.
See full target information env

대체 명칭 보기

Envelope glycoprotein gp160, Env polyprotein, env
style
left-column
style
left-column
style
right-column

Product promise

저희는 고품질 시약으로 고객님의 연구를 서포트하고자 최선을 다하고 있으며, 모든 단계에서 함께 하겠습니다. 만약 제품이 기대한 성능을 보이지 않을 경우에도 Product Promise로 보호받으실 수 있습니다.
자세한 내용은 이용 약관을 확인해 주세요.

Please note: All products are 'FOR RESEARCH USE ONLY. NOT FOR USE IN DIAGNOSTIC OR THERAPEUTIC PROCEDURES'.
