Anti-MT-ND4 antibody [EPR28273-38]

• IHC-P

Supplier Data

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-MT-ND4 antibody [EPR28273-38] (AB324743)

Immunohistochemical analysis of paraffin-embedded Human kidney tissue labeling MT-ND4 with ab324743 at 1/100 (5.2 ug/ml) dilution, followed by a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection).

Positive staining on human kidney. The section was incubated with ab324743 for 30 mins at room temperature.
The immunostaining was performed on a Leica Biosystems BOND® RX instrument

Counterstained with Hematoxylin.

Secondary antibody only control : Secondary antibody is a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection).

Heat mediated antigen retrieval was performed with Tris-EDTA buffer (pH 9.0, Epitope Retrieval Solution2) for 20 mins

• IHC-P

Supplier Data

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-MT-ND4 antibody [EPR28273-38] (AB324743)

Immunohistochemical analysis of paraffin-embedded Human endometrial carcinoma tissue labeling MT-ND4 with ab324743 at 1/100 (5.2 ug/ml) dilution, followed by a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection).

Positive staining on human endometrial carcinoma. The section was incubated with ab324743 for 30 mins at room temperature.
The immunostaining was performed on a Leica Biosystems BOND® RX instrument

Counterstained with Hematoxylin.

Secondary antibody only control : Secondary antibody is a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection).

Heat mediated antigen retrieval was performed with Tris-EDTA buffer (pH 9.0, Epitope Retrieval Solution2) for 20 mins

• mIHC

Supplier Data

Multiplex immunohistochemistry - Anti-MT-ND4 antibody [EPR28273-38] (AB324743)

Multiplex immunohistochemistry analysis of formalin/PFA-fixed paraffin-embedded human kidney tissue staining MT-ND4 with ab324743 at a 1 : 100 (5.2 ug/ml) dilution, ab202554 anti-COX4I1 used at 1 : 500 (0.228 ug/ml) dilution.

Panel A : merged staining of anti-MT-ND4 (green; Opal™520), anti-COX4I1 (magenta; Opal™570) on human kidney.
Panel B : anti-MT-ND4 showed mitochondrial staining in human kidney.
Panel C : anti-COX4I1 showed mitochondrial staining in human kidney.
Panel D : Nuclear DNA was labeled with DAPI (shown in blue).

The section was incubated in three rounds of staining : in the order of ab324743 and ab202554 for 30 mins at room temperature. Each round was followed by a separate fluorescent tyramide signal amplification system.

The immunostaining was performed on a Leica Biosystems BOND® RX instrument with an Opal™ 4-color kit. Image acquisition was performed with Leica SP8 confocal microscope.

Nuclear counter stain with DAPI.

Heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0, epitope retrieval solution2) for 20 mins.

• IHC-P

Supplier Data

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-MT-ND4 antibody [EPR28273-38] (AB324743)

Immunohistochemical analysis of paraffin-embedded Human cerebrum tissue labeling MT-ND4 with ab324743 at 1/100 (5.2 ug/ml) dilution, followed by a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection).

Low expression : weak staining on human cerebrum. The section was incubated with ab324743 for 30 mins at room temperature.
The immunostaining was performed on a Leica Biosystems BOND® RX instrument

Counterstained with Hematoxylin.

Secondary antibody only control : Secondary antibody is a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection).

Heat mediated antigen retrieval was performed with Tris-EDTA buffer (pH 9.0, Epitope Retrieval Solution2) for 20 mins

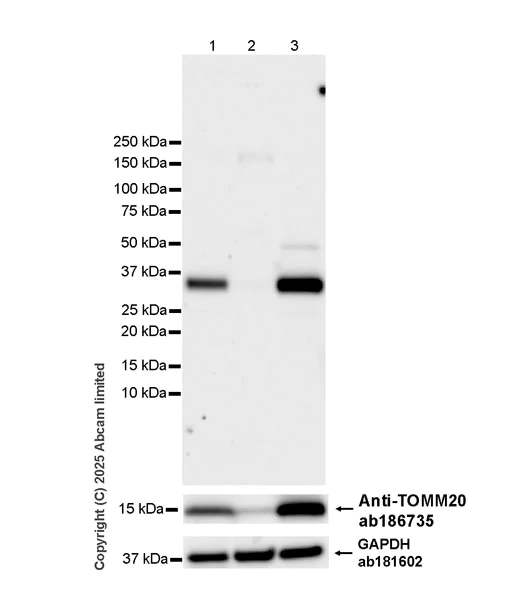

• WB

Supplier Data

Western blot - Anti-MT-ND4 antibody [EPR28273-38] (AB324743)

Blocking and diluting buffer and concentration : 5% NFDM/TBST.

The samples are unboiled.

In Western blot, Anti-TOMM20 antibody [EPR15581-54] - Mitochondrial Marker (ab186735) staining at 1/1000 dilution.

In Western blot, Anti-GAPDH antibody [EPR16891] - Loading Control (ab181602) staining at 1/200000 dilution.

All lanes:

Western blot - Anti-MT-ND4 antibody [EPR28273-38] (ab324743) at 1/1000 dilution

Lane 1:

HepG2 (human hepatocellular carcinoma epithelial cell) whole cell lysate at 20 µg

Lane 2:

HepG2 non-mitochondrial fraction at 20 µg

Lane 3:

HepG2 mitochondrial fraction at 20 µg

Secondary

All lanes:

Western blot - Goat Anti-Rabbit IgG H&L (HRP) (<a href='/ko/products/secondary-antibodies/goat-rabbit-igg-h-l-hrp-ab97051'>ab97051</a>) at 1/20000 dilution

Observed band size: 35 kDa,36 kDa,16 kDa

false

Exposure time: 70s

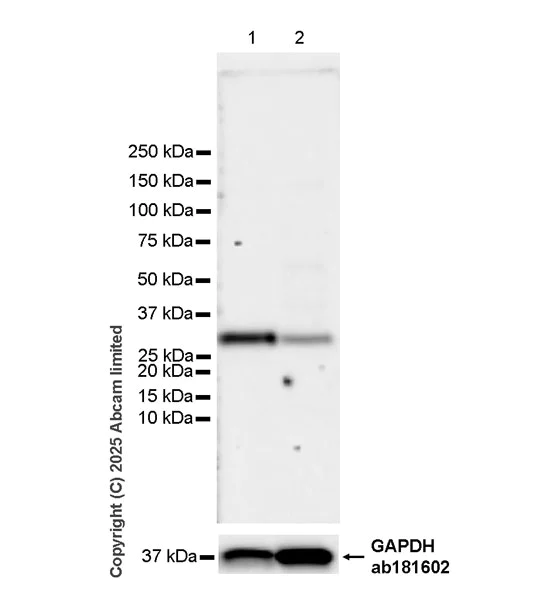

• WB

Supplier Data

Western blot - Anti-MT-ND4 antibody [EPR28273-38] (AB324743)

Blocking and diluting buffer and concentration : 5% NFDM/TBST.

Low expression : tonsil

The samples are unboiled.

In Western blot, Anti-GAPDH antibody [EPR16891] - Loading Control (ab181602) staining at 1/200000 dilution.

All lanes:

Western blot - Anti-MT-ND4 antibody [EPR28273-38] (ab324743) at 1/1000 dilution

Lane 1:

Human stomach tissue lysate at 20 µg

Lane 2:

Human tonsil tissue lysate at 20 µg

Secondary

All lanes:

Goat Anti-Rabbit IgG (HRP) with minimal cross-reactivity with human IgG at 1/2000 dilution

Observed band size: 35 kDa,36 kDa

false

Exposure time: 70s
