Anti-NeuN antibody [EPR12763] - Rat IgG2a (Chimeric) - BSA and Azide free

• IHC-P

Lab

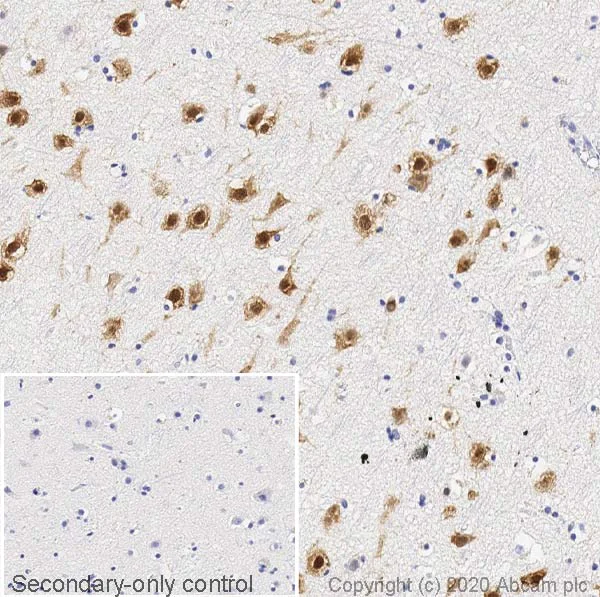

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-NeuN antibody [EPR12763] - Rat IgG2a (Chimeric) - BSA and Azide free (AB279309)

This data was generated using the same antibody clone in a different buffer formulation (ab279297)

IHC image of NeuN staining in a section of formalin-fixed paraffin-embedded normal human cerebral cortex performed on a Leica BONDTM system using the standard protocol F. The section was pre-treated using heat mediated antigen retrieval with sodium citrate buffer (pH6, epitope retrieval solution 1) for 20mins. The section was then incubated with ab279297, 1ug/ml, for 15 mins at room temperature. A rabbit anti-rat IgG2a, ab102248, was added for 8 mins at room temperature and detected using an HRP conjugated goat anti-rabbit compact polymer system. DAB was used as the chromogen. The section was then counterstained with haematoxylin and mounted with DPX. The inset secondary-only control image is taken from an identical assay without primary antibody.

• ICC/IF

Lab

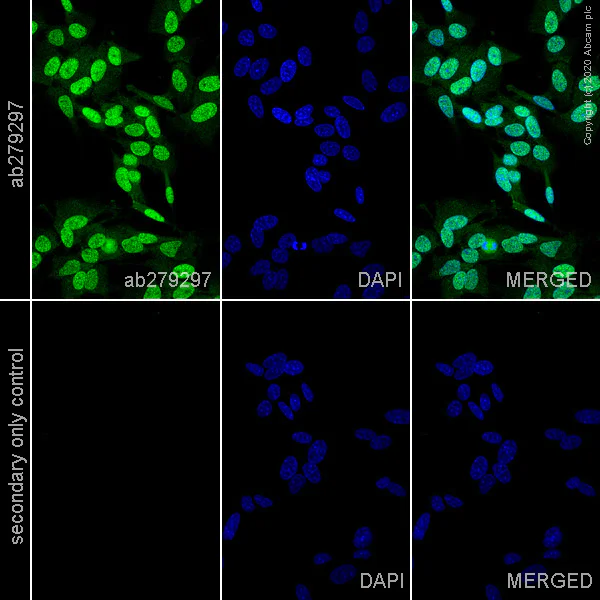

Immunocytochemistry/ Immunofluorescence - Anti-NeuN antibody [EPR12763] - Rat IgG2a (Chimeric) - BSA and Azide free (AB279309)

This data was generated using the same antibody clone in a different buffer formulation (ab279297)

Immunofluorescence staining of NeuN using ab279297 in human SHSY5Y cells. The cells were fixed with 100% methanol (5 min), permeabilized with 0.1% Triton X-100 for 5 mins and then blocked with 1% BSA/10% normal goat serum/0.3M glycine in 0.1% PBS-Tween for 1h. The cells were then incubated overnight at +4°C with ab279297 at 1.0 μg/ml. Cells were then incubated with ab150165, Goat Anti-Rat IgG H&L (Alexa Fluor® 488) preadsorbed at 1/1000 dilution (shown in green) and nuclear DNA was labelled with DAPI (shown in blue). The secondary only control (bottom row) was not incubated with ab279297 but otherwise processed the same. Images were acquired with a high-content analyser (Operetta CLS, Perkin Elmer) and a maximum intensity projection of confocal sections is shown.

• ICC/IF

Lab

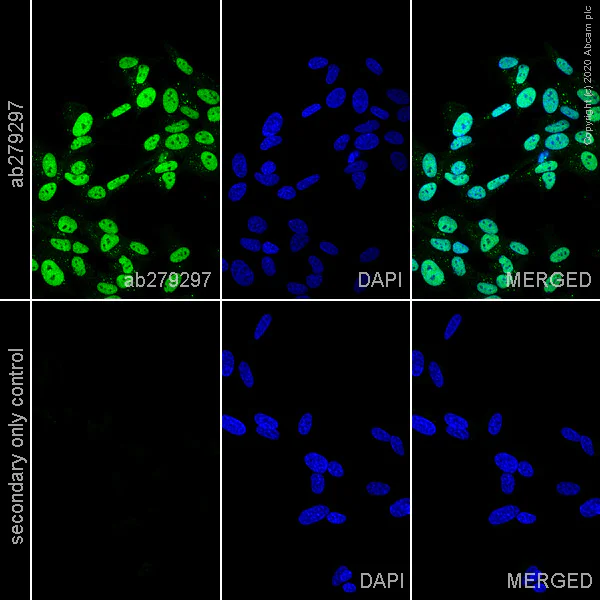

Immunocytochemistry/ Immunofluorescence - Anti-NeuN antibody [EPR12763] - Rat IgG2a (Chimeric) - BSA and Azide free (AB279309)

This data was generated using the same antibody clone in a different buffer formulation (ab279297)

Immunofluorescence staining of NeuN using ab279297 in human SHSY5Y cells. The cells were fixed with 4% formaldehyde (10 min), permeabilized with 0.1% Triton X-100 for 5 mins and then blocked with 1% BSA/10% normal goat serum/0.3M glycine in 0.1% PBS-Tween for 1h. The cells were then incubated overnight at +4°C with ab279297 at 1.0 μg/ml. Cells were then incubated with ab150165, Goat Anti-Rat IgG H&L (Alexa Fluor® 488) preadsorbed at 1/1000 dilution (shown in green) and nuclear DNA was labelled with DAPI (shown in blue). The secondary only control (bottom row) was not incubated with ab279297 but otherwise processed the same. Images were acquired with a high-content analyser (Operetta CLS, Perkin Elmer) and a maximum intensity projection of confocal sections is shown.

• Flow Cyt (Intra)

Supplier Data

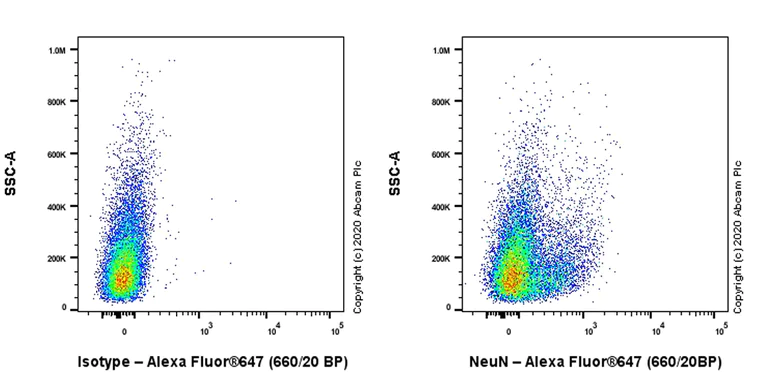

Flow Cytometry (Intracellular) - Anti-NeuN antibody [EPR12763] - Rat IgG2a (Chimeric) - BSA and Azide free (AB279309)

This data was produced using ab279297, the same clone in a different formulation.

Flow cytometric analysis of 4% paraformaldehyde-fixed, 90% methanol-permeabilized rat primary neural/glia cells labelling NeuN with ab279297 at 1/1000 dilution (0.1μg)/ Right compared with a Mouse monoclonal IgG isotype control/ Left.

Goat F(ab)2 Anti-Rat IgG Fc (Alexa Fluor^® 647, ab150163) at 1/2000 dilution was used as the secondary antibody.

• ICC/IF

Lab

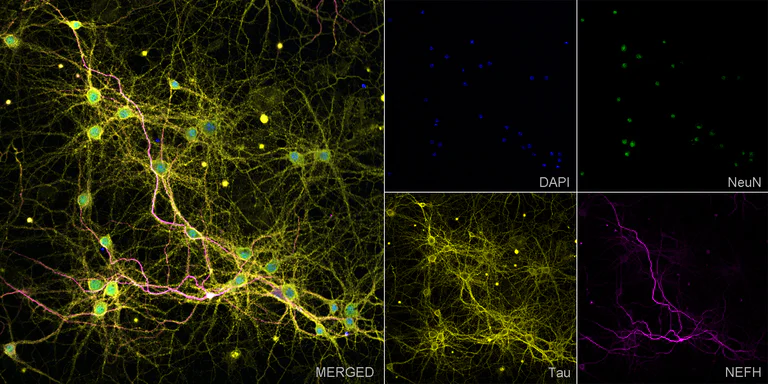

Immunocytochemistry/ Immunofluorescence - Anti-NeuN antibody [EPR12763] - Rat IgG2a (Chimeric) - BSA and Azide free (AB279309)

Composite multiplex immunofluorescence staining of ab279297, ab317042 and ab308439 staining NeuN, NEFH and Tau (MBD region) in Mouse Primary Neurons DIV14 cells. The cells were fixed with 4% paraformaldehyde (10 min), permeabilized with 0.1% PBS-Triton X-100 for 5 minutes and then blocked with 1% BSA/10% normal goat serum/0.3M glycine in 0.1%PBS-Tween for 1h. The cells were then incubated overnight at 4°C with ab279297 (shown in green), ab317042 (shown in magenta) and ab308439 (shown in yellow) at 1µg/ml. Cells were then incubated with ab150161 Goat F(ab')2 Anti-Rat IgG Fc (Alexa Fluor® 488) preadsorbed, ab150175 Goat Anti-Chicken IgY H&L (Alexa Fluor® 647) preadsorbed and ab150084 Goat Anti-Rabbit IgG H&L (Alexa Fluor® 594) preadsorbed at 1/1000 dilution. Nuclear DNA was labelled with DAPI (shown in blue).

Image was acquired with a confocal microscope (Leica-Microsystems TCS SP8) and a single confocal section is shown.

• WB

Supplier Data

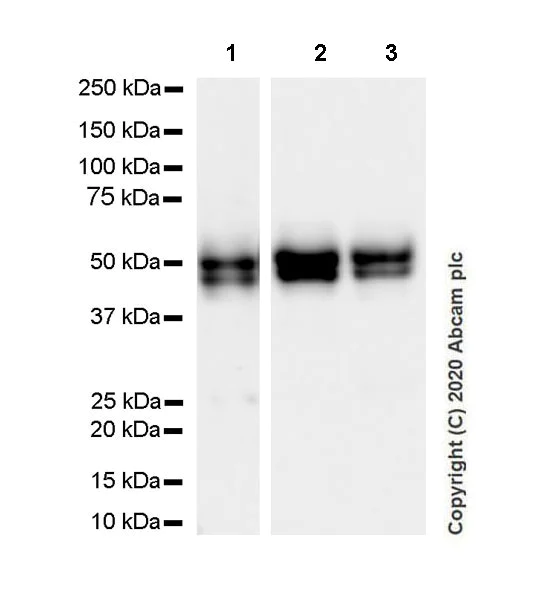

Western blot - Anti-NeuN antibody [EPR12763] - Rat IgG2a (Chimeric) - BSA and Azide free (AB279309)

This data was produced using ab279297, the same clone in a different formulation.

Exposure time : Lane 1 : 48 seconds; Lane 2, 3 : 4.5 seconds.

Blocking/Dilution buffer : 5% NFDM/TBST.

All lanes:

Western blot - Anti-NeuN antibody [EPR12763] - Neuronal Marker - Rat IgG2a (Chimeric) (<a href='/ko/products/primary-antibodies/neun-antibody-epr12763-neuronal-marker-rat-igg2a-chimeric-ab279297'>ab279297</a>) at 1/1000 dilution

Lane 1:

Human brain tissue lysate at 20 µg

Lane 2:

Mouse brain tissue lysate at 20 µg

Lane 3:

Rat brain tissue lysate at 20 µg

Secondary

All lanes:

Western blot - Goat Anti-Rat IgG H&L (HRP) (<a href='/ko/products/secondary-antibodies/goat-rat-igg-h-l-hrp-ab205720'>ab205720</a>) at 1/5000 dilution

Predicted band size: 34 kDa
