Anti-Pancreatic Polypeptide/PPY antibody [EPR31092-535R]

• ICC/IF

Lab

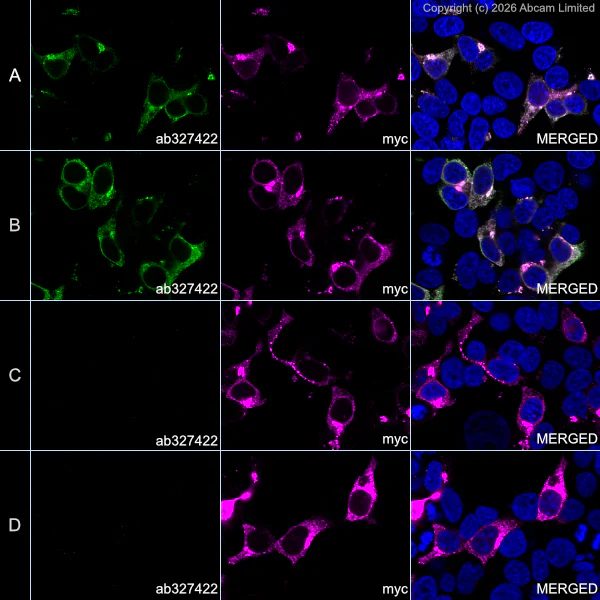

Immunocytochemistry/ Immunofluorescence - Anti-Pancreatic Polypeptide/PPY antibody [EPR31092-535R] (AB327422)

Immunofluorescent analysis of 4% Paraformaldehyde-fixed, 0.1% TritonX-100 permeabilized
HEK-293T cells transfected with a mouse Pancreatic Polypeptide expression vector containing a myc-His-tag®
HEK-293T cells transfected with a rat Pancreatic Polypeptide expression vector containing a myc-His-tag®
HEK-293T cells transfected with a mouse Peptide YY/PYY expression vector containing a myc-His-tag®
HEK-293T cells transfected with a rat Peptide YY/PYY expression vector containing a myc-His-tag®
labelling with ab327422 at 1/1000 (0.514 μg/ml) dilution, followed by ab150081 Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed antibody at 1/1000 dilution (Green).

Confocal image showing positive staining in HEK-293T cells transfected with a mouse Pancreatic Polypeptide expression vector containing a myc-His-tag® and HEK-293T cells transfected with a rat Pancreatic Polypeptide expression vector containing a myc-His-tag®(shown in green). The counterstain was observed in magenta. Nuclear DNA was labelled with DAPI (shown in blue).
A : HEK-293T cells transfected with a mouse Pancreatic Polypeptide expression vector containing a myc-His-tag®.
B : HEK-293T cells transfected with a rat Pancreatic Polypeptide expression vector containing a myc-His-tag®.
C : HEK-293T cells transfected with a mouse Peptide YY/PYY expression vector containing a myc-His-tag®.
D : HEK-293T cells transfected with a rat Peptide YY/PYY expression vector containing a myc-His-tag®.
Image was taken with a confocal microscope (Leica-Microsystems, TCS SP8).

ab223894 Anti-Myc tag mouse monoclonal antibody (Alexa Fluor® 594) was used to counterstain Myc at 1/100 dilution (Magenta). The Nuclear counterstain was DAPI (Blue).

• WB

Lab

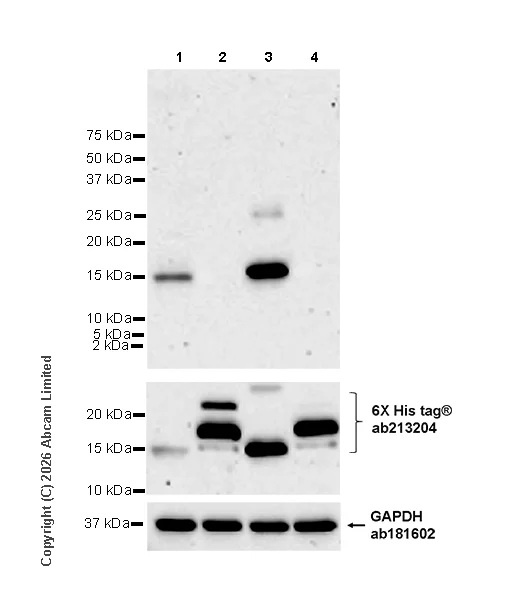

Western blot - Anti-Pancreatic Polypeptide/PPY antibody [EPR31092-535R] (AB327422)

Blocking and diluting buffer and concentration : 5% NFDM/TBST.

This antibody does not cross-react with mouse Peptide YY/PYY and rat Peptide YY/PYY.

In Western blot, Anti-GAPDH antibody [EPR16891] - Loading Control (ab181602) (1 : 200000) (36KDa) ;Anti-6X His tag® antibody [EPR20547] - ChIP Grade (ab213204) (1 : 5000)(15-20KDa).

All lanes:

Western blot - Anti-Pancreatic Polypeptide/PPY antibody [EPR31092-535R] (ab327422) at 1/1000 dilution

Lane 1:

293T cells transfected with a mouse Pancreatic Polypeptide expression vector containing a his-tag, whole cell lysate at 20 µg

Lane 2:

293T cells transfected with a mouse Peptide YY/PYY expression vector containing a his-tag, whole cell lysate at 20 µg

Lane 3:

293T cells transfected with a rat Pancreatic Polypeptide expression vector containing a his-tag, whole cell lysate at 20 µg

Lane 4:

293T cells transfected with a rat Peptide YY/PYY expression vector containing a his-tag, whole cell lysate at 20 µg

Secondary

All lanes:

Western blot - Goat Anti-Rabbit IgG H&L (HRP) (<a href='/ko/products/secondary-antibodies/goat-rabbit-igg-h-l-hrp-ab97051'>ab97051</a>) at 1/100000 dilution

Observed band size: 15 kDa,36 kDa,15-20 kDa

false

Exposure time: 180s
