Anti-PD1 antibody [CAL15]

• IHC-P

Supplier Data

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-PD1 antibody [CAL15] (AB237727)

Immunohistochemical analysis of paraffin-embedded human tonsil tissue labeling PD1 with ab237727 at 1/1000 dilution, followed by Rabbit specific IHC polymer detection kit HRP/DAB (ab209101). Positive staining on the human tonsil is observed. Counter stained with hematoxylin.

Secondary antibody only control : Used PBS instead of primary antibody, secondary antibody is Rabbit specific IHC polymer detection kit HRP/DAB (ab209101).

Heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0, epitope retrieval solution 2) for 20 mins.

The section was incubated with ab237727 for 30 mins at room temperature.

The immunostaining was performed on a Leica Biosystems BOND^® RX instrument.

• IHC-P

Supplier Data

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-PD1 antibody [CAL15] (AB237727)

Immunohistochemical analysis of paraffin-embedded human spleen tissue labeling PD1 with ab237727 at 1/1000 dilution, followed by Rabbit specific IHC polymer detection kit HRP/DAB (ab209101). Positive staining on the human spleen is observed. Counter stained with hematoxylin.

Secondary antibody only control : Used PBS instead of primary antibody, secondary antibody is Rabbit specific IHC polymer detection kit HRP/DAB (ab209101).

Heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0, epitope retrieval solution 2) for 20 mins.

The section was incubated with ab237727 for 30 mins at room temperature.

The immunostaining was performed on a Leica Biosystems BOND^® RX instrument.

• IHC-P

Supplier Data

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-PD1 antibody [CAL15] (AB237727)

Formalin-fixed, paraffin-embedded human tonsil tissue stained for PD1 using ab237727 at 0.25 μg/ml dilution in immunohistochemical analysis.

• WB

Supplier Data

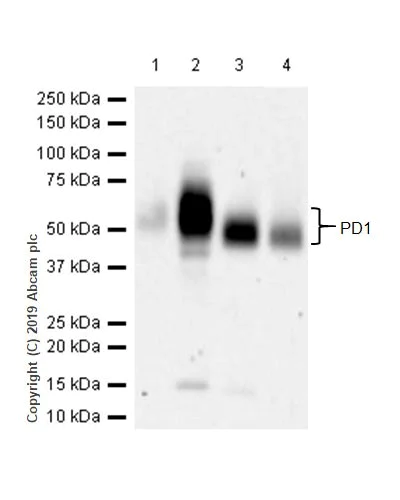

Western blot - Anti-PD1 antibody [CAL15] (AB237727)

Blocking and dilution buffer : 5% NFDM/TBST.

This blot was developed using a higher sensitivity ECL substrate.
The expression profile observed is consistent with what has been described in the literature (PMID : 26318293).

All lanes:

Western blot - Anti-PD1 antibody [CAL15] (ab237727) at 1/1000 dilution

Lane 1:

Untreated MOLT-4 (human lymphoblastic leukemia cell line) whole cell lysate at 20 µg

Lane 2:

MOLT-4 (treated with PMA (10ng/ml 24h) and Ionomycin (500ng/ml 24h) whole cell lysate at 20 µg

Lane 3:

Human tonsil lysate at 20 µg

Lane 4:

Human thymus lysate at 20 µg

Secondary

All lanes:

Western blot - Goat Anti-Rabbit IgG H&L (HRP) (<a href='/ko/products/secondary-antibodies/goat-rabbit-igg-h-l-hrp-ab97051'>ab97051</a>) at 1/100000 dilution

Predicted band size: 32 kDa

Observed band size: 50-55 kDa

false

Exposure time: 3min
