Anti-PVRL1/NECTIN1 antibody [EPR29038-520]

• IHC-P

Supplier Data

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-PVRL1/NECTIN1 antibody [EPR29038-520] (AB323704)

Immunohistochemical analysis of paraffin-embedded Human tonsil tissue labeling PVRL1/NECTIN1 with ab323704 at 1/2000 (0.252 ug/ml) dilution, followed by a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection).

Positive staining in human tonsil.
The section was incubated with ab323704 for 30 mins at room temperature.
The immunostaining was performed on a Leica Biosystems BOND® RX instrument

Counterstained with Hematoxylin.

Secondary antibody only control : Secondary antibody is a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection).

Heat mediated antigen retrieval was performed with Tris-EDTA buffer (pH 9.0, Epitope Retrieval Solution2) for 20 mins

• IHC-P

Supplier Data

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-PVRL1/NECTIN1 antibody [EPR29038-520] (AB323704)

Immunohistochemical analysis of paraffin-embedded Human cardiac muscle tissue labeling PVRL1/NECTIN1 with ab323704 at 1/2000 (0.252 ug/ml) dilution, followed by a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection).

Negative control : No staining in human cardiac muscle.
The section was incubated with ab323704 for 30 mins at room temperature.
The immunostaining was performed on a Leica Biosystems BOND® RX instrument

Counterstained with Hematoxylin.

Secondary antibody only control : Secondary antibody is a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection).

Heat mediated antigen retrieval was performed with Tris-EDTA buffer (pH 9.0, Epitope Retrieval Solution2) for 20 mins

• IHC-P

Supplier Data

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-PVRL1/NECTIN1 antibody [EPR29038-520] (AB323704)

Immunohistochemical analysis of paraffin-embedded Human lung cancer tissue labeling PVRL1/NECTIN1 with ab323704 at 1/2000 (0.252 ug/ml) dilution, followed by a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection).

Positive staining in human lung cancer.
The section was incubated with ab323704 for 30 mins at room temperature.
The immunostaining was performed on a Leica Biosystems BOND® RX instrument

Counterstained with Hematoxylin.

Secondary antibody only control : Secondary antibody is a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection).

Heat mediated antigen retrieval was performed with Tris-EDTA buffer (pH 9.0, Epitope Retrieval Solution2) for 20 mins

• IHC-P

Supplier Data

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-PVRL1/NECTIN1 antibody [EPR29038-520] (AB323704)

Immunohistochemical analysis of paraffin-embedded Human cerebrum tissue labeling PVRL1/NECTIN1 with ab323704 at 1/2000 (0.252 ug/ml) dilution, followed by a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection).

Positive staining in human cerebrum.
The section was incubated with ab323704 for 30 mins at room temperature.
The immunostaining was performed on a Leica Biosystems BOND® RX instrument

Counterstained with Hematoxylin.

Secondary antibody only control : Secondary antibody is a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection).

Heat mediated antigen retrieval was performed with Tris-EDTA buffer (pH 9.0, Epitope Retrieval Solution2) for 20 mins

• IHC-P

Supplier Data

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-PVRL1/NECTIN1 antibody [EPR29038-520] (AB323704)

Immunohistochemical analysis of paraffin-embedded Mouse cardiac muscle tissue labeling PVRL1/NECTIN1 with ab323704 at 1/5000 (0.101 ug/ml) dilution, followed by a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection).

Negative control : No staining in mouse cardiac muscle.
The section was incubated with ab323704 for 10 mins at room temperature.
The immunostaining was performed on a Leica Biosystems BOND® RX instrument

Counterstained with Hematoxylin.

Secondary antibody only control : Secondary antibody is a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection).

Heat mediated antigen retrieval was performed with Tris-EDTA buffer (pH 9.0, Epitope Retrieval Solution2) for 20 mins

• IHC-P

Supplier Data

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-PVRL1/NECTIN1 antibody [EPR29038-520] (AB323704)

Immunohistochemical analysis of paraffin-embedded Mouse cerebrum tissue labeling PVRL1/NECTIN1 with ab323704 at 1/5000 (0.101 ug/ml) dilution, followed by a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection).

Positive staining in mouse cerebrum.
The section was incubated with ab323704 for 10 mins at room temperature.
The immunostaining was performed on a Leica Biosystems BOND® RX instrument

Counterstained with Hematoxylin.

Secondary antibody only control : Secondary antibody is a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection).

Heat mediated antigen retrieval was performed with Tris-EDTA buffer (pH 9.0, Epitope Retrieval Solution2) for 20 mins

• WB

Supplier Data

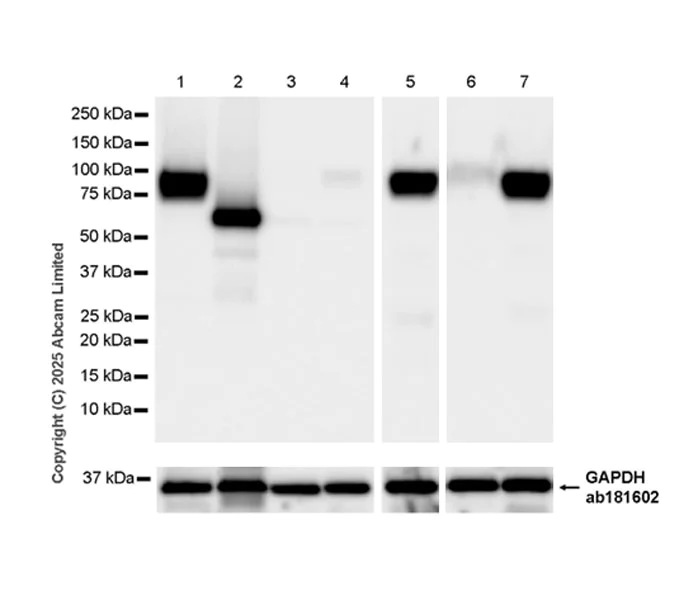

Western blot - Anti-PVRL1/NECTIN1 antibody [EPR29038-520] (AB323704)

Blocking and diluting buffer and concentration : 5% NFDM/TBST.

Lanes 1-4 are applied with Goat Anti-Rabbit IgG (HRP) with minimal cross reactivity with human IgG at 1/2000 and lanes 5-7 are applied with Goat Anti-Rabbit IgG, (H+L), Peroxidase conjugated (ab97051) at 1/20000

Low expression : testis, heart (PMID : 11090177), liver.

The identity of the bands lower than 57 kDa are unknown.

In Western blot, Anti-GAPDH antibody [EPR16891] - Loading Control (ab181602) staining at 1/200000 dilution.

All lanes:

Western blot - Anti-PVRL1/NECTIN1 antibody [EPR29038-520] (ab323704) at 1/1000 dilution

Lane 1:

Untreated human hippocampus tissue lysate at 20 µg

Lane 2:

Human hippocampus tissue lysate treated with Protein Deglycosylation MIX II at 20 µg

Lane 3:

Human liver tissue lysate at 20 µg

Lane 4:

Human testis tissue lysate at 20 µg

Lane 5:

Mouse brain tissue lysate at 20 µg

Lane 6:

Mouse heart tissue lysate at 20 µg

Lane 7:

Mouse hippocampus lysate at 20 µg

Secondary

Lanes 1 - 4:

Goat Anti-Rabbit IgG (HRP) with minimal cross-reactivity with human IgG at 1/2000 dilution

Lanes 5 - 7:

Western blot - Goat Anti-Rabbit IgG H&L (HRP) (<a href='/ko/products/secondary-antibodies/goat-rabbit-igg-h-l-hrp-ab97051'>ab97051</a>) at 1/20000 dilution

Observed band size: 57 kDa,75 kDa,36 kDa

false

Exposure time: 3s

• WB

Supplier Data

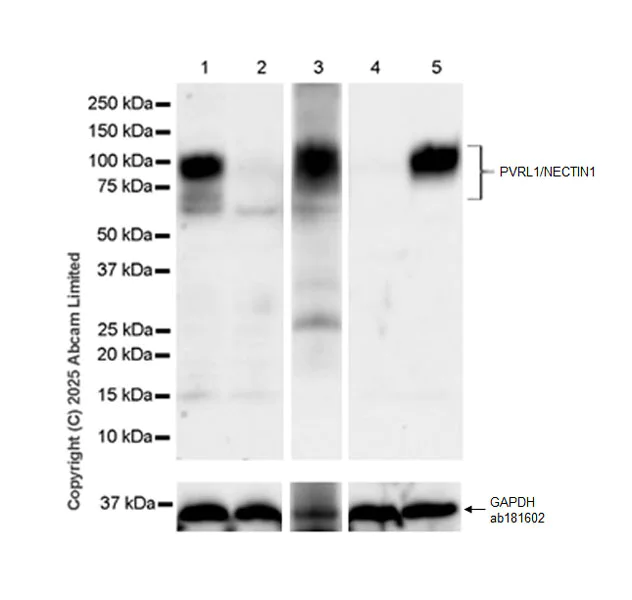

Western blot - Anti-PVRL1/NECTIN1 antibody [EPR29038-520] (AB323704)

Blocking and diluting buffer and concentration : 5% NFDM/TBST.

Low expression : A20.

The identity of the bands lower than 57 kDa are unknown.

In Western blot, Anti-GAPDH antibody [EPR16891] - Loading Control (ab181602) staining at 1/200000 dilution.

Exposure time : Lanes 1-2 : 37 seconds; Lanes 3-5 : 6 seconds.

All lanes:

Western blot - Anti-PVRL1/NECTIN1 antibody [EPR29038-520] (ab323704) at 1/1000 dilution

Lane 1:

HeLa (human cervical adenocarcinoma epithelial cell) transfected with scrambled siRNA control whole cell lysate at 20 µg

Lane 2:

HeLa transfected with siRNA specifically targeting PVRL1 whole cell lysate at 20 µg

Lane 3:

HaCaT (human skin keratinocyte) whole cell lysate at 20 µg

Lane 4:

A20 (mouse reticulum sarcoma b lymphocyte) whole cell lysate at 20 µg

Lane 5:

NIH/3T3 (mouse embryonic fibroblast) whole cell lysate at 20 µg

Secondary

All lanes:

Western blot - Goat Anti-Rabbit IgG H&L (HRP) (<a href='/ko/products/secondary-antibodies/goat-rabbit-igg-h-l-hrp-ab97051'>ab97051</a>) at 1/20000 dilution

Observed band size: 57 kDa,75 kDa,36 kDa

false
