Anti-TREX1 antibody [EPR14985] - BSA and Azide free

• IHC-P

Supplier Data

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-TREX1 antibody [EPR14985] - BSA and Azide free (AB236140)

Immunohistochemical analysis of paraffin embedded human colon adenocarcinoma tissue sections labeling TREX1 using ab185228 at a 1/100 dilution. Hematoxylin counterstain.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab185228).

Perform heat mediated antigen retrieval with EDTA buffer pH 9 before commencing with IHC staining protocol.

• IHC-P

Supplier Data

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-TREX1 antibody [EPR14985] - BSA and Azide free (AB236140)

Immunohistochemical analysis of paraffin embedded Human colon tissue sections labeling TREX1 using ab185228 at a 1/100 dilution. Hematoxylin counterstain.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab185228).

Perform heat mediated antigen retrieval with EDTA buffer pH 9 before commencing with IHC staining protocol.

• WB

Lab

Western blot - Anti-TREX1 antibody [EPR14985] - BSA and Azide free (AB236140)

This data was developed using ab185228, the same antibody clone in a different buffer formulation.

Lanes 1-4 : Merged signal (red and green). Green - ab185228 observed at 34 kDa. Red - loading control ab7291 observed at 50 kDa.

ab185228 Anti-TREX1 antibody [EPR14985] was shown to specifically react with TREX1 in wild-type A549 cells. Loss of signal was observed when knockout cell line ab266927 (knockout cell lysate ab257764) was used. Wild-type and TREX1 knockout samples were subjected to SDS-PAGE. ab185228 and Anti-alpha Tubulin antibody [DM1A] - Loading Control (ab7291) were incubated overnight at 4°C at 1 in 1000 dilution and 1 in 20000 dilution respectively. Blots were developed with Goat anti-Rabbit IgG H&L (IRDye^® 800CW) preadsorbed (ab216773) and Goat anti-Mouse IgG H&L (IRDye^® 680RD) preadsorbed (ab216776) secondary antibodies at 1 in 20000 dilution for 1 hour at room temperature before imaging.

All lanes:

Western blot - Anti-TREX1 antibody [EPR14985] (<a href='/ko/products/primary-antibodies/trex1-antibody-epr14985-ab185228'>ab185228</a>) at 1/1000 dilution

Lane 1:

Wild-type A549 cell lysate at 20 µg

Lane 2:

Western blot - Human TREX1 knockout A549 cell line (<a href='/ko/products/cell-lines/human-trex1-knockout-a549-cell-line-ab266927'>ab266927</a>)

Lane 2:

TREX1 knockout A549 cell lysate at 20 µg

Lane 3:

Raji cell lysate at 20 µg

Lane 4:

Daudi cell lysate at 20 µg

Secondary

All lanes:

Western blot - Goat anti-Rabbit IgG H&L (IRDye® 800CW) preadsorbed (<a href='/ko/products/secondary-antibodies/goat-rabbit-igg-h-l-irdye-800cw-preadsorbed-ab216773'>ab216773</a>) at 1/10000 dilution

Predicted band size: 39 kDa

Observed band size: 34 kDa

false

• WB

Supplier Data

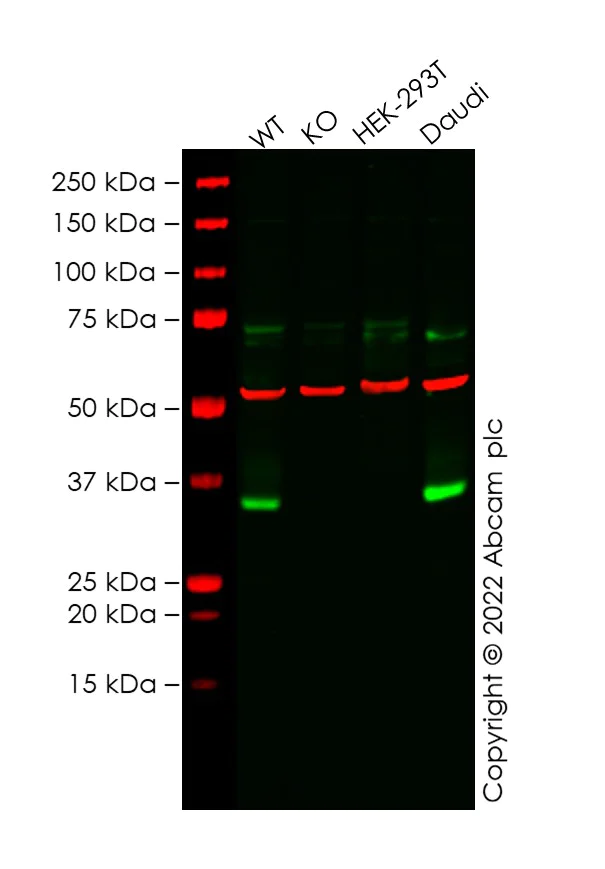

Western blot - Anti-TREX1 antibody [EPR14985] - BSA and Azide free (AB236140)

False colour image of Western blot : Anti-TREX1 antibody [EPR14985] staining at 1/1000 dilution, shown in green; Mouse anti-Alpha Tubulin [DM1A] (ab7291) loading control staining at 1/20000 dilution, shown in red. In Western blot, ab185228 was shown to bind specifically to TREX1. A band was observed at 33 kDa in wild-type A549 cell lysates with no signal observed at this size in TREX1 knockout cell line ab266926 (knockout cell lysate ab257763). To generate this image, wild-type and TREX1 knockout A549 cell lysates were analysed. First, samples were run on an SDS-PAGE gel then transferred onto a nitrocellulose membrane. Membranes were blocked in 5 % milk in TBS-0.1 % Tween® 20 (TBS-T) before incubation with primary antibodies overnight at 4 °C. Blots were washed four times in TBS-T, incubated with secondary antibodies for 1 h at room temperature, washed again four times then imaged. Secondary antibodies used were Goat anti-Rabbit IgG H&L 800CW and Goat anti-Mouse IgG H&L 680RD at 1/20000 dilution. This data was developed using ab185228, the same antibody clone in a different buffer formulation.

All lanes:

Western blot - Anti-TREX1 antibody [EPR14985] (<a href='/ko/products/primary-antibodies/trex1-antibody-epr14985-ab185228'>ab185228</a>) at 1/1000 dilution

Lane 1:

Wild-type A549 cell lysate at 20 µg

Lane 2:

TREX1 knockout A549 cell lysate at 20 µg

Lane 2:

Western blot - Human TREX1 knockout A549 cell line (<a href='/ko/products/cell-lines/human-trex1-knockout-a549-cell-line-ab266926'>ab266926</a>)

Lane 3:

HEK-293T cell lysate at 20 µg

Lane 4:

Daudi cell lysate at 20 µg

Secondary

All lanes:

Goat anti-Rabbit IgG H&L 800CW and Goat anti-Mouse IgG H&L 680RD at 1/20000 dilution

Predicted band size: 39 kDa

Observed band size: 33 kDa
