AB60840

Recombinant human PKC beta 1 protein (GST tag N-Terminus)

Be the first to review this product! 리뷰 제출

(2 제품이 사용된 논문 )

Recombinant human PKC beta 1 protein (GST tag N-Terminus) is a Human Full Length protein, expressed in Baculovirus infected Sf9 cells, with >90%, suitable for SDS-PAGE, FuncS, WB.

15 이미지

Lab

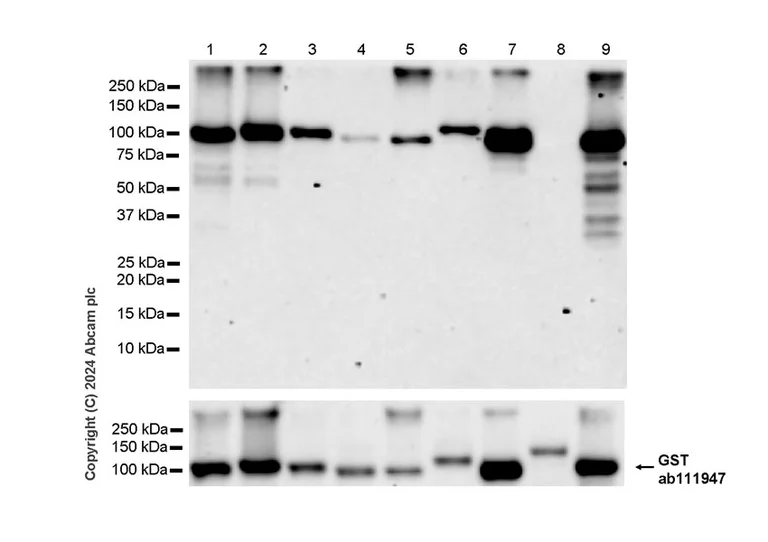

Western blot - Recombinant human PKC beta 1 protein (GST tag N-Terminus) (AB60840)

Blocking and dilution buffer : 5% NFDM/TBST.

ab109539 could detect PKC gamma (pT514), PKC alpha (pT497), PKC beta (pT500), PKC delta (pT507), PKC eta (pT513), PKC epsilon (pT566) and PKC theta (pT538).

Active human PKC alpha full length protein (Catalog#ab55672) contains aa1-672 with GST-tag;
Active human PKC beta 1 full length protein (Catalog#ab60840) contains aa1-671 with GST-tag;
Active human PKC beta 2 full length protein (Catalog#ab60841) contains aa1-673 with GST-tag;
Active human PKC delta full length protein (Catalog#ab60844) contains aa1-676 with GST-tag;
Active human PKC eta full length protein (Catalog#ab60849) contains aa1-683 with GST-tag;
Active human PKC epsilon full length protein (Catalog#ab60847) contains aa1-737 with GST-tag;
Active human PKC theta full length protein (Catalog#ab56641) contains aa1-706 with GST-tag;
Active human PKC mu full length protein (Catalog#ab60873) contains aa1-912 with GST-tag;
Active human PKC gamma full length protein (Catalog#ab60842) contains aa1-697 with GST-tag.

All lanes:

Western blot - Anti-PKC (phospho T514) antibody [EP2730Y] (<a href='/ko/products/primary-antibodies/pkc-phospho-t514-antibody-ep2730y-ab109539'>ab109539</a>) at 1/1000 dilution

Lane 1:

Western blot - Recombinant human PKC alpha protein (Active) (GST tag N-Terminus) (<a href='/ko/products/proteins-peptides/recombinant-human-pkc-alpha-protein-active-ab55672'>ab55672</a>) at 0.5 µg

Lane 2:

Western blot - Recombinant human PKC beta 1 protein (GST tag N-Terminus) (ab60840) at 0.2 µg

Lane 3:

Active human PKC beta 2 full length protein at 0.2 µg

Lane 4:

Western blot - Recombinant human PKC delta protein (GST tag N-Terminus) (<a href='/ko/products/proteins-peptides/recombinant-human-pkc-delta-protein-ab60844'>ab60844</a>) at 0.05 µg

Lane 5:

Western blot - Recombinant human PKC eta protein (GST tag N-Terminus) (<a href='/ko/products/proteins-peptides/recombinant-human-pkc-eta-protein-ab60849'>ab60849</a>) at 0.5 µg

Lane 6:

Western blot - Recombinant human PKC epsilon protein (GST tag N-Terminus) (<a href='/ko/products/proteins-peptides/recombinant-human-pkc-epsilon-protein-ab60847'>ab60847</a>) at 1 µg

Lane 7:

Western blot - Recombinant human PKC theta/PRKCQ protein (GST tag N-Terminus) (<a href='/ko/products/proteins-peptides/recombinant-human-pkc-theta-prkcq-protein-ab56641'>ab56641</a>) at 0.2 µg

Lane 8:

Western blot - Recombinant human PKC mu/PKD protein (GST tag N-Terminus) (<a href='/ko/products/proteins-peptides/recombinant-human-pkc-mu-pkd-protein-ab60873'>ab60873</a>) at 1 µg

Lane 9:

Western blot - Recombinant human PKC gamma protein (GST tag N-Terminus) (<a href='/ko/products/proteins-peptides/recombinant-human-pkc-gamma-protein-ab60842'>ab60842</a>) at 0.1 µg

Secondary

All lanes:

Western blot - Goat Anti-Rabbit IgG H&L (HRP) (<a href='/ko/products/secondary-antibodies/goat-rabbit-igg-h-l-hrp-ab97051'>ab97051</a>) at 1/100000 dilution

Predicted band size: 77 kDa

Observed band size: 80 kDa

false

Exposure time: 180s

Lab

Western blot - Recombinant human PKC beta 1 protein (GST tag N-Terminus) (AB60840)

Blocking and dilution buffer : 5% NFDM/TBST. Active human PKC alpha full length protein (ab55672) contains aa1-672 with GST-tag. Active human PKC beta 1 full length protein (ab60840) contains aa1-671 with GST-tag. Active human PKC beta 2 full length protein (ab60841) contains aa1-673 with GST-tag. Active human PKC delta full length protein (ab60844) contains aa1-676 with GST-tag. Active human PKC eta full length protein (ab60849) contains aa1-683 with GST-tag. Active human PKC epsilon full length protein (ab60847) contains aa1-737 with GST-tag. Active human PKC theta full length protein (ab56641) contains aa1-706 with GST-tag. Active human PKC mu full length protein (ab60873) contains aa1-912 with GST-tag.

All lanes:

Western blot - Anti-PKC (phospho S660) antibody [EP1902Y] (<a href='/ko/products/primary-antibodies/pkc-phospho-s660-antibody-ep1902y-ab75837'>ab75837</a>) at 1/20000 dilution

Lane 1:

Western blot - Recombinant human PKC alpha protein (Active) (GST tag N-Terminus) (<a href='/ko/products/proteins-peptides/recombinant-human-pkc-alpha-protein-active-ab55672'>ab55672</a>)

Lane 2:

Western blot - Recombinant human PKC beta 1 protein (GST tag N-Terminus) (ab60840)

Lane 3:

Western blot - Recombinant human PKC beta 2 protein (GST tag N-Terminus) (<a href='/ko/products/proteins-peptides/recombinant-human-pkc-beta-2-protein-ab60841'>ab60841</a>)

Lane 4:

Western blot - Recombinant human PKC delta protein (GST tag N-Terminus) (<a href='/ko/products/proteins-peptides/recombinant-human-pkc-delta-protein-ab60844'>ab60844</a>)

Lane 5:

Western blot - Recombinant human PKC eta protein (GST tag N-Terminus) (<a href='/ko/products/proteins-peptides/recombinant-human-pkc-eta-protein-ab60849'>ab60849</a>)

Lane 6:

Western blot - Recombinant human PKC epsilon protein (GST tag N-Terminus) (<a href='/ko/products/proteins-peptides/recombinant-human-pkc-epsilon-protein-ab60847'>ab60847</a>)

Lane 7:

Western blot - Recombinant human PKC theta/PRKCQ protein (GST tag N-Terminus) (<a href='/ko/products/proteins-peptides/recombinant-human-pkc-theta-prkcq-protein-ab56641'>ab56641</a>)

Lane 8:

Western blot - Recombinant human PKC mu/PKD protein (GST tag N-Terminus) (<a href='/ko/products/proteins-peptides/recombinant-human-pkc-mu-pkd-protein-ab60873'>ab60873</a>)

Secondary

All lanes:

Western blot - Goat Anti-Rabbit IgG H&L (HRP) (<a href='/ko/products/secondary-antibodies/goat-rabbit-igg-h-l-hrp-ab97051'>ab97051</a>) at 1/20000 dilution

Predicted band size: 77 kDa

Observed band size: 100-150 kDa

false

Exposure time: 1s

Functional Studies - Recombinant human PKC beta 1 protein (GST tag N-Terminus) (AB60840)

FuncS

Unknown

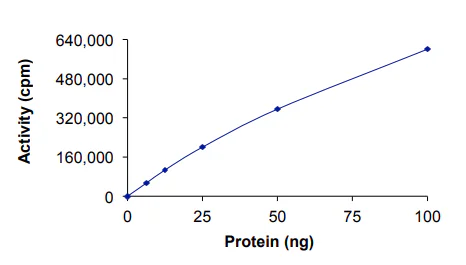

Functional Studies - Recombinant human PKC beta 1 protein (GST tag N-Terminus) (AB60840)

Sample Kinase Activity Plot.

FuncS

Unknown

Functional Studies - Recombinant human PKC beta 1 protein (GST tag N-Terminus) (AB60840)

The specific activity of PKC beta 1 (ab60840) was determined to be 325 nmol/min/mg as per activity assay protocol

Supplier Data

Western blot - Recombinant human PKC beta 1 protein (GST tag N-Terminus) (AB60840)

This data was developed using ab76129, the same antibody clone in a different buffer formulation.

Blocking and diluting buffer and concentration : 5% NFDM/TBST.

Exposure time : Lane 1-4 : 180 seconds; Lane 5-6 : 60 seconds; Lane 7-10 : 5 seconds.

All lanes:

Western blot - Anti-PKC zeta (phospho T410) + PKC iota (phospho T412) antibody [EP1491Y] (<a href='/ko/products/primary-antibodies/pkc-zeta-phospho-t410-pkc-iota-phospho-t412-antibody-ep1491y-ab76129'>ab76129</a>) at 1/1000 dilution

Lane 1:

Western blot - Recombinant human PKC alpha protein (Active) (GST tag N-Terminus) (<a href='/ko/products/proteins-peptides/recombinant-human-pkc-alpha-protein-active-ab55672'>ab55672</a>)

Lane 2:

Western blot - Recombinant human PKC beta 1 protein (GST tag N-Terminus) (ab60840)

Lane 3:

Western blot - Recombinant human PKC beta 2 protein (GST tag N-Terminus) (<a href='/ko/products/proteins-peptides/recombinant-human-pkc-beta-2-protein-ab60841'>ab60841</a>)

Lane 4:

Western blot - Recombinant human PKC gamma protein (GST tag N-Terminus) (<a href='/ko/products/proteins-peptides/recombinant-human-pkc-gamma-protein-ab60842'>ab60842</a>)

Lane 5:

Western blot - Recombinant human PKC delta protein (GST tag N-Terminus) (<a href='/ko/products/proteins-peptides/recombinant-human-pkc-delta-protein-ab60844'>ab60844</a>)

Lane 6:

Western blot - Recombinant human PKC epsilon protein (GST tag N-Terminus) (<a href='/ko/products/proteins-peptides/recombinant-human-pkc-epsilon-protein-ab60847'>ab60847</a>)

Lane 7:

Western blot - Recombinant human PKC zeta protein (GST tag N-Terminus) (<a href='/ko/products/proteins-peptides/recombinant-human-pkc-zeta-protein-ab60848'>ab60848</a>)

Lane 8:

Western blot - Recombinant human PKC eta protein (GST tag N-Terminus) (<a href='/ko/products/proteins-peptides/recombinant-human-pkc-eta-protein-ab60849'>ab60849</a>)

Lane 9:

Western blot - Recombinant human PKC theta/PRKCQ protein (GST tag N-Terminus) (<a href='/ko/products/proteins-peptides/recombinant-human-pkc-theta-prkcq-protein-ab56641'>ab56641</a>)

Lane 10:

Western blot - Recombinant human PKC iota protein (GST tag N-Terminus) (<a href='/ko/products/proteins-peptides/recombinant-human-pkc-iota-protein-ab60850'>ab60850</a>)

Secondary

All lanes:

Western blot - Goat Anti-Rabbit IgG H&L (HRP) (<a href='/ko/products/secondary-antibodies/goat-rabbit-igg-h-l-hrp-ab97051'>ab97051</a>) at 1/20000 dilution

Observed band size: 105 kDa

false

Supplier Data

Western blot - Recombinant human PKC beta 1 protein (GST tag N-Terminus) (AB60840)

This data was developed using ab180848, the same antibody clone in a different buffer formulation.

Blocking and diluting buffer and concentration : 5% NFDM/TBST.

All lanes:

Western blot - Anti-PKC alpha (phospho S657) antibody [EPR1901(2)] (<a href='/ko/products/primary-antibodies/pkc-alpha-phospho-s657-antibody-epr19012-ab180848'>ab180848</a>) at 1/1000 dilution

Lane 1:

Western blot - Recombinant human PKC alpha protein (Active) (GST tag N-Terminus) (<a href='/ko/products/proteins-peptides/recombinant-human-pkc-alpha-protein-active-ab55672'>ab55672</a>)

Lane 2:

Western blot - Recombinant human PKC beta 1 protein (GST tag N-Terminus) (ab60840)

Lane 3:

Western blot - Recombinant human PKC beta 2 protein (GST tag N-Terminus) (<a href='/ko/products/proteins-peptides/recombinant-human-pkc-beta-2-protein-ab60841'>ab60841</a>)

Lane 4:

Western blot - Recombinant human PKC gamma protein (GST tag N-Terminus) (<a href='/ko/products/proteins-peptides/recombinant-human-pkc-gamma-protein-ab60842'>ab60842</a>)

Lane 5:

Western blot - Recombinant human PKC delta protein (GST tag N-Terminus) (<a href='/ko/products/proteins-peptides/recombinant-human-pkc-delta-protein-ab60844'>ab60844</a>)

Lane 6:

Western blot - Recombinant human PKC epsilon protein (GST tag N-Terminus) (<a href='/ko/products/proteins-peptides/recombinant-human-pkc-epsilon-protein-ab60847'>ab60847</a>)

Lane 7:

Western blot - Recombinant human PKC zeta protein (GST tag N-Terminus) (<a href='/ko/products/proteins-peptides/recombinant-human-pkc-zeta-protein-ab60848'>ab60848</a>)

Lane 8:

Western blot - Recombinant human PKC eta protein (GST tag N-Terminus) (<a href='/ko/products/proteins-peptides/recombinant-human-pkc-eta-protein-ab60849'>ab60849</a>)

Lane 9:

Western blot - Recombinant human PKC theta/PRKCQ protein (GST tag N-Terminus) (<a href='/ko/products/proteins-peptides/recombinant-human-pkc-theta-prkcq-protein-ab56641'>ab56641</a>)

Lane 10:

Western blot - Recombinant human PKC iota protein (GST tag N-Terminus) (<a href='/ko/products/proteins-peptides/recombinant-human-pkc-iota-protein-ab60850'>ab60850</a>)

Secondary

All lanes:

Western blot - Goat Anti-Rabbit IgG H&L (HRP) (<a href='/ko/products/secondary-antibodies/goat-rabbit-igg-h-l-hrp-ab97051'>ab97051</a>) at 1/20000 dilution

Predicted band size: 76 kDa

Observed band size: 105 kDa

false

Exposure time: 60s

Unknown

Western blot - Recombinant human PKC beta 1 protein (GST tag N-Terminus) (AB60840)

All lanes:

Anti-PKC beta 1 antibody (<a href='/ko/products/unavailable/pkc-beta-1-antibody-ab4132'>ab4132</a>) at 1/1000 dilution

All lanes:

Western blot - Recombinant human PKC beta 1 protein (GST tag N-Terminus) (ab60840) at 0.1 µg

Secondary

All lanes:

Western blot - Goat Anti-Rabbit IgG H&L (HRP) preadsorbed (<a href='/ko/products/secondary-antibodies/goat-rabbit-igg-h-l-hrp-preadsorbed-ab97080'>ab97080</a>) at 1/5000 dilution

true

Exposure time: 1min

Supplier Data

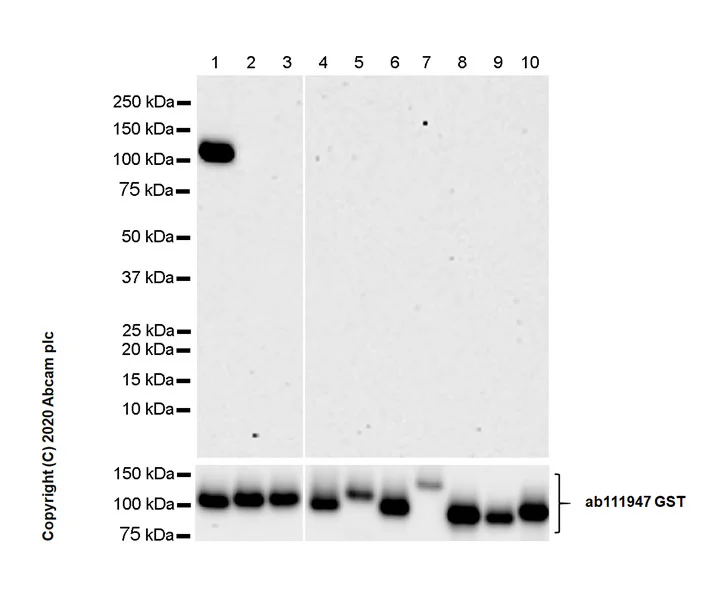

Western blot - Recombinant human PKC beta 1 protein (GST tag N-Terminus) (AB60840)

5% NFDM/TBST All positive controls 10 ng

All lanes:

Western blot - Anti-PKC alpha antibody [133] (<a href='/ko/products/primary-antibodies/pkc-alpha-antibody-133-ab11723'>ab11723</a>) at 1/1000 dilution

Lane 1:

Western blot - Recombinant human PKC alpha protein (Active) (GST tag N-Terminus) (<a href='/ko/products/proteins-peptides/recombinant-human-pkc-alpha-protein-active-ab55672'>ab55672</a>)

Lane 2:

Western blot - Recombinant human PKC beta 1 protein (GST tag N-Terminus) (ab60840)

Lane 3:

Western blot - Recombinant human PKC beta 2 protein (GST tag N-Terminus) (<a href='/ko/products/proteins-peptides/recombinant-human-pkc-beta-2-protein-ab60841'>ab60841</a>)

Lane 4:

Western blot - Recombinant human PKC eta protein (GST tag N-Terminus) (<a href='/ko/products/proteins-peptides/recombinant-human-pkc-eta-protein-ab60849'>ab60849</a>)

Lane 5:

Western blot - Recombinant human PKC epsilon protein (GST tag N-Terminus) (<a href='/ko/products/proteins-peptides/recombinant-human-pkc-epsilon-protein-ab60847'>ab60847</a>)

Lane 6:

Western blot - Recombinant human PKC theta/PRKCQ protein (GST tag N-Terminus) (<a href='/ko/products/proteins-peptides/recombinant-human-pkc-theta-prkcq-protein-ab56641'>ab56641</a>)

Lane 7:

Western blot - Recombinant human PKC mu/PKD protein (GST tag N-Terminus) (<a href='/ko/products/proteins-peptides/recombinant-human-pkc-mu-pkd-protein-ab60873'>ab60873</a>)

Lane 8:

Western blot - Recombinant human PKC zeta protein (GST tag N-Terminus) (<a href='/ko/products/proteins-peptides/recombinant-human-pkc-zeta-protein-ab60848'>ab60848</a>)

Lane 9:

Western blot - Recombinant human PKC iota protein (GST tag N-Terminus) (<a href='/ko/products/proteins-peptides/recombinant-human-pkc-iota-protein-ab60850'>ab60850</a>)

Lane 10:

Western blot - Recombinant human PKC gamma protein (GST tag N-Terminus) (<a href='/ko/products/proteins-peptides/recombinant-human-pkc-gamma-protein-ab60842'>ab60842</a>)

Secondary

All lanes:

Peroxidase-Conjugated Goat anti-Mouse IgG (H+L) at 1/5000 dilution

Predicted band size: 76 kDa

false

SDS-PAGE - Recombinant human PKC beta 1 protein (GST tag N-Terminus) (AB60840)

SDS-PAGE

Unknown

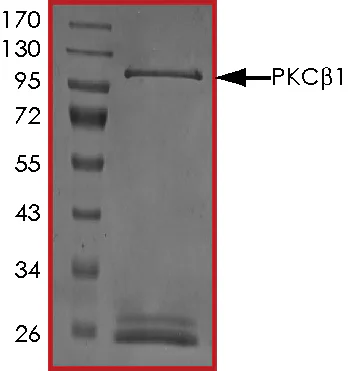

SDS-PAGE - Recombinant human PKC beta 1 protein (GST tag N-Terminus) (AB60840)

ab60840 on SDS-PAGE, MW ~102 kDa.

SDS-PAGE

Unknown

SDS-PAGE - Recombinant human PKC beta 1 protein (GST tag N-Terminus) (AB60840)

SDS PAGE analysis of ab60840

Supplier Data

Western blot - Recombinant human PKC beta 1 protein (GST tag N-Terminus) (AB60840)

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab62372).

Blocking and diluting buffer and concentration : 5% NFDM/TBST.

All lanes:

Western blot - Anti-PKC zeta (phospho T560) antibody [EP2037AY] (<a href='/ko/products/primary-antibodies/pkc-zeta-phospho-t560-antibody-ep2037ay-ab62372'>ab62372</a>) at 1/1000 dilution

Lane 1:

Western blot - Recombinant human PKC alpha protein (Active) (GST tag N-Terminus) (<a href='/ko/products/proteins-peptides/recombinant-human-pkc-alpha-protein-active-ab55672'>ab55672</a>)

Lane 2:

Western blot - Recombinant human PKC beta 1 protein (GST tag N-Terminus) (ab60840)

Lane 3:

Western blot - Recombinant human PKC beta 2 protein (GST tag N-Terminus) (<a href='/ko/products/proteins-peptides/recombinant-human-pkc-beta-2-protein-ab60841'>ab60841</a>)

Lane 4:

Western blot - Recombinant human PKC gamma protein (GST tag N-Terminus) (<a href='/ko/products/proteins-peptides/recombinant-human-pkc-gamma-protein-ab60842'>ab60842</a>)

Lane 5:

Western blot - Recombinant human PKC delta protein (GST tag N-Terminus) (<a href='/ko/products/proteins-peptides/recombinant-human-pkc-delta-protein-ab60844'>ab60844</a>)

Lane 6:

Western blot - Recombinant human PKC epsilon protein (GST tag N-Terminus) (<a href='/ko/products/proteins-peptides/recombinant-human-pkc-epsilon-protein-ab60847'>ab60847</a>)

Lane 7:

Western blot - Recombinant human PKC zeta protein (GST tag N-Terminus) (<a href='/ko/products/proteins-peptides/recombinant-human-pkc-zeta-protein-ab60848'>ab60848</a>)

Lane 8:

Western blot - Recombinant human PKC eta protein (GST tag N-Terminus) (<a href='/ko/products/proteins-peptides/recombinant-human-pkc-eta-protein-ab60849'>ab60849</a>)

Lane 9:

Western blot - Recombinant human PKC theta/PRKCQ protein (GST tag N-Terminus) (<a href='/ko/products/proteins-peptides/recombinant-human-pkc-theta-prkcq-protein-ab56641'>ab56641</a>)

Lane 10:

Western blot - Recombinant human PKC iota protein (GST tag N-Terminus) (<a href='/ko/products/proteins-peptides/recombinant-human-pkc-iota-protein-ab60850'>ab60850</a>)

Secondary

All lanes:

Western blot - Goat Anti-Rabbit IgG H&L (HRP) (<a href='/ko/products/secondary-antibodies/goat-rabbit-igg-h-l-hrp-ab97051'>ab97051</a>) at 1/20000 dilution

Predicted band size: 68 kDa

Observed band size: 105 kDa

false

Exposure time: 5s

Supplier Data

Western blot - Recombinant human PKC beta 1 protein (GST tag N-Terminus) (AB60840)

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab32376).

Blocking and diluting buffer and concentration : 5% NFDM/TBST.

All lanes:

Western blot - Anti-PKC alpha antibody [Y124] (<a href='/ko/products/primary-antibodies/pkc-alpha-antibody-y124-ab32376'>ab32376</a>) at 1/2000 dilution

Lane 1:

Western blot - Recombinant human PKC alpha protein (Active) (GST tag N-Terminus) (<a href='/ko/products/proteins-peptides/recombinant-human-pkc-alpha-protein-active-ab55672'>ab55672</a>)

Lane 2:

Western blot - Recombinant human PKC beta 1 protein (GST tag N-Terminus) (ab60840)

Lane 3:

Western blot - Recombinant human PKC beta 2 protein (GST tag N-Terminus) (<a href='/ko/products/proteins-peptides/recombinant-human-pkc-beta-2-protein-ab60841'>ab60841</a>)

Lane 4:

Western blot - Recombinant human PKC gamma protein (GST tag N-Terminus) (<a href='/ko/products/proteins-peptides/recombinant-human-pkc-gamma-protein-ab60842'>ab60842</a>)

Lane 5:

Western blot - Recombinant human PKC delta protein (GST tag N-Terminus) (<a href='/ko/products/proteins-peptides/recombinant-human-pkc-delta-protein-ab60844'>ab60844</a>)

Lane 6:

Western blot - Recombinant human PKC epsilon protein (GST tag N-Terminus) (<a href='/ko/products/proteins-peptides/recombinant-human-pkc-epsilon-protein-ab60847'>ab60847</a>)

Lane 7:

Western blot - Recombinant human PKC zeta protein (GST tag N-Terminus) (<a href='/ko/products/proteins-peptides/recombinant-human-pkc-zeta-protein-ab60848'>ab60848</a>)

Lane 8:

Western blot - Recombinant human PKC eta protein (GST tag N-Terminus) (<a href='/ko/products/proteins-peptides/recombinant-human-pkc-eta-protein-ab60849'>ab60849</a>)

Lane 9:

Western blot - Recombinant human PKC theta/PRKCQ protein (GST tag N-Terminus) (<a href='/ko/products/proteins-peptides/recombinant-human-pkc-theta-prkcq-protein-ab56641'>ab56641</a>)

Lane 10:

Western blot - Recombinant human PKC iota protein (GST tag N-Terminus) (<a href='/ko/products/proteins-peptides/recombinant-human-pkc-iota-protein-ab60850'>ab60850</a>)

Secondary

All lanes:

Western blot - Goat Anti-Rabbit IgG H&L (HRP) (<a href='/ko/products/secondary-antibodies/goat-rabbit-igg-h-l-hrp-ab97051'>ab97051</a>) at 1/20000 dilution

Predicted band size: 76 kDa

Observed band size: 105 kDa

false

Exposure time: 20s

Lab

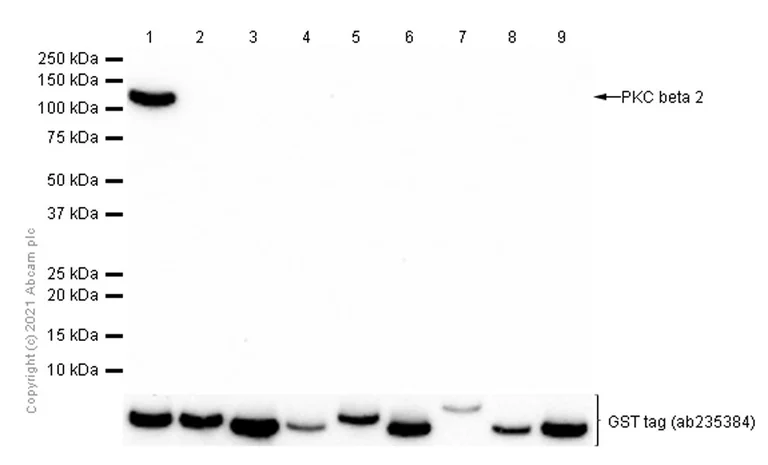

Western blot - Recombinant human PKC beta 1 protein (GST tag N-Terminus) (AB60840)

Blocking and diluting buffer and concentration : 5% NFDM/TBST. ab235384 was used to detect GST tag.

All lanes:

Western blot - Anti-PKC beta 2 antibody [Y125] (<a href='/ko/products/primary-antibodies/pkc-beta-2-antibody-y125-ab32026'>ab32026</a>) at 1/1000 dilution

Lane 1:

Western blot - Recombinant human PKC beta 2 protein (GST tag N-Terminus) (<a href='/ko/products/proteins-peptides/recombinant-human-pkc-beta-2-protein-ab60841'>ab60841</a>) at 10 ng

Lane 2:

Western blot - Recombinant human PKC beta 1 protein (GST tag N-Terminus) (ab60840) at 10 ng

Lane 3:

Western blot - Recombinant human PKC delta protein (GST tag N-Terminus) (<a href='/ko/products/proteins-peptides/recombinant-human-pkc-delta-protein-ab60844'>ab60844</a>) at 10 ng

Lane 4:

Western blot - Recombinant human PKC eta protein (GST tag N-Terminus) (<a href='/ko/products/proteins-peptides/recombinant-human-pkc-eta-protein-ab60849'>ab60849</a>) at 10 ng

Lane 5:

Western blot - Recombinant human PKC epsilon protein (GST tag N-Terminus) (<a href='/ko/products/proteins-peptides/recombinant-human-pkc-epsilon-protein-ab60847'>ab60847</a>) at 10 ng

Lane 6:

Western blot - Recombinant human PKC theta/PRKCQ protein (GST tag N-Terminus) (<a href='/ko/products/proteins-peptides/recombinant-human-pkc-theta-prkcq-protein-ab56641'>ab56641</a>) at 10 ng

Lane 7:

Western blot - Recombinant human PKC mu/PKD protein (GST tag N-Terminus) (<a href='/ko/products/proteins-peptides/recombinant-human-pkc-mu-pkd-protein-ab60873'>ab60873</a>) at 10 ng

Lane 8:

Western blot - Recombinant human PKC alpha protein (Active) (GST tag N-Terminus) (<a href='/ko/products/proteins-peptides/recombinant-human-pkc-alpha-protein-active-ab55672'>ab55672</a>) at 10 ng

Lane 9:

Western blot - Goat Anti-Rabbit IgG H&L (HRP) (<a href='/ko/products/secondary-antibodies/goat-rabbit-igg-h-l-hrp-ab97051'>ab97051</a>) at 10 ng

Secondary

All lanes:

Western blot - Goat Anti-Rabbit IgG H&L (HRP) (<a href='/ko/products/secondary-antibodies/goat-rabbit-igg-h-l-hrp-ab97051'>ab97051</a>) at 1/20000 dilution

Predicted band size: 77 kDa

Observed band size: 100 kDa

false

Supplier Data

Western blot - Recombinant human PKC beta 1 protein (GST tag N-Terminus) (AB60840)

This data was developed using ab32502, the same antibody clone in a different buffer formulation.

Blocking and diluting buffer and concentration : 5% NFDM/TBST.

All lanes:

Western blot - Anti-PKC alpha (phospho T638) antibody [E195] (<a href='/ko/products/primary-antibodies/pkc-alpha-phospho-t638-antibody-e195-ab32502'>ab32502</a>) at 1/1000 dilution

Lane 1:

Western blot - Recombinant human PKC alpha protein (Active) (GST tag N-Terminus) (<a href='/ko/products/proteins-peptides/recombinant-human-pkc-alpha-protein-active-ab55672'>ab55672</a>)

Lane 2:

Western blot - Recombinant human PKC beta 1 protein (GST tag N-Terminus) (ab60840)

Lane 3:

Western blot - Recombinant human PKC beta 2 protein (GST tag N-Terminus) (<a href='/ko/products/proteins-peptides/recombinant-human-pkc-beta-2-protein-ab60841'>ab60841</a>)

Lane 4:

Western blot - Recombinant human PKC gamma protein (GST tag N-Terminus) (<a href='/ko/products/proteins-peptides/recombinant-human-pkc-gamma-protein-ab60842'>ab60842</a>)

Lane 5:

Western blot - Recombinant human PKC delta protein (GST tag N-Terminus) (<a href='/ko/products/proteins-peptides/recombinant-human-pkc-delta-protein-ab60844'>ab60844</a>)

Lane 6:

Western blot - Recombinant human PKC zeta protein (GST tag N-Terminus) (<a href='/ko/products/proteins-peptides/recombinant-human-pkc-zeta-protein-ab60848'>ab60848</a>)

Lane 7:

Western blot - Recombinant human PKC eta protein (GST tag N-Terminus) (<a href='/ko/products/proteins-peptides/recombinant-human-pkc-eta-protein-ab60849'>ab60849</a>)

Lane 8:

Western blot - Recombinant human PKC theta/PRKCQ protein (GST tag N-Terminus) (<a href='/ko/products/proteins-peptides/recombinant-human-pkc-theta-prkcq-protein-ab56641'>ab56641</a>)

Lane 9:

Western blot - Recombinant human PKC iota protein (GST tag N-Terminus) (<a href='/ko/products/proteins-peptides/recombinant-human-pkc-iota-protein-ab60850'>ab60850</a>)

Secondary

All lanes:

Western blot - Goat Anti-Rabbit IgG H&L (HRP) (<a href='/ko/products/secondary-antibodies/goat-rabbit-igg-h-l-hrp-ab97051'>ab97051</a>) at 1/20000 dilution

Predicted band size: 76 kDa

Observed band size: 105 kDa

false

Exposure time: 60s

Supplier Data

Western blot - Recombinant human PKC beta 1 protein (GST tag N-Terminus) (AB60840)

This data was developed using ab53295, the same antibody clone in a different buffer formulation.

Blocking and diluting buffer and concentration : 5% NFDM/TBST.

All lanes:

Western blot - Anti-PKC delta (phospho T507) antibody [EPR1485Y] (<a href='/ko/products/primary-antibodies/pkc-delta-phospho-t507-antibody-epr1485y-ab53295'>ab53295</a>) at 1/1000 dilution

Lane 1:

Western blot - Recombinant human PKC alpha protein (Active) (GST tag N-Terminus) (<a href='/ko/products/proteins-peptides/recombinant-human-pkc-alpha-protein-active-ab55672'>ab55672</a>)

Lane 2:

Western blot - Recombinant human PKC beta 1 protein (GST tag N-Terminus) (ab60840)

Lane 3:

Western blot - Recombinant human PKC beta 2 protein (GST tag N-Terminus) (<a href='/ko/products/proteins-peptides/recombinant-human-pkc-beta-2-protein-ab60841'>ab60841</a>)

Lane 4:

Western blot - Recombinant human PKC gamma protein (GST tag N-Terminus) (<a href='/ko/products/proteins-peptides/recombinant-human-pkc-gamma-protein-ab60842'>ab60842</a>)

Lane 5:

Western blot - Recombinant human PKC delta protein (GST tag N-Terminus) (<a href='/ko/products/proteins-peptides/recombinant-human-pkc-delta-protein-ab60844'>ab60844</a>)

Lane 6:

Western blot - Recombinant human PKC zeta protein (GST tag N-Terminus) (<a href='/ko/products/proteins-peptides/recombinant-human-pkc-zeta-protein-ab60848'>ab60848</a>)

Lane 7:

Western blot - Recombinant human PKC eta protein (GST tag N-Terminus) (<a href='/ko/products/proteins-peptides/recombinant-human-pkc-eta-protein-ab60849'>ab60849</a>)

Lane 8:

Western blot - Recombinant human PKC theta/PRKCQ protein (GST tag N-Terminus) (<a href='/ko/products/proteins-peptides/recombinant-human-pkc-theta-prkcq-protein-ab56641'>ab56641</a>)

Lane 9:

Western blot - Recombinant human PKC iota protein (GST tag N-Terminus) (<a href='/ko/products/proteins-peptides/recombinant-human-pkc-iota-protein-ab60850'>ab60850</a>)

Secondary

All lanes:

Western blot - Goat Anti-Rabbit IgG H&L (HRP) (<a href='/ko/products/secondary-antibodies/goat-rabbit-igg-h-l-hrp-ab97051'>ab97051</a>) at 1/20000 dilution

Predicted band size: 78 kDa

Observed band size: 105 kDa

false

Exposure time: 180s

주요 정보

Purity

>90% Densitometry

Purity: >90% as determined by densitometry. Affinity purified.

발현 시스템

Baculovirus infected Sf9 cells

Applications

FuncS, WB, SDS-PAGE

applications

Biologically active

Yes

Biological activity

Specific Activity: 283 nmol/min/mg

Accession

P05771-1

Animal free

Carrier free

Species

Human

보관 버퍼

pH: 7.5 Constituents: 25% Glycerol (glycerin, glycerine), 0.87% Sodium chloride, 0.79% Tris HCl, 0.00385% (R*,R*)-1,4-Dimercaptobutan-2,3-diol, 0.0038% EGTA, 0.00292% EDTA, 0.00174% PMSF

storage-buffer

style

left-column

style

left-column

Reactivity 정보

{ "title": "Reactivity Data", "filters": { "stats": ["", "Reactivity", "Dilution Info", "Notes"] }, "values": { "SDS-PAGE": { "reactivity":"TESTED_AND_REACTS", "dilution-info":"", "notes":"" }, "FuncS": { "reactivity":"TESTED_AND_REACTS", "dilution-info":"", "notes":"" }, "WB": { "reactivity":"TESTED_AND_REACTS", "dilution-info":"", "notes":"ab60840 can be used as a WB positive control in conjunction with <a href='/ko/products/unavailable/pkc-beta-1-antibody-ab4132'>ab4132</a>." } } }

style

left-column

제품 세부 정보

ab204875 (PKC epsilon peptide) can be utilized as a substrate for assessing kinase activity

style

left-column

서열 정보

[{"linker":null,"sequence":"","proteinLength":"Full Length","predictedMolecularWeight":null,"actualMolecularWeight":null,"aminoAcidEnd":0,"aminoAcidStart":0,"nature":"Recombinant","expressionSystem":null,"accessionNumber":"P05771","tags":[{"tag":"GST","terminus":"N-Terminus"}]}]

style

left-column

특성 및 보관 정보

제형

Liquid

Purification 테크닉

Affinity purification

배송 시 보관 조건

Dry Ice

적절한 단기 보관 조건

-80°C

적절한 장기 보관 조건

-80°C

분주 정보

Upon delivery aliquot

보관 정보

Avoid freeze / thaw cycle

True

style

left-column

추가 정보

This supplementary information is collated from multiple sources and compiled automatically.

PKC beta 1 (Protein Kinase C beta 1) is an enzyme that belongs to the protein kinase C (PKC) family. It plays an important role in signal transduction processes. This protein has a molecular mass of approximately 80 kDa and is known to express in various tissues including the brain heart and spleen. PKC beta 1 undergoes phosphorylation upon activation which alters its structure and function. It localizes to the cytoplasm and also to the cellular membranes under certain conditions.

Biological function summary

PKC beta 1 is involved in regulating various cellular functions such as cell survival differentiation and proliferation. It operates as part of a larger kinase complex and influences downstream targets via its catalytic activity. The activity of PKC beta 1 impacts cytoskeleton reorganization and vesicular trafficking. It interacts with other PKC isoforms and different substrates contributing significantly to cellular homeostasis.

Pathways

PKC beta 1 plays a major role in the MAPK/ERK and PI3K/AKT pathways. These pathways are essential for transmitting signals from growth factors and hormones to cellular responses. PKC protein's interaction within these pathways involves modulation of other proteins like Raf-1 and Akt which are critical for executing biological outcomes. PKC beta 1 through its influence in these pathways partakes in controlling cell fate decisions.

PKC beta 1 has connections to diabetic complications and certain cancers. Its altered expression or dysregulation links with the progression of diabetic retinopathy by impacting vascular endothelial growth factor (VEGF) production. Additionally atypical PKC beta 1 signaling contributes to tumorigenesis in cancers like chronic lymphocytic leukemia. PKC protein’s aberrant activity in these conditions associates with altered survival pathways and resistance to apoptosis.

style

left-column

일반 정보

기능

Calcium-activated, phospholipid- and diacylglycerol (DAG)-dependent serine/threonine-protein kinase involved in various cellular processes such as regulation of the B-cell receptor (BCR) signalosome, oxidative stress-induced apoptosis, androgen receptor-dependent transcription regulation, insulin signaling and endothelial cells proliferation. Plays a key role in B-cell activation by regulating BCR-induced NF-kappa-B activation. Mediates the activation of the canonical NF-kappa-B pathway (NFKB1) by direct phosphorylation of CARD11/CARMA1 at 'Ser-559', 'Ser-644' and 'Ser-652'. Phosphorylation induces CARD11/CARMA1 association with lipid rafts and recruitment of the BCL10-MALT1 complex as well as MAP3K7/TAK1, which then activates IKK complex, resulting in nuclear translocation and activation of NFKB1. Plays a direct role in the negative feedback regulation of the BCR signaling, by down-modulating BTK function via direct phosphorylation of BTK at 'Ser-180', which results in the alteration of BTK plasma membrane localization and in turn inhibition of BTK activity (PubMed : 11598012). Involved in apoptosis following oxidative damage : in case of oxidative conditions, specifically phosphorylates 'Ser-36' of isoform p66Shc of SHC1, leading to mitochondrial accumulation of p66Shc, where p66Shc acts as a reactive oxygen species producer. Acts as a coactivator of androgen receptor (AR)-dependent transcription, by being recruited to AR target genes and specifically mediating phosphorylation of 'Thr-6' of histone H3 (H3T6ph), a specific tag for epigenetic transcriptional activation that prevents demethylation of histone H3 'Lys-4' (H3K4me) by LSD1/KDM1A (PubMed : 20228790). In insulin signaling, may function downstream of IRS1 in muscle cells and mediate insulin-dependent DNA synthesis through the RAF1-MAPK/ERK signaling cascade. Participates in the regulation of glucose transport in adipocytes by negatively modulating the insulin-stimulated translocation of the glucose transporter SLC2A4/GLUT4. Phosphorylates SLC2A1/GLUT1, promoting glucose uptake by SLC2A1/GLUT1 (PubMed : 25982116). Under high glucose in pancreatic beta-cells, is probably involved in the inhibition of the insulin gene transcription, via regulation of MYC expression. In endothelial cells, activation of PRKCB induces increased phosphorylation of RB1, increased VEGFA-induced cell proliferation, and inhibits PI3K/AKT-dependent nitric oxide synthase (NOS3/eNOS) regulation by insulin, which causes endothelial dysfunction. Also involved in triglyceride homeostasis (By similarity). Phosphorylates ATF2 which promotes cooperation between ATF2 and JUN, activating transcription (PubMed : 19176525). Phosphorylates KLHL3 in response to angiotensin II signaling, decreasing the interaction between KLHL3 and WNK4 (PubMed : 25313067). Phosphorylates and activates LRRK1, which phosphorylates RAB proteins involved in intracellular trafficking (PubMed : 36040231).. Isoform Beta-II. Acts as an activator of ferroptosis by mediating phosphorylation and activation of ACSL4 (PubMed : 35027735). Also stimulates ferroptosis propagation by catalyzing phosphorylation of FOXK1, thereby promoting LGALS13 secretion (PubMed : 40246981).

서열 유사성

Belongs to the protein kinase superfamily. AGC Ser/Thr protein kinase family. PKC subfamily.

Post-translational modifications

Phosphorylation on Thr-500 within the activation loop renders it competent to autophosphorylate. Subsequent autophosphorylation of Thr-642 maintains catalytic competence, and autophosphorylation on Ser-661 appears to release the kinase into the cytosol. Autophosphorylation on other sites i.e. in the N-terminal and hinge regions have no effect on enzyme activity. Phosphorylation at Tyr-662 by SYK induces binding with GRB2 and contributes to the activation of MAPK/ERK signaling cascade (By similarity).

style

left-column

제품 프로토콜

Visit the General protocols
Visit the Troubleshooting

style

left-column

타겟 정보

See full target information PRKCB

대체 명칭 보기

PKCB, PRKCB1, PRKCB, Protein kinase C beta type, PKC-B, PKC-beta

style

left-column

제품이 사용된 논문 (2)

Recent publications for all applications. Explore the 전체 목록 and refine your search

eLife 10: PubMed34821217

2021

Reversible phosphorylation of cyclin T1 promotes assembly and stability of P-TEFb.

Applications

Unspecified application

Species

Unspecified reactive species

Fang Huang,Trang Tt Nguyen,Ignacia Echeverria,Ramachandran Rakesh,Daniele C Cary,Hana Paculova,Andrej Sali,Arthur Weiss,Boris Matija Peterlin,Koh Fujinaga

Nature communications 10:329 PubMed30659190

2019

A selective inhibitor of mitofusin 1-βIIPKC association improves heart failure outcome in rats.

Applications

Unspecified application

Species

Unspecified reactive species

Julio C B Ferreira,Juliane C Campos,Nir Qvit,Xin Qi,Luiz H M Bozi,Luiz R G Bechara,Vanessa M Lima,Bruno B Queliconi,Marie-Helene Disatnik,Paulo M M Dourado,Alicia J Kowaltowski,Daria Mochly-Rosen

제품이 사용된 논문 모두 보기

style

left-column

style

left-column

style

right-column

Product promise

저희는 고품질 시약으로 고객님의 연구를 서포트하고자 최선을 다하고 있으며, 모든 단계에서 함께 하겠습니다. 만약 제품이 기대한 성능을 보이지 않을 경우에도 Product Promise로 보호받으실 수 있습니다.

자세한 내용은 이용 약관을 확인해 주세요.

Please note: All products are 'FOR RESEARCH USE ONLY. NOT FOR USE IN DIAGNOSTIC OR THERAPEUTIC PROCEDURES'.

For licensing inquiries, please contact partnerships@abcam.com

Recombinant human PKC beta 1 protein (GST tag N-Terminus)

Western blot - Recombinant human PKC beta 1 protein (GST tag N-Terminus) (AB60840)

Western blot - Recombinant human PKC beta 1 protein (GST tag N-Terminus) (AB60840)

Functional Studies - Recombinant human PKC beta 1 protein (GST tag N-Terminus) (AB60840)

Functional Studies - Recombinant human PKC beta 1 protein (GST tag N-Terminus) (AB60840)

Western blot - Recombinant human PKC beta 1 protein (GST tag N-Terminus) (AB60840)

Western blot - Recombinant human PKC beta 1 protein (GST tag N-Terminus) (AB60840)

Western blot - Recombinant human PKC beta 1 protein (GST tag N-Terminus) (AB60840)

Western blot - Recombinant human PKC beta 1 protein (GST tag N-Terminus) (AB60840)

SDS-PAGE - Recombinant human PKC beta 1 protein (GST tag N-Terminus) (AB60840)

SDS-PAGE - Recombinant human PKC beta 1 protein (GST tag N-Terminus) (AB60840)

Western blot - Recombinant human PKC beta 1 protein (GST tag N-Terminus) (AB60840)

Western blot - Recombinant human PKC beta 1 protein (GST tag N-Terminus) (AB60840)

Western blot - Recombinant human PKC beta 1 protein (GST tag N-Terminus) (AB60840)

Western blot - Recombinant human PKC beta 1 protein (GST tag N-Terminus) (AB60840)

Western blot - Recombinant human PKC beta 1 protein (GST tag N-Terminus) (AB60840)

주요 정보

Purity

발현 시스템

Tags

Applications

Biologically active

Biological activity

Accession

Animal free

Carrier free

Species

보관 버퍼

보완 제품

Proteins & Peptides

Proteins & Peptides

Primary Antibodies

Proteins & Peptides

Reactivity 정보

제품 세부 정보

서열 정보

특성 및 보관 정보

제형

Purification 테크닉

배송 시 보관 조건

적절한 단기 보관 조건

적절한 장기 보관 조건

분주 정보

보관 정보

추가 정보

Biological function summary

Pathways

일반 정보

기능

서열 유사성

Post-translational modifications

제품 프로토콜

타겟 정보

대체 명칭 보기

제품이 사용된 논문 (2)

Product promise
